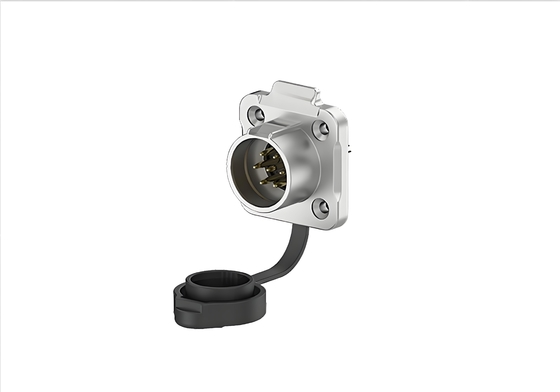

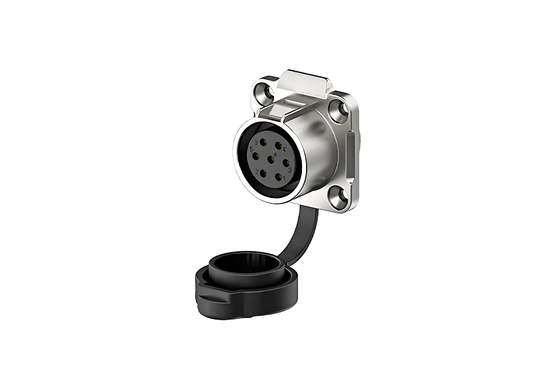

LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock
  • name
  • name
  • name
  • name

LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
LP20 7-Pin Waterproof Signal Connector 10A IP67 Metal-Plastic Flange Locking Type
Waterproof:
IP68/IP67
Flame Resistanc:
UL94 V-0
Metal:
Gilded Brass
Material:
Metal + Plastic
Insertion Life:
≥1900 Times
Dustproof:
100% Dustproof
Withstand Temperature:
-40℃~+80℃
Highlight:

7-pin waterproof connector IP67

,

metal-plastic flange lock connector

,

10A waterproof circular connector

Product Description
LP20 7-Pin Waterproof Signal Connector 10A IP67 Metal-Plastic Flange Locking Type
Product Specifications
Attribute Value
Name LP20 7-Pin Waterproof Signal Connector 10A IP67 Metal-Plastic Flange Locking Type
Waterproof IP68/IP67
Flame Resistance UL94 V-0
Metal Gilded brass
Material Metal + Plastic
Insertion life ≥1900 times
Dustproof 100% Dustproof
Withstand Temperature -40℃~+80℃
Technical Details
  • Pin: 7 Pin
  • Current Rating: 10A Max
  • Material: Metal+plastic construction
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • UV Resistance: Outdoor rated
  • Cable Jacket OD: 1-1.5 mm²
Performance Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm | Standard Signal: ⌀5-6.5mm | Other: ⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Key Advantages
  • Premium Materials: High-performance PBT housing with gold-plated brass contacts for stable electrical properties, heat resistance, and corrosion resistance
  • Secure Locking: Push-to-lock snap-fit design ensures vibration-resistant connections
  • Waterproof Protection: Standard IP67 rating (IP68 optional) for reliable performance in wet environments
  • Certified Quality: Complies with TUV, ISO, CE, and RoHS standards
  • High Current Capacity: Supports up to 20A power transmission for medium-to-high-power applications
  • Versatile Design: 7-pin configuration allows multiple signal/power transmissions in a compact form factor
Application Industries
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 0
Automation Equipment
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 1
LED Lighting
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 2
Security Equipment
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 3
Telecommunication Equipment
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 4
New Energy
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 5
Electronic Devices
Technical Drawings
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 6
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 7
Frequently Asked Questions
Q: What is the primary application of this 7-pin connector?
A: Designed for signal transmission in harsh environments, ideal for industrial sensors, marine electronics, and IoT devices requiring waterproof (IP67) and vibration-resistant connections.
Q: How does the flange locking mechanism work?
A: The flange design with screw threads ensures a secure, vibration-proof connection. The metal locking ring prevents accidental disengagement in high-movement applications.
Tags:

Water Resistant Circular Connector

Male And Female Connectors

Circular Cable Connectors

Good price online

Products Details

Home > Products >
Waterproof Circular Connector
>
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock
  • name
  • name
  • name
  • name

LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Brand Name:
Cablein
Certification:
CE, ROHS, TUV , ETL
Name:
LP20 7-Pin Waterproof Signal Connector 10A IP67 Metal-Plastic Flange Locking Type
Waterproof:
IP68/IP67
Flame Resistanc:
UL94 V-0
Metal:
Gilded Brass
Material:
Metal + Plastic
Insertion Life:
≥1900 Times
Dustproof:
100% Dustproof
Withstand Temperature:
-40℃~+80℃
Minimum Order Quantity:
100PCS
Price:
The price ranges from $1 to $4 USD per pieces
Packaging Details:
High Quality export carton
Delivery Time:
5-8 Working Days
Payment Terms:
T/T,Western Union
Highlight:

7-pin waterproof connector IP67

,

metal-plastic flange lock connector

,

10A waterproof circular connector

Product Description
LP20 7-Pin Waterproof Signal Connector 10A IP67 Metal-Plastic Flange Locking Type
Product Specifications
Attribute Value
Name LP20 7-Pin Waterproof Signal Connector 10A IP67 Metal-Plastic Flange Locking Type
Waterproof IP68/IP67
Flame Resistance UL94 V-0
Metal Gilded brass
Material Metal + Plastic
Insertion life ≥1900 times
Dustproof 100% Dustproof
Withstand Temperature -40℃~+80℃
Technical Details
  • Pin: 7 Pin
  • Current Rating: 10A Max
  • Material: Metal+plastic construction
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • UV Resistance: Outdoor rated
  • Cable Jacket OD: 1-1.5 mm²
Performance Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm | Standard Signal: ⌀5-6.5mm | Other: ⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Key Advantages
  • Premium Materials: High-performance PBT housing with gold-plated brass contacts for stable electrical properties, heat resistance, and corrosion resistance
  • Secure Locking: Push-to-lock snap-fit design ensures vibration-resistant connections
  • Waterproof Protection: Standard IP67 rating (IP68 optional) for reliable performance in wet environments
  • Certified Quality: Complies with TUV, ISO, CE, and RoHS standards
  • High Current Capacity: Supports up to 20A power transmission for medium-to-high-power applications
  • Versatile Design: 7-pin configuration allows multiple signal/power transmissions in a compact form factor
Application Industries
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 0
Automation Equipment
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 1
LED Lighting
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 2
Security Equipment
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 3
Telecommunication Equipment
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 4
New Energy
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 5
Electronic Devices
Technical Drawings
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 6
LP20 7-Pin Waterproof Connector IP67 10A Metal-Plastic Flange Lock 7
Frequently Asked Questions
Q: What is the primary application of this 7-pin connector?
A: Designed for signal transmission in harsh environments, ideal for industrial sensors, marine electronics, and IoT devices requiring waterproof (IP67) and vibration-resistant connections.
Q: How does the flange locking mechanism work?
A: The flange design with screw threads ensures a secure, vibration-proof connection. The metal locking ring prevents accidental disengagement in high-movement applications.
Tags:

Water Resistant Circular Connector

Male And Female Connectors

Circular Cable Connectors
