Waterproof Circular Connector

P16 IP67 Waterproof Circular Connector with 500V Rated Voltage and Self-Locking Butt Type for Secure Connections

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

P16 IP67 Waterproof Circular Connector with 500V Rated Voltage and Self-Locking Butt Type for Secure Connections

Brand Name:	Cablein
Model Number:	CB-P16-FDF01-3P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

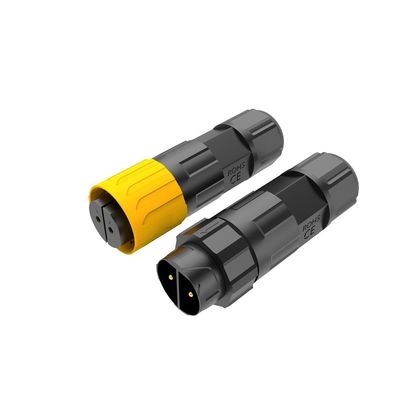

P16 Self-Locking Weeder Waterproof Connector Male And Female Circular Connector

Metal:

Gilded Brass

Material:

PA6 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Highlight:

Waterproof Self Locking Wire Connector

Weeder Male And Female Circular Connector

P16 Male And Female Circular Connector

Product Description

P16 Waterproof Self Locking Wire Connector

Professional male and female circular connector designed for demanding industrial applications with self-locking waterproof features.

Product Specifications

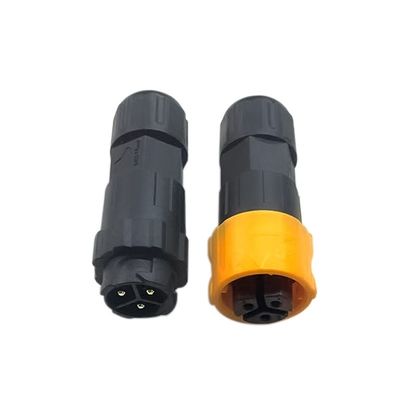

Pin Configuration: 3 Pin Male/Female

Current Rating: 15A Max

Material: PA6 Nylon

Connection Type: Self-locking butt type

Operating Voltage: 500V

Assembly Method: Soldering or screw fitting

UV Resistance: Outdoor rated

Cable Jacket OD: 4.5-9.2 mm²

Technical Datasheet

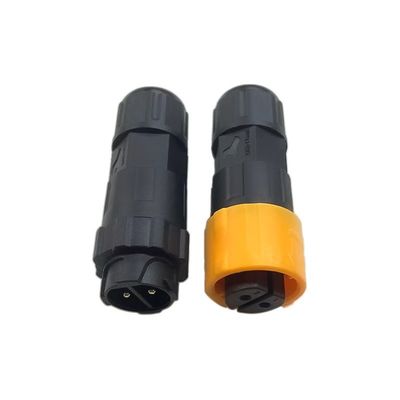

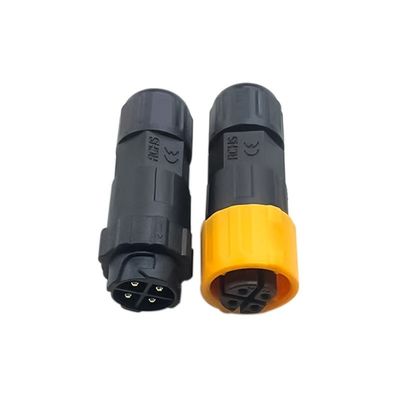

Pins Number	2Pins	3Pins	4Pins	8Pins
Rated Voltage	500V	500V	500V	100V
Rated Current	15A	15A	15A	5A
Insulation Voltage	3KV	3KV	1KV	1KV
DC 500V Insulation Resistance	500MΩ	500MΩ	500MΩ	500MΩ
IP CODE	IP67	IP67	IP67	IP67
Cable Specifications	≤1.5mm²	≤1.5mm²	≤1.5mm²	≤1.5mm²
Assembly Cable Diameter	4.5-9.2mm	4.5-9.2mm	4.5-9.2mm	4.5-9.2mm

Product Advantages

The P16 Self-Locking Weeder Waterproof Connector is engineered for superior performance in demanding environments. Its innovative design provides secure, watertight connections ideal for outdoor and industrial applications where reliability is critical.

Featuring a robust self-locking mechanism, this circular connector ensures stable connections that resist vibration and environmental stress. The IP67 rating provides complete protection against moisture and dust, safeguarding electrical components and ensuring uninterrupted operation.

In agricultural and industrial machinery applications, these connectors significantly enhance equipment performance and longevity by reducing downtime caused by connection failures.

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Industrial Inkjet Equipment
Solar Power Systems
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Technical Drawing

Frequently Asked Questions

How to buy your products?

Contact our sales team online or by email. Please provide the following information:

Current Rating and Number of Contacts
Assembly Style
Cable Wire Gauge
Cable Length and Shipping Method

Can I get samples?

Yes, we are pleased to provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch the sample immediately.
