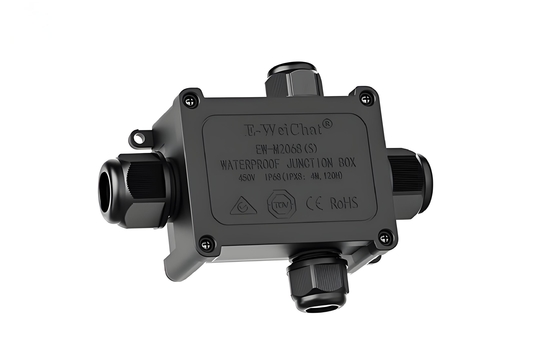

Waterproof ThroughType Junction Box 1in3Out Cable Gland Enclosure for Electrical Data Connections

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Wire Gauge:

18-22 AWG

Ip Grade:

IP68

Samples:

Paid Samples

Wire Materials:

PVC, Rubber, Silicone, PE

Operating Temperature:

-40°C To 105°C

Materials:

Plastic

Type:

Through-Type

Color:

Black

Product Description

Waterproof ThroughType Junction Box 1in3Out Cable Gland Enclosure for Electrical Data Connections

Specifications

Connection Type: Screw-Type

Type: 1-in-3-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 3*M20:5-9mm 9-12mm,2*M25:5-9mm 9-12mm 10-14mm

P/N : CB-2068S-4TB

Datasheet

Parameter	Specification
Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5 - 9 mm, 9 - 12 mm,10-14mm
Connector Size	2M25/1M20,2M25/2M20,2M25/3M20,2M25/4M20,2*M25

Advantages:

IP68 Maximum Protection

Ensures complete defense against water, dust, and dirt for reliable operation in harsh environments.
Simplified 1-in-3-Out Wiring

Streamlines cable management by distributing one input to three outputs in a single, organized enclosure.
Robust & Corrosion-Resistant Build

Constructed from durable materials for long-lasting performance in outdoor, industrial, or marine applications.
Universal Compatibility

Securely seals and protects a wide range of electrical and data cables with various gland sizes.

Product Images

FAQ

1. Q: What is the IP rating of this junction box?

A: It is rated IP68, offering complete protection against dust and continuous submersion in water.

2. Q: What cable types is it compatible with?

A: It is designed for universal use with both electrical power cables and data/communication cables.

3. Q: How are the cables sealed and secured?

A: Cables are sealed using integrated cable glands that tighten to create a watertight lock around each cable.
