BC05 PV AC Waterproof Connector – Reliable Solar AC Connection Solution

Cablein's BC05 PV AC Waterproof Connector delivers enterprise-grade performance for micro-inverter AC bus systems in photovoltaic installations. Built for open air sun based situations, this connector highlights IP68 waterproof assurance, 300V AC evaluated voltage, and works dependably over -40℃ to +85℃. With gold-plated copper terminals accomplishing contact resistance underneath 5mΩ, UL94-V0 flame-retardant PPO lodging, and compatibility with 12-40A current evaluations, it guarantees effective control transmission. The item offers both screw-type and crimp-type terminations, supporting adaptable field wiring for private and commercial sun based frameworks. TUV and CSA certifications ensure universal security compliance.

What Makes the BC05 PV AC Waterproof Connector Essential?

You need a connector that won't fail when your solar system faces rain, dust, or extreme temperatures. That's exactly what this product delivers.

The BC05 PV AC Waterproof Connector solves critical challenges in photovoltaic installations. Moisture ingress causes electrical failures. Complex field terminations waste your time. UV exposure degrades inferior connectors over years.

This connector dispenses with those problems.

Its snap-lock instrument makes an capable of being heard press when legitimately mated. You'll know promptly that your association is secure. No uncommon apparatuses required for assembly.

The 3-pin setup (2P+PE) handles single-phase AC control transmission from sun powered boards to lattice proficiently. Silver-plated contacts avoid oxidation. Your framework keeps up steady execution all through its 25-year lifecycle.

Where You'll Use This Connector

Residential Rooftop Systems

Installing multiple micro-inverters becomes faster with this plug-and-play solution. You can daisy-chain units quickly, reducing labor costs significantly. Homeowners with balcony PV systems appreciate the DIY-friendly design.

Commercial Solar Installations

Your floating PV plants and commercial arrays face constant humidity exposure. The hermetic seal prevents internal condensation and salt-air corrosion. This matters when you're targeting 25 years of reliable operation.

Extreme Climate Environments

Desert solar farms experience dramatic temperature swings. The thermal cycling resilience prevents the "breathing effect" where connectors draw in moisture-laden air. Your insulation integrity stays intact from -40℃ to +85℃.

Technical Properties That Protect Your Investment

Material Excellence

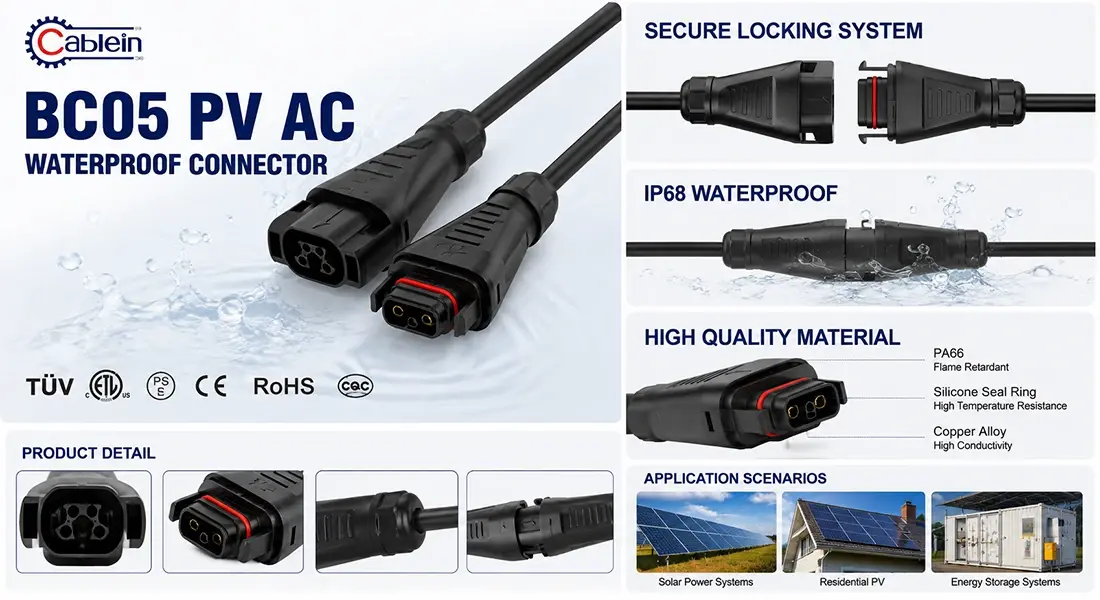

The housing uses high-grade PPO material that resists UV radiation without cracking. This isn't ordinary plastic. It meets UL94-V0 flame retardancy standards, meaning it self-extinguishes when exposed to fire.

You're protected against ammonia, salt spray, and industrial pollutants. Agricultural and coastal deployments demand this level of chemical resistance.

Electrical Performance

Current ratings span from 12A (branch line) to 40A (main line configurations). This flexibility lets you design systems that match your specific power requirements.

The 300V AC rating handles residential single-phase systems safely. Gold-plated contacts maintain average contact resistance below 5mΩ, preventing transmission losses that waste your generated power.

Protection Rating

IP68 certification means complete dust-tightness. You can submerge this connector under water continuously without ingress. Some variants meet IP69K standards, withstanding high-pressure steam jet cleaning.

This level of protection aligns with IEC 62852 and UL 6703 requirements for photovoltaic applications.

Quality Verification You Can Trust

We don't just claim reliability. Every BC05 PV AC Waterproof Connector undergoes rigorous testing:

Insulation Resistance Testing confirms values exceed 500MΩ at 500V DC. Leakage current won't compromise your safety.

Contact Resistance Analysis verifies performance below 1mΩ. Low resistance means minimal power loss and reduced heat generation.

Pull-out Force Testing validates mechanical locking above 150N. Your connections stay secure even under vibration.

IPX8 Immersion Test involves 48-hour submersion under 1 meter of water. Zero ingress is our standard.

Accelerated Aging Tests simulate 25 years of outdoor exposure using xenon arc UV and salt spray testing per ISO 9227. The connector maintains sealing properties throughout its lifecycle.

Installation Advantages

Tool-Free Locking

The snap-lock mechanism simplifies field installation. Your team works faster without carrying specialized equipment. The audible click confirms proper connection every time.

A specific disassembly tool prevents unauthorized disconnection. This safety feature protects against accidental separations.

Flexible Termination Options

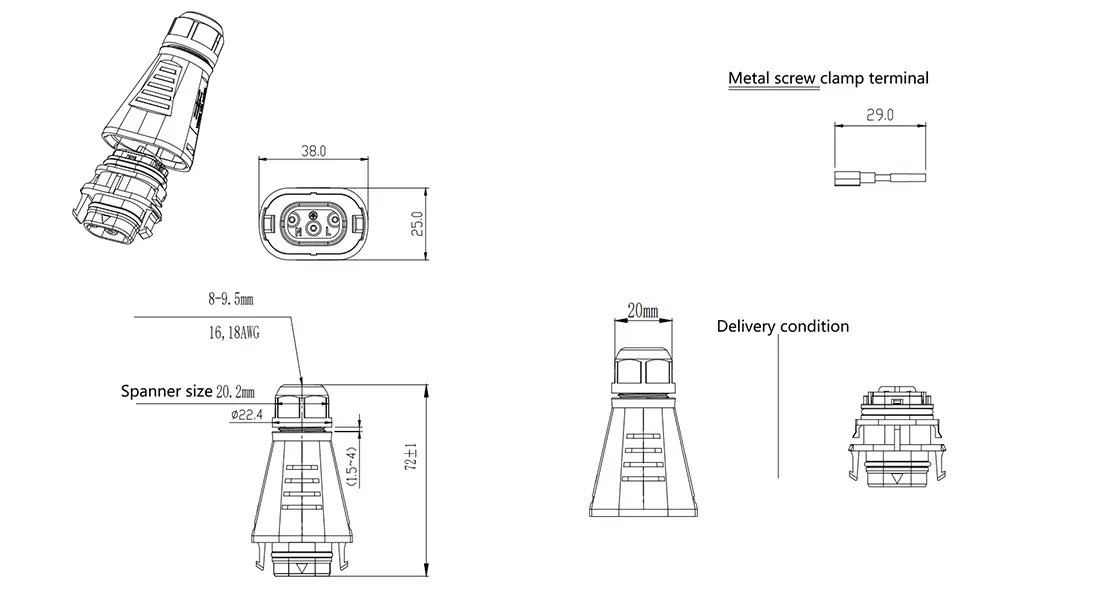

Screw-type termination suits main line installations where you need robust connections. Crimp-type termination works perfectly for branch lines requiring quick assembly.

This versatility accommodates different wiring scenarios you'll encounter on-site.

Cable Compatibility

Most models accept 2.5mm², 4.0mm², and 6.0mm² AC cables. Interchangeable internal sealing rings adapt to varying cable outer diameters. You maintain the same connector standard across your project.

Frequently Asked Questions

Q1: Can I disengage the connector whereas the framework is operating?

A: No, you must switch off the AC breaker some time recently detachment. This avoids unsafe arcing. Continuously take after appropriate lockout-tagout procedures.

Q2: How does this connector handle vibration in blustery locations?

A: The auxiliary locking instrument incorporates a high-tension inside spring contact. This keeps up consistent weight, passing IEC 60068-2-6 vibration testing measures. Wind-prone establishments remain secure.

Q3: What's the anticipated benefit life?

A: When introduced accurately, you get 25 a long time of solid benefit. This matches the lifecycle of cutting edge photovoltaic modules, securing your long-term investment.

Q4: Which cable cross-sections work with this connector?

A: Standard compatibility incorporates 2.5mm², 4.0mm², and 6.0mm² cables. Check your particular model's datasheet for correct specifications.

Q5: Does it comply with universal security standards?

A: Yes. TUV, CSA, CE, and RoHS certifications guarantee worldwide compliance. Your establishments meet neighborhood electrical codes and protections requirements.

Why Choose Cablein's Solution

Since 2017, we've specialized in waterproof connector technology from our 6,000㎡ facility in Shenzhen. Our 200+ person team brings manufacturing precision to every unit.

With over 30 utility model patents, we understand the engineering challenges you face. Our ISO9001:2015 certified quality management ensures 100% inspection of waterproof performance, durability, and electrical reliability.

We maintain inventory exceeding 10,000 pieces per item. Standard orders ship within 7-10 days. Your project timelines stay on track.

Global logistics partnerships with UPS, DHL, and FedEx mean efficient delivery wherever you're building. Our 24-hour technical support team assists with project planning and troubleshooting.

Ready to Secure Your Solar Installation?

Contact us at nick@cableinco.com for technical specifications, BC05 PV AC Waterproof Connector sample availability, or project consultation. Let's confirm the right configuration for your system requirements together.
