Cablein Waterproof Connector Solutions for Smart Sunrooms & Outdoor Pergolas
Reliable Outdoor Power Connectivity for Intelligent Shading, Lighting, and Automation Systems
With the rapid growth of smart outdoor living spaces, smart sunrooms, bioclimatic pergolas, smart outdoor pavilions, and smart intelligent shading systems are becoming increasingly popular in residential and commercial projects worldwide. These outdoor structures integrate multiple electrical systems, including motorized louvers, roller blinds, LED lighting, RGB light strips, sensors, controllers, and power modules, creating higher requirements for safe, stable, and weather-resistant electrical connections.
As a professional waterproof connector manufacturer, Cablein provides a complete range of M8, M10, M12, M15, M16, and M20 waterproof connector solutions specially designed for outdoor intelligent structures. These connectors ensure reliable power transmission and signal connection even under harsh outdoor conditions such as rain, humidity, UV exposure, temperature fluctuations, and dust environments.
Based on the actual wiring design of intelligent sunrooms and pergola systems, Cablein waterproof connectors provide a complete connection solution from power input → controller → motor → lighting → extension branches, helping system manufacturers build safer and more durable outdoor electrical systems.
1. Professional Waterproof Connection Solution for Smart Sunrooms & Pergolas
Modern outdoor sunrooms and smart pergolas typically include multiple electrical components:
*Motorized roof louvers
*Electric roller blinds
*LED lighting systems
*RGB ambient lighting
*Smart controllers
*Power supply modules
*Outdoor sensors
*Extension cable systems

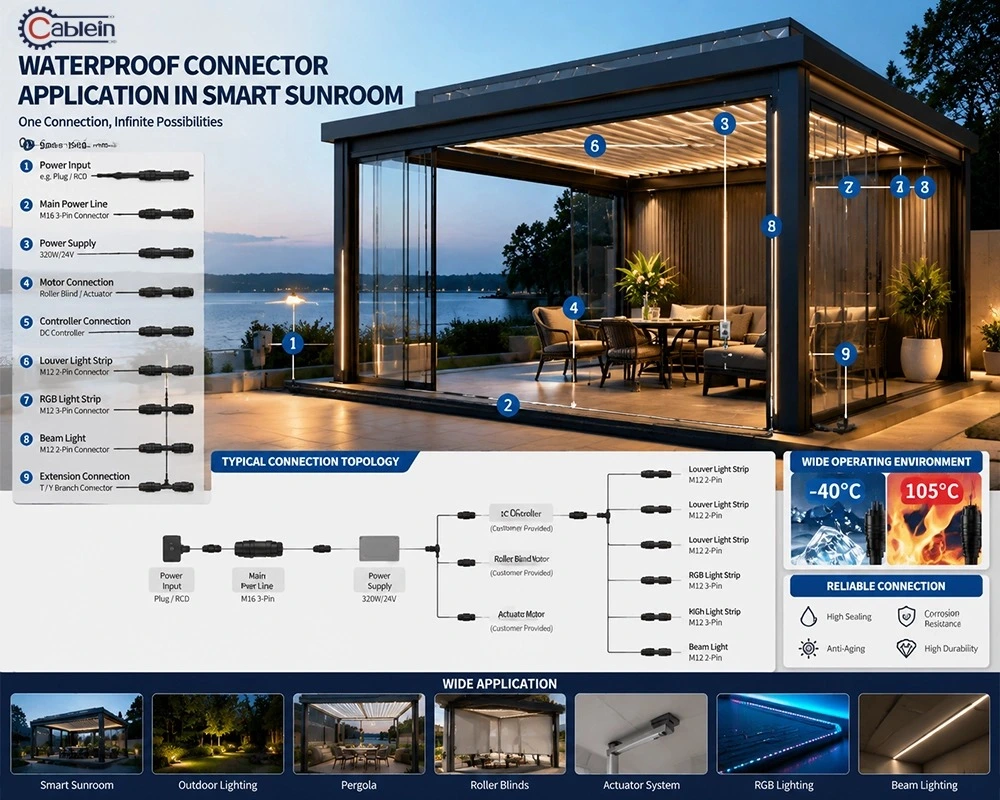

The wiring diagram provided demonstrates a complete intelligent outdoor structure solution using multiple waterproof connectors, including M12 and M16 waterproof connection systems for motors, lighting, and power distribution.
Cablein waterproof connectors are engineered to simplify installation while ensuring long-term reliability:
Power Input → Waterproof Main Connection → Smart Controller → Branch Distribution → Outdoor Devices
This modular connection method reduces installation complexity and improves maintenance efficiency.
2. Complete Product Portfolio Covering Different Outdoor Applications
Cablein offers different waterproof connector sizes to meet various electrical requirements in smart outdoor applications.
M8 Waterproof Connector – Compact Signal & Lighting Connection
The M8 series is ideal for:
*Outdoor sensors
*Small LED modules
*Smart control devices
*Low-power signal connections
Advantages:
✓ Compact structure
✓ Easy installation in limited spaces
✓ Excellent sealing performance
✓ Suitable for intelligent control systems
M10 Waterproof Connector – Flexible Outdoor Equipment Connection
The M10 series provides a balanced solution for:
*Outdoor lighting
*Small motors
*Smart home accessories
*Compact electrical devices
Key advantages:
✓ Space-saving design
✓ Reliable locking structure
✓ Protection against moisture and dust
✓ Long service life outdoors
M12 Waterproof Connector – The Ideal Choice for Smart Lighting Systems
M12 waterproof connectors are widely used in outdoor pergola and sunroom lighting applications.
Typical applications:
*RGB light strips
*LED beam lights
*Decorative lighting
*Sensor systems

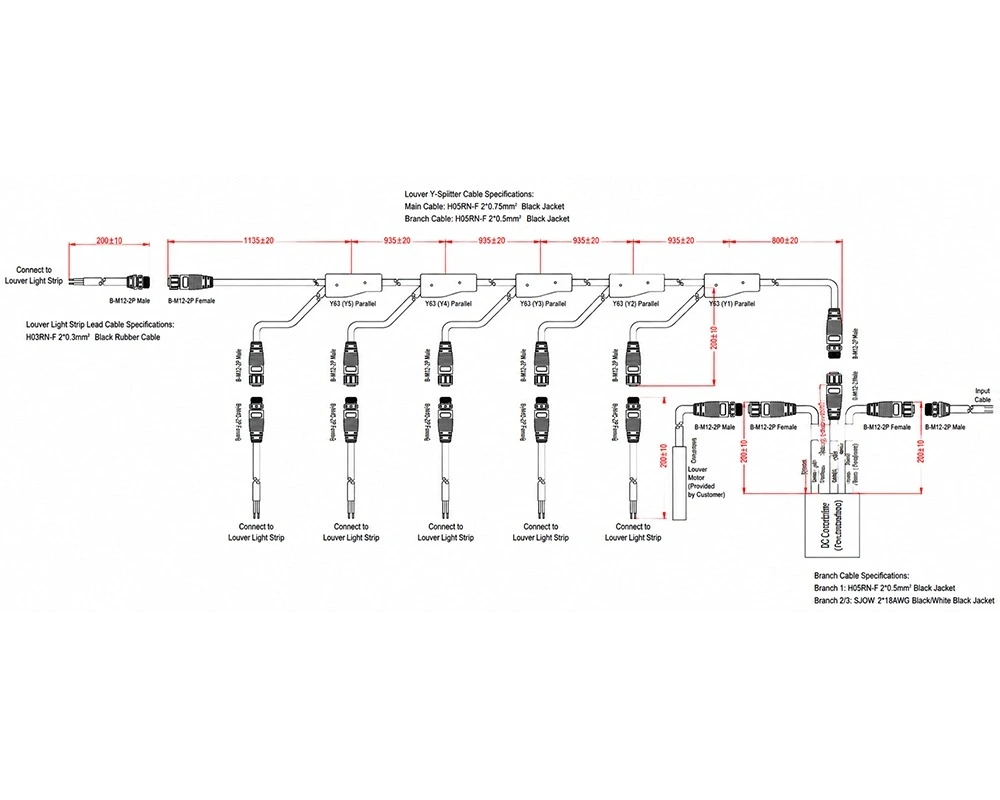

According to the system design, M12 connectors are applied for multiple lighting branches and outdoor devices.
Advantages:
✓ IP-rated waterproof protection
✓ Fast and secure connection
✓ Anti-corrosion contacts
✓ Suitable for repeated installation
M15 Waterproof Connector – Reliable Medium Power Connection
The M15 series is suitable for:
*Outdoor power extension
*Motorized equipment
*Smart outdoor accessories
Benefits:
✓ Strong mechanical structure
✓ High current carrying capability
✓ Stable connection under vibration
M16 Waterproof Connector – Main Power & Motor Connection Solution
For intelligent sunroom and pergola systems, M16 connectors are commonly used as the main connection interface.
Applications:
*Main power supply
*Motor control systems
*Roller blind motors
*Actuator systems

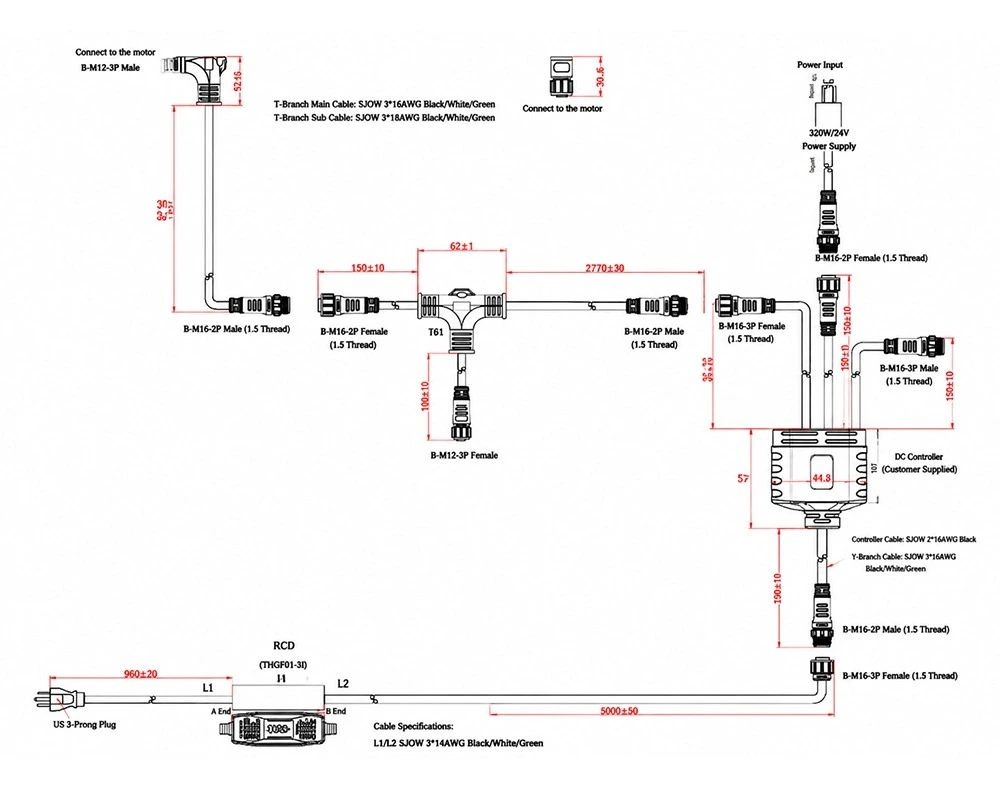

The supplied wiring design shows M16 connectors used for the main power line and motor-related connections in an intelligent outdoor system.
Advantages:
✓ High reliability for power transmission
✓ Strong locking mechanism
✓ Excellent waterproof sealing
✓ Suitable for outdoor electrical equipment
M20 Waterproof Connector – Heavy-Duty Outdoor Connection
The M20 series is designed for larger outdoor electrical systems requiring:
*Higher power transmission
*Multi-cable integration
*Industrial-grade protection
Applications:
*Large smart pergolas
*Outdoor architectural lighting
*Commercial sunroom project
Advantages:
✓ Strong mechanical durability
✓ High environmental resistance
✓ Stable performance in demanding conditions
3. Designed for Extreme Outdoor Environments
Outdoor intelligent structures face continuous environmental challenges:
*Heavy rain
*High humidity
*Strong sunlight
*Temperature changes
*Dust contamination
*Long-term outdoor exposure
Cablein waterproof connectors are engineered with:
High Waterproof Protection
The sealed connector structure prevents:
*Water penetration
*Moisture damage
*Electrical short circuits
*Ensuring safe operation of outdoor lighting and automation systems.
UV & Aging Resistance
Outdoor connectors must withstand years of sunlight exposure.
Cablein solutions provide:
✓ UV-resistant housing materials
✓ Anti-aging performance
✓ Long-term outdoor reliability
Corrosion Resistance
Outdoor environments may include:
*Rainwater
*Coastal salt spray
*Humid climate
Cablein connectors use high-quality materials and reliable contact designs to maintain stable electrical performance.
4. Simplified Installation for Smart Outdoor Systems
Traditional outdoor wiring often requires complicated waterproofing processes.
Cablein waterproof connectors provide:
Plug-and-Play Connection
Benefits:
✓ Faster installation
✓ Reduced wiring errors
✓ Lower maintenance costs
✓ Improved system consistency
Modular Branch Connection
With M12/M16 waterproof connector systems, multiple devices can be connected easily:
*Lighting branches
*Motor systems
*Controller modules
*Extension cables
*Creating a clean and professional installation.
5. Professional Solution for Global Outdoor Living Markets
Cablein waterproof connectors are suitable for:
Residential Applications
*Smart garden rooms
*Luxury outdoor patios
*Private pergolas
*Villa outdoor spaces
Commercial Applications
*Hotel terraces
*Outdoor restaurants
*Resort pavilions
*Commercial sunrooms
Smart Building Applications
*Automated shading systems
*Outdoor lighting control
*Intelligent architectural systems
Why Choose Cablein Waterproof Connectors?
Professional Outdoor Connection Experience
Cablein focuses on industrial waterproof connector solutions, providing reliable connection technology for demanding environments.
Complete Size Selection
From compact M8 connectors to heavy-duty M20 solutions, Cablein supports different power and installation requirements.
Application-Oriented Design
*Products are developed based on real applications:
*Smart sunrooms
*Outdoor pergolas
*Motorized shading systems
*Outdoor LED lighting
Reliable Long-Term Performance
Cablein waterproof connectors help customers achieve:
Safer Connections · Easier Installation · Longer Service Life
Cablein — Reliable Waterproof Connection Solutions for Smart Outdoor Living
For smart sunrooms, intelligent pergolas, and outdoor automation systems, every connection matters.
With professional M8, M10, M12, M15, M16, and M20 waterproof connector solutions, Cablein provides a complete electrical connection platform designed for modern outdoor living environments.
From power supply to intelligent control, Cablein protects every connection in outdoor spaces.
