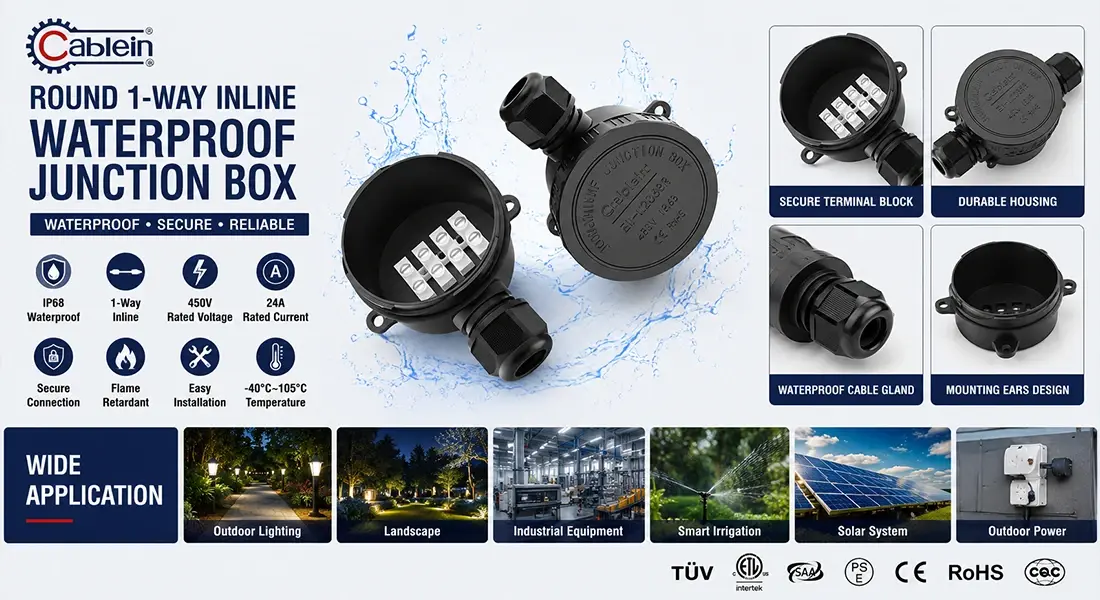

Round 1-Way Inline Waterproof Junction Box

Round 1-Way Inline Waterproof Junction Box – Reliable Protection for Critical Cable Connections

When you need dependable cable protection in harsh environments, the Round 1-Way Inline Waterproof Junction Box delivers enterprise-grade performance. Cablein Technology's arrangement highlights IP68-rated submersion assurance tried to 2 meters for 2 hours, and works faultlessly over -40°C to +85°C. Built from UV-stabilized PA66 nylon with UL94-V0 fire retardancy, it handles cable breadths from φ5.0 to φ9.0mm through exactness silicone gaskets. The tool-free terminal square underpins 17.5A at 450V AC, with cover resistance surpassing 500MΩ and contact resistance underneath 50MΩ. This compact circular plan fits tight spaces whereas giving 1,000+ mechanical cycles and withstanding 2500V AC dielectric tests—perfect for requesting open air installations.

What Makes This Inline Junction Box Essential?

You confront genuine challenges when securing cable joins outside. Rain, tidy, and temperature swings undermine your associations daily.

This specialized walled in area understands those issues head-on. The 1-way inline arrangement ensures single cable expansions and repairs where space is tight. Not at all like bulky multi-port boxes, its round and hollow shape slides into limit conduits and gear cavities.

The IP68 waterproof rating implies genuine assurance. Your associations remain dry indeed when submerged. The silicone elastic gasket makes a total seal around approaching cables.

UV-stabilized lodging won't split or blur after a long time of sun introduction. The flame-retardant fabric meets UL94-V0 measures for security in all applications.

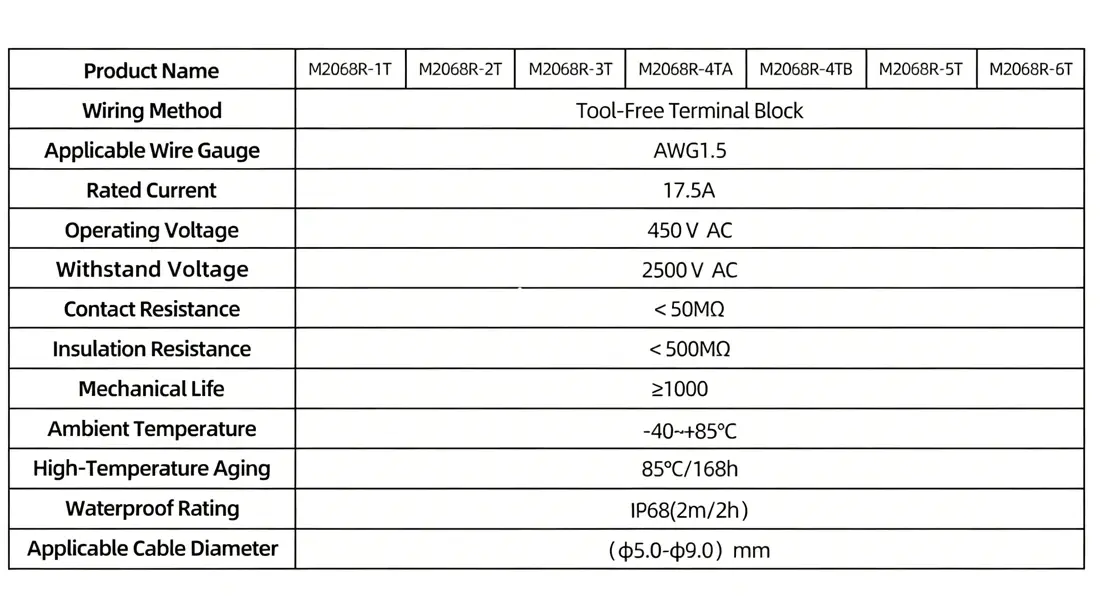

Technical Specifications That Matter

Understanding the numbers helps you make smart decisions. Here's what powers this Round 1-Way Inline Waterproof Junction Box:

Electrical Performance:

• Rated current reaches 17.5A for most lighting and control circuits
• Operating voltage of 450V AC handles standard industrial applications
• Withstand voltage testing at 2500V AC proves robust insulation
• Contact resistance stays under 50MΩ for reliable conductivity
• Insulation resistance exceeds 500MΩ to prevent current leakage

Environmental Durability:

• Temperature range from -40°C to +85°C covers extreme climates
• High-temperature aging tested at 85°C for 168 hours
• IP68 waterproof protection verified at 2-meter submersion for 2 hours
• Mechanical life exceeds 1,000 open-close cycles

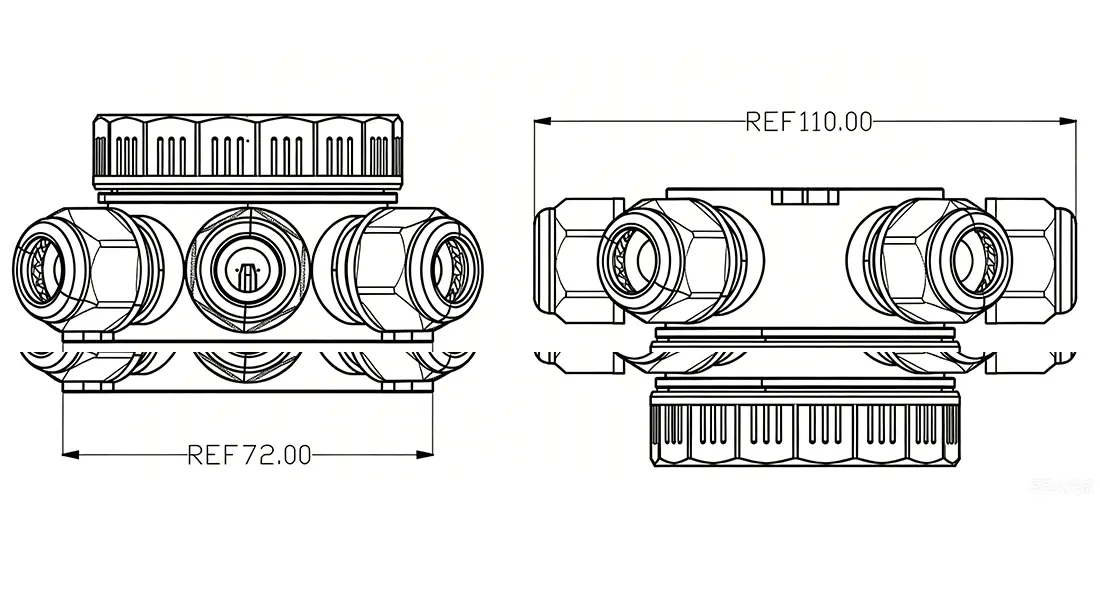

Physical Specifications:

• Accepts cable diameters from 5.0mm to 9.0mm
• Compatible with AWG1.5 wire gauge
• Tool-free terminal block speeds installation
• Compact round footprint saves valuable space

Where You'll Use This Junction Box

Real-world applications drive our design. You'll find this inline box protecting connections in:

Garden and Landscape Lighting:

Your outdoor lighting systems need reliable splices. This box seals connections for path lights, accent lighting, and garden fixtures. It keeps water out of critical junction points in flowerbeds and lawns.

Pump and Fountain Installations:

Water features demand waterproof protection. The IP68 rating handles constant moisture exposure. Your fountain pumps and underwater lights stay connected safely.

Agricultural and Greenhouse Systems:

Farm environments are tough on electrical connections. Fertilizers, irrigation spray, and temperature changes test every component. This junction box stands up to chemical exposure and humidity.

Industrial Outdoor Equipment:

Sensor connections and control wiring need protection from the elements. The compact design fits into machinery housings and control panels. It maintains signal integrity in automation systems.

Solar Panel and Renewable Energy:

Clean energy installations face years of weather exposure. This box protects DC connections and monitoring equipment splices. Its temperature range handles both desert heat and winter cold.

Smart Design Advantages You'll Appreciate

Every feature serves a purpose. Here's what makes this junction box work better for you:

Space-Saving Profile:

The round body occupies minimal space. You can install it in tight equipment cavities where rectangular boxes won't fit. It tucks into narrow conduits and small enclosures easily.

Quick Tool-Free Access:

The snap-fit lid opens without tools when you need to inspect or modify connections. Spring terminals accept wires quickly. You'll save time on every installation and maintenance visit.

Flexible Cable Entry:

Adjustable cable glands accommodate various cable diameters within the 5-9mm range. The silicone gaskets compress evenly around each cable. This prevents the wicking effect where moisture travels along wire strands.

Robust Material Construction:

PA66 nylon resists impact and chemical exposure. The material maintains flexibility in freezing conditions. UV stabilizers prevent brittleness from prolonged sun exposure.

Universal Compliance:

CE and RoHS certifications confirm safety for international markets. ISO9001:2015 manufacturing ensures consistent quality. You can specify this box confidently for global projects.

Quality Control You Can Trust

Cablein implements comprehensive testing on every Round 1-Way Inline Waterproof Junction Box. Our quality assurance includes:

Waterproof Performance Verification:

Each unit undergoes actual submersion testing. We verify the IP68 seal under pressure. No product ships without passing this critical test.

Electrical Safety Testing:

High-voltage dielectric testing confirms insulation integrity. Contact resistance measurements ensure proper conductivity. We test for current leakage at operating temperatures.

Mechanical Durability Validation:

Lid cycling tests verify 1,000+ open-close operations. Cable retention testing ensures glands won't loosen. Vibration testing confirms stable connections in mobile applications.

Environmental Stress Screening:

Thermal cycling between temperature extremes checks material stability. UV exposure testing validates housing longevity. Chemical resistance testing proves compatibility with common pollutants.

Frequently Asked Questions

Q: Can I utilize this intersection box for submerged installations?

A: Yes, the IP68 rating underpins submersion up to 2 meters for 2 hours amid testing. For changeless submerged establishments, guarantee appropriate cable passage planning and consider profundity prerequisites for your particular application.

Q: What wire sorts work with the terminal block?

A: The tool-free terminals acknowledge both strong and stranded copper wires at AWG1.5 gage. For stranded wires in high-vibration applications, we suggest utilizing ferrules for ideal association reliability.

Q: How do I guarantee legitimate fixing amid installation?

A: Clean cable coats some time recently addition. Fix cable organs equitably until resistance is felt. Do not overtighten, as this can harm the silicone gasket. The top ought to near flush without gaps.

Q: Will this box withstand coordinate daylight exposure?

A: Completely. The UV-stabilized PA66 nylon lodging stands up to debasement from drawn out sun presentation. The fabric keeps up basic astuteness and waterproof execution over a long time of open air use.

Q: Can I customize this intersection box for extraordinary applications?

A: Yes, Cablein offers customization counting pre-installed connectors, custom colors, specialized cable passage sizes, and fixed arrangements. Contact our building group to talk about your particular requirements.

Q: What's the anticipated benefit life in open air installations?

A: When appropriately introduced agreeing to producer rules, you can anticipate 15-20 a long time of solid benefit. The UV-resistant lodging and high-quality silicone seals keep up execution all through the item lifetime.

Ready to Protect Your Connections?

Contact us at nick@cableinco.com to request technical specifications, discuss your application requirements, or Round 1-Way Inline Waterproof Junction Box samples for evaluation.
