Round 6-Way Straight Waterproof Junction Box
2. Rated IP67 and IP68, ensuring reliable protection for dense cable terminations.
3. The 6-way layout provides six cable entry ports for centralized power distribution.
4. Designed for EV charging stations, wind turbine controls, and industrial automation panels.
5. Housing is UV-stabilized, halogen-free, and rated UL94-V0.
6. Round enclosure with removable lid for easy access during wiring.
7. Produced under ISO9001, holding CE and RoHS certifications.
8. Customizable with pre-installed terminal blocks, custom entry sizes, and corporate branding.
Round 6-Way Straight Waterproof Junction Box – Enterprise-Grade Multi-Port Cable Management Solution
Cablein Technology's Round 6-Way Straight Waterproof Junction Box delivers enterprise-level performance with an IP68 waterproof rating (tested at 2m depth for 2 hours) and operates reliably across -40℃ to +85℃. Built from high-impact PA66 nylon with UV-stabilized, halogen-free development (UL94-V0 appraised), this intersection box underpins up to 17.5A at 450V AC over six cable passage ports. The tool-free terminal piece plan acknowledges AWG1.5 wire gages and cable distances across from φ5.0mm to φ9.0mm. With a mechanical life surpassing 1,000 cycles and double-seal cover design, you get centralized control conveyance that withstands submersion, open air presentation, and requesting mechanical situations. CE and RoHS certified beneath ISO9001:2015 standards.
What Makes This 6-Port Waterproof Enclosure Essential for Your Project?
When you're managing complex wiring in wet or outdoor locations, cable congestion becomes a real headache. You need a solution that handles multiple connections without compromising safety.
Our Round 6-Way Straight Waterproof Junction Box addresses exactly that challenge. The circular footprint optimizes internal space for radial cable routing. Six straight-through ports let you branch circuits efficiently while maintaining full moisture protection.
Unlike conventional rectangular boxes, this circular plan avoids water pooling at corners. The silicone elastic fixing ring makes a airtight boundary against capillary activity dampness entrance. Indeed beneath hydrostatic weight amid submersion, your associations remain totally dry.
The straight arrangement offers another advantage: disentangled cable pulling. You encounter decreased twist span push on high-gauge wires compared to T or L-shaped options. This things when you're working with thicker cables or require to minimize establishment time.
Superior Protection Through Advanced Engineering
You merit components that won't fall flat when conditions get unforgiving. That's why we design each detail for greatest reliability.
The PA66 nylon lodging stands up to UV corruption, guaranteeing your intersection box won't ended up delicate after a long time of sun presentation. Chemical resistance secures against saline arrangements, powerless acids, and antacid cleaners common in mechanical washdown environments.
Our double-seal cover plan gives excess security. The to begin with seal watches against coordinate water splash. The moment internal seal pieces any dampness that might enter the external layer. This dual-barrier approach gives you peace of intellect in basic applications.
Temperature extremes? Not a issue. The box capacities immaculately from -40℃ ice conditions to +85℃ forsake warm. High-temperature maturing tests at 85℃ for 168 hours affirm long-term stability.
Internal cable tie focuses keep your wiring organized and secure. Quick-release cover clamps cruel you can get to associations without apparatuses amid assessments or alterations. This spares profitable time amid upkeep windows.
Where You'll Deploy This Multi-Port Junction Solution
EV Charging Infrastructure: Charging stations require robust cable management for power distribution and communication lines. The Round 6-Way Straight Waterproof Junction Box handles multiple branch circuits from a central point while enduring outdoor weather exposure.
Wind Turbine Controls: Turbine bases face constant moisture and vibration. Our six-port configuration centralizes sensor cables, control signals, and power feeds in one protected enclosure that survives demanding conditions.
Smart Agriculture Systems: Automated irrigation networks need junction points that resist fertilizer chemicals and high-pressure washdowns. This box houses solenoid valve controls and sensor connections while maintaining IP68 protection.
LED Landscape Lighting: Urban lighting projects often involve multiple fixtures fed from strategic junction points. The round design minimizes visual impact while providing superior weather protection for long-term outdoor installation.
Industrial Automation Panels: Factory floors generate moisture, dust, and chemical exposure. You need reliable connection hubs that won't corrode or fail during production operations.
Marine Applications: Dockside power pedestals and offshore platforms benefit from the circular design that reduces wind resistance while protecting against salt spray and high humidity.

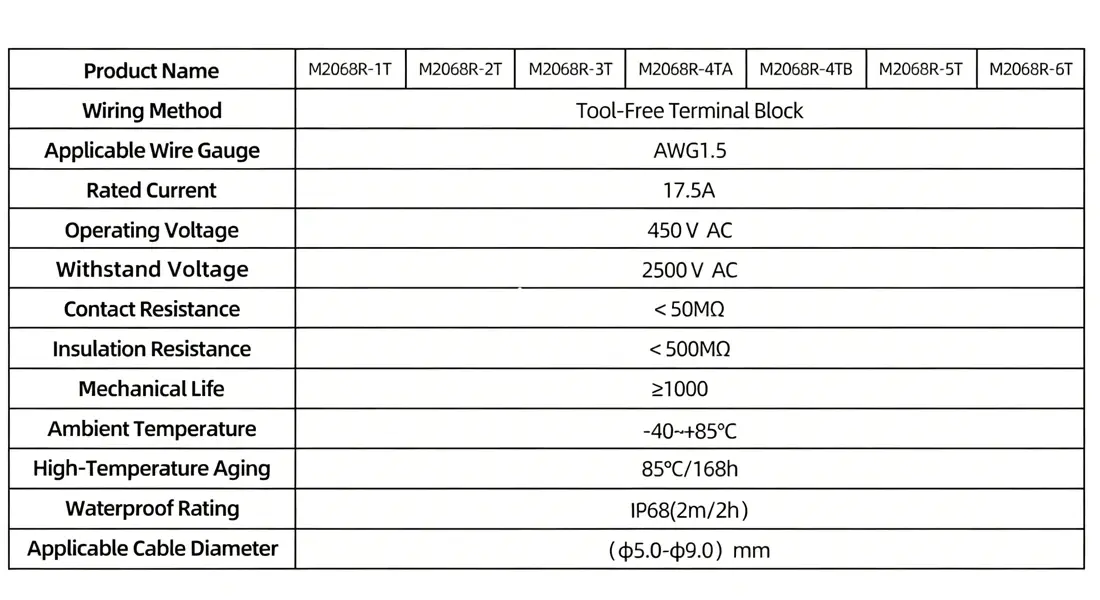

Technical Specifications That Matter to Your Application
Understanding the parameters helps you specify the right solution:
- Rated Current: 17.5A capacity handles substantial loads
- Operating Voltage: 450V AC accommodates various power systems
- Withstand Voltage: 2500V AC ensures electrical safety margins
- Contact Resistance: <50MΩ maintains efficient power transfer
- Insulation Resistance: <500MΩ prevents leakage current issues
- Mechanical Life: ≥1000 cycles supports frequent access needs
- Cable Diameter Range: φ5.0-φ9.0mm fits common wire sizes
The tool-free terminal block accepts AWG1.5 wire gauge without requiring special crimping equipment. This speeds up installation and reduces the chance of connection errors.
Quality You Can Verify and Trust
Every junction box undergoes comprehensive testing before it reaches you. We perform hydrostatic pressure validation to confirm IP68 performance at 2-meter submersion for extended periods.
Cable gland pull-out tests verify strain relief meets IEC standards. Your connections won't separate under mechanical stress or cable weight.
Accelerated UV aging confirms the housing maintains structural integrity after extended sun exposure. Salt spray corrosion testing validates performance in coastal and marine environments.
Glow wire testing ensures internal components meet electrical fire prevention standards. This protects against overheating scenarios that could compromise safety.
Our ISO9001:2015 quality management system ensures consistent manufacturing standards. CE and RoHS certifications confirm compliance with international safety and environmental regulations.
Customization Options for Your Specific Requirements
We understand that standard configurations don't always match your project needs. That's why we offer customization services.
You can specify pre-installed terminal block configurations optimized for your wiring scheme. Custom entry sizes accommodate non-standard cable diameters. Corporate branding options let you maintain consistent visual identity across installations.
Need a different port orientation or additional mounting features? Our engineering team works with you to develop solutions that fit your exact specifications. With over 30 utility model patents and 9 years of industry experience, we have the expertise to deliver.
Frequently Asked Questions
Q: What cable diameter range works with the standard ports?
A: The standard configuration accepts cables from 5.0mm to 9.0mm diameter. Interchangeable seal rings allow adjustment within this range for optimal sealing.
Q: Can I install this junction box underground?
A: Yes. The IP68 rating supports direct burial installation provided the surrounding soil is free of sharp stones that could damage the housing over time.
Q: Does the terminal block come pre-installed?
A: Standard models include a tool-free terminal block rated for AWG1.5 wire. Custom terminal configurations are available based on your specification.
Q: How does the straight design compare to angled junction boxes?
A: Straight-through orientation simplifies linear cable runs and reduces bend radius stress on wires. This matters especially with higher gauge cables that resist bending.
Q: What's the expected service life in outdoor installations?
A: With UV-stabilized PA66 nylon construction, you can expect 10-15 years of reliable performance in full sun exposure before any material degradation occurs.
Q: Can this box handle chemical exposure?
A: Yes. The housing resists saline solutions, weak acids, and alkaline cleaners commonly used in industrial and agricultural applications.
Get Started with Your Cable Management Solution
Ready to solve your multi-port wiring challenges? Contact our team at nick@cableinco.com to discuss your Round 6-Way Straight Waterproof Junction Box requirements, request technical specifications, confirm parameters, or arrange sample evaluation for your project validation.
