Square 3-Way Through-Type Waterproof Junction Box

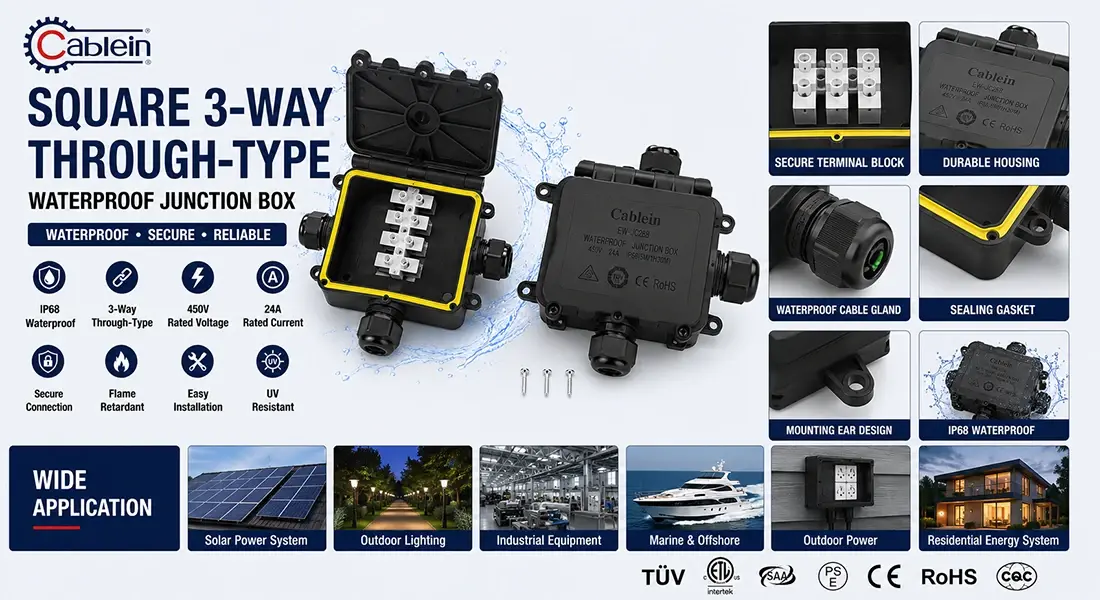

Square 3-Way Through-Type Waterproof Junction Box – Industrial Grade IP68 Enclosure Solution

When your outdoor electrical installations demand reliable protection, the Square 3-Way Through-Type Waterproof Junction Box from Cablein Technology delivers enterprise-level performance you can trust. Built with impact-resistant PA66 thermoplastic and pre-fitted silicone seals, this intersection box accomplishes IP67 and IP68 waterproof keenness for requesting daisy-chained associations. It handles evaluated streams up to 40A and voltages coming to 450V, whereas working faultlessly over extraordinary temperatures from -40℃ to +105℃. With three free cable passages supporting 0.5-6.0 mm² wire ranges and captive screws anticipating field misfortune, you get a maintenance-friendly arrangement supported by TUV and CE certifications. The square profile maximizes inner volume for less demanding wire management.

What Makes This Junction Box Essential for Your Project?

You're facing real challenges in outdoor installations. Moisture infiltration. Terminal oxidation. Cable failures under mechanical stress. The Square 3-Way Through-Type Waterproof Junction Box solves these critical pain points through intelligent design.

This high-precision electrical walled in area encourages secure branching in a T-shaped setup. The through-type plan permits persistent main-line control with a auxiliary department. You spare important space whereas keeping up hermetically fixed protection.

Unlike circular models, the square geometry gives predominant inner volume. You get more room for wire associations and bigger cable organs (M20/M16). The flat-back profile mounts flush against dividers and apparatus. Establishment gets to be speedier and more stable.

Three free section focuses come prepared with person fixing gaskets. Each keeps up IP68 security over all openings. Your associations remain dry indeed when submerged up to 4 meters. Inner brass nickel-plated terminal pieces are pre-installed. You total wire grafting without extra components.

Technical Properties That Deliver Real Protection

Your hardware merits walled in areas built to final. This intersection box combines vigorous fabric composition with thorough building standards.

The lodging employments UV-stabilized polycarbonate or flame-retardant PA66. Both materials show uncommon chemical resistance against acids, soluble bases, and oils. Your establishments in cruel mechanical situations remain secured year after year.

Key technical features include:

• IP68 waterproof rating – Submersible protection up to 4 meters
• IK08 impact resistance – Withstands mechanical stress and accidental impacts
• UL94-V0 flammability rating – Meets strict fire safety requirements
• Integrated EPDM sealing gaskets – Prevents moisture ingress at every entry point
• Stainless steel captive screws – No lost hardware during field maintenance
• -40℃ to +105℃ temperature range – Reliable operation in extreme climates

The square design isn't just aesthetic. It delivers a higher internal volume-to-footprint ratio. You fit larger terminal blocks and manage more complex wiring configurations with ease.

Where Your Junction Box Performs Best

Real-world applications prove the value of this enclosure across demanding industries.

Smart Urban Infrastructure

Underground sensor systems confront regular flooding and soil weight. Road lighting frameworks require associations that final decades without disappointment. The through-type plan permits consistent daisy-chaining of lighting circuits. Civil support groups appreciate the tool-free quarter-turn latches for fast access.

Industrial Food Processing

Facilities requiring frequent high-pressure chemical sanitation demand superior protection. The Square 3-Way Through-Type Waterproof Junction Box withstands aggressive cleaning protocols. Each entry gasket maintains integrity even after repeated exposure to sanitizing chemicals. Equipment power lines stay protected while meeting strict food safety standards.

Marine and Coastal Engineering

Docks and seaward stages uncover electrical associations to destructive salt splash and extraordinary UV. The UV-stabilized lodging anticipates brittleness over a 10-year open air lifecycle. Route and security lighting frameworks keep up dependable T-junction associations in spite of salt-heavy environments. Your basic foundation remains operational when security depends on it.

Agricultural Lighting and Irrigation

Garden water system controls and nursery lighting frameworks advantage from the three-port setup. The straight-through format with department outlet rearranges complex field wiring. Temperature extremes do not influence execution. Your computerized frameworks work dependably through all seasons.

Quality Control You Can Verify

Cablein Technology implements comprehensive inspection protocols aligned with international standards. Every junction box undergoes rigorous testing before reaching your hands.

Our quality assurance process includes:

Hydrostatic Pressure Testing (IEC 60529) – We verify IP68 integrity under varying water depths. Your connections stay dry when submerged.

Glow Wire Testing (IEC 60695-2-11) – Testing at 850°C ensures fire safety. The housing won't ignite or propagate flames.

Accelerated Aging Tests (ISO 4892-2) – Xenon-arc exposure simulates years of outdoor use. We guarantee the housing remains strong over a 10-year lifecycle.

Torque Retention Analysis – Screw inserts resist stripping during repeated field installations. Your maintenance teams work efficiently.

Salt Spray Corrosion Testing (ASTM B117) – Metal components and cable glands withstand maritime environments. Coastal installations get long-term reliability.

Every product receives 100% inspection for waterproof performance, durability, and electrical reliability. Our ISO9001:2015 certified quality management system ensures consistency across every production batch.

Installation Advantages That Save You Time

Your installation crews face tight deadlines and challenging environments. This junction box makes their work easier.

The impact-resistant polycarbonate housing withstands mechanical stress during installation and operation. Dropped tools won't crack the enclosure. Accidental impacts don't compromise protection.

Pre-installed terminal blocks eliminate extra components. Your technicians connect wires immediately. The generous internal space accommodates wire bending radius requirements. Complex connections become manageable.

Quarter-turn fasteners provide tool-free access during maintenance. You inspect connections or add circuits without searching for special tools. Captive screws stay attached to the lid. Nothing gets lost in tall grass or dropped into machinery.

Cable gland options include M20 (5-9mm / 9-12mm) and M16 (3.5-7mm / 7-10mm). You match entry sizes to your specific cable diameters. Custom entry knockouts accommodate specialized requirements.

The flat square back sits flush against mounting surfaces. You get stable installation on walls, poles, or equipment panels. Integrated DIN rail mount options are available for control cabinet installations.

Frequently Asked Questions

Q: Can I utilize this intersection box for both AC and DC applications?

A: Yes, completely. The item underpins both AC and DC. It's appraised for up to 450V AC and different DC voltages depending on your chosen terminal piece configuration.

Q: What's the most extreme cable breadth I can run through the glands?

A: Most models include measured organs supporting cable distances across from 5mm to 14mm. The M20 organs handle 5-9mm and 9-12mm cables. M16 organs suit 3.5-7mm and 7-10mm sizes. Custom choices are accessible for bigger cables.

Q: How does the square plan offer assistance with establishment on level surfaces?

A: The flat-back square profile gives prevalent solidness compared to circular boxes. It permits flush-fit establishment on dividers, apparatus, or boards. You get superior contact with mounting surfaces and less demanding alignment.

Q: Do I require to utilize tar filling for IP68 protection?

A: The mechanical seals give total IP68 assurance for normal applications. Tar filling is an discretionary auxiliary degree for lasting submersion in extraordinary high-pressure situations. Most open air establishments do not require it.

Q: Are inner terminals included with the intersection box?

A: Yes. Professional-grade forms come with pre-installed 3-pole or 5-pole terminals. You get screwless or screw-type choices for quick through-type wiring. No extra buys required to total your connections.

Q: Can I customize the intersection box for particular extend requirements?

A: Completely. Cablein offers custom passage knockouts, coordinates Clamor rail mounts, and branded walled in areas. Our building group underpins OEM/ODM customization for specialized applications.

Q: What certifications does this item carry?

A: The intersection box holds TUV and CE certifications. The halogen-free fabric complies with RoHS necessities. We give documentation for compliance verification.

Why Choose Cablein Technology?

Since 2017, Cablein Technology has specialized in industrial waterproof connectors and cable assemblies. Our 6,000 ㎡ production facility in Shenzhen combines advanced manufacturing equipment with a professional team of over 200 employees.

We hold over 30 utility model patents in quick-connect and waterproof solutions. Our R&D team develops innovative products that solve real-world connectivity challenges. You benefit from 9 years of industry experience and continuous innovation.

Global customers across more than 100 countries trust our products. Applications span LED lighting, solar energy, industrial automation, underwater robotics, and smart urban infrastructure. Wherever reliable connections matter, Cablein delivers.

Our stable inventory exceeds 10,000 pieces per item. Standard delivery happens within 7-10 days. You avoid project delays and maintain supply chain stability. Professional logistics partnerships with UPS, DHL, and FedEx ensure efficient worldwide shipping.

Get Your Technical Specifications and Samples

Ready to protect your outdoor electrical connections? The Square 3-Way Through-Type Waterproof Junction Box offers the reliability your critical installations demand. For project-specific requirements or technical assistance, reach out to our team at nick@cableinco.com. Let's discuss how we can support your connectivity needs.
