Square 4-Way Straight Waterproof Junction Box
2. Provides IP67 and IP68 protection for multi-branch cable splicing in exposed locations.
3. The 4-way straight-through configuration supports four cable gland entries.
4. Ideal for commercial signage, parking lot lighting, and fountain control systems.
5. Housing rated UL94-V0 for flame resistance and IK09 for impact protection.
6. Quick-release lid clamps allow tool-free access for routine inspections.
7. Manufactured under ISO9001, holding CE and RoHS compliance.
8. Customizable with pre-installed terminal strips, custom entry layouts, and corporate colors.

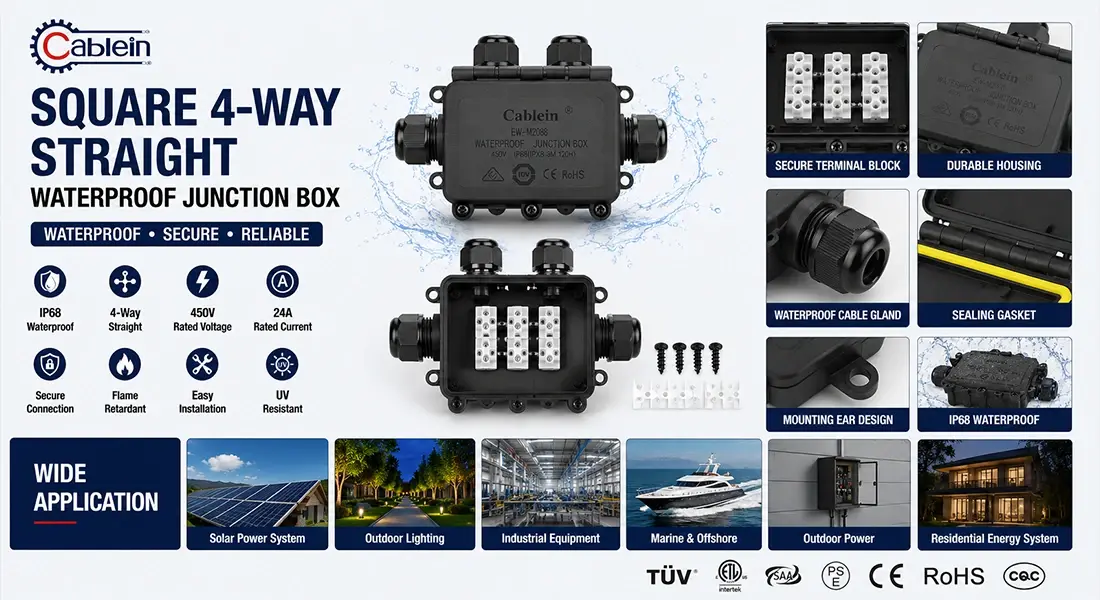

Square 4-Way Straight Waterproof Junction Box – Enterprise-Grade Protection for Harsh Environments
When you're managing critical electrical connections in outdoor or industrial settings, you need reliable protection. The Square 4-Way Straight Waterproof Junction Box from Cablein Technology delivers enterprise-level performance with IP67/IP68-rated fixing, UV-resistant PA66 nylon development, and UL94-V0 fire resistance. Supporting cable ranges from 0.5-6.0 mm² with a 40A current rating at 450V, this intersection box works immaculately over extraordinary temperatures from -40℃ to +105℃. Four adaptable cable organ passages (M16/M20) empower productive multi-branching, whereas quick-release top clamps give tool-free upkeep get to. With IK09 affect security and closed-cell silicone gaskets, your establishments stay secure even in the harshest conditions.
What Makes Our 4-Way Junction Box Different?
You face real challenges in outdoor electrical installations. Cable failures, water ingress, and environmental degradation can shut down your operations.
Our Square 4-Way Straight Waterproof Junction Box solves these problems directly. The four-entry configuration lets you split one input feed into three separate output lines without compromising protection. You get clear internal space that simplifies wiring tasks, even when working with multiple conductors.
The UV-stabilized lodging fabric withstands a long time of coordinate daylight introduction. This implies you won't see the splitting and brittleness that torment standard intersection boxes after fair a few seasons outdoors.
Integrated mounting feet join safely to dividers or posts. Your establishment remains precisely where you put it, indeed through storms and vibrations.
Technical Specifications That Matter
Your projects demand reliable performance data. Here's what you can count on:
Material & Protection:
- High-impact PA66 nylon housing with UV stabilization
- Closed-cell silicone gaskets for superior sealing
- IP67/IP68 ingress protection rating
- IK09 impact resistance
- UL94-V0 flame retardant classification
Electrical Parameters:
- Connection range: 0.5-6.0 mm²
- Rated current: 40A
- Rated voltage: 450V
- Operating temperature: -40℃ to +105℃

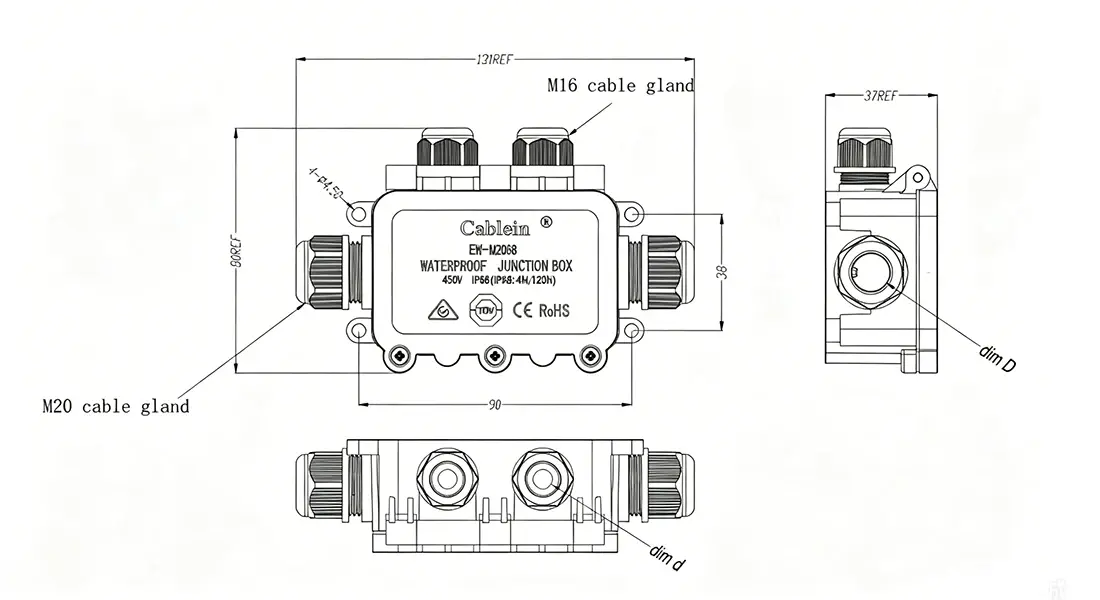

Cable Entry Options:
- M20 glands: 5-9mm or 9-12mm diameter
- M16 glands: 3.5-7mm or 7-10mm diameter
These specifications aren't just numbers. They represent years of engineering refinement focused on real-world durability.
Where You'll Use This Junction Box
Smart Urban Infrastructure
Your city lighting networks need reliable distribution points. The junction box manages power across four directions at busy intersections. It handles the demands of smart street lighting systems and emerging 5G small cell deployments with equal confidence.
Marine and Coastal Applications
Salt spray destroys ordinary enclosures within months. Our box features salt-spray resistance that protects connections at port terminals and bridge monitoring systems. You can specify it confidently for environments with high-pressure wash-downs and corrosive saline air.
Solar Energy Installations
Large photovoltaic plants present unique challenges. The Square 4-Way Straight Waterproof Junction Box serves as your string cable management hub. It resists long-term UV degradation while maintaining straight-line cable organization for efficient maintenance access. Extreme thermal fluctuations won't compromise the seal integrity.
Commercial and Industrial Sites
Your parking lot lighting, commercial signage, and fountain control systems need protected connections. This junction box delivers consistent performance whether mounted outdoors or in damp industrial environments.
Quality Control You Can Trust
Cablein manufactures under ISO9001:2015 standards. Every junction box undergoes comprehensive testing before shipment.
Our quality protocol includes:
Hydrostatic Pressure Testing: We verify IP68 seals by submerging units at 2-5 meters depth for 72 hours. No water ingress means your connections stay dry.
Glow Wire Testing: Conducted at 850°C per IEC 60695-2-11 standards. This confirms fire safety in electrical fault conditions.
UV Aging Simulation: Xenon arc lamps test material longevity under 1,000+ hours of intense solar radiation. You get products that last years, not months.
Mechanical Torque Testing: Cable glands and lid screws maintain integrity through high-vibration conditions and repeated thermal cycling.
Dielectric Strength Testing: Insulation performance verified up to 2kV prevents dangerous arc-over in your high-voltage applications.
We hold CE and RoHS compliance. Our commitment to quality means fewer callbacks and longer service life for your installations.
Why Choose Cablein Technology?
Since 2017, we've focused exclusively on industrial waterproof connectivity solutions. Our 6,000 ㎡ production facility in Shenzhen employs over 200 skilled professionals dedicated to your success.
You benefit from:
Strong R&D Capabilities: Over 30 utility model patents protect our innovations. We support OEM/ODM customization and private mold development for your unique requirements.
Stable Inventory: We maintain over 10,000 pieces per item. Standard delivery completes within 7-10 days so your project stays on schedule.
Customization Options: Pre-installed terminal strips, custom entry layouts, and corporate color matching available. Tell us what you need.
Global Logistics: Partnerships with UPS, DHL, FedEx, and freight forwarders ensure efficient delivery worldwide.
Halogen-Free Construction: Meets environmental safety requirements for green building certifications.
Frequently Asked Questions
Q: Can this box handle diverse cable breadths simultaneously?
A: Completely. Multi-hole fixing embeds and different cable organ sizes let you suit distinctive cable breadths whereas keeping up the full IP rating.
Q: Is the item reasonable for underground burial?
A: Yes, it's evaluated for soil burial. For changeless underground establishments, we prescribe IP68 models with waterproof silicone gel filling for most extreme protection.
Q: How long will the UV stabilization secure my investment?
A: UV stabilization anticipates polymer debasement for at slightest 15 a long time of coordinate daylight introduction. Your box won't ended up fragile or break like standard materials.
Q: What's the contrast between IP66 and IP68 evaluations in your models?
A: IP66 secures against capable water planes from any heading. IP68 permits add up to inundation beneath indicated weight and time conditions. Select based on your establishment environment.
Q: Are mounting screws inner or external?
A: Proficient models highlight inner mounting gaps isolated from the fixed compartment. This plan avoids spill ways. The top employments outside captive screws for secure closure.
Q: Can I assess associations without tools?
A: Yes. Quick-release cover clamps give tool-free get to for schedule reviews. You'll appreciate this highlight amid upkeep schedules.
Ready to Protect Your Connections?
Don't let water ingress compromise your electrical installations. The Square 4-Way Straight Waterproof Junction Box delivers the durability and performance your projects demand. Get started today: Email nick@cableinco.com to discuss your specific requirements, request technical specifications, or arrange product samples.
