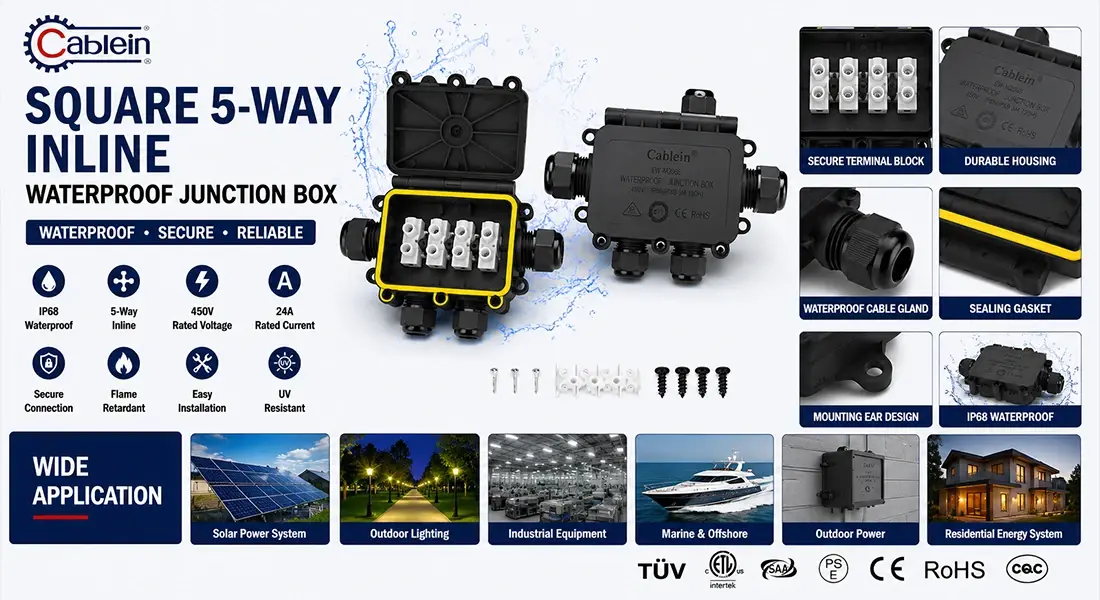

Square 5-Way Inline Waterproof Junction Box
2. Certified IP67 and IP68, ensuring reliable operation in wet or dusty conditions.
3. The 5-way design accommodates up to five cable entry points for complex routing.
4. Common in industrial control cabinets, rooftop solar combiners, and tunnel lighting.
5. Rated for -40℃ to +105℃, with UV additives preventing sunlight degradation.
6. Wall-mountable via external brackets or internal corner screws.
7. Complies with CE and TUV standards, with ISO9001-certified production.
8. Tailored options include custom colors, laser-etched labels, and pre-wired internal harnesses.
Square 5-Way Inline Waterproof Junction Box – Enterprise-Grade IP68 Protection for Multi-Branch Applications
When your projects demand secure multi-directional cable distribution in challenging outdoor environments, Cablein's Square 5-Way Inline Waterproof Junction Box delivers unmatched reliability. Designed from glass-reinforced PA66 with silicone elastic fixing rings, this IP67/IP68-certified arrangement obliges up to five cable section focuses whereas keeping up waterproof judgment. It works immaculately over -40℃ to +105℃, handles 40A at 450V, and acknowledges cable distances across from 5–12mm (M20) or 3.5–10mm (M16). Certified to CE and TUV guidelines through ISO9001-controlled production, this intersection box serves mechanical control cabinets, housetop sun based establishments, and burrow lighting with supreme confidence.
What Makes This 5-Way Junction Box Your Ideal Solution?
You need more than basic cable protection—you need a distribution hub that survives harsh realities. The Square 5-Way Inline Waterproof Junction Box combines intelligent design with industrial-grade materials to solve your toughest wiring challenges.
Its square profile isn't just stylish. You pick up predominant inner volume compared to circular options, making adequate space for terminal squares and wire administration. Each of the five passage focuses highlights autonomous silicone fixing rings that piece dampness from each heading, indeed amid total submersion.
The flame-retardant PA66 lodging stands up to UV corruption and keeps up basic keenness beneath ceaseless daylight. Whether you're introducing sun based combiners uncovered to leave warm or lighting frameworks in coastal stickiness, this box performs dependably year after year.
Temperature extremes won't compromise your installations. From solidifying Cold distribution centers to tropical housetop establishments, the -40℃ to +105℃ rating guarantees steady execution over worldwide climates.
Key Technical Advantages That Protect Your Investment
Multi-Branch Capability Without Compromise
Your complex routing demands are met with five independent cable entries. Connect main power lines and branch circuits without sacrificing waterproof protection or increasing failure points.
Maintenance-Friendly Engineering
Unlike resin-filled alternatives, this design features a screw-down lid with reusable gaskets. You can access internal connections for inspection or circuit modifications without replacing the entire unit—saving time and material costs on every service call.
Stackable Mounting Flexibility
Space constraints are solved through wall-mountable brackets and internal corner screws. Multiple boxes can be installed side-by-side on DIN rails for high-density applications in control panels.
Chemical and Impact Resistance
The glass-reinforced construction withstands accidental impacts during installation and ongoing facility operations. It resists corrosion from acids, alkalis, and industrial cleaning agents commonly found in manufacturing environments.
Where Your Square 5-Way Inline Waterproof Junction Box Excels
Solar Energy Systems
Rooftop combiner boxes for photovoltaic installations require proven weather resistance. This junction box handles multiple string connections while preventing moisture damage that degrades panel efficiency.
Industrial Automation
Factory floors present dust, chemical exposure, and vibration challenges. The IP68 protection keeps critical sensor networks and control circuits operational through demanding production cycles.
LED Landscape Lighting
Architectural projects distribute power to multiple fixture zones from single supply lines. This five-way design simplifies wiring layouts while maintaining aesthetic integrity through compact, discreet installations.
Transportation Infrastructure
Tunnel lighting, railway signals, and roadway sensors require decades of maintenance-free service. The UV-stabilized materials and temperature tolerance ensure long-term reliability in these mission-critical applications.
Installation Specifications You Can Trust
You'll appreciate the practical connection range of 0.5–6.0 mm², accommodating standard building wire and specialized industrial cables. The 40A current capacity handles substantial loads without voltage drop concerns.

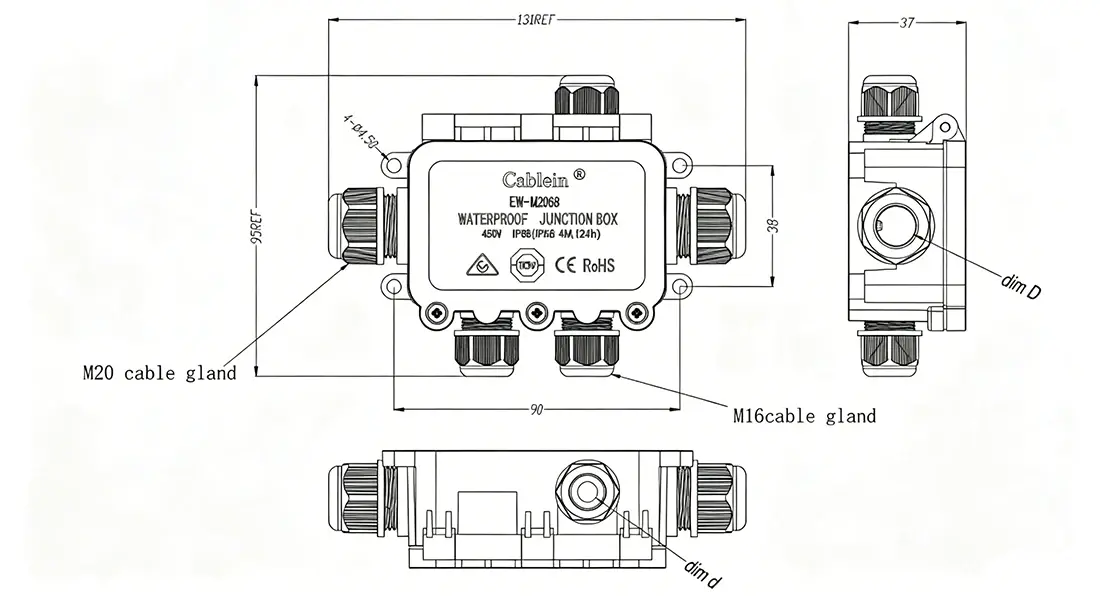

Multiple cable gland sizes adapt to your existing infrastructure: M20 entries accept 5–9mm or 9–12mm cables, while M16 options fit 3.5–7mm or 7–10mm conductors. This flexibility reduces inventory complexity across diverse project requirements.
The rated 450V capacity safely manages both single-phase and three-phase industrial power distribution. Your electrical designs gain installation versatility without compromising safety margins.
Quality Assurance Backed by International Standards

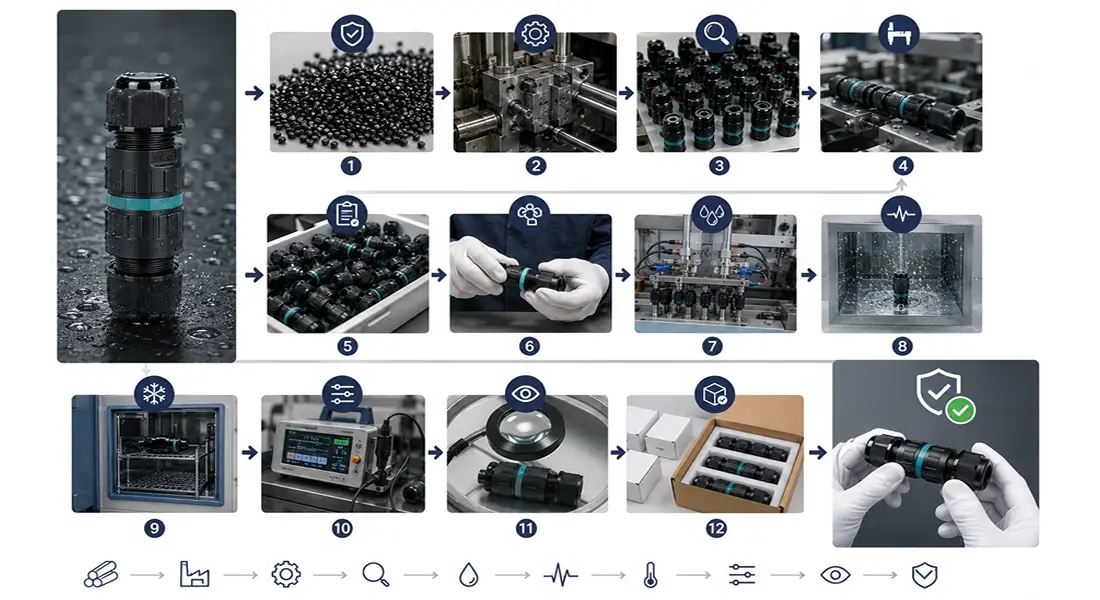

Every Square 5-Way Inline Waterproof Junction Box undergoes rigorous testing before leaving our 6,000 ㎡ facility. Hydrostatic pressure testing validates waterproof integrity under sustained immersion. Glow wire testing confirms flame-retardant properties meet stringent electrical safety requirements.
Our ISO9001:2015-certified quality management system ensures 100% inspection of sealing performance and electrical reliability. Salt spray testing verifies corrosion resistance for coastal and marine applications. UV aging protocols simulate years of sunlight exposure to guarantee long-term material stability.
With CE, TUV, and RoHS compliance, your installations meet international regulatory requirements across multiple markets—simplifying project approvals and reducing compliance risks.
Frequently Asked Questions
Q: Can I utilize this intersection box in coordinate burial applications?
A: Yes, the IP68 rating bolsters coordinate soil contact. For ideal life span, we suggest encompassing the walled in area with seepage rock to anticipate hydrostatic weight buildup around seals.
Q: What's the most extreme wire gage this box accepts?
A: The association extend of 0.5–6.0 mm² suits most mechanical and building wiring benchmarks. Bigger conductor necessities may be tended to through custom configurations—contact our building group for particular applications.
Q: How does the square plan progress establishment compared to round and hollow boxes?
A: You advantage from steady mounting on level surfaces and optimized inside corners that organize abundance wire length. Terminal pieces fit more actually inside square geometry, decreasing association stress.
Q: Is the top gasket user-replaceable for upkeep cycles?
A: Completely. The screw-down top plan permits gasket review and substitution without specialized apparatuses. This include essentially decreases lifecycle costs compared to fixed alternatives.
Q: Does this intersection box back distinctive terminal configurations?
A: Yes, inner terminal pieces are accessible in 2, 3, 4, and 5-pin arrangements to coordinate your stage requirements and control rationale needs.
Why Cablein Stands Behind Every Connection
Since 2017, Cablein Technology has engineered waterproof connectivity solutions from our Shenzhen headquarters—China's premier high-tech manufacturing center. Our team of over 200 specialists combines advanced R&D with precision manufacturing to deliver products that perform under pressure.
We maintain stable inventory exceeding 10,000 pieces per item, ensuring your project timelines stay on track with 7–10 day standard delivery. Custom configurations receive flexible scheduling that aligns with your installation phases.

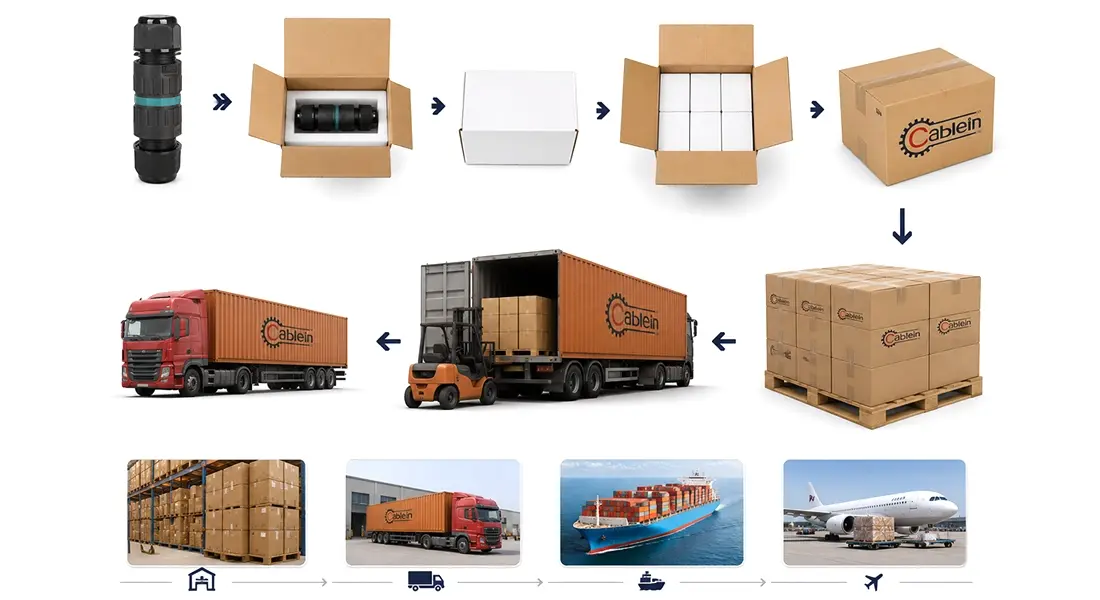

Global logistics partnerships with UPS, DHL, and FedEx provide efficient shipping to over 100 countries. You receive the same reliable products and technical support whether you're in Berlin, Brisbane, or Boston.
Take the Next Step Toward Reliable Waterproof Connections
Ready to protect your electrical infrastructure with proven Square 5-Way Inline Waterproof Junction Box technology? Contact nick@cableinco.com to discuss your technical specifications, request samples, and confirm how our solutions integrate with your project requirements. Download detailed datasheets and explore customization options today.
