Square 6-Way Inline Waterproof Junction Box
2. Achieves IP67 and IP68 waterproof ratings for demanding outdoor applications.
3. The 6-way straight-through layout provides six cable entry points for extensive branching.
4. Perfect for marine electronics, RV electrical systems, and agricultural control panels.
5. Material meets UL94-V0 flammability rating and resists salt spray corrosion.
6. Lid equipped with a quarter-turn locking mechanism for rapid field access.
7. Certified under CE and RoHS, with ISO9001 oversight.
8. Customization available for custom entry sizes, integrated grounding bars, and bulkhead fittings.
Square 6-Way Inline Waterproof Junction Box – Professional 6-Port Distribution Solution
When your project demands reliable multi-port connectivity in challenging outdoor environments, the Square 6-Way Inline Waterproof Junction Box from Cablein Technology delivers enterprise-grade performance you can trust. Designed with high-impact PA66 nylon and fixed with exactness die-cut silicone O-rings, this intersection box accomplishes IP67 and IP68 waterproof evaluations to ensure your associations against rain, tidy, and persistent submersion. With six cable section focuses supporting wire ranges from 0.5 to 6.0 mm², it handles evaluated streams up to 40A at 450V over an extraordinary temperature span of -40℃ to +105℃. The quarter-turn locking cover empowers quick field get to whereas keeping up seal judgment through rehashed benefit cycles.
What Is a Square 6-Way Inline Waterproof Junction Box?
A Square 6-Way Inline Waterproof Junction Box is a specialized electrical enclosure designed to consolidate and protect up to six separate circuit branches within one compact, weather-sealed housing.
Unlike conventional circular walled in areas, the square profile gives a level mounting surface. This makes establishment on dividers, boards, and basic pillars much simpler.
Inside, pre-installed terminal strips acknowledge numerous wire gages. You get adaptability amid field wiring without the require for extra connectors.
The airtight seal watches against dampness entrance, erosion, and defilement. This is basic in open air lighting, marine frameworks, and mechanical computerization where natural introduction is constant.
By uniting six association focuses into one unit, you decrease the number of potential spill ways. You too streamline investigating and upkeep get to over complex wiring networks.
Key Technical Properties
Understanding the technical profile of your junction box ensures it matches your application requirements and operating conditions.
Material & Construction
The lodging is molded from PA66 nylon strengthened with fire retardant added substances. It meets the UL94-V0 combustibility standard and stands up to salt splash corrosion.
Die-cut silicone O-rings make a compression seal between the top and body. This seal remains viable indeed after rehashed openings for maintenance.
Electrical Specifications
- Connection Range: 0.5–6.0 mm²
- Rated Current: 40A
- Rated Voltage: 450V
- Ambient Temperature: -40℃ to +105℃
These ratings ensure continuous operation under heavy loads and extreme climates.
Cable Entry Configuration

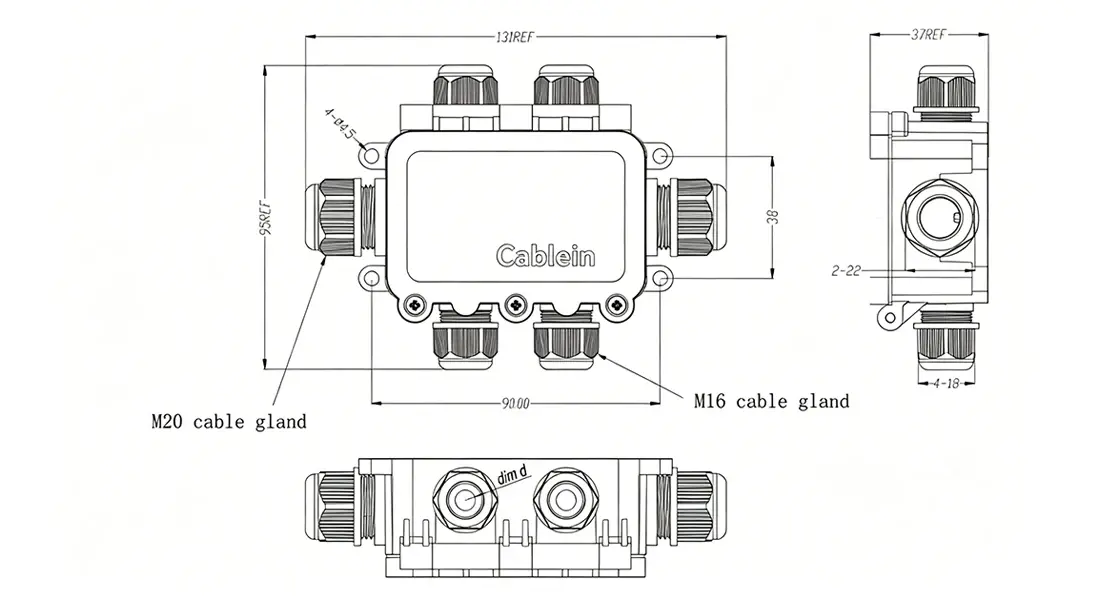

Six cable glands accommodate outer diameters from 3.5 mm to 12 mm, depending on the M16 or M20 thread size you select. Unused ports accept blind plugs to preserve waterproof integrity.
Compliance & Standards
Every unit is certified under CE and RoHS directives. Manufacturing is governed by ISO9001:2015 quality management systems, guaranteeing consistent performance batch after batch.
Where You Can Apply This Junction Box
The versatility of a six-port design opens opportunities across multiple industries and project types.
Smart City & Outdoor Lighting
Centralize power distribution for multi-fixture LED street lights, architectural façade illumination, and stadium flood lights. The Square 6-Way Inline Waterproof Junction Box simplifies branching from a single backbone cable to multiple luminaires.
Marine & Coastal Infrastructure
Install confidently in dockside power pedestals, boat lift control panels, and aquarium life-support systems. The salt-resistant housing and IP68 seal withstand continuous spray and high-pressure washdowns.
Industrial Automation & Agriculture
Deploy in automated irrigation networks, outdoor sensor arrays, and weather stations. Multiple data or power lines converge in one accessible point, ensuring system uptime even during heavy rainfall or irrigation cycles.
Renewable Energy Systems
Use in solar array junction points and EV charging stations where robust environmental protection and high current capacity are non-negotiable.
Core Advantages That Set This Product Apart
Choosing the right junction box directly impacts installation efficiency, long-term reliability, and total cost of ownership.
1. Six-Port Capacity for Dense Networks
Ample passage focuses bolster complex branching without the require for cascading different littler boxes. This decreases stock complexity and field labor.
2. Weatherproof Integrity for Permanent Outdoor Use
Rain, snow, tidy, and stickiness posture no risk. The IP67/IP68 rating guarantees your associations stay dry and corrosion-free year after year.
3. Flexible Field Wiring
Pre-installed terminal strips acknowledge a wide assortment of wire sorts and gages. You pick up flexibility amid establishment and future modifications.
4. Reusable Seal Design
The cover gasket keeps up compression after rehashed openings. This underpins customary support without compromising waterproof performance.
5. Extreme Temperature Tolerance
Rated from -40℃ to +105℃, the box works dependably in cold cold and forsake warm. You can send it in for all intents and purposes any climate zone.
6. Secure Mounting Options
External brackets empower steady connection to uneven surfaces, conduit runs, or gear outlines. The square geometry gives numerous mounting orientations.
Frequently Asked Questions
Q: Can I bury this intersection box underground?
A: Yes, when evaluated IP68. We suggest setting it inside a rock pit or defensive handhole for simpler future support access.
Q: What if I as it were require to utilize three of the six ports?
A: Embed the included dazzle plugs into unused ports. This jam the waterproof seal and avoids clean or creepy crawly ingress.
Q: Is the square plan way better than a circular walled in area for mounting?
A: Completely. The level sides give a steady mounting surface against dividers or boards. Inside, you get more cubic space for organized wire routing.
Q: Can I blend control and information cables in the same box?
A: You can, but consider electromagnetic obstructions if high-voltage and low-voltage lines share the walled in area. Utilize protected cables or isolated terminal squares when necessary.
Q: Are the inside terminal squares removable?
A: Most professional-grade models include a detachable inner carrier. This permits you to total wiring remotely some time recently last lodging get together, sparing time in the field.
Why Choose Cablein Technology?
Since 2017, Cablein Innovation has been at the cutting edge of mechanical waterproof network solutions.
Our 6,000 ㎡ office in Shenzhen houses progressed infusion molding and exactness gathering lines. A group of over 200 gifted experts guarantees each item meets strict quality benchmarks.
We hold more than 30 utility show licenses and keep up certifications counting CE, RoHS, TUV, and ISO9001:2015. Our stock of over 10,000 pieces per thing empowers standard conveyance inside 7–10 days.
With clients in more than 100 nations, we give 24-hour specialized back, comprehensive customization administrations, and dependable worldwide coordinations through associations with UPS, DHL, and FedEx.
Ready to Secure Your Connections?
Whether you're designing a smart city lighting network, upgrading marine infrastructure, or deploying industrial sensors, the right junction box makes all the difference. Contact us at nick@cableinco.com to request technical specifications, discuss customization options, or arrange sample evaluation for your specific Square 6-Way Inline Waterproof Junction Box requirements.
