LP-24 Series HDMI Cable Connector IP67

LP-24 Series HDMI Cable Connector IP67 – Industrial Waterproof HDMI Solution

The LP-24 Series HDMI Cable Connector IP67 delivers professional-grade audio-video transmission where standard connectors fail. Designed by Cablein Innovation, this flange-mount HDMI feed-through combines IP67 waterproof security with a vigorous four-hole mounting framework. You'll appreciate its -40℃ to +85℃ working extend and 0.5A evaluated current at 5V. The female-to-female pass-through plan suits cable breadths from Ø5.0mm to Ø7.0mm, whereas UL94-V0 flame-retardant lodging guarantees security. With CE and RoHS certification sponsored by ISO9001 quality control, this item changes untrustworthy customer HDMI into bulletproof mechanical connectivity.

Why Choose Our Flange-Mount HDMI Connector?

Bulletproof Protection Meets High-Definition Signal

Standard HDMI connectors weren't planned for your open air show or mechanical control board. Our connector tackles that problem.

The four-hole spine mounting framework makes a mechanical obstruction against vibration. Your association remains secure indeed when gear shakes or moves continuously.

An coordinates O-ring seals the interface when compressed by the rib. This avoids dampness entrance amid weight washing or overwhelming rain exposure.

Built for Real-World Industrial Challenges

You're dealing with thick equipment enclosures. Traditional locknuts often can't reach through heavy-gauge panels. Our front-mount flange installation lets you fit the connector before completing internal assembly.

The feed-through design maintains signal integrity without active electronics. Your 4K video transmission remains crystal-clear across the panel barrier.

Temperature extremes won't stop your operation. Components function reliably from Arctic cold to desert heat.

Technical Excellence in Every Detail

Superior Material Engineering

We construct housings from UL94-V0 rated materials. This flame-retardant specification protects against fire hazards in electrical enclosures.

Contact surfaces resist corrosion in humid environments. You won't experience signal degradation from oxidation over time.

The LP-24 Series HDMI Cable Connector IP67 accommodates flexible cable sizing. Whether you're running Ø5.0mm or Ø7.0mm cables, installation remains straightforward.

Precision Manufacturing Standards

Our 6,000 ㎡ facility in Shenzhen produces over 10,000 pieces of stable inventory per item. Every connector undergoes 100% waterproof performance testing before shipment.

ISO9001:2015 quality management ensures consistency. You receive the same reliable performance in every order.

We support custom flange patterns and housing materials. Your unique panel requirements become our manufacturing specifications.

Applications Across Critical Industries

Outdoor Digital Signage and LED Displays

Your stadium screen or highway billboard needs uninterrupted operation. Rain, dust, and UV exposure damage standard connections. Our waterproof design keeps high-definition content flowing regardless of weather conditions.

Broadcast and Production Equipment

Mobile production trucks experience constant vibration during transport. The flange-mount system maintains signal integrity when standard connectors would disconnect.

Marine navigation displays face salt spray and moisture. Our connector's sealed construction prevents corrosion that would compromise safety-critical information.

Industrial Automation and Monitoring

Factory floor cameras transmit real-time quality control footage. Oil mist and particulate contamination destroy consumer-grade HDMI. Our IP67 protection ensures continuous monitoring capability.

Process control panels require reliable human-machine interfaces. The LP-24 Series HDMI Cable Connector IP67 provides stable video connectivity in chemically harsh environments.

Medical and Scientific Equipment

Sterilization procedures expose connectors to moisture and cleaning chemicals. Our sealed design withstands repeated disinfection cycles without performance degradation.

Underwater robotics demand absolute waterproof integrity. The optional IP68 rating (1m/2h) supports submersible applications where standard electronics fail immediately.

Installation and Integration Advantages

Flexible Mounting for Complex Assemblies

Your equipment design might require connector installation before internal components arrive. Front-mount flange design permits this workflow.

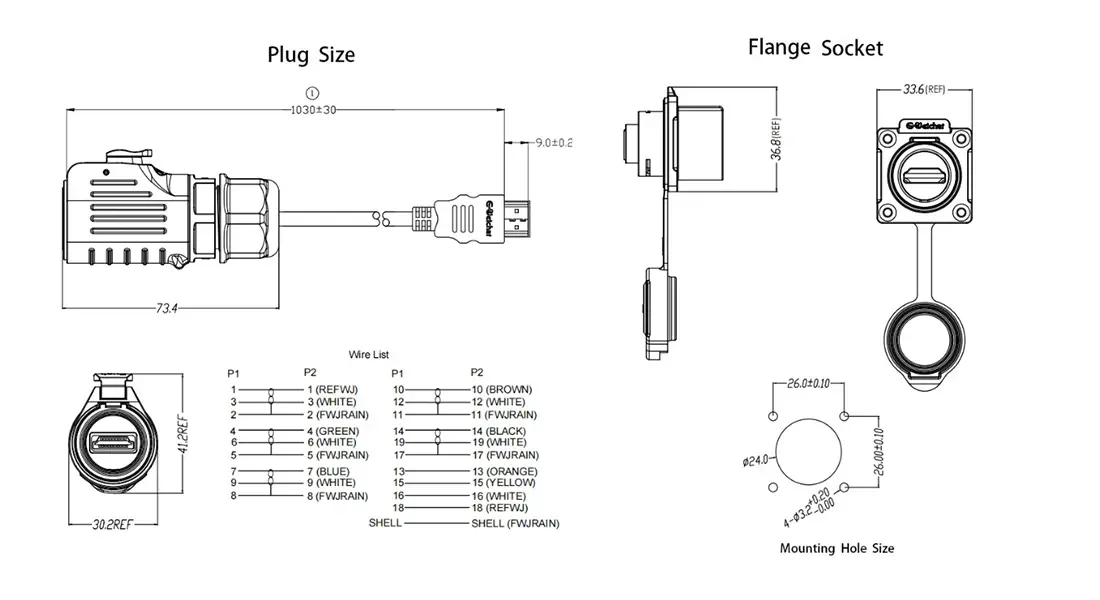

Thicker panels pose challenges for standard bulkhead connectors. Our extended threading accommodates walls that exceed normal locknut reach.

Four mounting holes distribute mechanical stress evenly. You won't see stress cracks around the installation point under vibration.

Cable Management Simplified

The feed-through configuration organizes cable routing cleanly. Internal and external cables connect through a single sealed penetration point.

Cable strain relief integrates with the flange mounting. Your HDMI cables won't pull loose from repeated equipment movement.

Quality Assurance You Can Verify

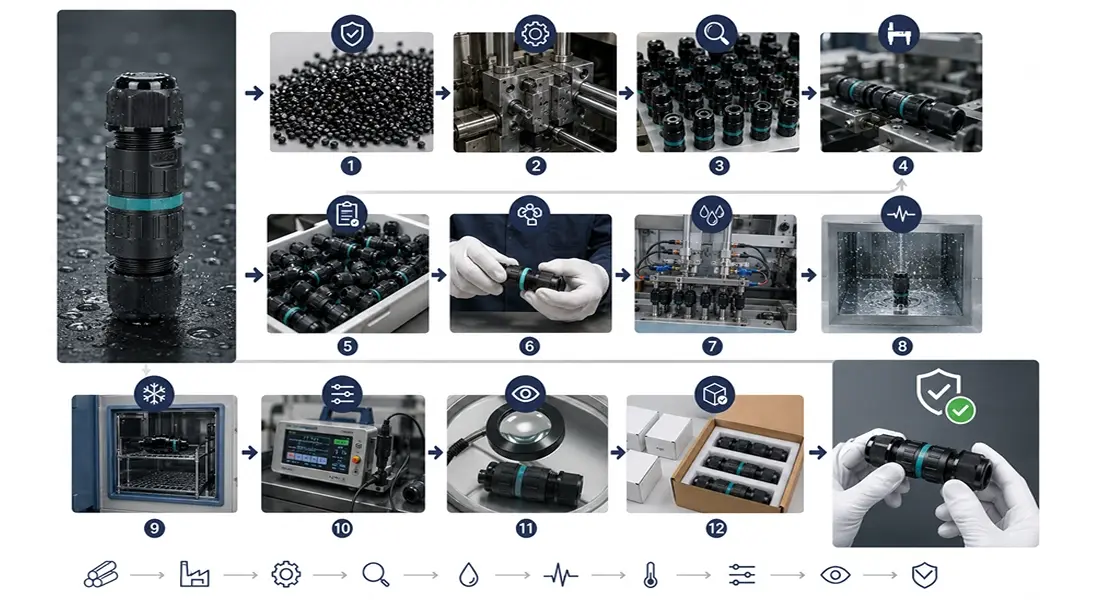

Comprehensive Testing Protocols

We don't just claim waterproof performance. Every connector undergoes immersion testing to verify IP67 compliance.

Temperature cycling confirms operation across the full -40℃ to +85℃ specification. Your connector won't fail when conditions get extreme.

Mechanical life testing validates durability through 500+ connection cycles. The locking mechanism maintains secure engagement throughout the product lifetime.

Certified Compliance and Safety

CE marking confirms European safety standards compliance. RoHS certification guarantees hazardous substance restrictions.

UL94-V0 flame rating protects against fire propagation. Your electrical enclosure maintains its safety integrity.

ISO9001:2015 certification backs our quality management system. We document every manufacturing step for traceability.

FAQ: Your Questions Answered

Q: Can this connector back 4K video transmission?

A: Yes, the HDMI female-to-female pass-through keeps up flag astuteness for high-definition resolutions counting 4K groups. The plan jam transfer speed without dynamic flag processing.

Q: What's the contrast between IP67 and the discretionary IP68 rating?

A: IP67 ensures against brief submersion up to 1 meter for 30 minutes. IP68 (1m/2h) amplifies assurance to 2 hours at 1 meter profundity, appropriate for more requesting submersible applications.

Q: Will this work with my existing HDMI cables?

A: The connector suits standard HDMI interfacing inside the Ø5.0mm to Ø7.0mm cable breadth extend. You may require custom cable gathering for ideal waterproof sealing.

Q: How do I keep up the waterproof seal?

A: Routinely review the O-ring for harm or flotsam and jetsam. Clean fixing surfaces tenderly and guarantee legitimate spine compression amid establishment. We give point by point support rules with each order.

Q: Can you customize the rib gap pattern?

A: Completely. We offer OEM/ODM administrations for custom spine arrangements, mounting gap dividing, and lodging materials. Our designing group will work with your board specifications.

Q: What's your ordinary lead time?

A: Standard setups dispatch inside 7-10 days from our steady stock. Custom orders require extra time for shape advancement and generation scheduling.

Partner with Cablein for Reliable Connectivity

Ready to upgrade your HDMI connectivity to industrial standards? The LP-24 Series HDMI Cable Connector IP67 combines proven waterproof technology with practical installation features.

Connect with us at nick@cableinco.com for technical consultation and quotation assistance.
