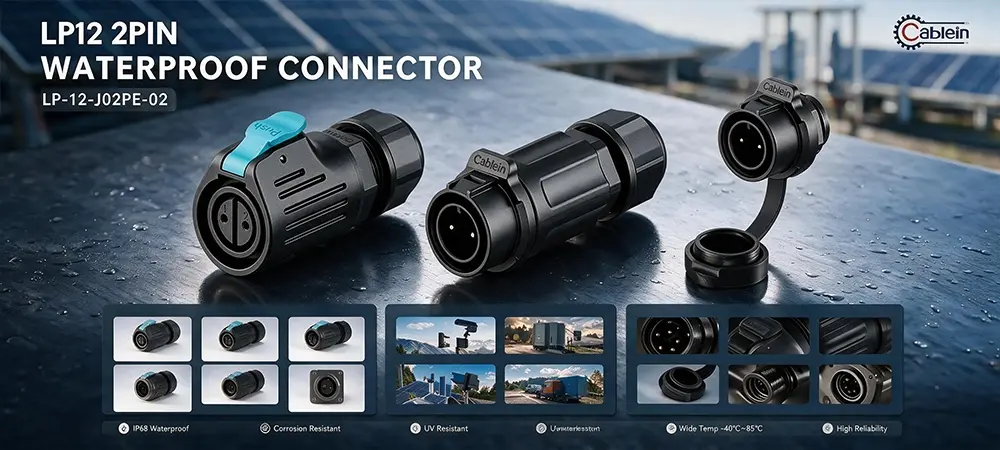

LP12 2-Pin Plastic Waterproof Mini Connector

LP12 2-Pin Plastic Waterproof Mini Connector——Compact Waterproof Connections for Tight Spaces

When your equipment is too small for bulky connectors, you need something compact that still keeps water out. The LP12 2-Pin Plastic Waterproof Mini Connector from Cablein Technology fits that gap. It packs 2 solder pins into a slim all-plastic shell, handles 5A at 125V, and seals 5-7mm cables with an IP67 rating.

Why Choose Our 2-Pin Plastic Waterproof Mini Connector?

Tiny Footprint, Real Sealing
The whole housing is all plastic and very compact, so it disappears into small enclosures. But don't let the size fool you—the silicone ring still gives you an IP67 seal for 5 to 7 mm cables.

2-Pin Solder Setup
Two pins give you simple power or signal runs. We use solder joints because they offer lower resistance than screw terminals. It takes a few minutes to wire, but the connection won't shake loose on vibrating equipment.

Plastic Housing Keeps It Light
The all-plastic body means no metal to rust and no extra weight to drag on your wiring. It's built for light-duty indoor and outdoor applications where space is at a premium.

Handles 5A at 125V
Rated at 5A and 125V, it takes 0.75-1 mm² wire. It's made for smaller loads, not big motors, which is exactly what you want for compact devices.

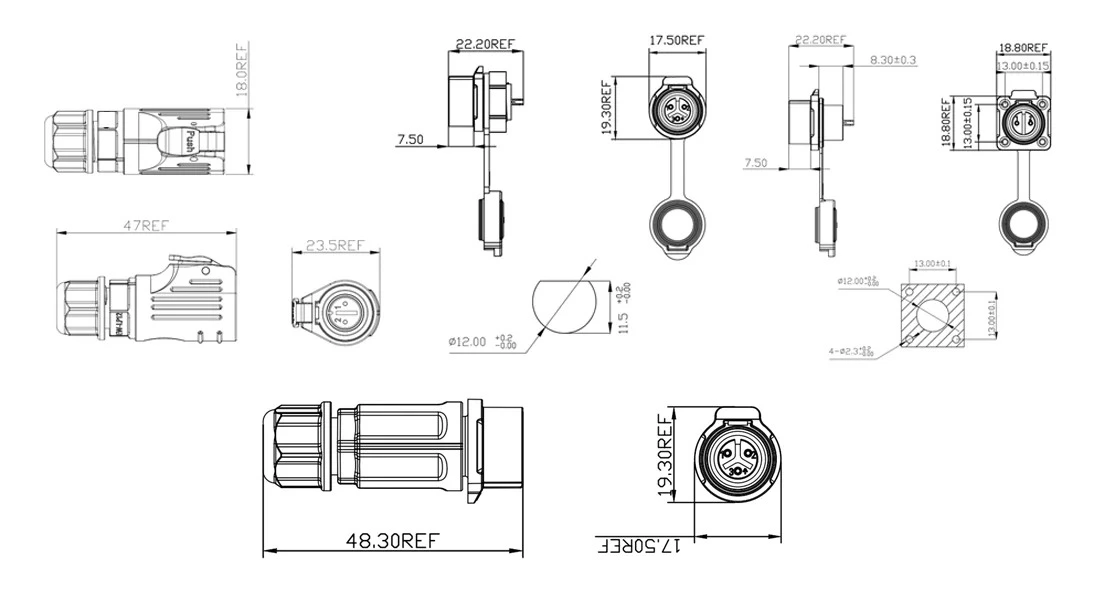

Technical Specifications

​​​​​​​

Where This Mini Connector Earns Its Keep

Small Sensor Enclosures
When your sensor box has almost no room to spare, a full-size connector won't fit. The LP12 slips into tight spots and still seals out moisture.

Portable Lighting and Fixtures
Compact LED fixtures and small portable lights need small connectors. The plastic housing keeps weight down, and IP67 sealing means a bit of rain won't kill the connection.

Battery Packs and Small Chargers
Small chargers and battery packs often need just two wires. This plug handles the 5A load without taking up space.

Waterproof junction boxes
Inside sealed enclosures, you don't need a bulky metal shell. The LP12 gives you a waterproof pass-through that's easy to route in tight boxes.

Garden and Drip Irrigation Controls
Small irrigation controllers sit outdoors and face constant moisture. The plastic body won't rust, and the IP67 seal keeps water away from the contacts.

Quality Control at Cablein Technology

Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the 5-7mm cable range. We test the 5A/125V rating and 1500V withstand voltage. We also pull on the solder joints to make sure they hold. It means the LP12 2-Pin Plastic Waterproof Mini Connector you receive is ready for the field.

Common Questions

Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 6, 7, and 8 pin versions. Tell us what your application needs.

Q: Is this for high-power loads?
A: No. The 2-pin version is rated at 5A/125V, which is ideal for small devices and light loads. If you need higher current, check out our larger LP16 or LP20 models.

Q: Will my cable fit?
A: The standard sealing ring is sized for 5 to 7 mm cables. If you're using a different cable size, let us know and we can match the right ring.

Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.

Get in Touch with Cablein Technology

Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We keep standard versions in stock and can customize pin layouts for your specs. If you need the LP12 2-Pin Plastic Waterproof Mini Connector for your next project, email us at nick@cableinco.com with your cable diameter and quantity.
