LP12 8-Pin Plastic Waterproof High-Pin Solder Plug
2.8 solder pins let you run a mix of signal and power lines through one slim cable instead of pulling multiple runs.
3.Rated at 3A/100V for 0.34 mm² wire—built for small loads and compact devices, not heavy motors.
4.IP67 seal locks out water for 5-7mm cables, so a bit of rain or washdown won't reach the solder joints.
5.Solder joints offer lower resistance than screw terminals, keeping the connection stable under vibration.
6.Tight handles or cramped junction boxes? This 8-pin plug slips right in where standard metal connectors won't.
7.From Cablein Technology—standard versions in stock, with custom pin layouts if your project needs something specific.
8.Part Number：LP-12-J08PE-02-001 LP-12-C08PP-02-001 LP-12-C08SX-02-101 LP-12-C08SX-02-401.

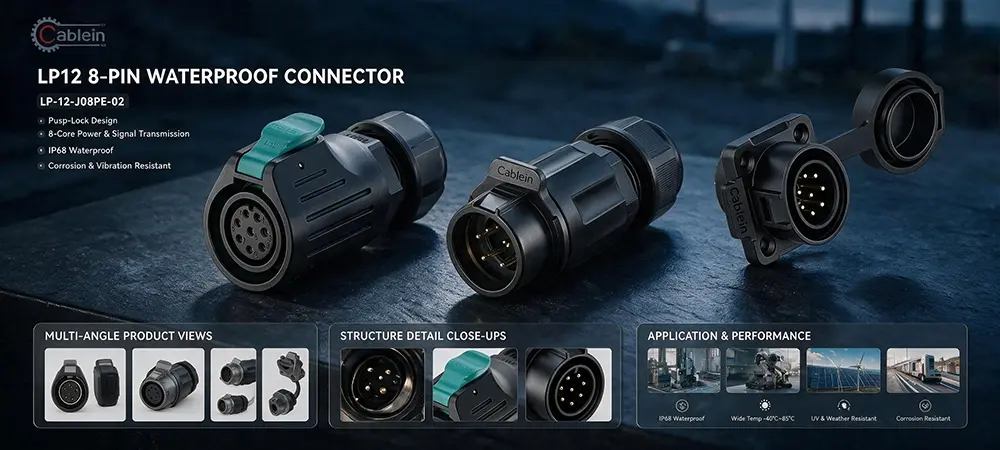

LP12 8-Pin Plastic Waterproof High-Pin Solder Plug——Compact 8-Pin Wiring for Small, Wet Equipment
Small devices often get stuck with connectors that are too bulky to fit. The LP12 8-Pin Plastic Waterproof High-Pin Solder Plug from Cablein Technology gives you 8 solder pins in a tiny all-plastic package. It handles 3A at 100V and seals 5-7mm cables with an IP67 rating, so a bit of moisture won't cause trouble.
Why Choose Our 8-Pin Plastic Waterproof High-Pin Solder Plug?
8 Pins in a Tiny Shell
Eight pins give you enough channels for a small motor or a mix of signal and power lines. We use solder joints because they offer lower resistance than screw terminals. It takes a few extra minutes to wire, but the connection won't shake loose on vibrating equipment.
All-Plastic Body Keeps It Light
No metal means no rust and less weight dragging on your wiring. It's built for smaller devices where a bulky metal shell would be overkill.
IP67 Sealing for 5-7mm Cables
The silicone ring is sized for slim cables. Tighten the connector down, and it squishes into a solid seal. A bit of rain or washdown won't get inside.
Handles 3A at 100V
Rated at 3A and 100V, it takes 0.34 mm² wire. It's made for small loads, not big motors, which is exactly what compact devices need.
Technical Specifications
|
Connector Series |
LP12 |
Rated Voltage |
100V |
|
Number of Pins |
8 |
Withstand Voltage |
1000V |
|
Termination Type |
Solder |
Ingress Protection |
IP67 |
|
Installation Style |
Cable-to-Cable |
Cable Diameter Range |
5–7 mm |
|
Housing Material |
Plastic |
Operating Temperature |
-40°C to +80°C |
|
Rated Current |
3A |
Compatible Wire Gauge |
0.34 mm² |
Where This 8-Pin Plug Earns Its Keep
Multi-Channel Sensor Wiring
Small sensor boxes often need several separate signal lines. This 8-pin plug lets you run them all through one slim cable, and the solder joints stay solid when the equipment vibrates.
Compact RGB LED Controllers
Eight pins give you separate channels for RGB, power, and ground—plenty of room to spare. When you're squeezing lights into tight outdoor profiles, the plastic body helps keep the weight off the fixture. And with the IP67 seal, a bit of rain isn't going to short anything out.
Portable Medical Devices
HandhelHandheld diagnostic tools are always tight on space, so you need something small and light. The LP12 8-Pin Plastic Waterproof High-Pin Solder Plug slips into those cramped handles without weighing them down. And since it's plastic, wiping it down with alcohol won't make it corrode.
Small Drone Builds
Building a custom drone means cramming wires into tight spots. You need a compact 8-pin plug to handle battery power and telemetry. Because it's plastic, it won't rust on you. And if a wire ever snaps, you can just re-solder it instead of tossing the whole connector.
Irrigation Valve Controllers
Irrigation controllers sit outside in the wet all day. At least the plastic body won't rust on you. And because it's IP67 sealed, moisture stays away from the contacts.
Quality Control at Cablein Technology
Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the 5-7mm cable range. We test the 3A/100V rating and 1000V withstand voltage. We also pull on the solder joints to make sure they hold. It means the LP12 8-Pin Plastic Waterproof High-Pin Solder Plug you receive is ready for the field.
Common Questions
Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 6, 7, and 8 pin versions. Tell us what your application needs.
Q: Is this for high-power loads?
A: No. The 8-pin version is rated at 3A/100V, which is ideal for signal and control circuits. If you need higher current, check out our larger LP16 or LP20 models.
Q: Will my cable fit?
A: The standard sealing ring is sized for 5 to 7 mm cables. If you're using a different cable size, let us know and we can match the right ring.
Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.
Get in Touch with Cablein Technology
Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We keep standard versions in stock and can customize pin layouts for your specs. If you need the LP12 8-Pin Plastic Waterproof High-Pin Solder Plug for your next project, email us at nick@cableinco.com with your cable diameter and quantity.
