LP12 Panel Mount Connector

LP12 Panel Mount Connector – Industrial Waterproof Circular Solution

The LP12 Panel Mount Connector is an enterprise-grade waterproof circular interconnect designed for demanding industrial environments. Built with PA66 nylon lodging and gold-plated copper amalgam contacts, it conveys IP67/IP68-rated assurance at the board interface. With a temperature resilience from -40℃ to +105℃, this solder-type rear-entry connector underpins 2–8 stick arrangements and withstands 2000+ mating cycles. Its snap-lock coupling component empowers speedy, tool-free associations in compact board spaces. Certified to CE, RoHS, and made beneath ISO9001:2015 guidelines, the item offers dependable pass-through fixing for hardware walled in areas over Driven lighting, mechanization, and renewable vitality systems.

Why Choose Our Panel Mount Solution?

You confront consistent challenges: dampness entrance crushing circuits, establishment delays on swarmed control boards, and connector disappointments beneath vibration. Conventional bulky connectors essentially do not fit cutting edge compact designs.

Our board mount arrangement changes that. The 12mm mounting gap spares valuable walled in area genuine domain. The coordinates silicone gasket makes a watertight seal that stops dampness some time recently it comes to your circuits. And the snap-lock plan? You can mate it dazzle, indeed in hard-to-reach board locations.

Built for Real-World Durability

Your gear works in extreme conditions. Tidy storms. Overwhelming rain. Extraordinary cold. That's why we designed this connector with UL94-V0 flame-retardant lodging and gold-plated contacts that stand up to corrosion.

The patch container terminals give mechanical quality that pleated associations can't coordinate. When your establishment encounters consistent vibration—whether it's on a mechanical arm or an open air light fixture—those patch joints remain intact.

Technical Specifications That Matter

Electrical Performance:

• Rated current: 5A (2-pin) / 3A (3-8 pin)
• Rated voltage: 125V/100V
• Wire section: 0.34-0.5mm²
• Contact resistance: <5mΩ
• Insulation resistance: >500MΩ

Environmental Protection:

• IP67/IP68 waterproof rating
• Operating temperature: -40℃ to +105℃
• Cable diameter compatibility: Φ3-Φ6mm
• Mating durability: 2000+ cycles

Material Quality:

• Housing: PA66 nylon (UL94-V0 rated)
• Contacts: Gold-plated copper alloy
• Gasket: Food-grade silicone
• Panel mounting: Rear-locking hexagonal nut

You get consistent performance whether your connector is in a freezing Canadian winter or a scorching Middle Eastern summer.

Where You'll Use This Connector

Industrial Automation Systems

Your PLCs, sensor arrays, and robotic controllers need space-efficient connections that won't fail mid-cycle. The compact 12mm footprint fits into crowded control panels where traditional connectors create clearance problems.

EMI resistance keeps data transmission clean in electrically noisy factory floors. And when maintenance teams need quick access, the snap-lock mechanism saves hours compared to screw-terminal alternatives.

LED Lighting Infrastructure

Outdoor architectural lighting, stadium illumination, and smart city installations face harsh weather year-round. UV radiation. Salt spray. Temperature cycling. Our panel-mount design creates a sealed pass-through that protects internal wiring from environmental damage.

The single-hole mounting simplifies installation on light fixtures and junction boxes. You reduce labor costs and improve long-term reliability.

Renewable Energy Equipment

Solar inverters and battery storage systems demand connectors that maintain integrity through daily thermal cycling. The -40℃ to +105℃ rating ensures stable performance as temperatures fluctuate.

Waterproof panel sealing prevents moisture-related failures that could compromise expensive power electronics. Your installations stay operational longer with fewer maintenance calls.

Medical and Portable Electronics

Diagnostic devices need frequent sterilization. Patient monitors require high-cycle durability. The gold-plated contacts resist corrosion from repeated cleaning chemical exposure, while the robust housing maintains structural integrity through thousands of mating cycles.

Installation Advantages You'll Appreciate

Single-Point Board Entrance: The rear-locking nut makes a fixed section point with fair one mounting gap. You streamline walled in area plan and diminish potential spill paths.

Blind Mating Capability: The snap-lock component guides association indeed when you can't see the interface. Culminate for recessed boards or overhead establishments where get to is difficult.

Flexible Lodging Choices: Select zinc combination for greatest mechanical quality in high-vibration situations, or select lightweight plastic when weight diminishment things for versatile equipment.

Custom Arrangement Bolster: Require particular stick courses of action? Diverse lodging colors for circuit recognizable proof? Custom cable exit points? We offer OEM alterations to coordinate your correct requirements.

Quality Control You Can Trust

Every LP12 Panel Mount Connector undergoes comprehensive testing before shipment:

• Salt spray resistance (ASTM B117): 48-hour exposure confirms corrosion protection
• Mechanical life cycle: 2000+ insertions verify contact stability
• IP rating validation: Pressurized water immersion confirms seal integrity
• Dielectric withstanding voltage: High-voltage testing prevents arcing failures
• Vibration resistance (IEC 60068-2-6): Simulates harsh industrial conditions

Our ISO9001:2015-certified fabricating guarantees steady quality over generation bunches. You get the same solid execution whether you arrange 100 units or 10,000.

Frequently Asked Questions

Q: What board thickness does this connector accommodate?

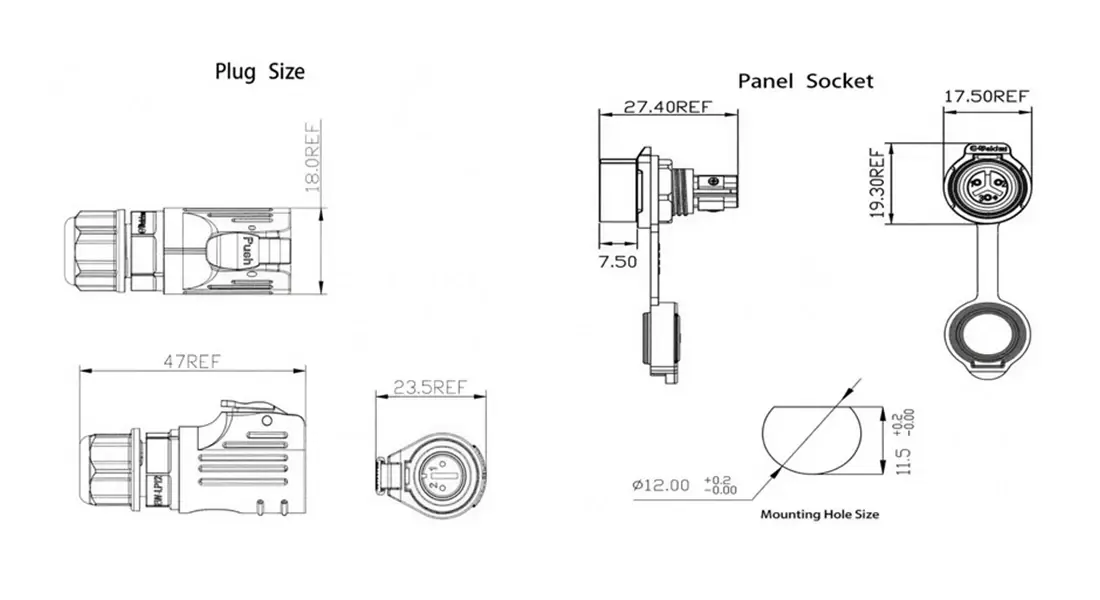

A: The standard rear-locking nut fits board thicknesses from 0.5mm to 4mm. Custom mounting equipment is accessible for thicker enclosures.

Q: Can I utilize this for both control and information signals?

A: Yes. The multi-pin arrangements permit division of control and flag circuits. Gold-plated contacts minimize cross-talk for clean information transmission.

Q: How does IP67 contrast from IP68 in viable terms?

A: IP67 secures against brief submersion (up to 1 meter for 30 minutes). IP68 offers security amid nonstop submersion. Both evaluations incorporate total clean protection.

Q: Are the contacts outlined for patching or crimping?

A: Standard models highlight patch mugs for greatest vibration resistance. If you require crimp-style contacts for high-volume mechanized get together, we can give custom variants.

Q: What's your lead time for non-standard stick configurations?

A: Standard 2-8 stick models transport inside 7-10 days from our prepared stock of 10,000+ units per setup. Custom stick courses of action regularly require 2-3 weeks for designing and testing validation.

Q: Can the connector handle open air UV exposure?

A: Completely. The PA66 lodging stands up to UV corruption, and the coordinates gasket keeps up fixing keenness through a long time of daylight exposure.

Why Partner with Cablein Technology?

Since 2017, we've specialized in mechanical waterproof network arrangements. Our 6,000㎡ office in Shenzhen houses progressed fabricating hardware and a 200+ individual group committed to exactness production.

We hold over 30 utility demonstrate licenses in quick-connect and waterproof innovation. Our building group underpins you from starting plan meeting through generation and after-sales service.

With CE, RoHS, ETL, PSE, SAA, TUV, and REACH certifications, you can unquestionably send our connectors in worldwide markets.

Contact Us

Ready to solve your panel connectivity challenges? Contact us at nick@cableinco.com to discuss your specific LP12 Panel Mount Connector requirements, request technical specifications, or arrange sample evaluation.
