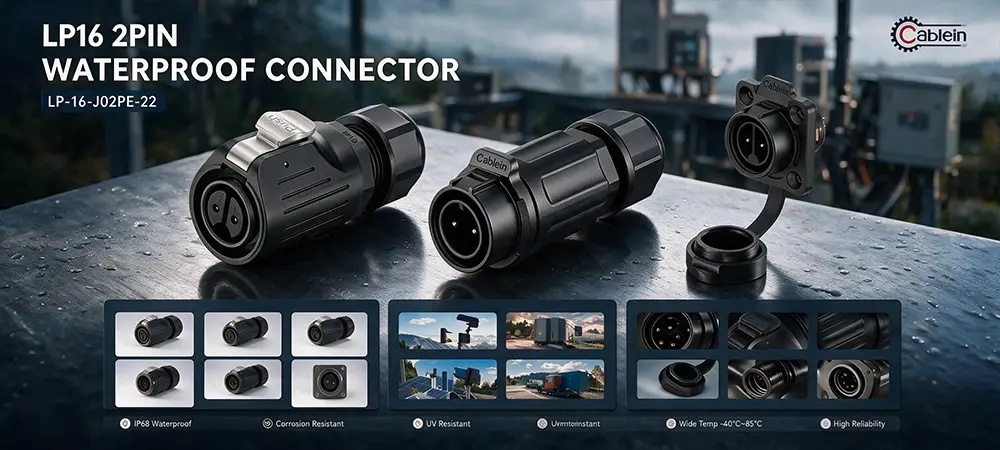

LP16 2-Pin Plastic Waterproof Clamp-Type Connector

LP16 2-Pin Plastic Waterproof Clamp-Type Connector——10A Power Connections Without the Soldering Iron

Not every field job has room for a soldering station. The LP16 2-Pin Plastic Waterproof Clamp-Type Connector from Cablein Technology gets you wired up with just a screwdriver. It handles 10A at 400V, fits 7-9mm cables, and keeps an IP68 seal. So rain, washdowns, and heavy vibration don't stand a chance.

Why Choose Our 2-Pin Plastic Waterproof Clamp-Type Connector?

Screw Clamp Terminals for Fast Field Wiring
Forget the soldering iron and the crimper. Just strip the wire, shove it under the clamp, and tighten the screw. If a wire breaks on site, you can swap it out in a couple of minutes instead of hauling the whole thing back to the shop.

All-Plastic Body Keeps It Light
The whole housing is plastic, which means no rust and less weight. It's built for equipment where a metal shell would be overkill, but you still get solid mechanical protection.

IP68 Sealing for 7-9mm Cables
The silicone ring is sized for thicker cables. Crank the coupling down tight, and it compresses into a solid seal. It handles temporary submersion, not just rain, so outdoor gear and wet factory floors are no problem.

Handles 10A at 400V
Rated at 10A and 400V, it takes 1-1.5mm² wire. The clamp bites down hard on the conductor, and the plastic body won't heat up or rust.

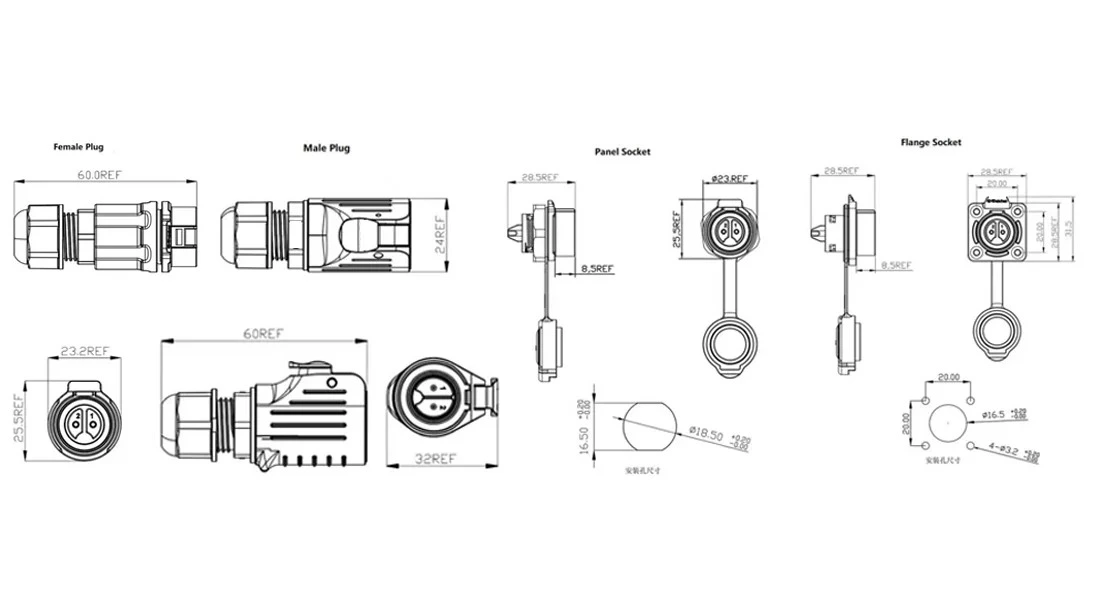

Technical Specifications

​​​​​​​

Where This 2-Pin Connector Earns Its Keep

Outdoor LED Power Feeds
Pulling 10A out to a floodlight or sign? With these clamp terminals, you can hook up those thick 7-9mm cables right on site—no soldering iron needed. And the IP68 seal means rain won't get inside.

Small Pump and Motor Leads
Small pumps and fans usually pull around 10A. If you need to swap a motor quickly, the screw clamps save you from re-soldering in a wet pump house.

Portable Generator Hookups
Out in the field, generators need a quick, waterproof 2-pin hookup for power. The clamp terminals grab the wire tight, and the threaded coupling keeps it from shaking loose when things start vibrating.

Marine and Dockside Gear
Salt spray just destroys cheap connectors. That’s why the all-plastic body on this one matters—it won't corrode. And with the IP68 seal, water can't get in to reach the contacts.

Food Processing Washdown Areas
Daily hose-downs are normal in food plants. The LP16 2-Pin Plastic Waterproof Clamp-Type Connector shrugs off moisture, and there's no metal to rust.

Quality Control at Cablein Technology

Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP68 seal holds at the 7-9mm cable range. We test the 10A/400V rating and 2000V withstand voltage. We also crank down on the clamp screws during testing to make sure the threads don't strip out. That way, the LP16 2-Pin Plastic Waterproof Clamp-Type Connector you get is ready to wire up and use right away.

Common Questions

Q: Can I get this connector with more pins?
A: Yes, we make them in 2, 3, 4, 5, 7, 8, and 9 pin versions. Tell us what your application needs.

Q: Is this for high-power loads?
A: Yes, the 2-pin version is rated at 10A/400V, which is plenty for pumps, lights, and small motors.

Q: Will my cable fit?
A: The standard sealing ring fits 7 to 9 mm cables. If you're using a different size, let us know and we can match the right ring.

Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.

Get in Touch with Cablein Technology

Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We keep standard versions in stock and can customize pin layouts for your specs. If you need the LP16 2-Pin Plastic Waterproof Clamp-Type Connector for your next project, email us at nick@cableinco.com with your cable diameter and quantity.
