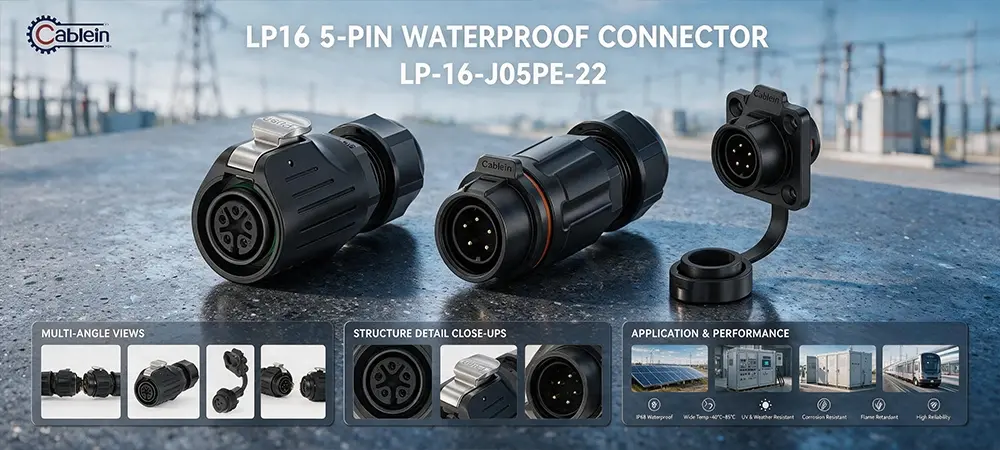

LP16 5-Pin Plastic Waterproof Screw Type Connector

LP16 5-Pin Plastic Waterproof Screw Type Connector——Multi-Pin Wiring with Just a Screwdriver

Five wires usually mean a mix of power and control signals. The LP16 5-Pin Plastic Waterproof Screw Type Connector from Cablein Technology handles that with a 5A at 400V rating, a 7-9mm cable fit, and an IP68 seal. So rain, washdowns, and heavy vibration don't stand a chance.

Why Choose Our 5-Pin Plastic Waterproof Screw Type Connector?

Screw Terminals for Fast Field Wiring
No soldering iron, no crimper. Don't need 'em. Strip the wire, stick it under the screw terminal, tighten it up—done. Wire goes bad on site? Swap it in a few minutes. No need to drag the whole assembly back to the shop.

All-Plastic Body Keeps It Light
The whole housing is plastic, which means no rust and less weight. It's built for equipment where a metal shell would be overkill, but you still get solid mechanical protection.

IP68 Sealing for 7-9mm Cables
The silicone ring is sized for thicker cables. Crank the coupling down tight, and it compresses into a solid seal. It handles temporary submersion, not just rain, so outdoor gear and wet factory floors are no problem.

Handles 5A at 400V
Rated at 5A and 400V, it takes 0.5mm² wire. The screw clamps bite down hard on the conductor, and the plastic body won't heat up or rust.

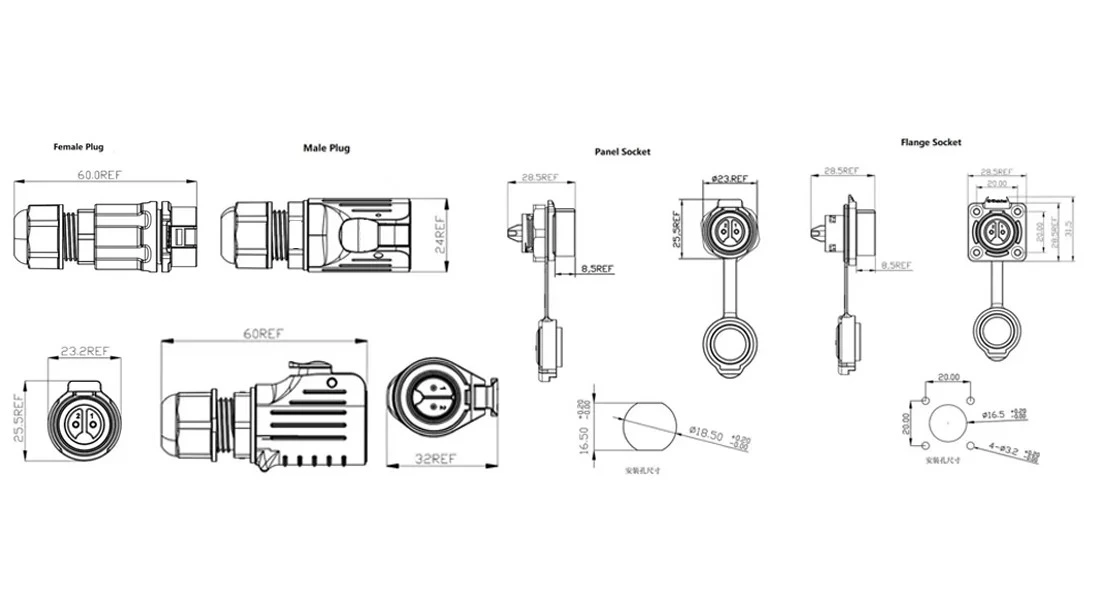

Technical Specifications

​​​​​​​

Where This 5-Pin Screw Type Connector Earns Its Keep

Motor Plus Signal Lines
Machine needs power plus a few control lines? This 5-pin plug does it all in one cable. And it's screw-clamp, so if a signal wire goes bad you just swap it in a few minutes—no soldering iron needed.

Outdoor LED and Signage Feeds
Running power and control lines out to a floodlight or signage array? This plug carries the current without heating up. The plastic body won't rust, and the IP68 seal handles rain.

Field Generator Hookups
Generators often need a fast, waterproof 5-pin hookup for power and control. Screw terminals bite down on the wire and hold it, and the threaded coupling keeps everything locked tight—vibration won't work it loose.

Marine and Dockside Gear
Salt spray will wreck a cheap connector. All-plastic body on this one, so corrosion isn't really a problem—and the IP68 seal keeps water off the contacts.

Food Processing Washdown Areas
Daily hose-downs are normal in food plants. The LP16 5-Pin Plastic Waterproof Screw Type Connector shrugs off moisture, and there's no metal to rust.

Quality Control at Cablein Technology

Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP68 seal holds at the 7-9mm cable range. We test the 5A/400V rating and 2000V withstand voltage. We also torque the screw terminals to make sure the threads don't strip. It means the LP16 5-Pin Plastic Waterproof Screw Type Connector you receive is ready for the field.

Common Questions

Q: Can I get this connector with more pins?
A: Yes, we make them in 2, 3, 4, 5, 7, 8, and 9 pin versions. Tell us what your application needs.

Q: Is this for high-power loads?
A: No. The 5-pin version is rated at 5A/400V, which is ideal for signal and control circuits. If you need higher current, check out our 2-pin or 3-pin models.

Q: Will my cable fit?
A: The standard sealing ring fits 7 to 9 mm cables. If you're using a different size, let us know and we can match the right ring.

Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.

Get in Touch with Cablein Technology

Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We keep standard versions in stock and can customize pin layouts for your specs. If you need the LP16 5-Pin Plastic Waterproof Screw Type Connector for your next project, email us at nick@cableinco.com with your cable diameter and quantity.
