LP16 8 Pin Plastic Waterproof Connector Kit
2. 8 pins let you run power and multiple control signals through a single cable, cutting down cable clutter.
3. Solder cups instead of screw terminals. Vibration won't back them out or cause a loose connection.
4. All-plastic shell means no rust and no corrosion, even with constant washdowns or salt spray.
5. True IP68 rating. The O-ring seals tight on 7-9mm cable, handling temporary submersion just fine.
6. Rated 5A at 250V for 0.5mm² wire. Solid for signal logic and light power loads.
7. Built by Cablein Technology. Every kit is pressure-tested and solder joints are pull-tested before it ships.
8.Part Number：LP-16-J08PE-02-001 LP-16-C08PP-02-001 LP-16-C08SX-02-101 LP-16-C08SX-02-401.

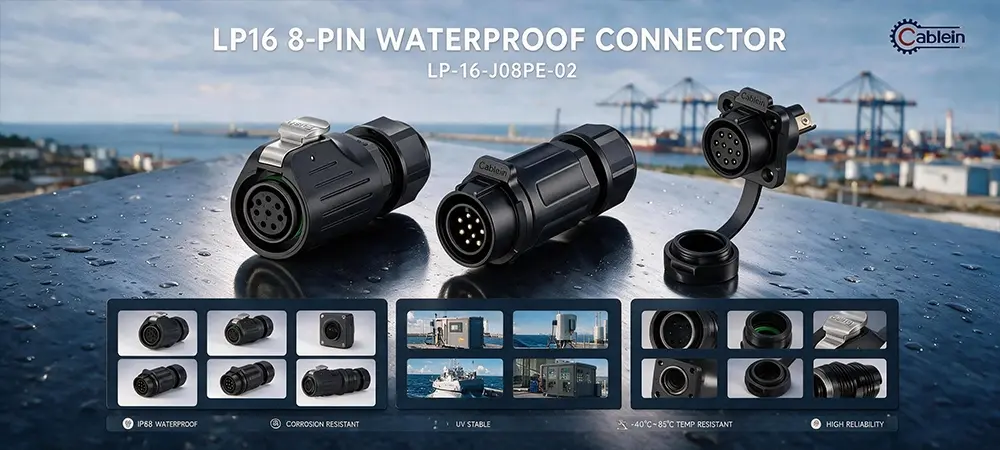

LP16 8 Pin Plastic Waterproof Connector Kit——Stop Trying to Fit Eight Wires Into One Plug
When a machine needs a main power line, a couple of motor controls, and some sensor signals, running all those cables separately is a nightmare. The LP16 8 Pin Plastic waterproof connector Kit from Cablein Technology gives you one clean fix. You get a plug and three socket options—inline, panel, and flange. Everything runs through one cable, and the IP68 seal means you can drop it in a puddle and it won't care.
Why Guys Like This LP16 8 Pin Plastic Waterproof Connector Kit
One Plug, Three Socket Options

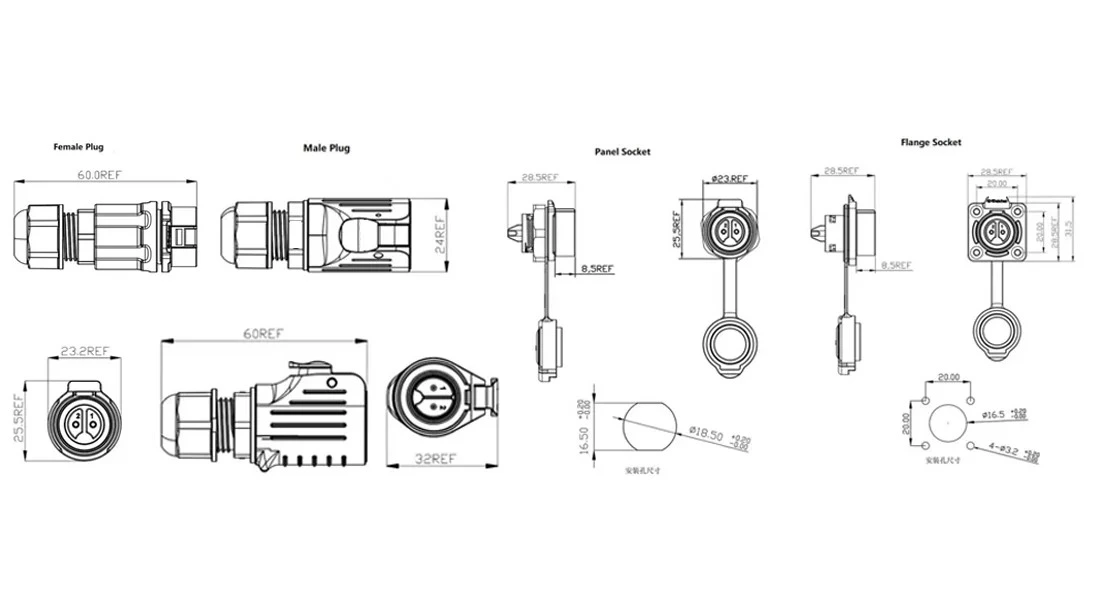

You don't have to guess which mount you need. The kit has the inline socket for cable-to-cable runs, the panel socket for drilling into a cabinet, and the flange socket for bolting to a machine frame. Pick the one that fits your layout and move on.
Solder Joints That Don't Quit
Eight wires is a lot to keep tight. We use solder cups instead of screw terminals because vibration won't back them out. It takes an extra few minutes with an iron, but once it's locked in, it stays locked in. No more tightening screws every month.
Plastic Shell, Zero Rust
Salt spray and washdowns will eat through cheap metal connectors. The all-plastic housing on this kit won't corrode. It won't rust, and it won't weigh down your cable runs either.
Real IP68 Sealing
The threaded coupling cranks down on a thick silicone O-ring. Run 7-9mm cable through it, and it seals tight enough for temporary submersion. Rain, hose-downs, wet factory floors—it all rolls right off.
Technical Specifications
| Connector Series | LP16 | Rated Voltage | 250V |
| Number of Pins | 8 | Withstand Voltage | 1500V |
| Termination Type | Solder | Ingress Protection | IP68 |
| Kit Includes | 1 Plug, 3 Sockets (Inline, Panel, Flange) | Cable Diameter Range | 7–9 mm |
| Housing Material | Plastic | Operating Temperature | -40°C to +85°C |
| Rated Current | 5A | Compatible Wire Gauge | 0.5 mm² |
Where This Kit Earns Its Keep
Stage Lighting Trusses
Lighting rigs move, shake, and rattle all night. A loose screw terminal means a dead fixture mid-show. The LP16 8 Pin Plastic Waterproof Connector Kit uses solder joints that stay put, and the panel socket makes it easy to mount right on the truss frame.
Outdoor Security Poles
Cameras out in the rain need a connection that won't let water in. Bolt the flange socket to the junction box, solder your wires once, and you're done. The plastic body won't rust, and the IP68 seal handles the weather just fine.
Conveyor and Packaging Lines
Vibration is the enemy of screw terminals. They back out, and you get a dead conveyor. Solder doesn't do that. With eight pins, you can run your sensors and motor control through one plug without a mess of cables.
Industrial Control Cabinets
Whether you need an inline connection for a cable run or a panel mount for a cabinet door, the kit has you covered. It's a clean, waterproof feed-through that keeps your electronics dry.
How Cablein Technology Builds These
We don't just box up connectors and ship them. Every LP16 8 Pin Plastic Waterproof Connector Kit gets a 100% pressure test before it leaves the floor. We're ISO 9001:2015 certified, and we pull-test the solder joints to make sure they don't break under load. If it can't handle 1500V, it doesn't go in the box.
Common Questions
Q: Do I have to use all three sockets?
A: No. The kit gives you options. If your setup only needs the panel mount, just use that one and keep the others as spares.
Q: Can I run a motor and signals on the same 8-pin plug?
A: Yes, but keep the 5A rating in mind. If your motor pulls close to that, make sure your signal wires aren't drawing much current.
Q: What if I mess up a solder joint?
A: Heat it up, pull the wire out, clean the cup, and try again. Just don't overheat the plastic insert.
Q: Will the plastic crack in cold weather?
A: No. It's rated down to -40°C. It'll freeze, but it won't crack or lose the seal.
Get Your Kit
Cablein Technology has been building waterproof connectors for industrial clients for years. We keep standard kits in stock, and we can customize pin layouts or cable diameters if you need something specific. If you want the LP16 8 Pin Plastic Waterproof Connector Kit for your next project, email us at nick@cableinco.com with your wire size and how many sets you need.
