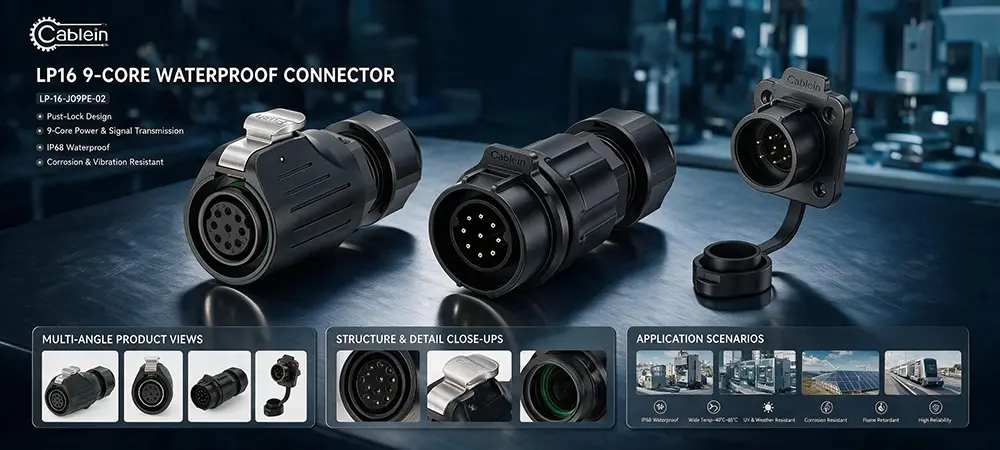

LP16 9 Pin Aviation Plug Waterproof Connector Set

LP16 9 Pin Aviation Plug Waterproof Connector Set——Stop Wrestling with a Rat's Nest of Cables

When your equipment needs a main power feed and a dozen different signals, you're looking at a serious cable management headache. The LP16 9 Pin Aviation Plug waterproof connector Set from Cablein Technology solves this. It includes the plug plus three socket types—inline, panel, and flange—so you have the flexibility to mount it wherever you need. Rated for 5A at 250V, it pulls all nine lines through one waterproof connection and keeps them locked tight.

Why Guys Choose This LP16 9 Pin Aviation Plug Waterproof Connector Set

Three Sockets, One Plug
You don't have to buy separate kits for different jobs. This set gives you an inline socket for extending cable runs, a panel socket for through-box mounting, and a flange socket for bolting down to heavy frames. Pick what you need and stash the rest as spares.

Solder Cups Beat Screws
With nine wires, a loose screw terminal will drive you nuts. We use solder cups so the connection won't back out when the machine starts vibrating. Yeah, it takes a few minutes with an iron, but once it's locked in, it stays locked in.

All-Plastic Shell
Metal connectors rust out in wet environments. The plastic housing on this kit shrugs off water, salt spray, and chemical washdowns. It's also lighter, meaning less weight hanging off your cable runs.

Real IP68 Protection
The threaded ring cranks down on a thick silicone O-ring. With a 7-9mm cable, it seals up tight enough that you can drop it in a puddle and the contacts stay completely dry.

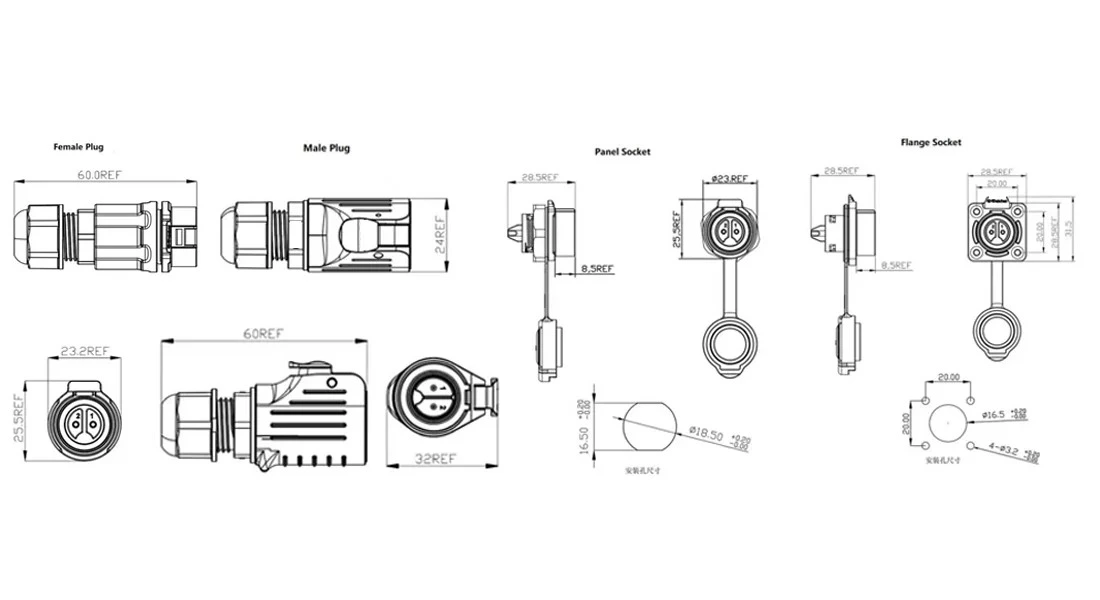

Technical Specifications

​​​​​​​

Where This Kit Actually Gets Used

Conveyor Lines and Packaging
Conveyors vibrate relentlessly. Screw terminals slowly walk out until the line goes dead. Solder joints don't do that. With nine pins, you can run all your sensors and motor controls through one plug, reducing the cable clutter.

Outdoor Security and Cameras
Running multiple data lines up a pole to a security camera array? Bolt the flange socket to the box, solder your wires once, and forget about it. The plastic body won't rust in the rain, and the IP68 seal handles the weather.

Stage Lighting and Trusses
Lighting rigs get moved, shaken, and rattled every night. A loose connection means a dead fixture mid-show. The LP16 9 Pin Aviation Plug Waterproof Connector Set uses joints that stay put, and the panel socket makes it easy to mount right on the frame.

Marine and Washdown
Salt spray eats cheap connectors for breakfast. The plastic body resists corrosion, and the IP68 seal stops water from ever reaching the contacts.

How Cablein Technology Builds These

We don't just box up connectors and ship them. Every LP16 9 Pin Aviation Plug Waterproof Connector Set gets a 100% pressure test before it leaves our factory floor. We're ISO 9001:2015 certified, and we pull-test the solder joints to make sure they don't break under load. If it can't handle the 1500V withstand voltage, it doesn't go in the box.

Common Questions

Q: Is it hard to solder nine wires?
A: It takes a little patience. Just tin the cups, make clean joints, and don't overheat the plastic insert. Do it once and you're done.

Q: Can I run power and data on the same plug?
A: Yes, but keep the 5A total rating in mind. If you're running a motor, make sure your signal lines aren't drawing much current.

Q: What if my cable is a different size?
A: The standard O-ring fits 7 to 9mm cables. If you're using something different, contact us and we can match a sealing ring to your specs.

Q: Do I have to use all three sockets?
A: No. The set gives you options. Use the one that fits your layout and keep the rest as spares.

Get Your Kit

Cablein Technology has been supplying waterproof connectors for years. We keep standard kits in stock and can customize pin layouts if your project requires it. If you need the LP16 9 Pin Aviation Plug Waterproof Connector Set for your next build, email us at nick@cableinco.com with your wire size and quantity.
