LP16 Panel Socket Connector

LP16 Panel Socket Connector – Industrial Waterproof Panel-Mount Solution

The LP16 Panel Socket Connector from Cablein Technology delivers enterprise-grade performance with IP67/IP68 waterproof protection. Highlighting PA66 nylon lodging, gold-plated copper combination contacts, and a secure snap-lock coupling component, this connector offers 2-9 stick arrangements with appraised streams up to 10A and voltage capacity of 500V. Tried for 2000+ mating cycles and working dependably from -40℃ to +105℃, it meets TUV and CE certifications beneath ISO9001:2015 guidelines. The solder-type raise section plan guarantees secure inner wiring integration for requesting mechanical applications.

What Makes Our Panel Socket Connector Stand Out?

Our panel-mount attachment connector combines tough development with viable building. The 16mm mounting distance across makes a compact impression idealize for hardware walled in areas where space is limited.

Key Technical Features:

• Multi-pin options: Choose from 2-9 pin configurations to match your specific signal and power requirements
• High current capacity: Handles 5-10A depending on pin count, suitable for both signal and power transmission
• Temperature resilience: Functions reliably across -40℃ to +105℃ range
• UL94-V0 flame retardant: PA66 nylon housing meets strict fire safety standards
• Proven durability: Validated through 2000+ insertion/extraction cycles

The gold-plated contacts minimize oxidation and ensure consistent electrical performance. This matters when your equipment operates in coastal areas, industrial facilities, or outdoor installations where moisture and contaminants threaten connection integrity.

How the LP16 Panel Socket Connector Solves Real-World Challenges

Traditional panel connectors often fail under vibration, moisture exposure, or frequent disconnection. Our design addresses these pain points directly.

Panel Integration Made Simple:

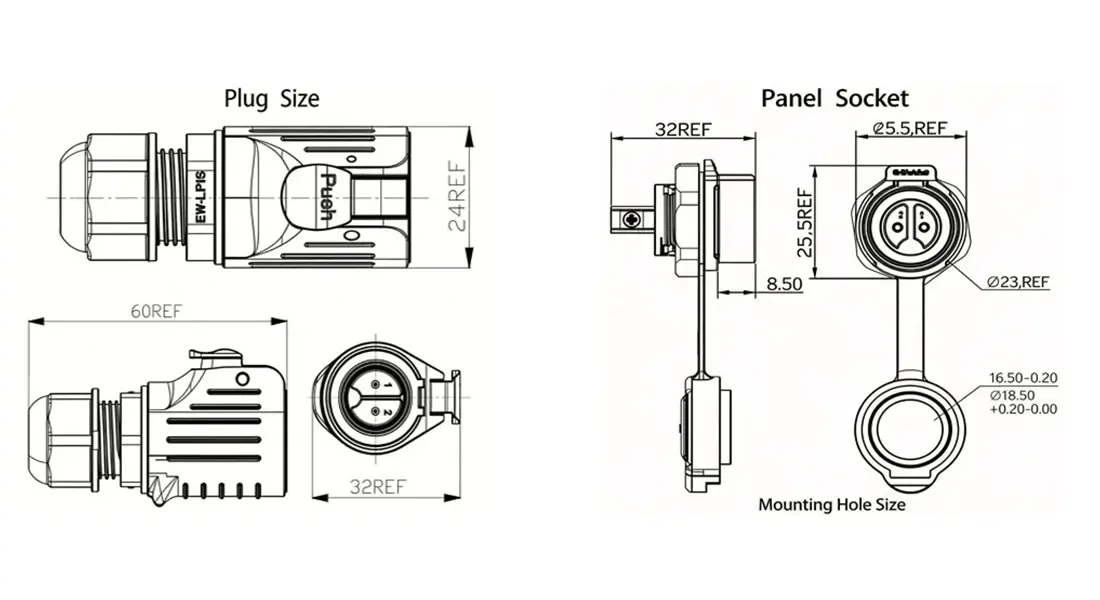

The single-hole mounting system with rear locking nut creates a sealed pass-through point on your enclosure. You don't need complex mounting brackets or multiple fasteners. Just drill the specified diameter hole, insert the connector from inside, and secure with the provided nut.

The integrated panel gasket achieves IP68 waterproof rating at the mounting surface. No additional sealants or gaskets required. This saves installation time and reduces potential leak points.

Quick Connection in Tight Spaces:

The snap-lock coupling mechanism supports blind mating from outside the panel. Your technicians can connect cables without visual access to the rear of the panel. This proves invaluable during maintenance work on equipment mounted in difficult locations.

The spring-button release allows one-handed disconnection. Quick, tool-free operation reduces downtime during equipment servicing.

Vibration-Resistant Performance:

Tested to withstand 15G vibration per IEC 60068-2-6 standards, these connectors maintain stable connections on mobile equipment, transportation systems, and industrial machinery. The locking mechanism won't shake loose during operation.

Applications Across Industries

LED Lighting Systems:

From architectural façade lighting to sports stadium installations, our panel connectors provide reliable power distribution in outdoor luminaires. The UV-resistant housing withstands years of sun exposure without degradation.

Industrial Automation:

Control panels, sensor networks, and automated machinery benefit from the secure connections and IP68 protection. The connector performs consistently in dusty factories and wash-down environments.

Renewable Energy:

Solar installations and energy storage systems require connectors that handle environmental extremes. The wide temperature range and weather resistance make this connector ideal for outdoor renewable energy equipment.

Transportation Systems:

Rail vehicles, marine vessels, and specialized vehicles need connections that resist vibration and moisture. Our panel sockets deliver the reliability transportation applications demand.

Customization for Your Specific Requirements

Every application has unique needs. We offer customization options to match your exact specifications:

• Custom pin counts and contact arrangements
• Specific housing materials for special environments
• Modified panel cutout sizes
• Tailored wire gauge compatibility
• Custom keyway orientations to prevent incorrect mating

Our building group works with you to create the ideal arrangement. Whether you require 100 units or 10,000, we keep up steady quality through our ISO9001:2015 certified fabricating process.

Technical Specifications at a Glance

Quality You Can Trust

Cablein Technology maintains rigorous quality control throughout production. Every LP16 Panel Socket Connector undergoes:

• 100% waterproof performance testing
• Contact resistance verification
• Mating force measurement
• Temperature cycling validation
• Salt spray corrosion testing

Our 6,000㎡ office in Shenzhen utilizes progressed fabricating gear worked by prepared experts. With over 200 representatives committed to quality generation, we guarantee your connectors meet details each time.

We keep up steady stock surpassing 10,000 pieces per thing. Standard orders dispatch inside 7-10 days. This stock profundity ensures your supply chain from disruptions.

Frequently Asked Questions

Q: What's the distinction between plastic and metal shell versions?

A: Our standard PA66 nylon lodging offers fabulous chemical resistance and lighter weight. Metal zinc combination adaptations give upgraded EMI/RFI protecting and prevalent affect resistance for unforgiving mechanical environments.

Q: Can I utilize this connector for both control and information signals?

A: Yes. Stick setups run from 2-pin control applications to 9-pin choices supporting blended flag and control transmission. We can customize contact courses of action for half breed applications.

Q: How do I accomplish IP68 rating versus IP67?

A: IP67 security is standard when appropriately introduced. IP68 rating requires particular high-compression gaskets and back-shell setups. Contact our specialized group to indicate your waterproof requirements.

Q: Are these connectors congruous with other LP arrangement products?

A: The LP16 particularly fits 16mm distance across board gaps. Compatibility with mating plugs depends on coordinating stick course of action and keyway introduction. We can give congruous plug connectors for total solutions.

Q: What certifications do these connectors carry?

A: Our items comply with TUV, CE, RoHS, and are fabricated beneath ISO9001:2015 certified forms. Extra certifications like UL and CQC are accessible depending on your advertise requirements.

Q: Can you oblige extraordinary wire sorts or cable assemblies?

A: Completely. We offer total custom cable gathering administrations. Indicate your wire sort, length, and end necessities, and we'll fabricate tried gatherings prepared for installation.

Q: What's the lead time for custom specifications?

A: Standard items transport inside 7-10 days. Custom arrangements ordinarily require 2-3 weeks depending on determination complexity. Contact us with your timeline, and we'll work to meet your schedule.

Contact Us for Your Connector Solution

Ready to specify the right panel connector for your LP16 Panel Socket Connector? Email nick@cableinco.com to request technical specifications, discuss customization options, or arrange samples for evaluation.
