LP16 RJ45 Flange-Mount Waterproof Connector
2. Provides IP67 and IP68 waterproof protection for bulkhead Ethernet pass-through.
3. RJ45 female-to-female feed-through enables network signal transmission through enclosure walls.
4. Four-hole flange mounting ensures secure attachment to equipment panels.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Supports reliable data transmission for industrial and outdoor networking.
7. CE and RoHS certified, manufactured under ISO9001 quality control.
8. Custom flange pattern, housing material, and pre-assembled Ethernet options available.
LP16 RJ45 Flange-Mount Waterproof Connector – Industrial Ethernet Solution for Harsh Environments
The LP16 RJ45 Flange-Mount Waterproof Connector delivers enterprise-grade network connectivity designed specifically for harsh industrial and outdoor environments. Built with high-strength PBT plastic or zinc combination lodging, this connector highlights UL94-V0 fire retardancy and accomplishes IP67/IP68 waterproof evaluations. It underpins Cat5e and Cat6 Ethernet measures with information transmission speeds up to 1Gbps. Gold-plated phosphor bronze contacts keep up contact resistance underneath 30mΩ, whereas the precision-engineered elastic gasket guarantees hermetically sealed board fixing. Working dependably over -40°C to +85°C temperature ranges, the item meets CE, RoHS, TUV, and REACH compliance measures. Its four-hole spine plan gives secure bulkhead establishment safe to cable drag stretch and vibration.
What Makes This Connector Essential for Your Network Infrastructure?
Robust Panel-Mount Design
Your hardware boards require solid feed-through arrangements. This RJ45 female-to-female connector empowers clean organize flag transmission through walled in area dividers. The square spine plan with four mounting gaps guarantees rock-solid connection, indeed when cables are habitually stopped and unplugged.
Superior Natural Protection
Moisture and clean crush standard connectors. Our IP68-rated board seal anticipates water entrance up to 1 meter for 30 minutes. The fixed lodging ensures your inside organize hardware from rain, mugginess, and cruel climate conditions.
Industrial-Grade Construction
You require connectors that final. The zinc amalgam lodging gives remarkable mechanical quality and erosion resistance. Combined with UV-resistant materials, these connectors keep up execution keenness all through a long time of open air exposure.
High-Speed Information Transmission
Your arrange can't bear flag corruption. Congruous with both Cat5e and Cat6 benchmarks, this connector bolsters Gigabit Ethernet speeds. The spring-loaded pike locking instrument kills coincidental detachments that cause exorbitant downtime.
Real-World Applications Solving Critical Connectivity Challenges
Industrial Automation and IIoT Systems
Factory floors present brutal conditions for network equipment. Oil mist, coolant splash, and vibration from machinery constantly threaten connectivity. The LP16 RJ45 Flange-Mount Waterproof Connector maintains uninterrupted data flow between PLCs, HMI panels, and sensors—ensuring your real-time monitoring systems never miss a beat.
Outdoor LED Displays and Digital Signage
Massive outdoor screens depend on stable data transmission. Torrential rain and extreme humidity can devastate standard RJ45 connections. This flange-mount solution provides the backbone for reliable network interfaces, keeping your digital signage operational regardless of weather conditions.
Marine and Coastal Surveillance
Salt spray corrodes standard connectors within months. Harbor security cameras and maritime communication equipment demand specialized protection. The sealed design prevents saltwater ingress, extending equipment lifespan in coastal installations where replacement costs are substantial.
Renewable Energy Systems
Solar farms and wind turbine installations require network connectivity across expansive outdoor areas. Temperature extremes, dust, and moisture challenge conventional solutions. These waterproof connectors ensure monitoring and control systems maintain connectivity throughout seasonal variations.
Technical Specifications That Matter
Electrical Performance:
- Rated Current: 1.5A
- Rated Voltage: 125V AC
- Withstanding Voltage: 1000V AC
- Contact Resistance: <30mΩ
- Insulation Resistance: >500MΩ at 500V DC
Environmental Ratings:
- IP Rating: IP67/IP68 certified
- Operating Temperature: -40°C to +85°C
- Flame Retardancy: UL94-V0
- Salt Spray Resistance: 48-72 hours tested
Mechanical Features:
- Housing Material: PBT plastic or zinc alloy
- Contact Material: Gold-plated phosphor bronze (50μ")

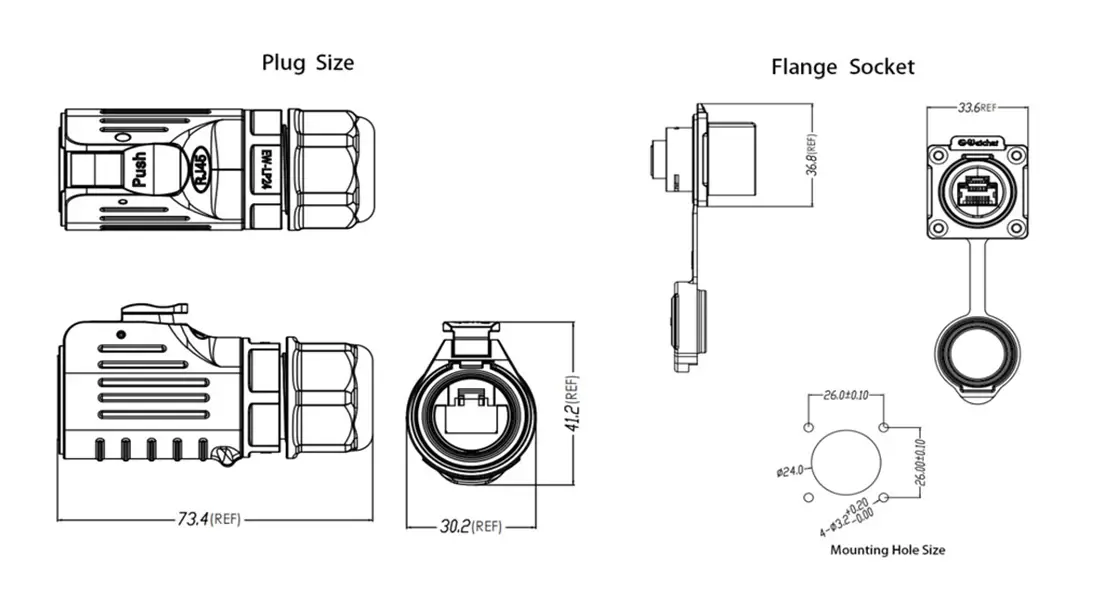

- Mounting: Four-hole flange design
- Mating Cycles: >500 cycles tested
Quality Assurance You Can Trust

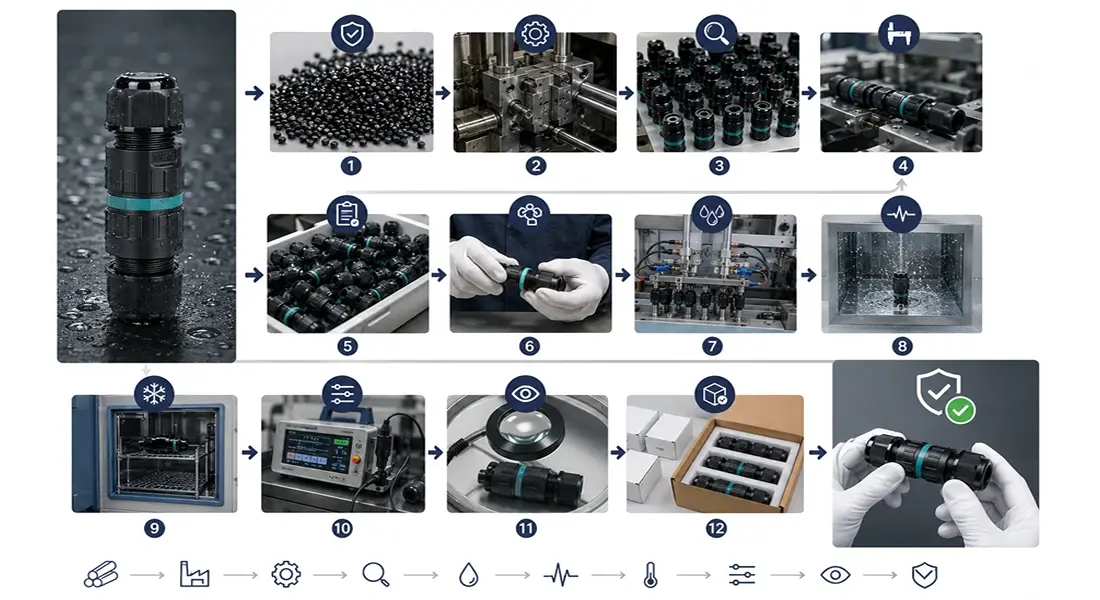

Every connector experiences thorough testing conventions. We perform IPX7/IPX8 submersion testing to confirm seal keenness beneath weight. Salt splash testing assesses erosion resistance over 48-72 hour periods. Plug/unplug cycle testing affirms the pike bolt keeps up legitimate pressure through 500+ mating cycles.
Continuity and cover resistance testing at 500V DC avoids brief circuits. Vibration and stun testing reenacts mechanical apparatus development, affirming zero flag intrusion amid high-frequency oscillations.
Our ISO9001:2015 certified generation office guarantees 100% review of waterproof execution, toughness, and electrical unwavering quality some time recently shipment.
Frequently Asked Questions
Q: Does this connector bolster Control over Ethernet (PoE)?
A: Yes, it's completely consistent with PoE, PoE+, and PoE++ measures when inside cabling meets fundamental gage necessities. This empowers both information transmission and control conveyance through a single association point.
Q: Can I utilize standard RJ45 fix strings with this connector?
A: The inner attachment acknowledges standard RJ45 plugs. Be that as it may, you'll as it were accomplish the waterproof rating when utilizing consistent LP16 arrangement waterproof plug lodgings on the cable side.
Q: What focal points does flange-mount offer over nut-mount designs?
A: Rib mounting employments screws to give steady, non-rotational board connection. This demonstrates prevalent in high-vibration situations where nut-mount plans can extricate over time.
Q: Is it safe to chemical cleaners utilized in nourishment processing?
A: When indicated with PBT plastic shell development, it offers fabulous resistance to numerous common mechanical cleaning operators and cleansers utilized in clean environments.
Q: What's the most extreme information transmission capacity supported?
A: Depending on your chosen embed arrangement, it underpins Cat5e (100MHz) or Cat6 (250MHz) details, both competent of dealing with Gigabit Ethernet activity reliably.
Q: How do you customize connectors for OEM applications?
A: We offer customization of rib designs, lodging materials, contact setups, and pre-assembled Ethernet ponytails. Our building group works specifically with you to coordinate your particular board necessities and natural conditions.
Why Choose Cablein Technology?
With 9 a long time specializing in mechanical waterproof network, we get it the challenges you confront. Our 6,000 ㎡ generation office keeps up steady stock surpassing 10,000 pieces per thing, guaranteeing 7-10 day conveyance on standard orders.
We hold over 30 utility show licenses and give comprehensive specialized bolster all through your extend lifecycle. Our worldwide coordinations organizations with UPS, DHL, and FedEx guarantee your connectors arrive on plan, anyplace in the world.
Ready to Upgrade Your Network Reliability?
Connect with confidence using proven waterproof Ethernet solutions. Contact our technical team at nick@cableinco.com to discuss your LP16 RJ45 Flange-Mount Waterproof Connector requirements, request samples, download detailed technical specifications, or confirm compatibility with your existing systems.
