LP16 Type-C Flange-Mount Waterproof Connector

LP16 Type-C Flange-Mount Waterproof Connector: Enterprise-Grade Panel Solution

The LP16 Type-C Flange-Mount Waterproof Connector delivers enterprise-grade performance for industrial applications requiring secure data and power transmission. Built with a four-hole square spine plan, it accomplishes IP67/IP68 waterproof assurance when appropriately mated. This feed-through connector underpins up to 3A current at DC 20V and works dependably over -40℃ to +85℃ temperatures. With 2000+ mating cycles, UL94V-0 fire retardant lodging, and Type-C female-to-female setup, it gives steady bulkhead establishment for hardware walled in areas. CE and RoHS certified beneath ISO9001 quality control, this arrangement meets requesting mechanical network standards.

What Makes This Connector Different?

Traditional USB Type-C ports come up short in mechanical situations. Dampness creeps in. Tidy collects. Vibration extricates connections.

You require something tougher.

Our flange-mount plan tackles these issues. The four-hole mounting design conveys mechanical stretch equally. Your cable can handle drag strengths without harming the harbour. Silicone fixing rings piece water and tidy entrance completely.

The Type-C female-to-female feed-through makes a lasting board interface. You keep up full USB usefulness whereas ensuring your inside hardware. No more fizzled associations amid basic operations.

Technical Specifications That Matter

Here's what you get with this industrial connector:

Electrical Performance:

• Rated current: 3A
• Operating voltage: DC 20V
• Withstand voltage: AC 100V
• Contact resistance: ≤30mΩ
• Insulation resistance: >500MΩ

Environmental Protection:

• IP rating: IP67 (submersible to 1m for 0.5h)
• Operating temperature: -40℃ to +85℃
• Flame retardancy: UL94V-0

Mechanical Durability:

• Mating cycles: 2000+

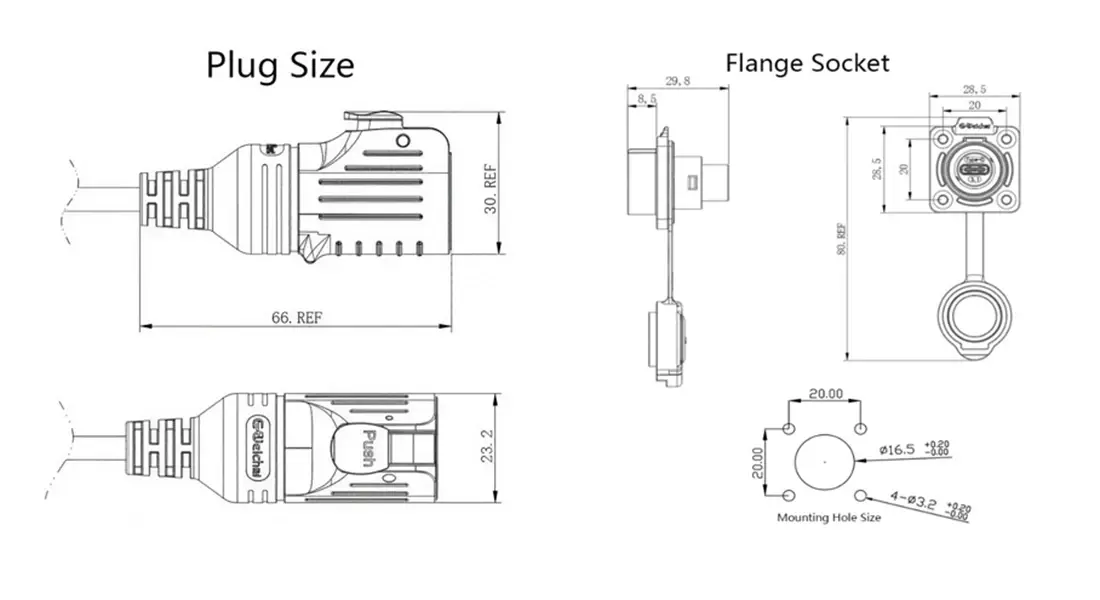

• Square flange with four mounting holes
• Passivated stainless steel screws resist corrosion

The connector supports USB data protocols for industrial cameras and high-bandwidth devices. You get reliable signal transmission even in harsh conditions.

Where You'll Use It

Industrial Automation Systems:

Your control cabinets need stable data ports. This connector provides secure panel mounting for PLC interfaces and diagnostic equipment. The LP16 Type-C Flange-Mount Waterproof Connector withstands electromagnetic interference common in factory floors.

Outdoor Equipment Enclosures:

Digital signage, LED lighting controllers, and surveillance systems operate 24/7 outdoors. Rain and dust can't reach your internal circuitry. The flange mount stays secure through weather extremes.

Marine and Transportation:

Salt spray corrodes standard connectors quickly. Our passivated mounting hardware and sealed housing protect navigation systems and onboard electronics. You avoid costly downtime from connector failure.

Medical Device Integration:

Portable imaging equipment needs clean, reliable interfaces. The smooth housing surface resists chemical disinfectants. Easy-to-clean design maintains hygiene standards.

Quality You Can Verify

Every connector undergoes rigorous testing:

Waterproof Testing: IPX8 immersion at 1.5m depth for 30 minutes confirms sealing integrity.

Salt Spray Testing: 48-96 hour exposure verifies corrosion resistance for marine applications.

Signal Integrity Testing: Time Domain Reflectometry ensures impedance matching and minimal packet loss during data transmission.

Mechanical Testing: Insertion and withdrawal force measurements guarantee consistent mating performance across the rated lifecycle.

We manufacture under ISO9001:2015 quality management systems. Each batch receives 100% inspection before shipping.

Customization for Your Application

Standard specifications don't always fit your equipment design.

We offer custom flange patterns to match your existing panel layouts. Housing material options include engineering-grade PBT plastics or nickel-plated zinc alloy for enhanced shielding.

Need a complete cable assembly solution? Our engineering team designs custom harnesses with the panel connector pre-installed. You receive a turnkey Type-C interface ready for installation.

Custom cable lengths, wire gauges, and connector orientations adapt to your specific requirements.

Frequently Asked Questions

Q: Does this connector bolster in reverse compatibility with more seasoned USB versions?

A: Yes, it keeps up full compatibility with USB 2.0 and 3.0 conventions through standard Type-C pinout configuration.

Q: Can I utilize standard USB-C cables with this flange-mount connector?

A: The inside interface acknowledges standard cables, but you'll as it were accomplish full IP67/IP68 assurance when matched with a coordinating waterproof plug cable from the LP16 series.

Q: What advantage does spine mounting give over nut-mount designs?

A: Rib mounting offers prevalent torque resistance and conveys mechanical push over four mounting focuses. This makes a more steady association on bigger boards subject to vibration.

Q: Is electromagnetic impedances (EMI) protecting included?

A: Metal shell variations give 360-degree protecting to keep up flag astuteness close high-voltage hardware and mechanical machinery.

Q: What board thickness works with this connector?

A: The standard plan obliges board thicknesses from 1mm to 5mm. Particular gasket compression and screw length decide the correct consistent range.

Q: What's your conveyance time for standard configurations?

A: We keep up stock of 10,000+ pieces per thing. Standard orders transport inside 7-10 days. Custom arrangements require extra lead time based on determination complexity.

Ready to Upgrade Your Panel Interfaces?

Get technical specifications for your specific application. Contact our engineering team at nick@cableinco.com to discuss LP16 Type-C Flange-Mount Waterproof Connector samples, confirm compatibility, and explore custom solutions for your project requirements.
