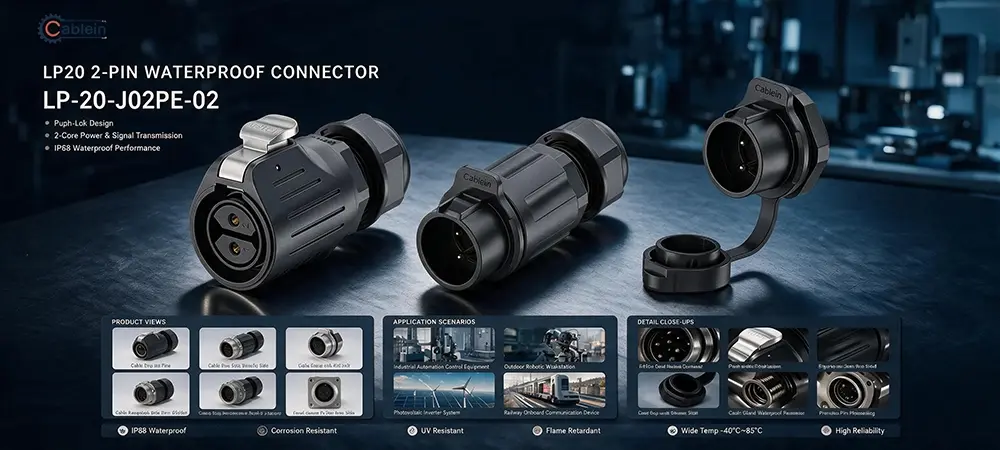

LP20 2 Pin Plastic Waterproof Circular Connector Kit

LP20 2 Pin Plastic Waterproof Circular Connector Kit——Built for Heavy Power, Not Just Signals

When you're pushing 20 amps through a line, cheap connectors melt. The LP20 2 Pin Plastic Waterproof Circular Connector Kit from Cablein Technology is built specifically for this. It uses a heavy-duty all-plastic shell with thick solder cups that swallow 12 AWG wire. You get the plug and three socket options—inline, panel, and flange. It's the kind of kit you grab when you need to run serious power and never want to touch it again.

Why This LP20 2 Pin Plastic Waterproof Circular Connector Kit Stands Out

20 Amps Changes Everything
Two pins usually mean one thing: high-current power. We use thick solder cups that easily swallow 2.5 to 4 mm² wire. If you try pulling 20A through a standard 5A connector, it'll heat up and fail. This one stays cool under a full load.

All-Plastic Housing
No metal shell to rust or corrode. The entire outer body is heavy-duty plastic, which keeps it lightweight and provides excellent electrical insulation. It handles salt spray, mud, and washdowns without breaking a sweat.

IP67 Sealing
The O-ring seals tight around standard 8 to 12mm power cables. Rated IP67, so rain, mud, or a quick splash won't bother it. Just crank the threaded ring down hard and the contacts stay completely dry inside.

Three Mounting Styles in One Box

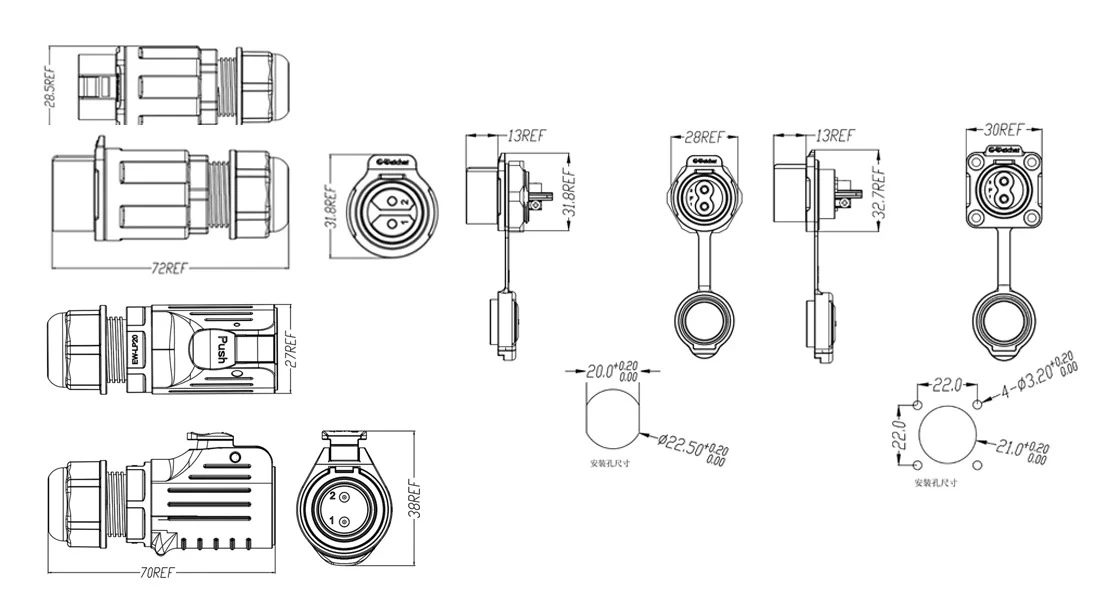

You don't need to guess your setup. The kit includes the inline connector for cable-to-cable runs, the panel socket for cutting into an enclosure, and the flange socket for bolting down to a machine chassis.

Technical Specifications

​​​​​​​

Where You Actually Need a 20A Connector

Electric Trolling Motors
Fishing boats use heavy trolling motors that pull serious amps. Standard plugs get hot and melt the plastic. The LP20 2 Pin Plastic Waterproof Circular Connector Kit has thick solder cups that take 12 AWG wire, keeping the resistance low and the connection cool all day.

Battery Bank Interconnects
When you're wiring up a bank of batteries in an RV or solar setup, you need a plug that won't arc. The heavy plastic body takes the load, and with the flange mount you can bolt the socket right to the battery box wall. That way, the cables don't yank loose.

Industrial Welding Equipment
Welding rigs get dragged through the dirt and vibrated to hell. Cheap plastic connectors shatter. The heavy-duty shell on this kit takes the abuse, and the IP67 seal keeps the grinding dust and rain out of the contacts.

Heavy-Duty Winches
Running a winch means pulling heavy gauge wire through the bumper or grille. Just bolt the panel socket to the frame, solder up your thick power cables, and call it done. It'll take a 20A surge all day without even flinching.

Field Wiring Tips for High Amps

Don't Skimp on the Solder
For 12 AWG wire, you need a hot iron. A small 30W pencil won't cut it. Use a 60W iron or a butane torch. Heat the cup, feed the solder, and let it flow. You want a shiny, smooth joint, not a cold, lumpy blob. A bad solder joint on a 20A line will get hot and melt the plastic insert.

Strip Length Matters
Don't strip too much wire. If bare copper sticks out past the solder cup, it can touch the other pin or the metal shell. That's a dead short. Strip just enough to fit inside the cup.

Use the Right Gland
The kit comes with a gland nut for 8 to 12mm cable jackets. If you're using a thin cable, the gland won't seal. You'll get water inside. Make sure your outer cable jacket fits that range.

How Cablein Technology Builds These

We don't just guess at high-current ratings. Every LP20 2 Pin Plastic Waterproof Circular Connector Kit is tested for the full 20A load and 2500V withstand voltage before it ships. We're ISO 9001:2015 certified. We pull-test the solder joints to ensure they won't snap under heavy cable weight, and we pressure-test the O-ring to guarantee the IP67 seal. If it doesn't pass, it doesn't leave the factory.

Field Questions from Our Customers

Q: What's the largest wire this will take?
A: You can fit 2.5 to 4 mm² (14 to 12 AWG) wire into the solder cups. If your wire is much thinner, it's going to be a loose fit. You want the wire to fill the cup.

Q: How do I keep the heavy cable from ripping the plug off?
A: That's why the kit includes the flange socket. Bolt it to a solid surface. The gland nut at the back of the plug also grips the 8-12mm jacket tight so the cable doesn't pull on the solder joints.

Q: Will 20A melt the plastic housing?
A: No. The current flows through the heavy metal contacts inside, not the plastic. As long as you use the right wire gauge, it runs cool. The plastic is just the shell.

Q: Are the pins plated?
A: Yes, the metal contacts are plated to resist corrosion and maintain good conductivity over time.

Get Your Power Connector Kit

Cablein Technology has been building rugged waterproof connectors for industrial clients for years. If you're tired of replacing melted or corroded power connectors, we can help. Email us at nick@cableinco.com with your wire size and how many kits you need. Let us know you're looking for the LP20 2 Pin Plastic Waterproof Circular Connector Kit, and we'll get you a quote.
