LP20 Solder Type Panel-Mount Waterproof Connector
2. Provides IP67 and IP68 waterproof sealing at the panel mounting point.
3. Solder-type rear entry allows secure internal wiring for equipment pass-through.
4. Snap-lock coupling enables quick connection from outside the panel.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Tested for 2000+ mating cycles for consistent performance.
7. CE and RoHS certified, manufactured under ISO9001 quality control.
8. Custom pin configuration, housing material, and panel cutout size available.
LP20 Solder Type Panel-Mount Waterproof Connector – Reliable IP68 Industrial Connection Solution
The LP20 Solder Type Panel-Mount Waterproof Connector from Cablein Technology delivers enterprise-grade reliability for your equipment enclosures. With IP67/IP68 waterproof assurance, this connector highlights PA66 nylon lodging with gold-plated copper combination contacts evaluated for 2-12 pins arrangements. It bolsters evaluated streams from 5A to 20A and voltages up to 500V. Working dependably over -40℃ to +105℃, it's tried for 2000+ mating cycles. The snap-lock coupling component empowers speedy association, whereas the solder-type raise passage guarantees secure inside wiring integration. CE and RoHS certified beneath ISO9001:2015 quality control, this item offers customizable stick arrangements to meet your correct specifications.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Configuration | 2P / 3P / 4P / 5P / 7P / 9P / 12P |
| Rated Current | 5A / 10A / 20A (depending on pin count) |
| Rated Voltage | 250V / 500V |
| Wire Gauge Compatibility | 0.34-0.75mm² / 1-1.5mm² / 2.5-4mm² |
| Operating Temperature | -40℃ to +105℃ |
| Cable Diameter Range | Φ8mm to Φ12mm |
| Waterproof Rating | IP67 / IP68 |
| Housing Material | PA66 Nylon (UL94-V0) |
| Contact Material | Gold-plated copper alloy |
| Mating Cycles | 2000+ |
Key Features & Benefits
Engineered for Harsh Environments
Your equipment faces tough conditions daily. This panel-mount connector provides IP68 sealing at the mounting point. Moisture and dust stay out. Your circuits stay protected.
Quick Installation Design
The snap-lock coupling mechanism simplifies your assembly process. You can achieve blind mating even in hard-to-reach panel locations. Your installation time drops significantly.
Secure Solder Termination
Solder cup terminals create permanent, gas-tight electrical bonds. This eliminates micro-interruptions caused by vibration. Your connections remain stable for years.
Temperature Resilient
Operating from -40℃ to +105℃, this connector handles extreme thermal environments. Whether you're in arctic cold or industrial heat, performance stays consistent.
Flexible Configuration Options
Choose from 2 to 12 pin configurations. Select your required current rating. Customize housing materials and panel cutout sizes to match your exact application needs.
Built for Longevity
With 2000+ tested mating cycles, you get long-term reliability. The UL94-V0 flame retardant housing adds safety. Gold-plated contacts resist corrosion throughout the connector's lifespan.
Why Choose Cablein's LP20 Solution?
Manufacturing Excellence
Our 6,000 ㎡ facility in Shenzhen employs over 200 skilled professionals. We maintain stable inventory exceeding 10,000 pieces per item. Standard delivery completes within 7-10 days.
Quality You Can Trust
Every LP20 Solder Type Panel-Mount Waterproof Connector undergoes 100% waterproof performance inspection. Our ISO9001:2015 certified quality management ensures consistency. Vacuum leak detection and IPX8 immersion testing verify seal integrity before shipping.
Technical Innovation
Backed by over 30 utility model patents and 9 years of industry experience, we understand your connectivity challenges. Our engineering team specializes in waterproof solutions for demanding industrial applications.
Global Compliance
Products meet CE, RoHS, and multiple international standards. You gain market access across regions. Compliance documentation ships with your order.
Common Applications
LED Lighting Systems: Outdoor displays and architectural lighting require weather-sealed panel connections. This connector prevents moisture ingress during heavy rain and UV exposure.
Industrial Automation: Robotic control panels and sensor arrays in food processing plants need connections that survive high-pressure washdowns and chemical sanitizers.
Medical Equipment: Portable diagnostic devices demand hermetically sealed interfaces that withstand repeated sterilization protocols.
Renewable Energy: Solar junction boxes and energy storage systems benefit from the connector's temperature tolerance and environmental protection.
Transportation: Rail systems and EV charging infrastructure rely on stable connections despite constant vibration and temperature cycling.
Installation Guidelines
Panel Preparation

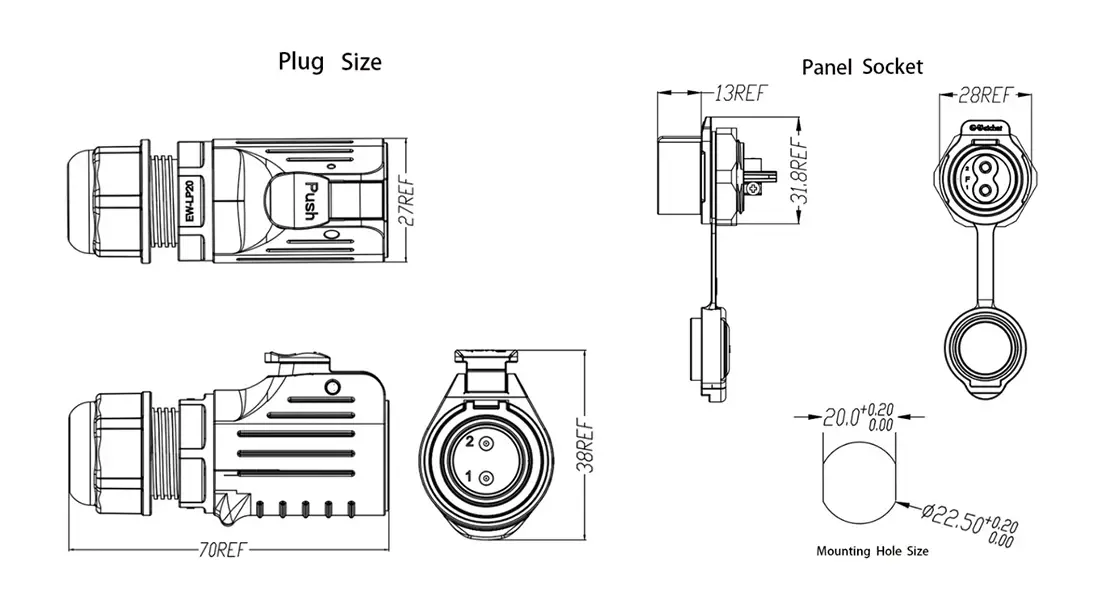

Drill a mounting hole to 20.2mm diameter. Ensure panel thickness stays between 1mm to 5mm. This allows proper O-ring compression for waterproof sealing.
Solder Termination
Strip wire insulation to the recommended length for your wire gauge. Insert into solder cups and apply quality electronics-grade solder. Allow joints to cool completely before handling.
Panel Mounting
Insert connector through panel hole from the rear. Thread locking nut onto the connector body. Tighten securely to compress the silicone gasket against the panel surface.
Mating Connection
Align the external plug with the panel-mounted receptacle. Push together and rotate the bayonet lock until it clicks into place. Verify the connection is fully seated.
Frequently Asked Questions
Q: Why ought to I select patch end over crease connections?
A: Patch sorts make predominant gas-tight bonds that stand up to vibration-induced disappointments. You do not require specialized pleating instruments. Field establishment gets to be less difficult whereas unwavering quality increases.
Q: What's the greatest waterproof rating this connector achieves?
A: When appropriately introduced with the coordinates silicone gasket, it accomplishes IP67 as standard. For submersible applications, IP68 adaptations are accessible upon request.
Q: Can this connector handle both control and flag transmission?
A: Completely. Multi-pin arrangements from 2 to 12 pins bolster high-current control lines or protected multi-core flag information inside the same association point.
Q: How do I guarantee appropriate waterproof fixing amid installation?
A: Accuracy things. Keep your mounting gap at precisely 20.2mm. Keep up board thickness inside 1-5mm extend. This guarantees satisfactory O-ring compression for total sealing.
Q: Will UV presentation debase the connector lodging over time?
A: No. The high-performance PA66 nylon shell contains UV-stabilizing added substances. Your connector stands up to breaking and discoloration amid drawn out open air deployment.
Q: What wire gages work with this connector?
A: Depending on your stick setup, it suits wire segments from 0.34mm² to 4mm². This covers AWG 14-20 run for most mechanical applications.
Q: Is customization accessible for particular extend requirements?
A: Yes. We offer custom stick courses of action, lodging fabric choices, pre-assembled ponytails, and specialized board set pattern measurements to meet your OEM specifications.
Get Started Today
Ready to enhance your equipment's connectivity? Contact our technical team at nick@cableinco.com to request detailed specifications, discuss your LP20 Solder Type Panel-Mount Waterproof Connector requirements, or inquire about sample availability.
