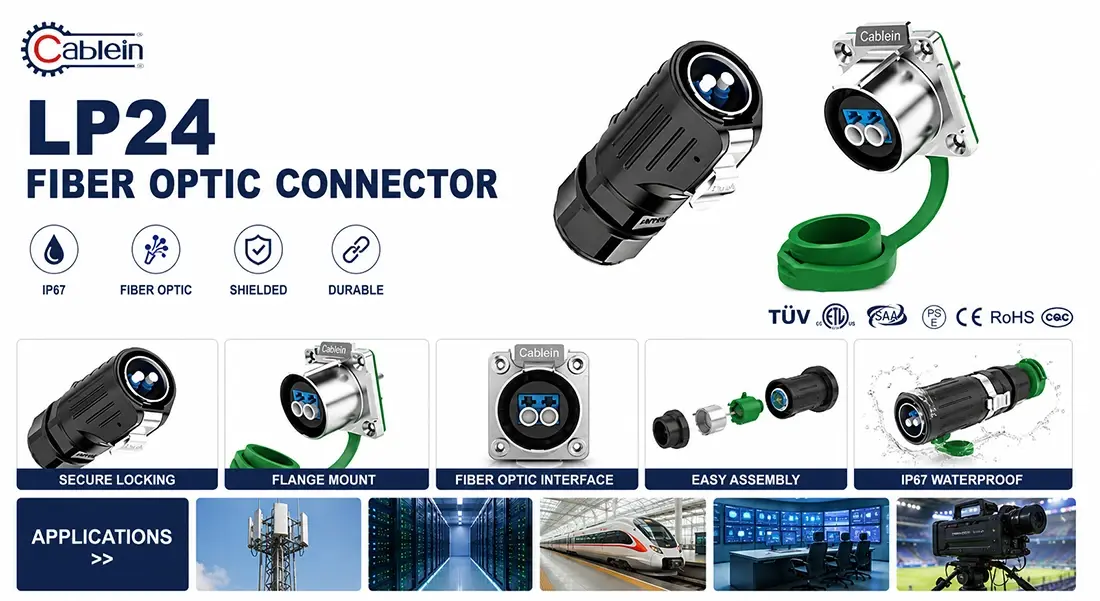

LP24 Fiber Optic Connector
2. Offers IP67 and IP68 waterproof protection for bulkhead fiber optic pass-through.
3. Fiber optic female-to-female feed-through enables optical signal transmission through enclosure walls.
4. Four-hole flange mounting ensures stable attachment to equipment panels.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Supports high-bandwidth communication for telecommunications and data centers.
7. CE and RoHS certified, manufactured under ISO9001 quality control.
8. Custom flange pattern and housing material options available.
LP24 Fiber Optic Connector: Industrial-Grade Flange-Mount Solution for Harsh Environments
Cablein Technology's LP24 Fiber Optic Connector delivers enterprise-level performance through its flange-mount feed-through design, purpose-built for demanding environments. This mechanical connector accomplishes IP67/IP68 waterproof assurance whereas keeping up optical flag astuteness with inclusion misfortune ≤0.3dB. Its four-hole rib mounting design guarantees vibration-resistant establishment on hardware boards. The zinc combination lodging withstands extraordinary temperatures from -40℃ to +85℃, whereas pleasing cable breadths from Ø1.5mm to Ø7.0mm. With UL94-V0 flame-retardant materials and front-mount availability, this item suits broadcast communications cabinets, marine frameworks, and mechanical mechanization systems where reliability cannot be compromised.
What Makes the LP24 Fiber Optic Connector Different?
Rugged Flange-Mount Protection
Your fiber optic infrastructure faces constant threats. Dust particles can scratch delicate optical surfaces. Water ingress causes catastrophic signal loss. Cable pulls create misalignment.
Our connector solves these challenges through intelligent engineering. The four-hole flange design anchors directly to your equipment panel. This distributes cable tension across the mounting surface instead of stressing the fiber core.
The result? Your optical connection remains stable even when cables experience accidental pulls or equipment vibration.
Bulkhead Pass-Through Design
Traditional fiber installations require complex routing through enclosure walls. This creates vulnerability points and installation headaches.
The female-to-female feed-through design changes everything. You establish optical connections through cabinet walls without compromising waterproof integrity. The alignment ferrule maintains fiber tip contact across the product's entire lifespan.
Front-mount accessibility means you can complete fiber connections before internal chassis assembly. This cuts installation time and reduces errors.
Material Engineering for Extreme Conditions
Telecommunications equipment operates in challenging environments. Outdoor cabinets face temperature swings. Industrial settings expose connectors to oil and chemicals.
We selected zinc alloy for the flange housing specifically for mechanical protection. It shields the alignment components that keep your fiber tips precisely positioned.
The silicone cable clamps adapt to different fiber diameters. They grip firmly enough to prevent backward pull forces that cause signal degradation, yet remain gentle on delicate fiber jackets.
Technical Specifications That Matter
Cable Compatibility:
- Supports Ø5.0mm~Ø7.0mm industrial fiber cables
- Accepts Ø1.5mm~Ø2.0mm indoor fiber cables
Environmental Performance:
- Operating temperature: -40℃ to +85℃
- IP67 standard (IP68 optional: 1m depth for 2 hours)
- UL94-V0 flame retardant housing
Installation Features:

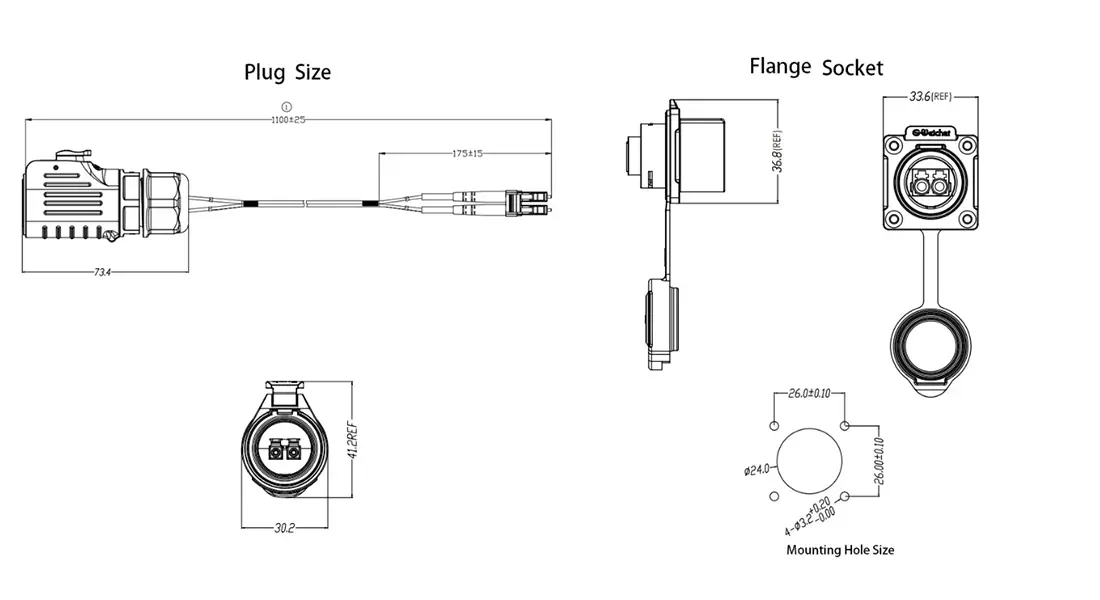

- Four-hole flange mounting pattern
- Female-to-female bulkhead configuration
- Front-accessible connection points
Quality Assurance:
- CE and RoHS certified
- ISO9001:2015 manufacturing control
- 100% waterproof performance testing
Where Your Applications Benefit Most
Outdoor Telecommunications Infrastructure
Fiber distribution cabinets endure rain, snow, and temperature extremes. Standard connectors fail when moisture penetrates seals or thermal cycling loosens connections.
The LP24 Fiber Optic Connector design provides 2-hour submersion protection. Your network maintains uptime during storms and flooding events.
Marine Communication Systems
Saltwater environments corrode standard connectors within months. Vessel vibration creates micro-movements that degrade optical alignment.
The flange-mount design anchors firmly to bulkheads. Zinc alloy construction resists corrosion. Your maritime networks operate reliably across years of service.
Industrial Automation Networks
Factory floors generate dust, oil mist, and electromagnetic interference. High-speed sensors and controllers require stable data transmission despite harsh conditions.
The enclosed design protects optical end-faces from contamination. Proper fiber alignment eliminates signal jitter caused by vibration. Your automation systems maintain precision control.
Renewable Energy Systems
Solar farms and wind turbines place fiber connections in exposed locations. Wide temperature ranges and UV exposure degrade inferior connectors.
Our temperature rating spans 125℃ range. UV-resistant materials maintain mechanical properties across years of sun exposure. Your energy monitoring systems deliver reliable data throughout equipment lifecycles.
Installation Advantages You'll Appreciate
Reduced Labor Complexity
The flange-mount design simplifies installation planning. You drill standard mounting holes and secure with four fasteners. No specialized tools required.
Front-accessible connections mean technicians complete fiber mating after panel installation. This eliminates the need to thread connectors through tight spaces.
Maintenance Accessibility
When you need to inspect or replace fiber connections, the external location provides easy access. No cabinet disassembly required.
The silicone cable clamps release without tools. You can service connections quickly without disrupting adjacent equipment.
Connection Reliability
Alignment ferrule construction maintains precise fiber positioning. This prevents the signal degradation that occurs when fiber tips separate or misalign.
The design withstands 500+ mating cycles. Your connections remain stable across years of maintenance activities.
Customization Options for Specific Needs
Flange Pattern Variations
Standard four-hole patterns fit most telecommunications equipment. Custom hole spacing accommodates proprietary cabinet designs.
We provide engineering support to match your exact mounting requirements.
Housing Material Selection
Choose zinc alloy for maximum mechanical protection and EMI shielding. Alternatively, specify alternative materials for weight-sensitive applications or specific chemical resistance needs.
Cable Diameter Optimization
Our silicone clamps accommodate the specified range. For specialized fiber cables outside standard dimensions, we develop custom clamp designs.
This ensures proper strain relief regardless of your cable selection.
Frequently Asked Questions
Q: Can this connector support both single-mode and multi-mode fiber?
A: Yes. The housing design accommodates both fiber types. The ferrule and fiber specifications determine optical performance characteristics.
Q: What's the difference between IP67 and IP68 rating options?
A: IP67 provides dust-tight sealing and protection against temporary water immersion. IP68 offers extended submersion protection—1 meter depth for 2 hours. Choose based on your installation environment.
Q: How do I maintain optimal signal performance?
A: Clean fiber end-faces with a professional 1.25mm fiber cleaning pen before mating. Always install protective caps when connectors are unmated. This prevents dust contamination that causes insertion loss.
Q: Is the connector compatible with standard LC patch cords?
A: The internal structure houses LC-style ferrules. For full IP-rated sealing, use LP24-compatible plugs with corresponding sockets. Standard patch cords work but won't maintain waterproof integrity.
Q: What testing validates the waterproof rating?
A: Every connector undergoes pressure testing to verify seal integrity. We perform 100% inspection for waterproof performance before shipment, compliant with ISO9001:2015 quality standards.
Q: Can I install this connector in explosive atmospheres?
A: The standard version suits general industrial environments. For hazardous locations requiring ATEX or IECEx certification, contact our engineering team for specialized variants.
Q: How does temperature cycling affect performance?
A: Materials are selected for thermal stability across the -40℃ to +85℃ range. The design accommodates thermal expansion without compromising optical alignment or seal integrity.
Why Choose Cablein Technology
Since 2017, we've specialized in industrial connectivity solutions for harsh environments. Our 6,000㎡ facility in Shenzhen combines advanced manufacturing with rigorous quality control.
We hold over 30 utility model patents in waterproof connector technology. Every product benefits from ISO9001:2015 certified manufacturing processes.
Our stable inventory exceeds 10,000 pieces per item. Standard orders ship within 7-10 days. Custom configurations receive dedicated engineering support throughout development.
With CE, RoHS, and multiple international certifications, our products meet global compliance requirements. We support installations across telecommunications, industrial automation, renewable energy, and marine applications.
