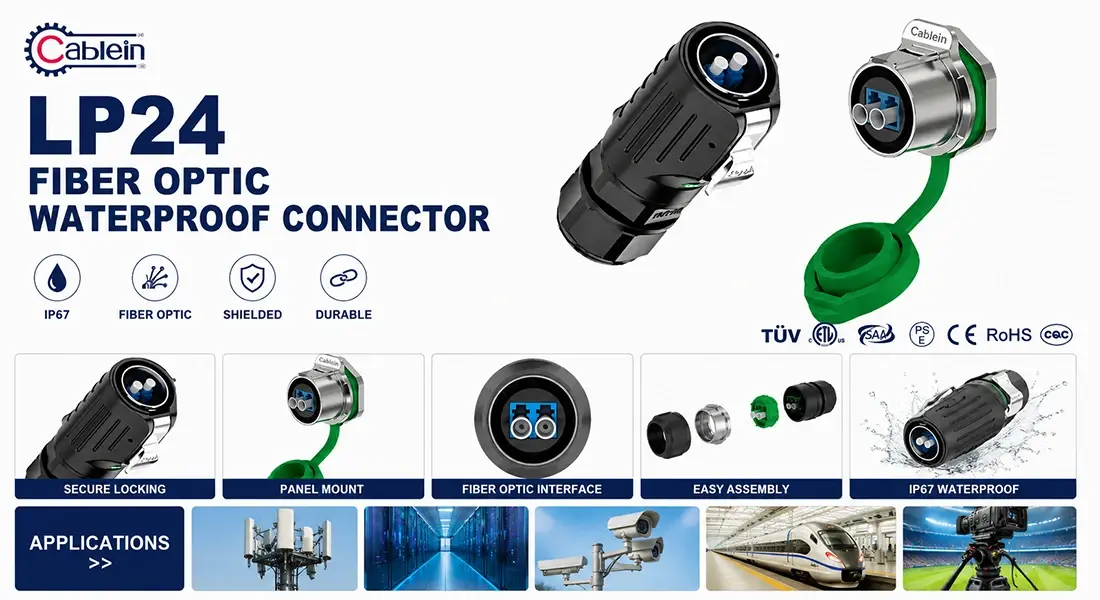

LP24 Fiber Optic Waterproof Connector
2. Provides IP67 and IP68 waterproof sealing for equipment enclosure pass-through.
3. Fiber optic female-to-female feed-through enables optical signal transmission through panels.
4. Supports high-bandwidth and long-distance data communication.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Snap-lock coupling ensures secure connection for fiber optic networks.
7. TUV and CE certified under ISO9001 and RoHS compliance.
8. Custom panel cutout dimensions and housing material options available.
LP24 Fiber Optic Waterproof Connector - Enterprise-Grade Panel-Mount Solution
The LP24 Fiber Optic Waterproof Connector from Cablein Technology delivers enterprise-grade reliability for harsh industrial environments. This panel-mount feed-through arrangement highlights dual-channel LC fiber interface supporting both single-mode and multimode transmission with inclusion misfortune ≤0.35dB and return misfortune ≥50dB. Working faultlessly from -40℃ to +85℃, it gives IP67 waterproof security (discretionary IP68 appraised for 1m/2h immersion). The snap-lock coupling instrument guarantees secure fiber arrange associations, whereas UL94-V0 fire retardant lodging and exactness arrangement framework keep up uncommon flag devotion. TUV and CE certified beneath ISO9001 and RoHS compliance benchmarks, making it perfect for basic information transmission applications.
What Makes LP24 Fiber Optic Waterproof Connector Different?
When your equipment requires optical signal transmission through sealed enclosure walls, standard connectors simply won't cut it.
The LP24 Fiber Optic Waterproof Connector solves this challenge with intelligent engineering.
Its female-to-female feed-through plan carries high-bandwidth information over board boundaries without electrical change. You get unadulterated optical transmission with negligible flag degradation.
The exactness arrangement framework keeps fiber centers flawlessly situated. This avoids expensive untrue associations and keeps up steady communication links.
What around support? You'll appreciate this feature.
Field-cleanable fiber closes cruel your group can address defilement without specialized hardware. No require to disassemble whole congregations or call in technicians.
The raise locknut establishment makes an IP67-rated seal at entrance focuses. Your touchy fiber optics remain ensured from dampness, tidy, and natural contaminants.
Temperature extremes won't halt it. The connector works dependably over -40℃ to +85℃ ranges, taking care of both cold cold and leave heat.
Where You'll Deploy This Connector
Industrial Automation Networks
Smart factories demand uninterrupted data flow between control systems and machinery.
This LP24 Fiber Optic Waterproof Connector thrives in manufacturing environments where electrical connectors fail. It remains immune to electromagnetic interference from heavy machinery and industrial motors.
CNC machines communicate with control centers through stable optical links. Production lines maintain zero-packet loss even in oil-misted workshops.
Outdoor Infrastructure Systems
Stadium LED displays and public video walls need reliable signal backbones.
The connector resists UV radiation and heavy rainfall that would destroy standard connections. Your 4K video signals remain crystal clear regardless of weather conditions.
Coastal surveillance installations benefit from salt-spray resistant construction. Offshore wind turbines maintain communication links despite corrosive maritime air and high-pressure water jets.
Renewable Energy Applications
Solar monitoring systems and energy storage equipment require long-distance communication capabilities.
The LC interface supports both single-mode transmission for kilometers-long links and multimode for shorter high-bandwidth connections. You choose the fiber type that matches your infrastructure needs.
Technical Specifications That Matter
Optical Performance
Your signal integrity depends on precise measurements.
- Insertion Loss: ≤0.35dB ensures minimal signal degradation
- Return Loss: ≥50dB maintains strong signal fidelity
- Transmission: Supports high-bandwidth, long-distance communication
Environmental Protection
Real-world installations face tough conditions.
The IP67 rating (optional IP68 for 1m/2h immersion) keeps water out when it matters most. Whether you're mounting equipment outdoors or in wash-down environments, your fiber connections stay dry.
UL94-V0 flame retardant housing adds critical safety protection. In case of fire, the material resists ignition and self-extinguishes.
Physical Design
Panel-mount installation simplifies equipment integration.

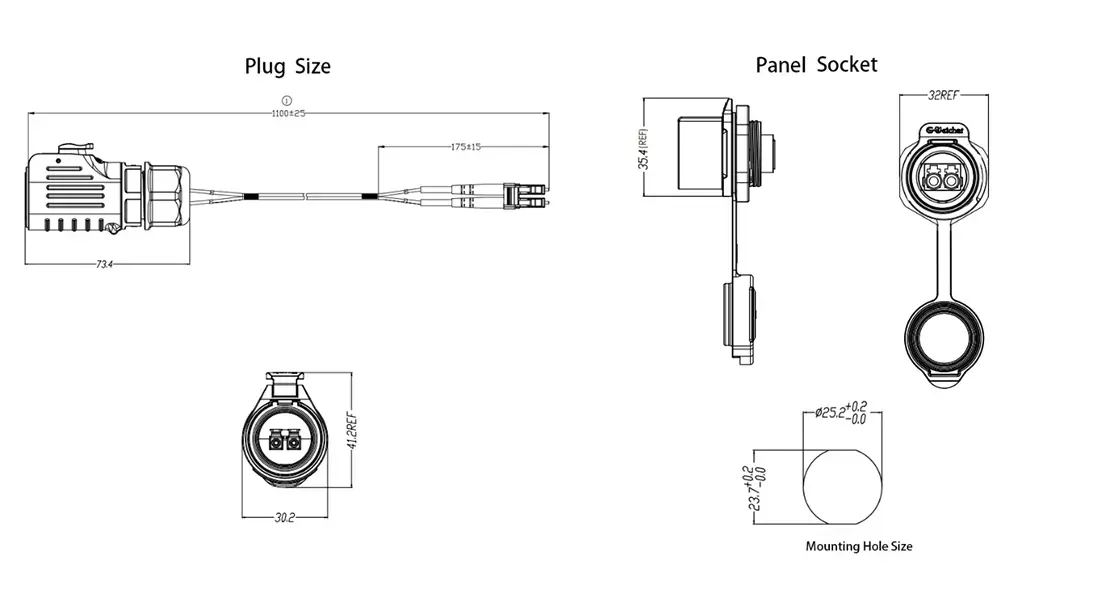

The feed-through design with rear locknut creates secure wall penetrations. Custom panel cutout dimensions accommodate your specific enclosure requirements.
Cable diameter compatibility ranges from Ø5.0mm to Ø7.0mm or Ø1.5mm to Ø2.0mm, fitting various fiber cable types.
Installation and Maintenance Advantages
Quick Field Deployment
Your installation team will appreciate the snap-lock coupling mechanism.
It provides secure connections without complex tools or procedures. The audible click confirms proper engagement every time.
Accessible Cleaning
Contaminated fiber ends hurt performance.
Unlike sealed connectors requiring complete replacement, you can clean exposed fiber interfaces on-site. A simple alcohol wipe restores optimal performance when dust or debris accumulates.
Durable Construction
Over 500 mating cycles ensure long service life.
The precision-engineered components withstand repeated connections and disconnections. Your investment continues performing year after year.
Quality Standards You Can Trust
Cablein Technology manufactures every connector under strict ISO9001:2015 certified quality management systems.
Each unit undergoes comprehensive testing:
- 400x digital microscopy inspection of optical end-faces
- IP rating verification through submersion and vacuum leak tests
- 48 to 96-hour neutral salt spray testing for corrosion resistance
- Cable retention testing up to 100N tensile strength
- Vibration testing per IEC 60068-2-6 standards
Your connectors arrive ready for mission-critical deployment.
Frequently Asked Questions
Q: Does this connector work with standard LC fiber jumpers?
A: Yes, the inner structure suits standard LC duplex connectors. You get ruggedized outside assurance for your existing fiber hardware.
Q: Can I utilize both single-mode and multimode fiber?
A: Completely. The LP24 shell works with OS2 single-mode, OM3, and OM4 multimode strands. Execution depends on your chosen fiber insert.
Q: What's the least working temperature?
A: The connector works dependably down to -40°C. Fabric choice avoids brittleness in ice conditions.
Q: How frequently does it require maintenance?
A: Negligible support is required. We prescribe utilizing the coordinates tidy cover when unmated to secure optical interfacing from tiny debris.
Q: Is custom board set pattern measuring available?
A: Yes, Cablein offers customized board set pattern measurements and lodging fabric choices to coordinate your particular hardware requirements.
Q: What's the conveyance time for standard orders?
A: We keep up steady stock of over 10,000 pieces per thing. Standard conveyance takes 7-10 days with adaptable planning for custom orders.
