LP24 HDMI Waterproof Connector
2. Provides IP67 and IP68 waterproof sealing for equipment enclosure pass-through.
3. HDMI female-to-female feed-through enables high-definition signal transmission through panels.
4. Supports standard HDMI specifications for reliable audio and video connectivity.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Snap-lock coupling ensures secure connection for AV equipment.
7. TUV and CE certified under ISO9001 and RoHS compliance.
8. Custom panel cutout dimensions and housing material options available.
LP24 HDMI Waterproof Connector - Industrial-Grade Panel Feed-Through Solution
The LP24 HDMI Waterproof Connector from Cablein Technology delivers enterprise-level reliability for high-definition multimedia transmission in demanding environments. This panel-mount feed-through connector highlights IP67/IP68-rated fixing, guaranteeing total tidy and water assurance when mated. Working over a wide -40℃ to +85℃ temperature extend with UL94-V0 fire retardant lodging, it underpins secure snap-lock coupling and keeps up 5V transmission at 0.5A evaluated current. With TUV and CE certification beneath ISO9001 and RoHS compliance, our item obliges cable breadths from Ø5.0mm to Ø7.0mm whereas giving gold-plated contacts for flag keenness over amplified installations.
What Makes Our Panel-Mount HDMI Feed-Through Different?
You need connectors that won't fail when conditions turn challenging. Our circular HDMI feed-through solves your toughest installation problems.
Built for Real-World Conditions
Standard HDMI ports leave your equipment vulnerable. Moisture creeps in. Contacts corrode. Signals degrade. This feed-through changes everything.
The sealed housing protects your signals through panel walls. Both sides accept standard HDMI cables, so you don't need custom wiring. Just connect and secure.
Simple Installation, Lasting Protection
Your technicians will appreciate the straightforward mounting. One panel hole. One rear locknut. That's it.
The snap-lock coupling holds firm against vibration and accidental tugs. Gold-plated contacts inside the sealed path resist degradation over time.
When you route audio-video signals through equipment enclosures, moisture becomes your enemy. This connector keeps it out while maintaining signal quality.
Core Technical Properties You Can Rely On
Environmental Resilience
Your applications demand more than consumer-grade protection. Our LP24 HDMI Waterproof Connector delivers IP67 rating as standard, with optional IP68 certification available for continuous immersion scenarios.
Premium Material Engineering
We construct the housing from high-performance materials selected for durability. The flame retardant shell meets UL94-V0 standards. UV resistance ensures outdoor longevity.
Signal Transmission Stability
Gold-plated phosphor bronze contacts minimize resistance. Your high-definition signals travel through without degradation. The sealed design prevents oxidation that ruins standard connections.
Mechanical Durability
Over 500 mating cycles. Secure locking that withstands vibration. Your connections stay solid in industrial settings where other connectors fail.
Where Your Applications Benefit Most
Outdoor Digital Signage
Large LED displays face rain, humidity, and temperature swings. Your 4K video signals need protection at every connection point through weatherproof enclosures.
Industrial Machine Vision
Factory environments throw everything at your equipment. Oil mist. Coolant spray. Mechanical shock. High-resolution imaging data must flow reliably from cameras to controllers regardless of conditions.
Marine and Underwater Systems
Salt spray corrodes standard connections rapidly. Shipboard monitoring systems and underwater exploration equipment require sealed pathways that maintain signal integrity despite constant moisture exposure.
Urban Landscape Lighting Control
Stadium lighting and architectural installations depend on video control signals traveling through outdoor junction boxes. Water ingress cannot compromise your system performance.
Proven Advantages for Your Projects
Direct Cable Compatibility
Both sides of the feed-through accept standard HDMI cables. You eliminate expensive custom assemblies while maintaining flexibility.
Rapid Panel Integration

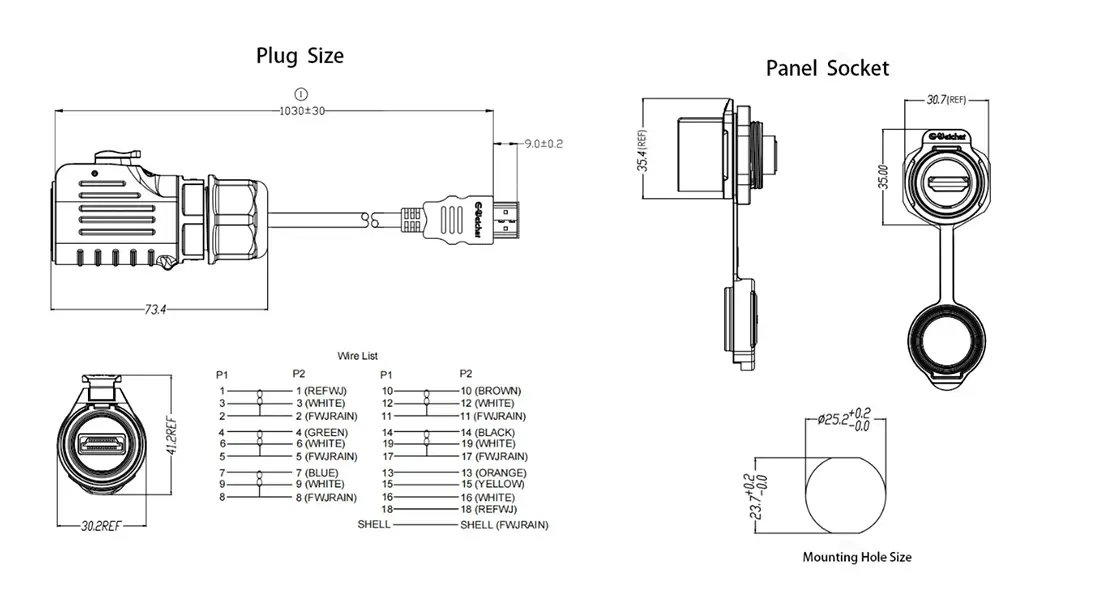

Single-hole mounting speeds installation across your equipment line. Custom panel cutout dimensions accommodate various enclosure specifications.
Extended Temperature Performance
From frigid outdoor winters to hot equipment compartments, the -40℃ to +85℃ range covers your operating conditions.
Certified Quality Assurance
TUV and CE certifications give you confidence. ISO9001:2015 manufacturing processes and RoHS compliance meet global requirements.
Frequently Asked Questions
Q: Does this connector maintain IP68 protection during operation?
A: Yes, when properly mated with the external cable, the product maintains IP68 sealing in the connection status. Optional IP68 1m/2h testing is available.
Q: What cable diameters does it accept?
A: The connector accommodates cable diameters from Ø5.0mm to Ø7.0mm, providing flexibility for various HDMI cable types.
Q: Can I specify custom housing materials?
A: Absolutely. We offer custom housing material options to meet your specific environmental or regulatory requirements.
Q: How does it handle extreme temperatures?
A: The connector operates reliably across -40℃ to +85℃, with UL94-V0 flame retardant housing protecting against thermal stress.
Q: What makes the panel installation secure?
A: The rear locknut design creates a tight seal against the panel surface, while the snap-lock coupling on the cable side ensures the connection won't pull apart during use.
Q: Is EMI shielding provided?
A: The sealed metal pathway and gold-plated contacts provide effective shielding against electromagnetic interference in electrically noisy environments.
Why Choose Cablein for Your Waterproof HDMI Solutions
9 Years of Specialized Expertise
Since 2017, we've focused exclusively on industrial waterproof connectors. Our 200+ person team in Shenzhen's high-tech hub brings deep manufacturing knowledge to every product.
Extensive Certification Portfolio
CE, RoHS, ETL, TUV, ISO9001:2015—our certifications demonstrate commitment to quality and compliance across global markets.
Strong Inventory Support
We maintain over 10,000 pieces per item in stock. Standard delivery runs 7-10 days, keeping your projects on schedule.
Custom Engineering Capability
Need different panel dimensions? Special housing materials? Our OEM/ODM capabilities and 30+ utility patents support custom requirements with fast turnaround.
Comprehensive Quality Testing
Every connector undergoes 100% waterproof performance inspection. Durability testing and electrical reliability checks ensure consistent quality.
Ready to Solve Your Waterproof Connectivity Challenges?
Get the technical specifications, request LP24 HDMI Waterproof Connector samples, or discuss your specific application requirements. Our engineering team is ready to confirm compatibility with your project parameters. Contact us at nick@cableinco.com for detailed documentation, custom quotations, and technical consultation.
