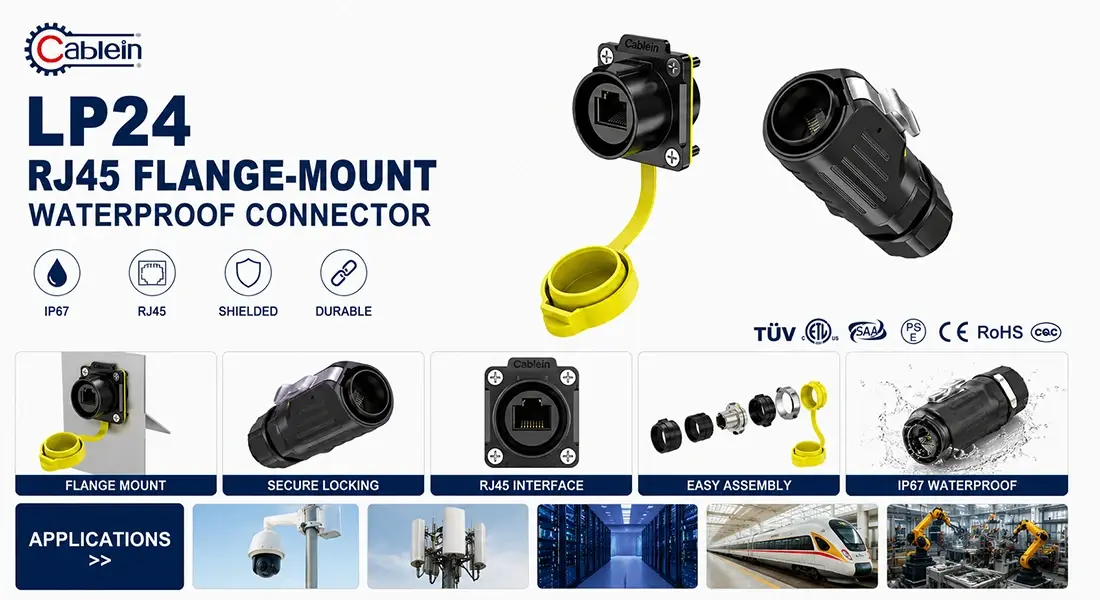

LP24 RJ45 Flange-Mount Waterproof Connector
2. Offers IP67 and IP68 waterproof protection for bulkhead Ethernet pass-through.
3. RJ45 female-to-female feed-through enables network signal transmission through enclosure walls.
4. Four-hole flange mounting ensures stable attachment to equipment panels.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Supports reliable data transmission for industrial and outdoor networking.
7. CE and RoHS certified, manufactured under ISO9001 quality control.
8. Custom flange pattern, housing material, and pre-assembled Ethernet options available.
LP24 RJ45 Flange-Mount Waterproof Connector – Industrial Ethernet Solution
When your network equipment faces rain, dust, or vibration, you need a connector that won't let you down. The LP24 RJ45 Flange-Mount Waterproof Connector from Cablein Technology delivers IP67/IP68 protection with a secure four-hole flange design. It handles information rates up to 10Gbps at 500MHz, works from -40℃ to +85℃, and bolsters 1.5A at 125V. The UL94-V0 flame-retardant lodging and gold-plated contacts guarantee steady execution in open air Driven shows, mechanical mechanization, and marine communications. This strong pass-through arrangement kills field end hassles—just plug standard Ethernet cables on both sides and you're ready.
What Is the LP24 RJ45 Flange-Mount Waterproof Connector?

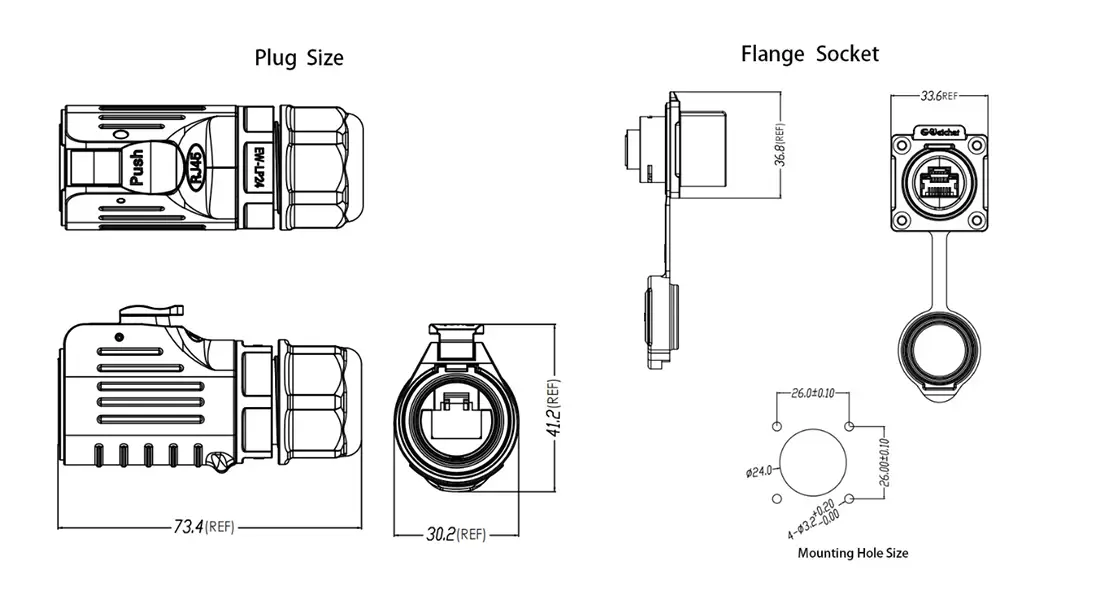

This industrial-grade interface is designed for 24mm mounting gaps. It gives bolt-on connection to boards, walled in areas, and gear bulkheads.
You confront steady challenges: flag misfortune from EMI impedances, cable disappointments beneath tall vibration, and water or tidy entrance. This connector tackles them all.
A bayonet-style locking instrument and high-sealing gaskets bridge standard Ethernet network with ruggedized framework requests. You get dependable information stream without compromising durability.
Whether you're mounting on plant apparatus or open air control boxes, the rib plan keeps your arrange secure.
Technical Specifications That Matter
Your applications demand precision. The LP24 RJ45 Flange-Mount Waterproof Connector meets strict performance benchmarks.
Protection & Durability:
- IP67 rating (optional IP68 for 1m/2h immersion)
- UL94-V0 flame-retardant housing (PBT plastic or zinc alloy)
- Nickel plating for corrosion resistance
Electrical Performance:
- Supports Cat5e, Cat6, and Cat6a standards
- Transmission rate: 10Gbps at 500MHz
- Operating voltage: 125V
- Rated current: 1.5A
Mechanical Strength:
- 50µ" gold-plated phosphor bronze contacts
- Spring-lock system for blind mating
- Cable diameter range: Ø5.0mm–Ø6.5mm
Environmental Range:
- Operating temperature: -40℃ to +85℃
- UV-stabilized additives prevent material degradation
Every unit undergoes ISO9001:2015 quality control and complies with CE, RoHS, and TUV standards.
Why Choose a Flange-Mount Design?
Four-screw fixation delivers superior torque resistance. Your connector won't rotate or loosen under heavy vibration.
Key Benefits:
- Panel Versatility: Works with varying panel thicknesses and restricted rear access
- Quick Field Replacement: Standard RJ45 jacks on both sides—swap damaged cables in seconds
- Primary Water Seal: O-ring compression between flange and panel blocks moisture at the penetration point
- No Field Termination: Plug standard patch cords on both sides—no crimping tools needed
- Fire Safety: UL94 V-0 material meets industrial flammability requirements
The flange anchors your pass-through assembly securely. You get stable network performance even in demanding conditions.
Where You'll Use It
Outdoor LED Displays & Digital Signage
Your screens need seamless video data flow. Moisture, UV rays, and wind-blown dust can't disrupt transmission. This connector keeps your displays running rain or shine.
Industrial Automation & Smart Manufacturing
PLC cabinets and robotic controllers depend on stable networks. Factory floors generate mechanical vibration and electromagnetic noise. The LP24 connector maintains signal integrity through it all.
Marine & Maritime Communications
Onboard networking equipment battles salt spray and high humidity. The hermetic flange seal protects sensitive electronics from corrosive maritime environments. Navigation systems stay connected.
Quality Control You Can Trust
Cablein tests every LP24 RJ45 Flange-Mount Waterproof Connector rigorously before it reaches you.
Testing Standards:
- IPX7 Water Immersion: Verifies long-term environmental resistance
- Salt Spray Corrosion (ASTM B117): Confirms anti-corrosion coating performance
- Plug-Unplug Life Cycle: Minimum 500 cycles without contact loss
- Insulation Resistance: >500MΩ to prevent leakage currents
- Dielectric Withstanding Voltage: AC 1000V/1min for electrical safety
- Signal Integrity: Fluke network analysis ensures Cat6 compliance with minimal Return Loss and Near-End Crosstalk
You receive a product that meets strict ISO9001 and TUV quality benchmarks.
Frequently Asked Questions
Q: Does this connector support PoE+ applications?
A: Yes. High-purity copper contacts handle current loads without excessive heat buildup. You can power devices and transmit data simultaneously.
Q: What's the advantage of flange-mount over nut-mount?
A: Four-screw fixation provides superior torque resistance. Your connector won't loosen under heavy vibration.
Q: Can I use shielded (STP) cables?
A: Absolutely. Specify a metallic shell for end-to-end shielding and ground continuity. You'll get EMI/RFI protection.
Q: How do I ensure a proper seal during installation?
A: Use the included waterproof gasket. Make sure the mounting surface is flat. Tighten the four flange screws to the recommended torque.
Q: Is this connector UV-resistant for outdoor use?
A: Yes. The PBT material contains UV-stabilized additives. It prevents embrittlement and discoloration under direct sunlight.
Customization Options
Your project might need specific configurations. Cablein offers flexible customization:
- Custom flange patterns to match your panel layout
- Housing materials (PBT plastic or die-cast zinc alloy)
- Pre-assembled Ethernet cable lengths
- Shielded or unshielded variants
- Private mold development for OEM/ODM projects
With over 30 utility model patents and 9 years of industry experience, our R&D team handles specialized requirements. We support high-end applications with fast turnaround times.
Ready to Secure Your Network?
Contact Cablein for inquiries at nick@cableinco.com. Download technical specifications, request LP24 RJ45 Flange-Mount Waterproof Connector samples, or confirm compatibility details.
