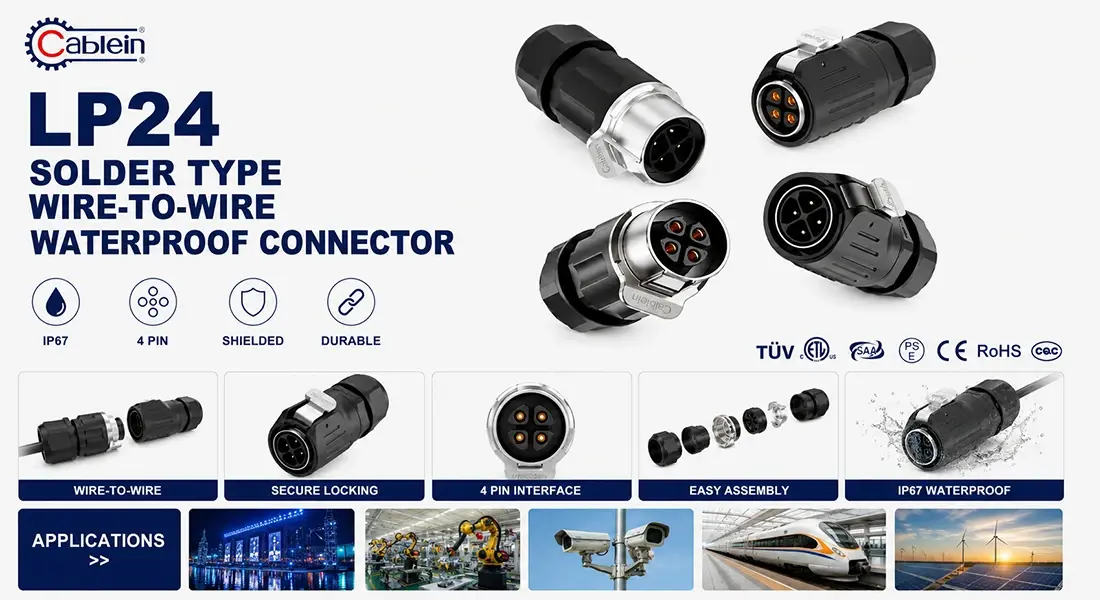

LP24 Solder Type Wire-to-Wire Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for high-power applications.
3. Solder-type termination ensures secure and reliable wire-to-wire connections.
4. Snap-lock bayonet coupling allows quick one-handed mating and unmating.
5. Rated for -40℃ to +105℃ operating temperature with UL94-V0 flame retardant housing.
6. Tested for 2000+ mating cycles for superior long-term reliability.
7. CE and RoHS certified, manufactured under ISO9001 quality management.
8. Custom options include pin count (2-24 pins), housing material, and cable length.
LP24 Solder Type Wire-to-Wire Waterproof Connector – Industrial-Grade Connection Solution
When you need reliable connections in challenging conditions, the LP24 Solder Type Wire-to-Wire Waterproof Connector delivers enterprise-level performance. Built with PA66 nylon lodging and gold-plated copper amalgam contacts, this connector accomplishes IP67/IP68 waterproof appraisals whereas dealing with 5A to 30A over 2-24 stick setups. You get demonstrated solidness through 2000+ mating cycles, working dependably from -40℃ to +105℃. The snap-lock knife coupling empowers speedy one-handed operation, whereas solder-type end makes changeless, vibration-resistant associations. CE and RoHS certified beneath ISO9001 quality administration, it's built for Driven lighting, renewable vitality frameworks, marine hardware, and mechanical robotization where disappointment isn't an option.
What Is LP24 Solder Type Wire-to-Wire Waterproof Connector?
This multi-pin mechanical interconnect highlights a 24mm mounting distance across planned particularly for cruel situations. Not at all like panel-mount adaptations, this wire-to-wire arrangement lets you amplify and interface cables unreservedly without settled mounting points.
The solder-type end implies you physically patch inner contacts to your conductors. This makes moo contact resistance and extraordinary mechanical quality. No screws to extricate. No terminals to corrode.
Your cables remain associated indeed beneath tall vibration. The waterproof seal anticipates liquid entrance in uncovered open air and sea establishments. You fathom flag constriction from oxidation and mechanical disappointment in one solid package.
Technical Excellence and Construction
The lodging comes in high-performance PBT plastic or zinc amalgam with chrome plating. Both choices give UL94-V0 fire retardancy and stand up to acids and antacids effectively.
Protection meets IP67/IP68 measures. Tidy remains out totally. Water can't enter indeed amid brief submersion. Your associations stay dry and functional.
Gold-plated copper amalgam contacts convey prevalent conductivity. You get fabulous corrosion resistance over 500+ mating cycles. Evaluated current ranges from 5A to 25A depending on your stick number. Working voltage comes to 500V AC with separator resistance ≥500MΩ.
The push-button locking instrument gives you a material tap. You know instantly when the association is secure. This vibration-resistant plan keeps up mechanical soundness all through operation.
Key Performance Advantages
Flexible Stick Setups: Select from 2 to 24 contacts in a single lodging. You suit different control and signal requirements without numerous connector types.
True Waterproof Assurance: Completely mated lodging keeps clean out and withstands critical submerged weight. Your hardware works dependably in damp conditions.
Low-Resistance Contacts: Tin-plated or gold-plated copper combination keeps up negligible electrical resistance. Surface oxidation doesn't debase your flag over time.
Quick Snap-Lock Plan: Thrust until you listen the press affirming engagement. Press the discharge button when you require to detach. Basic and fast.
Material Choices: Select zinc combination for most extreme mechanical quality or PBT fabric for lightweight separator. Your application decides the best choice.
Permanent Field End: Fastened wire connection makes associations that withstand high-vibration hardware. Your joins remain secure where mechanical push is constant.
Where You'll Use This Connector
Outdoor LED Display Systems
Large-scale displays need power and data connections between cabinets. You face extreme UV exposure and heavy rain. This LP24 Solder Type Wire-to-Wire Waterproof Connector handles both while maintaining signal integrity across your entire installation.
Marine and Offshore Equipment
Salt spray constantly attacks electronics on ships and offshore platforms. The corrosion-resistant shell protects sensor arrays and sonar equipment. Your connections survive what destroys standard components.
Smart Agriculture and Solar Energy
Outdoor irrigation controllers and solar tracking systems encounter soil moisture, temperature swings from -40°C to +80°C, and chemical exposure from fertilizers. You need connections that maintain performance despite these challenges. This connector delivers that reliability.
Industrial Automation
Factory floors generate vibration, dust, and occasional water exposure. Your control systems can't afford connection failures. Solder termination keeps signals flowing reliably.
Quality Assurance Protocol
Every LP24 connector undergoes rigorous testing before reaching you:
Salt Spray Testing follows ASTM B117 standards. Metal components resist corrosion for 48-72 hours minimum. You know your connectors survive harsh environments.
IPX8 Immersion Test confirms seal integrity at specified depths. Water stays out where it matters most.
Dielectric Withstanding Voltage testing ensures no breakdown at 2500V AC. Your insulation performs when electrical stress peaks.
Mechanical Life Testing verifies contact plating integrity through repeated mating and unmating cycles. Performance doesn't degrade over time.
Solderability Testing guarantees terminals accept solder flux and wire bonding without cold joints. Assembly quality meets IPC-A-610 standards consistently.
Frequently Asked Questions
Q: What advantage does solder type offer over screw terminals?
A: Solder connections provide lower contact resistance and superior performance in high-vibration environments. Screws can loosen over time; solder doesn't.
Q: Can I use this connector underwater?
A: Yes. When properly assembled with correct cable diameter and tightened back shell, it meets IP68 standards for continuous immersion.
Q: What wire gauge works with this connector?
A: Pin configuration determines compatibility, but it typically supports 12 AWG to 24 AWG wires. Check your specific model specifications.
Q: Will UV exposure damage the housing?
A: No. High-grade PBT housing contains UV-stabilized additives. Direct sunlight won't cause cracking or embrittlement.
Q: How do I ensure an airtight seal during assembly?
A: Use cable matching the waterproof rubber grommet's inner diameter. Torque the tail nut to manufacturer specifications. Proper assembly creates reliable sealing.
Q: What's the maximum current capacity?
A: Current capacity ranges from 5A to 30A depending on pin count and configuration. Higher pin counts typically use lower current per pin.
Get Your LP24 Solution Today
Ready to specify your LP24 Solder Type Wire-to-Wire Waterproof Connector? Contact us at nick@cableinco.com for technical specifications, sample availability, and custom configuration options tailored to your application needs.
