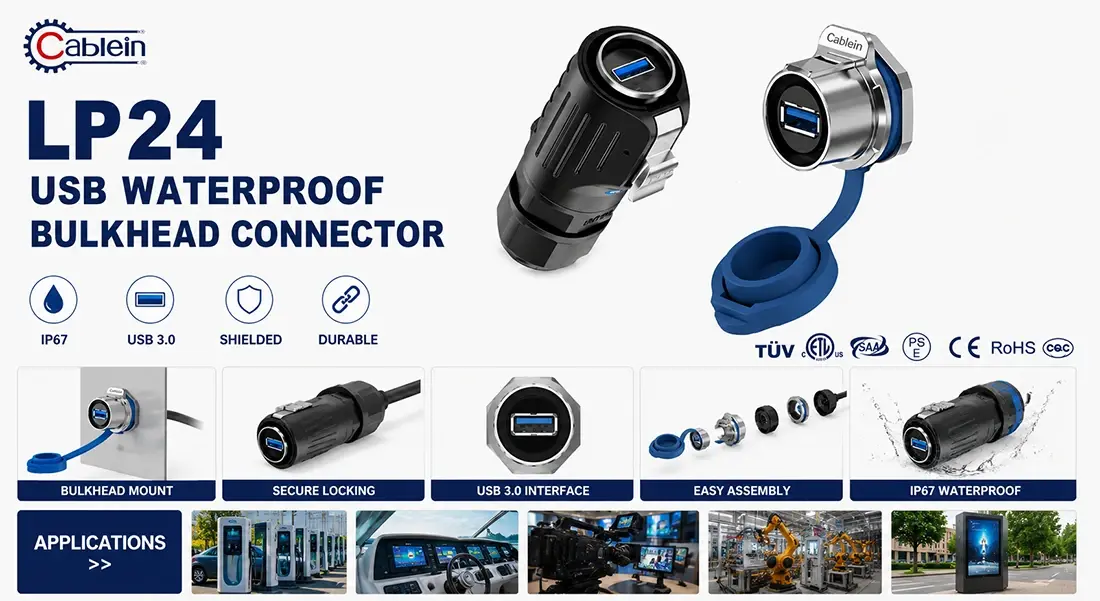

LP24 USB Waterproof Bulkhead Connector
2. Provides IP67 and IP68 waterproof sealing for equipment enclosure pass-through.
3. USB female-to-female feed-through enables data transmission through panels.
4. Compatible with standard USB cables for universal device connectivity.
5. Rated for -40℃ to +105℃ operating temperature with UL94-V0 flame retardant housing.
6. Snap-lock coupling ensures secure connection for industrial applications.
7. TUV and CE certified under ISO9001 and RoHS compliance.
8. Custom panel cutout dimensions and housing material options available.
LP24 USB Waterproof Bulkhead Connector – Industrial-Grade Data Transmission Solution
The LP24 USB Waterproof Bulkhead Connector delivers enterprise-level performance for demanding industrial applications. Rated at IP67/IP68 when mated, it underpins information transmission up to 5.0 Gb/s with a appraised current of 0.9A at 5V. This panel-mount feed-through plan works dependably over -40℃ to +85℃, including TUV and CE certifications beneath ISO9001 and RoHS compliance. With cable compatibility from Ø5.0mm to Ø7.0mm and UL94-V0 fire retardant lodging, the item guarantees secure, tool-free establishment through snap-lock coupling. Gold-plated contacts keep up contact resistance underneath 30mΩ whereas supporting 500-1700 mating cycles for long-term solidness in unforgiving environments.
What Makes Our USB Waterproof Bulkhead Connector Different?
When your equipment faces rain, dust, or humidity, standard USB ports become vulnerable points. Our LP24 USB Waterproof Bulkhead Connector transforms exposed interfaces into weather-resistant access points.
The circular design installs through a single round cutout. A rear locknut secures it in place. No internal wiring required. No soldering needed.
You get a standard USB port on the inside. The outside stays protected against moisture and contamination.
This feed-through design maintains your equipment's IP rating. Even when cables disconnect, the sealed mounting point guards internal components.
Built for Harsh Conditions
Temperature extremes don't stop data flow. The connector operates from -40℃ to +85℃ continuously.
Vibration and movement? The push-pull locking mechanism prevents accidental disconnection. Your data stays stable in high-movement industrial settings.
Salt spray and chemical exposure are handled by corrosion-resistant materials. The housing withstands frequent sanitization in medical environments.
Technical Specifications That Matter
Your application demands reliable performance. Here's what you can count on:
Data Transmission: Up to 5.0 Gb/s for USB 3.0 variants
Power Handling: 0.9A at 5V operating voltage
Protection Level: IP67 standard, IP68 optional (1m/2h tested)
Contact Performance: <30mΩ contact resistance, >500MΩ insulation resistance
Durability: 500-1700 mating cycles minimum
Cable Range: Fits Ø5.0mm to Ø7.0mm cable diameters
The UL94-V0 flame retardant housing adds safety. Gold-plated copper alloy contacts ensure consistent signal quality over thousands of connections.
Both USB 2.0 and USB 3.0 configurations are available. You choose based on your data rate and power delivery requirements.
Where You'll Use This Connector
Outdoor LED Displays and Signal Systems
Weather-resistant data synchronization keeps your displays running. Rain and humidity won't cause downtime when your USB interface stays sealed.
Industrial Automation and Robotics
PLC data feedback remains continuous in high-vibration environments. The locking mechanism resists movement that would disconnect standard cables.
Marine Equipment
Salt-spray resistant housing protects data ports on offshore equipment. Corrosive conditions that destroy regular connectors won't penetrate this sealed interface.
Medical Diagnostic Devices
Easy-to-sanitize surfaces allow frequent chemical wipe-downs. Sterile environments demand connectors that maintain integrity through repeated cleaning.
Outdoor Kiosks and Industrial Computers
Exposed USB ports become protected access points. Service technicians can connect devices without compromising the enclosure's weather resistance.
Quality You Can Trust
Every connector undergoes strict testing before shipment:
Waterproof Testing: Vacuum-pressure immersion validates IP67/IP68 ratings
Salt Spray Testing: 48-72 hour ASTM B117 tests verify corrosion resistance
Mechanical Durability: Automated cycles monitor contact wear and locking mechanism integrity
Signal Integrity Analysis: Time Domain Reflectometry ensures minimal packet loss
Thermal Shock Testing: Extreme temperature cycling confirms seal stability
Our ISO9001:2015 certified facility performs 100% inspection. You receive connectors that meet international safety standards including CE, RoHS, and TUV.
Installation Made Simple

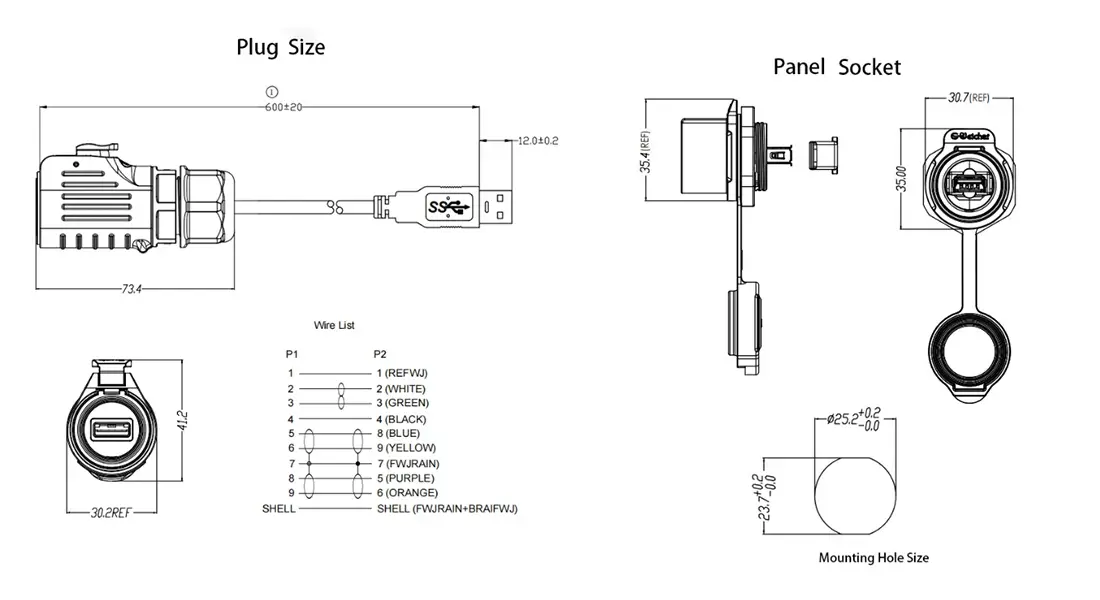

The panel-mount design requires minimal preparation. Drill your mounting hole to specification. Insert the receptacle from the outside. Secure with the rear locknut.
Your standard USB port appears on the inside. Connect your internal device using regular USB cables.
On the outside, the mating plug creates the waterproof seal. The push-pull mechanism clicks into place without tools.
No special training needed. Your maintenance team can install or replace connectors quickly.
Frequently Asked Questions
Q: Can this connector handle USB 3.0 speeds?
A: Yes. Our 9-pin setups back USB 3.0 SuperSpeed information exchange up to 5Gbps. Indicate USB 3.0 when requesting for high-bandwidth applications.
Q: What is the advantage of the bulkhead design?
A: The bulkhead plan makes a settled, fixed mounting point on your gear walled in area. Your inside IP rating remains intaglio indeed when outside cables disconnect.
Q: Is it congruous with standard USB cables?
A: The inner side employments standard USB headers consistent with normal cables. The outside side requires a coordinating LP24-series plug to keep up the waterproof seal.
Q: How does it perform in high-EMI environments?
A: Versions with metal shells give fabulous electromagnetic obstructions assurance. This things for exactness restorative hardware and military applications where flag keenness is critical.
Q: Does the connector back control delivery?
A: Yes. It bolsters standard USB control conventions, ordinarily up to 2A at 5V. Real capacity depends on the wire gage utilized in your cable assembly.
Q: What almost custom requirements?
A: We offer custom board set pattern measurements and lodging fabric alternatives. Cable length, connector introduction, and uncommon certifications are accessible through our OEM/ODM services.
Why Choose Cablein Technology
Since 2017, we've specialized in waterproof connectivity for harsh environments. Our 6,000㎡ facility in Shenzhen houses advanced production equipment and a team of 200+ professionals.
We maintain stable inventory exceeding 10,000 pieces per item. Standard delivery takes 7-10 days. Custom orders ship on flexible schedules.
Over 30 utility model patents demonstrate our innovation capability. Our engineering team solves complex connectivity challenges through proven quick-connect, solder-free, and high-power waterproof solutions.
Global logistics partnerships with UPS, DHL, and FedEx ensure your order reaches you efficiently. Professional freight forwarding handles larger shipments cost-effectively.
Ready to Upgrade Your Connectivity?
Contact us at nick@cableinco.com to discuss your LP24 USB Waterproof Bulkhead Connector requirements, download technical specifications, request samples, or confirm compatibility details for your specific application.
