LP24 Waterproof USB Connector
2. Offers IP67 and IP68 waterproof protection for bulkhead USB pass-through.
3. USB female-to-female feed-through enables data transmission through enclosure walls.
4. Four-hole flange mounting ensures stable attachment to equipment panels.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Supports universal USB connectivity for industrial and outdoor devices.
7. CE and RoHS certified, manufactured under ISO9001 quality control.
8. Custom flange pattern and housing material options available.
LP24 Waterproof USB Connector: Industrial-Grade Data Transmission Solution
The LP24 Waterproof USB Connector from Cablein Technology delivers enterprise-level performance for demanding industrial environments. This flange-mount feed-through connector highlights IP67/IP68 waterproof security and bolsters information transmission rates up to 5.0 Gb/s. Built with a four-hole spine plan and UL94-V0 fire retardant lodging, it works dependably over -40℃ to +85℃ temperature ranges. With 0.9A evaluated current at 5V working voltage, this connector obliges cable distances across from Ø5.0mm to Ø7.0mm. CE and RoHS certified beneath ISO9001:2015 quality control, the LP24 gives secure USB female-to-female network through gear panels.
What Makes LP24 Different?
Standard USB ports fail quickly in harsh conditions. Moisture creeps in. Vibration loosens connections. Corrosion stops data flow.
The LP24 Waterproof USB Connector solves these problems head-on.
This industrial-grade solution uses a flange-mount design that secures firmly to equipment panels. You get reliable data transmission even when your devices face rain, dust, or temperature extremes.
The four-hole mounting pattern provides superior stability. Traditional nut-mounted connectors loosen over time from vibration. Your LP24 stays firmly in place.
Key Technical Advantages
Robust Environmental Protection
IP67 and IP68 ratings mean your connection stays dry. The integrated panel gasket creates a water seal without messy sealants. Perfect for outdoor installations where weather protection matters.
Wide Operating Range
From freezing cold to scorching heat, this connector performs. The -40℃ to +85℃ temperature rating covers extreme climates. Arctic winters? Desert summers? Your data keeps flowing.
Gold-Plated Reliability
Gold-plated contacts resist corrosion in high-humidity environments. Salt spray, condensation, and moisture won't degrade your signal quality. You get consistent performance year after year.
Flexible Configuration
Need USB-A? No problem. Prefer USB-C? We've got you covered. Both configurations fit within the M24 flange housing. One mounting solution adapts to different interface requirements.
Where You'll Use It
Marine Electronics
Boat navigation systems need dependable connections. The LP24 withstands salt spray and pressure washdowns. Your sonar equipment and deck-mounted sensors maintain reliable data flow.
Outdoor Kiosks
Payment terminals and information displays face constant weather exposure. This flange-mount connector protects against rain while enabling software updates and data collection.
Industrial Control Systems
Factory floors are tough on equipment. Coolant spray, oil mist, and vibration test every component. The LP24 Waterproof USB Connector handles these challenges while maintaining stable data transmission.
LED Display Systems
Large outdoor screens require frequent content updates. Weather-sealed connectivity lets you refresh displays without compromising enclosure protection.
Agricultural Equipment
Modern farming relies on data. Precision agriculture systems, automated irrigation controllers, and crop monitoring devices need connections that survive mud, rain, and dust.
Installation Advantages
Front-mount flange installation simplifies integration. You can fit the connector before installing internal electronics. This saves assembly time and reduces installation complexity.
The four-hole pattern suits various panel materials. Aluminum enclosures, stainless steel boxes, or plastic housings—the mounting method adapts to your equipment design.
No special tools required. Standard fasteners secure the flange. Your maintenance team can install or replace connectors quickly without specialized training.

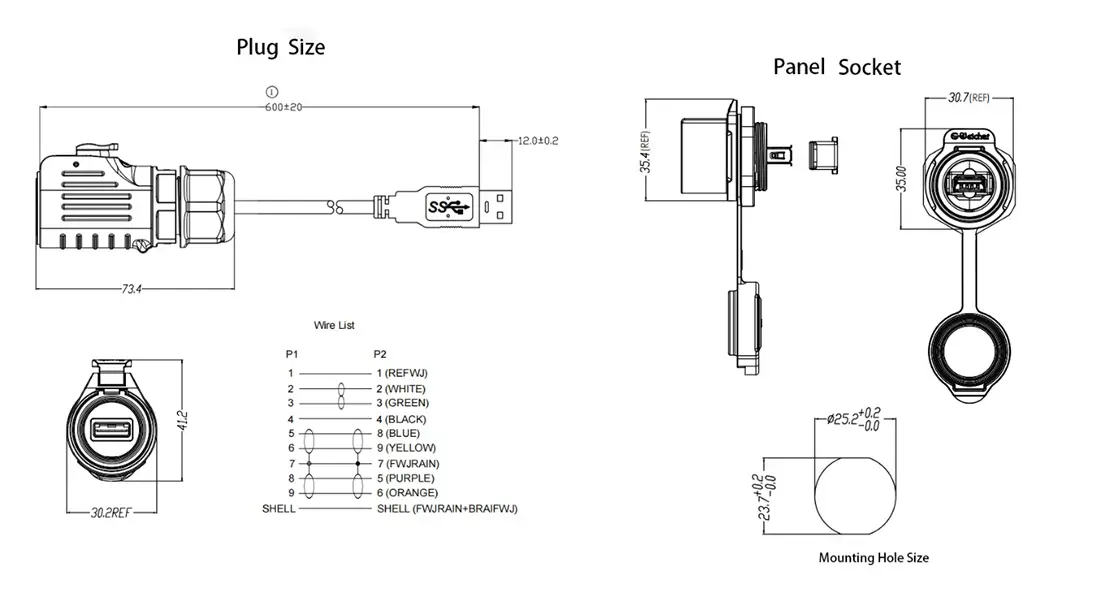

Technical Specifications at a Glance
- Data Rate: 5.0 Gb/s for high-speed file transfers
- Current Rating: 0.9A at 5V for power delivery
- Cable Compatibility: Ø5.0mm to Ø7.0mm diameter range
- Waterproof Rating: IP67 standard, IP68 optional (1m/2h)
- Flammability: UL94-V0 rated housing material
- Certifications: CE, RoHS compliant under ISO9001:2015
Why Choose Cablein's LP24?
Proven Manufacturing Excellence
Since 2017, Cablein has specialized in waterproof connectors. Our 6,000 ㎡ facility in Shenzhen employs over 200 skilled professionals. Every product undergoes 100% inspection for waterproof performance and electrical reliability.
Quality You Can Trust
ISO9001:2015 certified quality management ensures consistent results. We don't ship products that don't meet our strict standards. Your reputation depends on reliable components—so does ours.
Ready When You Need It
We maintain inventory of 10,000+ pieces per item. Standard orders ship within 7-10 days. Custom configurations follow flexible scheduling to meet your project timelines.
Engineering Support Included
Our technical team provides 24-hour support. Have questions about integration? Need help with custom configurations? We offer end-to-end project assistance and responsive after-sales service.
Frequently Asked Questions
Q: Can this connector handle USB 3.0 speeds?
A: Yes, specialized adaptations back USB 3.0 SuperSpeed information exchange up to 5Gbps with 9-pin setups planned for high-speed applications.
Q: What's the advantage of the bulkhead design?
A: Bulkhead mounting makes a settled, fixed point on walled in areas. Your gear keeps up its inner IP rating indeed when outside cables detach. This secures touchy electronics.
Q: Will it work with my existing USB cables?
A: The inner side frequently employments standard headers for simple integration. The outside side requires a coordinating LP24-series plug to keep up the waterproof seal and natural protection.
Q: How does it perform in high-EMI environments?
A: Metal shell adaptations with legitimate protecting give fabulous electromagnetic impedances security. Basic for accuracy gear in therapeutic and military applications.
Q: Does it bolster control delivery?
A: Yes, it handles standard USB control conventions, regularly up to 2A at 5V. Genuine capacity depends on wire gage utilized in your cable assembly.
Q: How numerous association cycles can I expect?
A: The connector is appraised for over 500 mating cycles beneath typical working conditions. Appropriate taking care of and support can expand this lifespan.
Q: Can I customize the spine pattern?
A: Completely. Cablein offers custom spine setups and lodging fabric choices to coordinate your particular gear requirements.
Ready to Upgrade Your Connectivity?
Your equipment deserves reliable connections that won't fail when conditions get tough. Whether you're designing marine electronics, industrial control systems, or outdoor displays, the LP24 Waterproof USB Connector delivers the protection and performance you need.
Contact us today: nick@cableinco.com – Let's engineer the connection solution your application demands.
