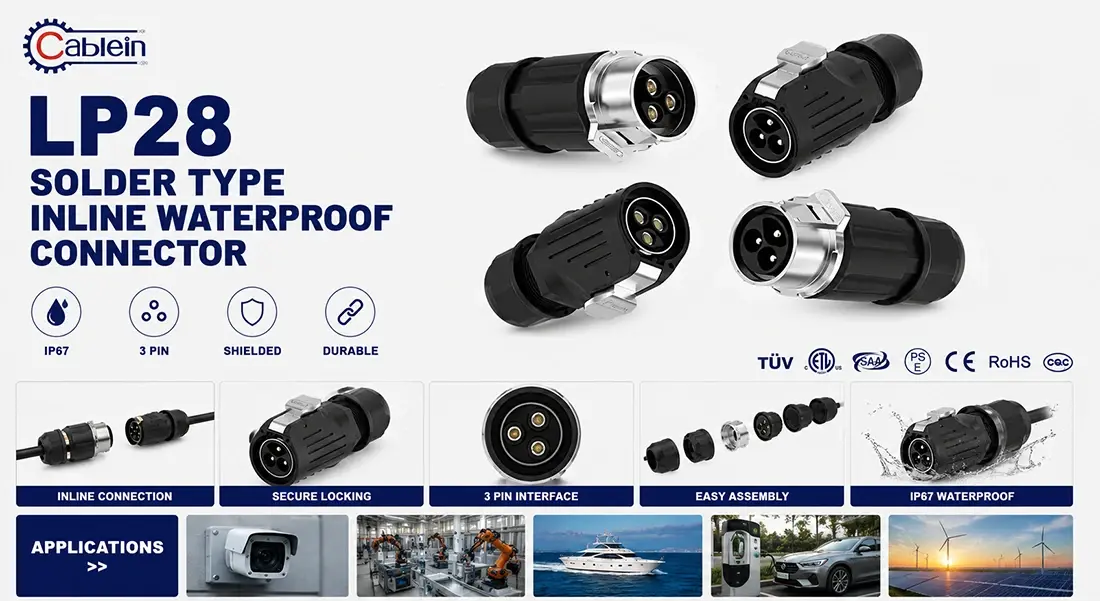

LP28 Solder Type Inline Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for heavy-duty power applications.
3. Solder-type termination ensures secure and reliable wire-to-wire connections.
4. Snap-lock bayonet coupling allows quick one-handed mating and unmating.
5. Rated for -40℃ to +105℃ operating temperature with UL94-V0 flame retardant housing.
6. Tested for 2000+ mating cycles for superior long-term reliability.
7. TUV and CE certified, manufactured under ISO9001 quality management.
8. Custom options include pin count (2-8 pins), housing material, and cable length.
LP28 Solder Type Inline Waterproof Connector – Industrial Power & Signal Solutions
The LP28 Solder Type Inline Waterproof Connector from Cablein Technology delivers enterprise-grade reliability. Built with PA66 nylon lodging and gold-plated copper amalgam contacts, this connector accomplishes IP67/IP68 waterproof appraisals. You get appraised current choices of 15A to 35A over 2-8 stick setups, with voltage capacity up to 500V. Tried for 2000+ mating cycles and certified by TUV and CE beneath ISO9001 quality benchmarks, it works immaculately in temperatures from -40℃ to +105℃. The solder-type end ensures changeless, low-resistance associations your basic frameworks demand.
What Makes the LP28 Solder Type Inline Waterproof Connector Special?
This 28mm circular connector is specifically designed for cable-to-cable applications where environmental sealing is non-negotiable.
The LP28 Solder Type Inline Waterproof Connector uses precision solder cup terminals. This creates a permanent electrical path that resists vibration better than crimp alternatives.
Why does this matter to you? In high-humidity situations, destitute associations cause flag corruption. Mechanical apparatus creates steady vibration. Open air establishments confront rain, clean, and temperature extremes.
Your hardware needs associations that keep up keenness beneath weight. This connector fathoms those challenges with IP67/IP68 entrance assurance. Water planes won't enter it. Tidy can't meddled with your signals.
You do not require specialized pleating apparatuses either. Field serviceable plan implies your professionals can make repairs on-site. That decreases downtime and keeps your operations running.
The UL94-V0 fire retardant lodging includes another security layer. If electrical flaws happen, the fabric stands up to start. You secure both hardware and personnel.
Technical Specifications That Matter
Understanding the capabilities helps you make informed decisions. Here's what you should know:
Electrical Performance:
- Rated current: 15A to 35A (varies by pin count)
- Voltage capacity: 300V to 500V
- Insulation resistance: ≥500MΩ
- Wire section compatibility: 4mm² to 16mm²

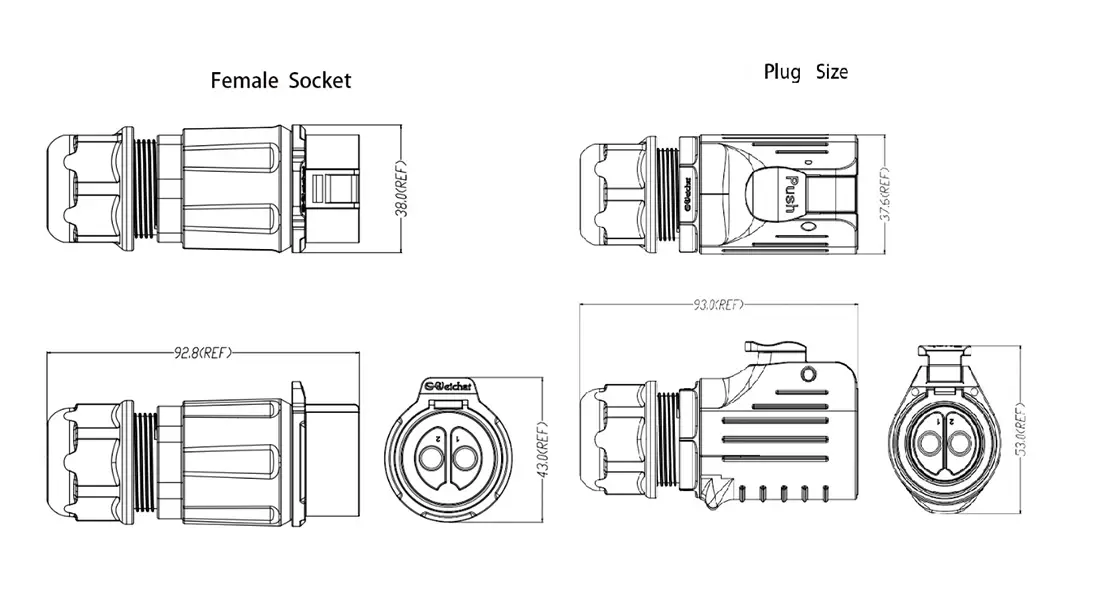

Mechanical Design:
- Pin configurations: 2P, 3P, 5P, 6P, 8P options
- Cable diameter range: Φ13mm to Φ20.5mm
- Mating cycles: 2000+ tested operations
- Coupling: Snap-lock bayonet for one-handed operation
Environmental Resilience:
- Operating temperature: -40℃ to +105℃
- Protection rating: IP67/IP68
- Housing material: PA66 nylon (UL94-V0)
- Contact material: Gold-plated copper alloy
The silicone sealing ring creates a watertight barrier. Gold plating on contacts prevents oxidation over time. Your connections stay reliable for years, not months.
Where You'll Use This Connector
Different industries face unique connectivity challenges. Let's explore where this connector excels:
Outdoor LED Display & Stage Lighting
Your LED installations need daisy-chained power and data connections. Rain and humidity threaten these systems constantly.
The waterproof design keeps moisture out. Your displays stay bright during storms. Stage productions continue without electrical failures.
Marine and Offshore Equipment
Saltwater is incredibly corrosive. Standard connectors fail quickly in marine environments.
This connector withstands saline spray and high-pressure water jets. Shipboard communication systems stay operational. Underwater ROV tethers maintain signal integrity even when submerged.
Industrial Automation & Robotics
Food processing plants require frequent washdowns. High-pressure cleaning cycles with chemical disinfectants are standard.
Your motor and sensor connections must survive this treatment. The IP68 rating ensures water doesn't penetrate during cleaning. Chemicals don't degrade the housing material.
Manufacturing robots need reliable connectivity. Vibration from machinery loosens poor connections. Solder terminals create bonds that stay secure.
Solar Energy Systems
Photovoltaic installations face extreme temperature swings. Morning dew turns to afternoon heat daily.
Your electrical connections must handle these cycles without degradation. The -40℃ to +105℃ range covers most climates. UV-stabilized housing prevents sun damage.
Security and Surveillance
Outdoor cameras need uninterrupted power. One failed connection means blind spots in your security coverage.
Weather-resistant connections keep surveillance systems running 24/7. Your facility stays protected regardless of conditions.
Quality You Can Verify

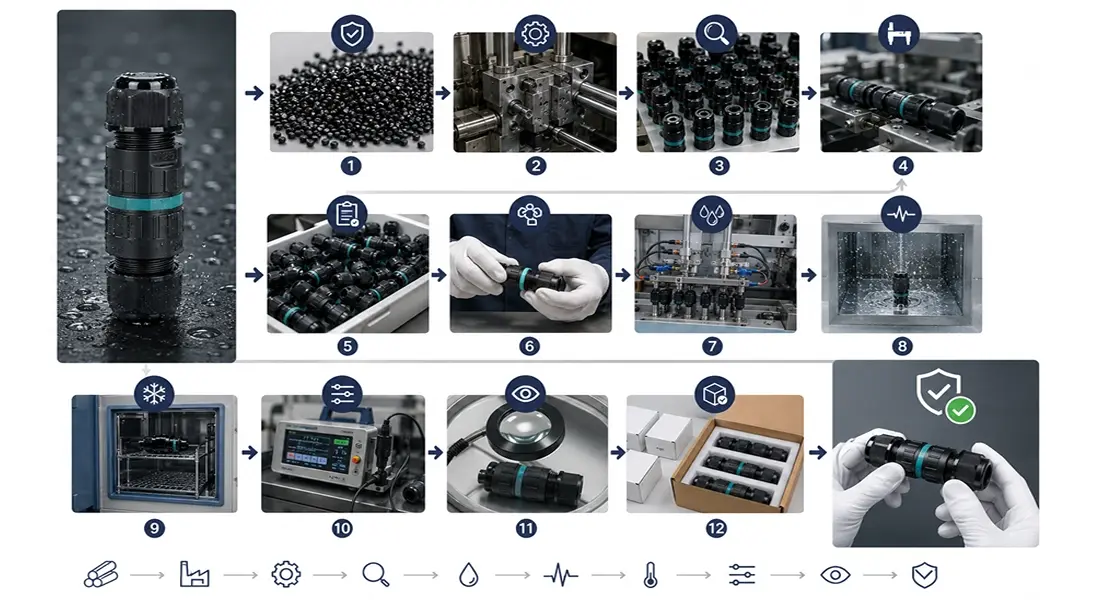

How do you know this connector will perform as promised? Cablein implements rigorous testing protocols:
Ingress Protection Testing
We conduct vacuum and immersion tests. Each connector must meet IP68 standards. Your unit won't fail when water pressure increases.
Dielectric Strength Verification
High-voltage testing at 2500V AC ensures no breakdown occurs. Electrical safety isn't negotiable in your installations.
Salt Spray Exposure
72-hour salt fog testing verifies corrosion resistance. Marine applications demand this level of durability.
Mechanical Endurance Cycles
Automated testing confirms performance after 2000+ connections. Contact resistance remains stable throughout the connector's lifetime.
Solderability Standards
Our solder cups meet high-temperature wetting requirements. Your field technicians get defect-free assembly every time.
Every connector leaving our 6,000 ㎡ facility undergoes 100% inspection. ISO9001:2015 compliance isn't just a certificate on our wall. It's embedded in our production process.
Frequently Asked Questions
Q: Why select patch sort over crease connections?
A: Patch makes a more vibration-resistant, changeless bond. If your field teams need water powered creasing apparatuses, fastening gives proficient comes about with fundamental gear. Repairs can happen on-site without shipping connectors back to a shop.
Q: Can I transmit both control and information through one connector?
A: Completely. Multi-pin setups back cross breed applications. You solidify cabling and diminish establishment complexity. One connector handles what utilized to require two partitioned runs.
Q: What cable sizes work with this connector?
A: Cable external breadth from 10mm to 18mm fits the compression nut framework. The silicone gasket alters to your particular cable. Secure waterproof seals frame around different cable types.
Q: Will UV presentation harm the housing?
A: No. The PA66 nylon incorporates UV stabilizers. A long time of coordinate daylight won't cause brittleness or breaking. Your open air establishments keep up auxiliary integrity.
Q: What's the voltage limit?
A: Depending on stick course of action, appraisals run from 300V to 500V AC/DC. This meets mechanical electrical security necessities for most applications. Check your particular setup for correct ratings.
Q: How does the snap-lock coupling work?
A: Thrust the connector together until it clicks. The knife component locks naturally. To detach, press the discharge hook. One-handed operation speeds up support work.
Q: Can this handle chemical exposure?
A: The lodging stands up to oil, weaken acids, and common mechanical chemicals. It's not reasonable for concentrated acids or solid solvents. For particular chemical compatibility questions, contact our specialized team.
Q: What's your conveyance timeframe?
A: We keep up stock of 10,000+ pieces per thing. Standard orders dispatch inside 7-10 days. Custom arrangements require extra time based on your specifications.
Contact Us
Ready to enhance your connectivity solution? Reach out to nick@cableinco.com for technical specifications, sample inquiries, and customization details tailored to your LP28 Solder Type Inline Waterproof Connector requirements.
