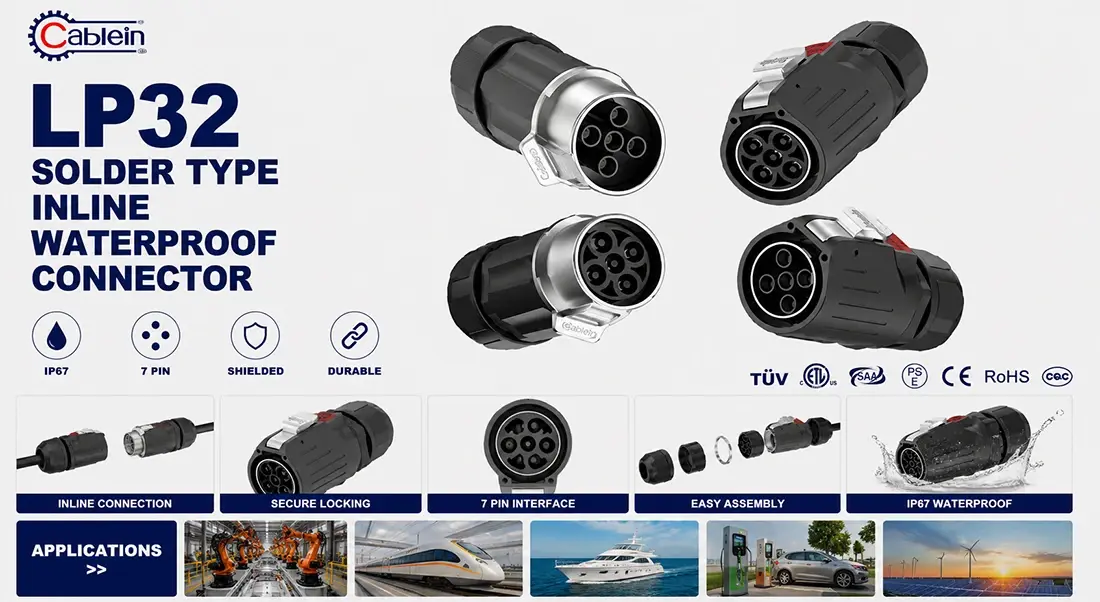

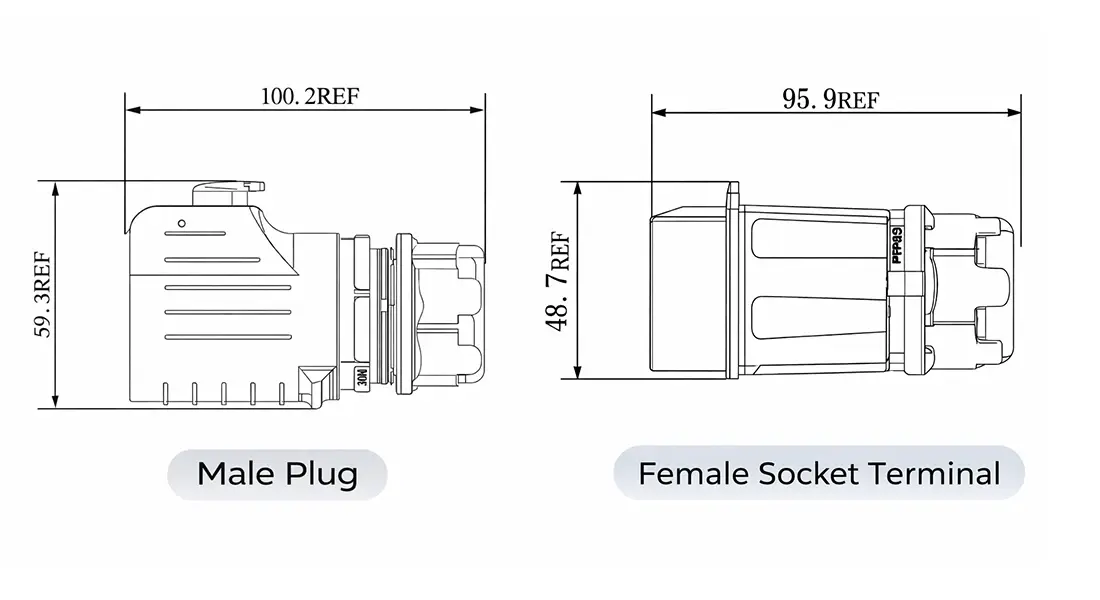

LP32 Solder Type Inline Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for high-current power applications.
3. Solder-type termination ensures secure and reliable wire-to-wire connections.
4. Snap-lock bayonet coupling allows quick one-handed mating and unmating.
5. Rated for -40℃ to +105℃ operating temperature with UL94-V0 flame retardant housing.
6. Tested for 2000+ mating cycles for superior long-term reliability.
7. CE and RoHS certified, manufactured under ISO9001 quality management.
8. Custom options include pin count, housing material, and cable length.
LP32 Solder Type Inline Waterproof Connector – Enterprise-Grade Power Connectivity Solution
When your industrial application demands uncompromising reliability, the LP32 Solder Type Inline Waterproof Connector from Cablein Technology delivers enterprise-level performance you can trust. Built with PA66 nylon lodging and gold-plated copper amalgam contacts, this connector accomplishes IP67/IP68 waterproof evaluations whereas dealing with persistent streams up to 120A (2-pin). With contact resistance as moo as 0.3mΩ on 3-pin forms and a demonstrated life expectancy surpassing 2,000 mating cycles, it's built for cruel situations extending from -40℃ to +105℃. The dual-arm spring locking instrument gives 100% more noteworthy maintenance drive than standard options, whereas touch-proof security shades and UL94-V0 fire retardant materials guarantee administrator assurance and code compliance.
What Is the LP32 Solder Type Inline Waterproof Connector?
The LP32 Solder Type Inline Waterproof Connector is a heavy-duty industrial interconnect solution featuring a 32mm mounting diameter designed for critical power and signal transmission.
Unlike crimp-style options, this connector employments solder-based end. This strategy gives predominant mechanical quality and electrical progression. You get a association that won't work free beneath vibration or warm cycling.
This inline setup addresses a particular issue. When board mounting isn't doable, you require dependable cable-to-cable bridging. That's precisely what this connector delivers.
It addresses three critical pain points:
- Eliminates signal instability in high-vibration environments
- Prevents equipment failure from water or dust ingress (IP67/IP68 protection)
- Enables secure field-side cable extensions without mounting plates
The result? A connector built for demanding industrial frameworks where failure is not an option.
Technical Parameters That Matter
Understanding the specifications helps you make the right choice for your application.
Current Capacity by Configuration:
- 2-pin: 120A continuous current
- 3-pin: 80A continuous current
- 4-pin: 70A continuous current
- 5-pin: 45A continuous current
Wire Compatibility:
- 2-pin: 4mm²-25mm² wire sections
- 3-pin/4-pin: 4mm²-16mm² wire sections
- 5-pin: 2.5mm²-10mm² wire sections
Electrical Ratings:
- Operating Voltage: 600V AC (2/3/4-pin), 300V AC (5-pin)
- Withstand Voltage: 3000V AC (2/3/4-pin), 2000V AC (5-pin)
- Contact Resistance: Less than 0.3mΩ (3-pin version)
Environmental Performance:
- Temperature Range: -40℃ to +80℃ operating
- Waterproof Rating: IP68 plus IPX9K
- Temperature Rise: Strictly limited to 55K at full load
The snap-lock bayonet coupling allows quick one-handed mating. You'll appreciate this feature when working in tight spaces or wearing gloves.
Key Advantages That Solve Real Problems
High Current Density Without Overheating
The 3-pin configuration delivers 100A continuous current while keeping temperature rise below 55K. This thermal management is crucial for long-term reliability.
Superior Mechanical Retention
The dual-arm spring locking system isn't just marketing talk. It provides 100% greater retention force than single-arm designs. Your connections stay secure even when equipment vibrates or moves.
True Waterproof Protection
IP68 rating means prolonged submersion won't compromise the connection. The IPX9K rating goes further—it handles high-pressure, high-temperature water jets. This matters in washdown environments or outdoor installations.
Low Power Loss
At 0.3mΩ contact resistance, power loss across the connection point is minimal. This efficiency adds up across multiple connections in large installations.
Anti-Pull Design
The back-end anti-pull structure prevents axial displacement. When cables receive accidental tugs, your connection integrity remains intact.
Operator Safety
Touch-proof safety shutters on male and female terminals prevent accidental contact with live parts. This design helps you maintain a safer workplace.
Where the LP32 Excels: Real-World Applications
Industrial Automation
CNC machinery and robotic controllers operate in environments filled with lubricants and metallic dust. The LP32 provides reliable power links that won't fail when production depends on uptime.
Renewable Energy Systems
Solar photovoltaic arrays face intense UV exposure and torrential rain. Wind turbine sensor systems must function reliably year after year. The LP32 meets these non-negotiable requirements with UV resistance and environmental sealing.
Outdoor LED & Stage Equipment
Large-scale rental LED screens and outdoor broadcast equipment need both quick-disconnect capability and total environmental sealing. Salt air and moisture are constant threats. The LP32 serves as the primary power and data bridge in these demanding scenarios.
Agricultural Lighting
Greenhouse operations and vertical farming systems require connections that withstand humidity, temperature swings, and chemical exposure from fertilizers.
Underwater Robotics
Submersible vehicles and inspection equipment push waterproof ratings to their limits. The LP32's IP68 certification ensures reliable operation even underwater.
Quality Control You Can Trust
Cablein subjects each group of LP32 connectors to thorough testing:
IPX8 Drenching Testing: Each connector keeps up its seal at 1.5 meters profundity for over 30 minutes. No easy routes, no exceptions.
Salt Shower Testing: A 48-hour quickened erosion test confirms the keenness of amalgam plating. This guarantees your coastal and marine applications won't encounter untimely failure.
Contact Maintenance Drive: We degree the constrain required to oust a stick. This affirms solder-joint solidness beneath real-world stress.
Dielectric Withstanding Voltage: Testing at 2500V AC guarantees no breakdown or flashover between adjoining pins. Your administrators and hardware remain protected.
Temperature Rise Test: Full evaluated current testing confirms the connector doesn't surpass 30K temperature rise. This affirms long-term warm safety.
These tests aren't fair checkboxes. They speak to our commitment to conveying items that perform as specified—every time.
Frequently Asked Questions
Q: What wire gage works best with the product?
A: The connector is optimized for 10 AWG to 14 AWG wires. The correct gage depends on your stick tally and current necessities. Check the specialized parameters segment for wire area specifications.
Q: Can I utilize this connector in marine environments?
A: Completely. The PA66 nylon development and gold-plated contacts are particularly treated for salt-spray resistance. The 48-hour salt splash testing affirms this capability.
Q: How do I guarantee an IP68 seal amid installation?
A: Appropriate establishment is pivotal. Fix the tail nut to the indicated torque. Guarantee your cable coat breadth falls inside the O-ring's consistent run. This makes the compression seal that keeps up waterproof integrity.
Q: Is the solder-type adaptation field-repairable?
A: Yes, and that's a key advantage. The patch plan permits accuracy re-termination in the field utilizing standard patching hardware. You won't require specialized crease instruments or require to stock restrictive components.
Q: What's the most extreme voltage the LP32 can handle?
A: The item is appraised for up to 600V AC in 2/3/4-pin setups. This makes it appropriate for most mechanical three-phase control applications.
Q: How numerous times can I mate and unmate this connector?
A: Testing affirms over 2,000 mating cycles. This solidness guarantees long benefit life indeed in applications requiring visit disconnection.
Q: What certifications does this connector have?
A: The LP32 carries CE and RoHS certifications. It's made beneath ISO9001:2015 quality administration frameworks. Extra certifications may be accessible depending on your particular configuration.
Get Started with the Right Connection Solution
Ready to specify the LP32 Solder Type Inline Waterproof Connector for your project? Whether you need to confirm technical details, request samples, or discuss custom pin configurations, our engineering team is here to help. Reach out to nick@cableinco.com today to discuss your specific requirements, download detailed technical specifications, or arrange for product samples.
