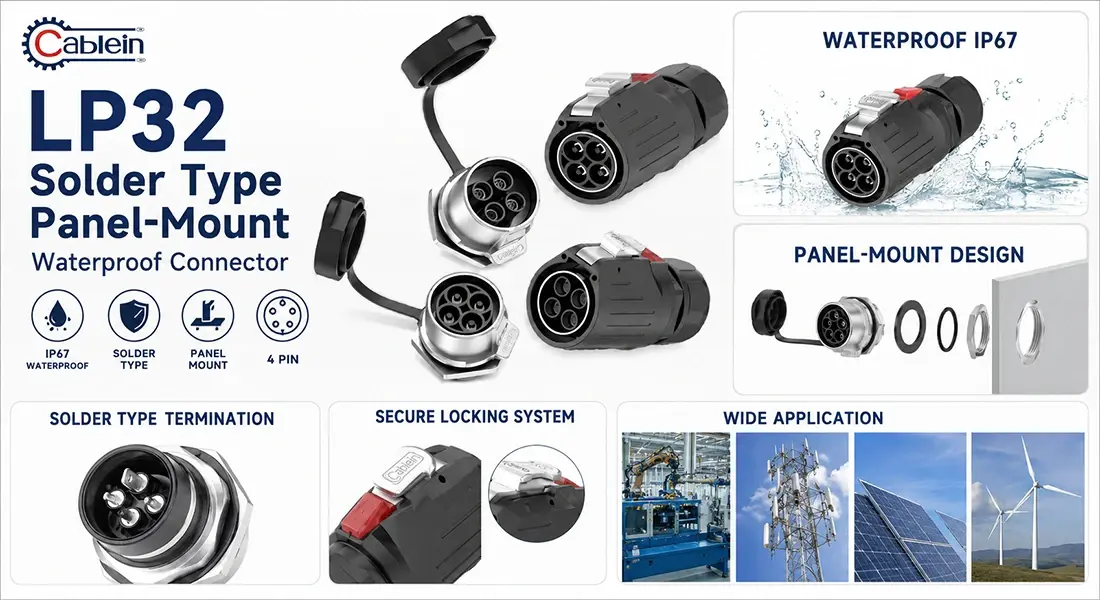

LP32 Solder Type Panel-Mount Waterproof Connector
2. Provides IP67 and IP68 waterproof sealing at the panel mounting point.
3. Solder-type rear entry allows secure internal wiring for equipment pass-through.
4. Snap-lock coupling enables quick connection from outside the panel.
5. Rated for -40℃ to +105℃ temperature range with UL94-V0 flame retardant housing.
6. Tested for 2000+ mating cycles for consistent performance.
7. TUV and CE certified under ISO9001 and RoHS compliance.
8. Custom pin configuration, housing material, and panel cutout size available.
LP32 Solder Type Panel-Mount Waterproof Connector
The LP32 Solder Type Panel-Mount Waterproof Connector from Cablein Technology delivers enterprise-grade reliability for demanding industrial environments. Built with PA66 nylon lodging and gold-plated copper amalgam contacts, this connector accomplishes IP67/IP68 waterproof assurance at the board mounting point. It's evaluated for 2000+ mating cycles—four times the industry baseline—and works dependably over a -40℃ to +120℃ temperature run. With a UL94-V0 fire retardant rating and certification beneath TUV, CE, and RoHS, this panel-mount arrangement underpins high-current applications: 120A for 2-pin, 80A for 3-pin, 70A for 4-pin, and 45A for 5-pin setups. Its solder-type raise section guarantees secure inside wiring for gear pass-through applications.
What Makes Our LP32 Connector Stand Out?
Your equipment faces harsh conditions daily. Rain, dust, temperature swings, and constant vibration can destroy ordinary connections. That's where the LP32 Solder Type Panel-Mount Waterproof Connector proves its worth.
Built for Extreme Conditions
The circular panel-mount plan highlights a raise locknut that secures the container whereas keeping up IP68 fixing at the opening. You get security against water entrance indeed when submerged. The connector passes thorough 72-hour salt splash testing, making it idealize for marine establishments, chemical plants, and coastal facilities.
Superior Durability
Temperature extremes won't halt your operation. This connector works from -40℃ to +120℃, covering solidifying open air locales and high-heat apparatus spaces. The F1-grade UV-resistant lodging withstands drawn out daylight without fabric corruption. Whether you're introducing sun oriented boards in leave climates or wind turbines seaward, your associations remain intact.
High-Performance Electrical Design
Gold-plated contacts provide ideal conductivity and stand up to erosion. The solder-type end makes a lasting, low-resistance bond that won't release from vibration. With separator resistance ≥500MΩ and voltage evaluations up to 600V AC for 2/3/4-pin models, you can believe steady control conveyance for basic systems.
Where You'll Use This Connector
Outdoor LED Systems
Large-scale display screens need reliable power and data connections. The snap-lock coupling enables quick connection from outside the panel, while the waterproof seal protects against rain during outdoor events.
Industrial Automation
CNC machinery and robotic arms demand vibration-proof signal integrity. This connector handles constant mechanical movement without compromising connection quality. Your production lines keep running without unexpected downtime.
Renewable Energy Installations
Solar inverters and offshore wind turbine control panels face salt spray and high humidity. The LP32 Solder Type Panel-Mount Waterproof Connector resists corrosion, ensuring maintenance-free operation in harsh maritime environments.
Transportation Systems
Rail equipment and outdoor surveillance systems require connections that won't fail. The flame-retardant housing meets safety standards for transit applications where fire risk must be minimized.
Technical Specifications at a Glance
Electrical Ratings:
- Wire section: 4mm²-25mm² (2pin), 4mm²-16mm² (3pin/4pin), 2.5mm²-10mm² (5pin)
- Current capacity: 120A (2pin), 80A (3pin), 70A (4pin), 45A (5pin)
- Operating voltage: 600V AC (2pin/3pin/4pin), 300V AC (5pin)
- Withstand voltage: 3000V/AC (2pin/3pin/4pin), 2000V/AC (5pin)
Mechanical Features:
- Mating cycles: 2000+ guaranteed
- Housing material: PA66 nylon with UL94-V0 rating
- Contact material: Gold-plated copper alloy
- Sealing: Silicone gasket for IP67/IP68 protection
Environmental Range:
- Operating temperature: -40℃ to +80℃
- Storage temperature: -40℃ to +120℃
- Salt spray resistance: 72 hours minimum
- UV resistance: F1-grade protection
Quality You Can Verify
Every connector undergoes comprehensive testing before shipment. We conduct Dielectric Withstanding Voltage tests to prevent arcing. IP6X and IPX8 tests confirm zero water ingress under pressure, simulating deep-water submersion. Mechanical durability verification includes insertion and withdrawal force testing to ensure proper locking in high-vibration environments.
Our ISO9001:2015 certified production facility implements 100% inspection protocols. You receive connectors that meet international standards including CE, RoHS, TUV, and UL, ensuring compliance for global markets.
Frequently Asked Questions
Q: What wire sizes does this connector support?
A: It suits wire gages from 10 AWG to 14 AWG, depending on stick arrangement. This run handles high-current necessities for mechanical control distribution.
Q: Can I supplant harmed patch contacts?
A: Patch glasses are coordinates into the separators. If harmed, you'll require to supplant the whole connector center to keep up waterproof judgment and electrical safety.
Q: Is hot-plugging supported?
A: We do not suggest interfacing or detaching beneath full stack unless your particular show is evaluated for it. Hot-plugging may cause contact arcing and diminish connector lifespan.
Q: How does patch end compare to pleat types?
A: Patch end gives a more vigorous association for changeless establishments. You won't require specialized pleating apparatuses, making field repairs less difficult and more reliable.
Q: What locking instrument secures the connection?
A: The snap-lock coupling employments a multi-point knife or push-button framework. You'll listen an capable of being heard tap affirming a secure, waterproof seal has been achieved.
Q: Can you customize stick configurations?
A: Yes. Cablein offers custom stick formats, lodging materials, and board set pattern sizes to coordinate your particular hardware prerequisites. Our building group gives full specialized bolster for customization projects.
Why Choose Cablein Technology?
Since 2017, we've fabricated dependable network arrangements from our 6,000 ㎡ office in Shenzhen. Our group of 200+ experts keeps up steady stock of 10,000+ pieces per thing, guaranteeing 7-10 day conveyance for standard orders.
We hold over 30 utility demonstrate licenses and give total OEM/ODM customization administrations. Our worldwide coordinations associations with UPS, DHL, and FedEx ensure productive around the world shipping. You'll get 24-hour specialized back all through your extend lifecycle.
Ready to Secure Your Connections?
Whether you need standard configurations or custom solutions, the LP32 Solder Type Panel-Mount Waterproof Connector delivers the reliability your applications demand. Contact nick@cableinco.com for technical specifications, sample inquiries, or project consultation today.
