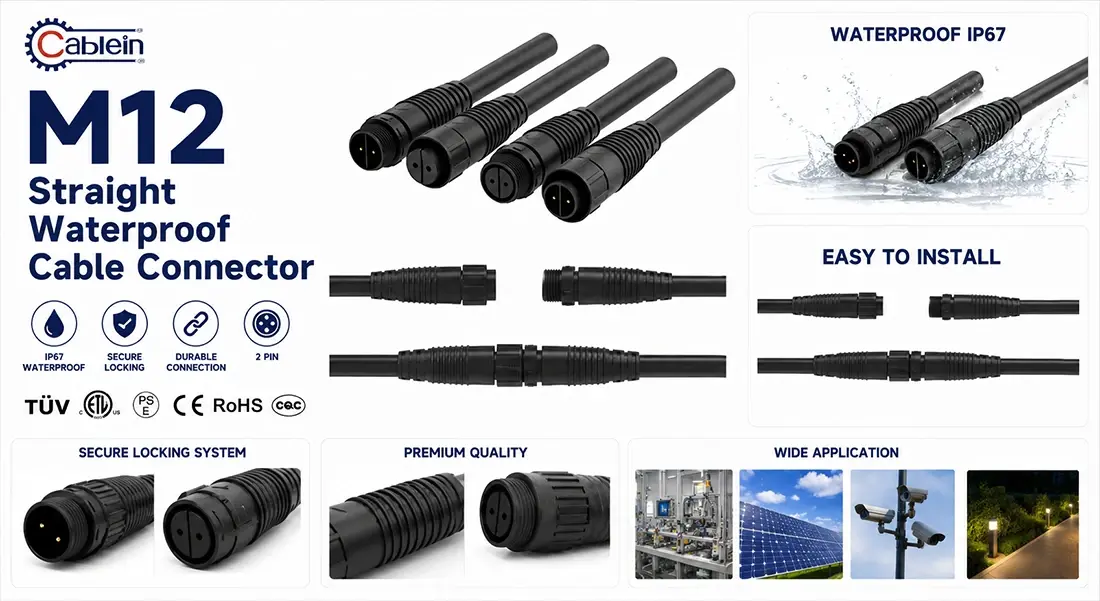

M12 Straight Waterproof Cable Connector
2. Available in IP67 and IP68 waterproof grades for various environmental needs.
3. Straight overmolded design allows easy routing in standard panel installations.
4. Ideal for industrial sensors, automotive electronics, and factory automation systems.
5. Pre-wired construction eliminates field termination work and potential failure points.
6. CE and TUV certified, manufactured under ISO9001 quality management.
7. Withstands extreme temperatures for reliable performance in harsh conditions.
8. Complete customization support – choose cable type, length, connector orientation, and pin layout.
M12 Straight Waterproof Cable Connector – Industrial-Grade Connection Solution
When your automation system demands zero-tolerance connectivity, the M12 Straight Waterproof Cable Connector from Cablein Technology delivers proven performance. Our plant pre-assembled plan highlights PA66 nylon lodging with gold-plated strong brass contacts, evaluated for IP67 and IP68 security. With over 200 talented experts in our 6,000 ㎡ office, we keep up steady stock of 10,000+ pieces per thing and convey inside 7–10 days. Working faultlessly from -40℃ to 150℃, these connectors withstand 3KV voltage whereas keeping up 200MΩ cover resistance. CE and TUV certified beneath ISO9001:2015 quality frameworks, they're prepared to interface your sensors, actuators, and fieldbus modules without field end work.
What Is the M12 Straight Waterproof Cable Connector?
The M12 connector is your dependable accomplice in unforgiving mechanical situations. Its 12mm metric strung locking component makes vibration-proof associations that won't fall flat when you require them most.
This standardized interface tackles three basic challenges you confront day by day. It pieces dampness and clean that debase signals. It anticipates inadvertent disengagements on vibrating apparatus. And it replaces time-consuming hard-wiring with straightforward plug-and-play installation.
You'll find this M12 Straight Waterproof Cable Connector connecting proximity sensors to PLCs, linking photoelectric devices in packaging lines, and enabling fieldbus communication in wet processing zones. The straight orientation fits perfectly into your standard panel installations and drag chain systems.

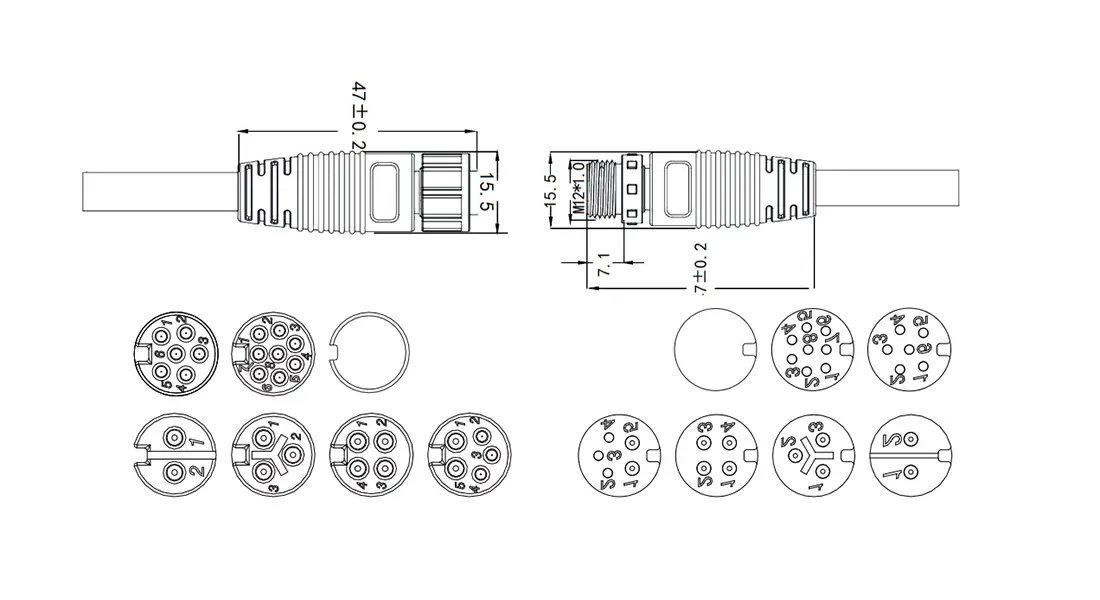

Technical Specifications
Our connectors meet your precise requirements with customizable configurations:
| Parameter | Standard Orientation | Reverse Orientation |
|---|---|---|
| Number of Contacts (Pins) | 2/3/4/5/2+3/6/8 | 2/3/4/5/8 |
| Rated Voltage | 100V / 80V / 60V | 100V / 80V / 60V |
| Rated Current | 10A / 10A+3A / 3A | 10A / 10A+3A / 3A |
| Withstand Voltage | 3KV / 1KV | 3KV / 1KV |
| Insulation Resistance | 200MΩ | 200MΩ |
| Ingress Protection | IP67 | IP67 |
| Operating Temperature | -40℃ to 150℃ | -40℃ to 150℃ |
| Cable Diameter Range | 3.5-8mm | 3.5-8mm |
All connectors use silicone waterproof gaskets for superior sealing performance. Gold-plated contacts ensure excellent conductivity and extended mating cycle life.
Six Key Advantages You Can Count On
1. Prepared to Install
Factory overmolding coordinating cable and connector as one unit. You basically plug it in—no stripping wires, no pleating terminals, no potential disappointment points.
2. Vibration-Resistant Locking
Precision-threaded coupling gives mechanical soundness your gear requests. Indeed in high-vibration situations, associations remain secure.
3. Prevalent Natural Protection
High-pressure water planes, oil defilement, and metal tidy can't enter the seal. Your signals stay clean and reliable.
4. Open air Durability
Rigorous UV resistance and salt splash testing demonstrate long-term solidness. Whether in coastal offices, sun based clusters, or activity control frameworks, execution doesn't degrade.
5. All inclusive Compatibility
As an industry-standard interface, it works consistently with your existing sensors, switches, and mechanization modules—no exclusive lock-in.
6. Upgraded Contact Performance
Gold-plated copper amalgam contacts stand up to erosion whereas keeping up moo resistance. You get reliable electrical execution all through the item lifecycle.
Where You'll Use These Connectors
Industrial Automation & Robotics
In high-speed assembly lines, these connectors link your sensors to controllers. The straight design routes cables efficiently through narrow drag chains without sharp bends.
Food & Beverage Processing
Daily high-temperature washdowns don't affect performance. IP67 rating protects electrical contacts in bottling zones, packaging equipment, and filling stations where water exposure is constant.
Renewable Energy Systems
Outdoor solar tracking systems and wind turbine controls face extreme weather and constant movement. The M12 Straight Waterproof Cable Connector maintains signal integrity despite UV exposure, temperature swings, and mechanical oscillation.
Transportation Infrastructure
Traffic signals, railway systems, and parking guidance need reliable connections in all weather. These connectors deliver year-round performance without maintenance interruptions.
Frequently Asked Questions
Q1: How do I select between IP67 and IP68 ratings?
A: IP67 secures against brief water drenching (up to 1 meter for 30 minutes). IP68 handles nonstop submersion at more profound profundities. Select IP68 if your application includes drawn out water presentation or weight washing.
Q2: Can I customize cable length and wire gauge?
A: Completely. We offer total customization—cable sort, length, connector introduction, and stick format. Our designing group will offer assistance you indicate the idealize setup for your application.
Q3: What's the anticipated life expectancy in open air installations?
A: With legitimate establishment, you can anticipate 5+ a long time in ordinary open air conditions. Our UV-resistant materials and corrosion-resistant metals amplify benefit life altogether compared to standard connectors.
Q4: Are these connectors consistent with other manufacturers' products?
A: When both items take after industry guidelines, mechanical compatibility exists. Be that as it may, for ideal execution and guarantee scope, we prescribe utilizing coordinated connector sets from the same manufacturer.
Q5: What torque ought to I apply amid installation?
A: Hand-tighten the coupling nut firmly—typically 0.4Nm to 0.6Nm. Over-tightening can harm the O-ring seal, whereas under-tightening may compromise waterproof protection.
Q6: Do you give specialized bolster for integration?
A: Yes. Our 24-hour specialized back group helps with item determination, establishment direction, and investigating. We're here to guarantee your extend succeeds.
Quality Assurance You Can Trust
Every product undergoes comprehensive testing before shipment. We perform waterproof pressure tests, electrical continuity checks, and mechanical stress evaluations.
Our ISO9001:2015 certified quality management system ensures 100% inspection of waterproof performance and electrical reliability. With over 30 utility model patents and 9 years of manufacturing experience, we've refined every detail.
Testing protocols include vibration resistance verification, temperature cycling from -40℃ to 150℃, and salt spray exposure to validate corrosion resistance. You receive documentation proving your connectors meet specification.
Ready to Upgrade Your Connectivity?
Cablein Technology stands behind every connector we manufacture. With CE, RoHS, TUV, and ETL certifications, our M12 Straight Waterproof Cable Connector meet global safety standards.
Contact our team today at nick@cableinco.com for technical specifications, custom quotes, or application support. Let's build reliable connections together.
