M16 Elbow Waterproof Connector

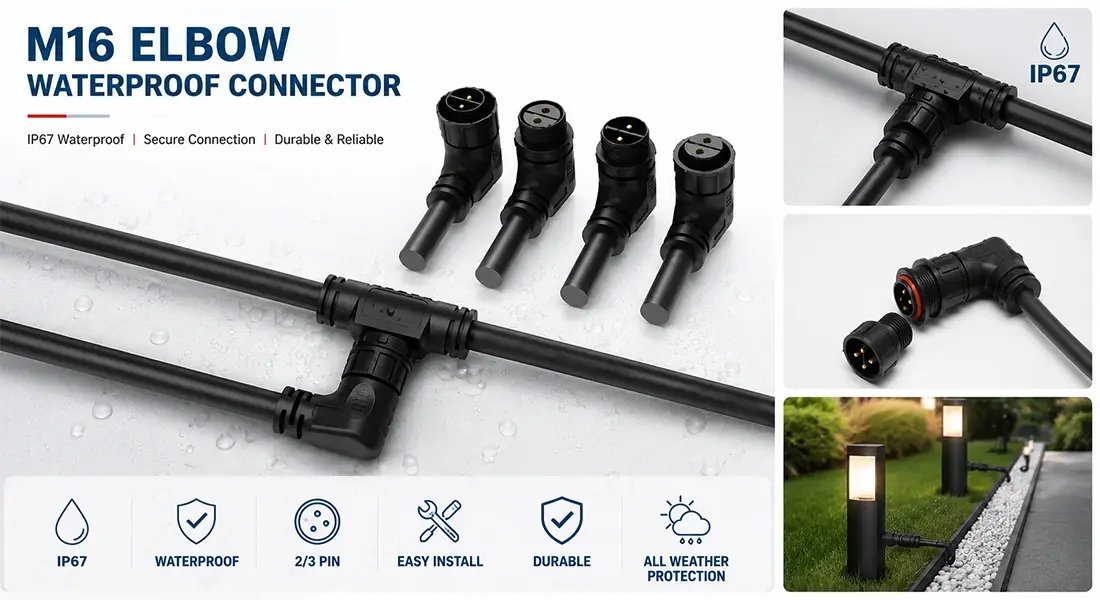

M16 Elbow Waterproof Connector – Premium Right-Angle Industrial Solution

When your equipment demands space-saving connections without compromising protection, the M16 Elbow Waterproof Connector from Cablein Technology delivers exceptional performance. Built with a exactness 90-degree calculated plan, this connector highlights solid PA66 nylon lodging, gold-plated strong brass contacts, and silicone fixing to accomplish IP67 and IP68 waterproof evaluations. Our item bolsters 2 to 12 contacts, handles evaluated voltages up to 500V, streams up to 15A, and works dependably from -40℃ to 150℃. With withstand voltage testing at 3KV and separator resistance of 200MΩ, you get enterprise-grade unwavering quality in each association. Pre-molded development guarantees reliable quality and diminishes establishment time on-site.

What Is an M16 Elbow Waterproof Connector?

An M16 Elbow Waterproof Connector is a high-precision circular interconnect solution featuring a 16mm locking thread and 90-degree angled orientation.

This specialized geometry encourages secure electrical and flag transmissions in spatially compelled environments.

Standard straight connectors frequently cause cable strain or mechanical obstructions in tight spaces.

Our elbow plan understands basic torment focuses: cable weakness from tight bowing radii, dampness or tidy entrance in compact walled in areas, and solid blind-mating in high-density board layouts.

By giving IP67 or IP68 appraised seals, this connector guarantees framework uptime in unforgiving conditions.

Moisture, oils, and vibrations no longer debilitate your association integrity.

Technical Specifications & Properties

Core Construction Materials

Your M16 Elbow Waterproof Connector features:

• Shell Material: High-grade PA66 nylon for chemical resistance or nickel-plated brass/zinc alloy for EMI/RFI shielding
• Contact Pins: Gold-plated copper alloy ensuring low contact resistance (<5mΩ) and high conductivity
• Sealing System: Premium silicone gaskets maintaining waterproof integrity

Performance Parameters

Standard Orientation:

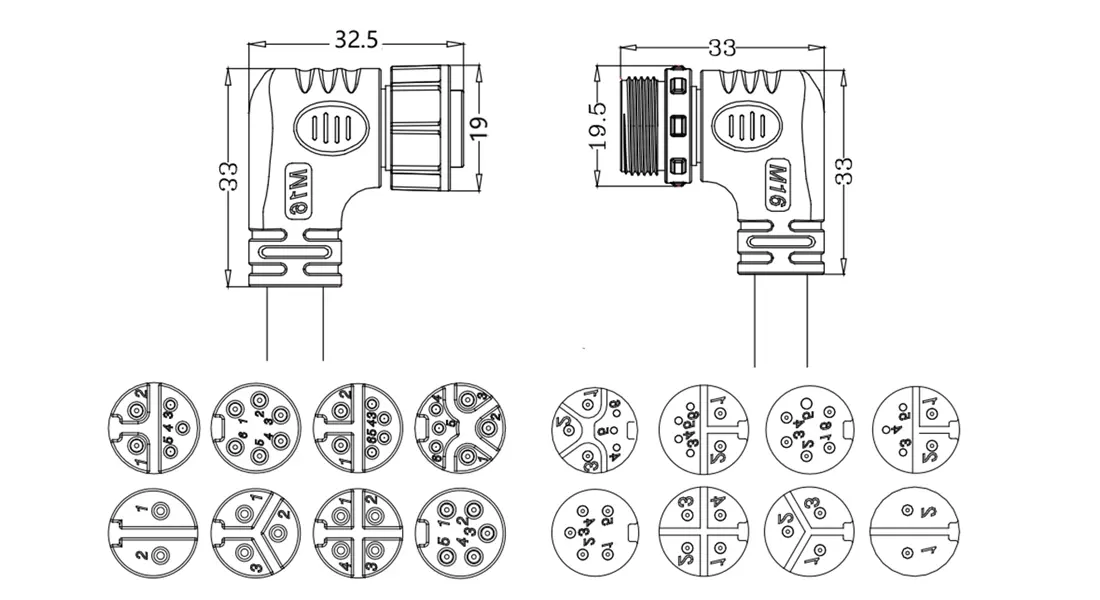

• Contact configurations: 2/3/4/5/2+3/6/2+4/3+3/8/10/12 pins
• Rated voltage: 500V / 100V / 60V
• Rated current: 12A / 8A+3A / 3A
• Withstand voltage: 3KV / 1KV
• Insulation resistance: 200MΩ

Reverse Orientation:

• Contact configurations: 2/3/4/2+4/8/12 pins
• Rated voltage: 500V / 100V DC/AC
• Rated current: 15A / 8A / 8A+3A / 3A

Universal Features:

• Ingress protection: IP67/IP68
• Operating temperature: -40℃ to 150℃
• Cable diameter range: 5-9.5mm
• Mating cycle life: >500 cycles

All products comply with IEC 61076-2-106, UL, CE, TUV, and RoHS standards.

The elbow design provides mechanical stability while reducing your required footprint for cable routing.

Key Advantages of Our Elbow Design

1. Factory Pre-Assembled Excellence

Your connector arrives with a fixed exit angle, ready for direct installation.

No on-site cable bending required.

2. Space-Saving Innovation

The clever combination of right-angle design and push-pull locking mechanism saves valuable cable bending space.

Blind mating becomes possible even in confined areas.

3. Enhanced Strain Relief

Our innovative overmolded strain relief design withstands frequent bending and twisting.

Particularly suitable for robotic arm applications where flexibility matters.

4. Superior Material Performance

High-strength housing offers excellent heat resistance, chemical resistance, and dimensional stability.

Performs reliably in high-temperature, high-humidity environments.

5. Modular Flexibility

Mix power, signal, or data contacts within the same interface size.

Create integrated control system solutions tailored to your needs.

6. Cost-Effective Protection Levels

Multiple waterproof rating options let you select based on actual operating conditions.

Avoid paying for unnecessary specifications.

Real-World Applications

Industrial Automation and Robotics

Perfect for connecting sensors and actuators on compact robotic arms.

The 90-degree bend prevents cable entanglement and optimizes motion paths in tight cells.

Outdoor LED Lighting and Signage

Used extensively in architectural facade lighting where low-profile connections hide cabling from view.

IP68 protection guards against heavy rain and UV exposure.

Marine and Offshore Electronics

Essential for shipboard communication systems and sonar equipment.

Saltwater corrosion resistance meets high-pressure washdown requirements.

Particularly valuable in bulkhead mounting scenarios with limited interior clearance.

Energy Systems

Ideal for solar panel installations and EV charging infrastructure where weather sealing is non-negotiable.

Security and Surveillance

Enables discreet camera installations where cable routing must remain concealed.

Quality Assurance You Can Trust

Comprehensive Testing Protocol

Every connector undergoes rigorous inspection:

Ingress Protection Testing: Vacuum and water pressure chambers verify IP67/IP68 seals under simulated depth conditions.

Salt Spray Testing: 48-hour or 96-hour salt mist exposure (per ASTM B117) evaluates corrosion resistance.

Electrical Insulation: High-voltage testing (1500V AC) ensures no dielectric breakdown between pins or shell.

Mechanical Endurance: Automated mating/unmating cycles check gold plating and locking mechanism integrity.

Pull-out Force Test: Measures tensile strength of cable gland and connections to prevent accidental disconnection.

Manufacturing Excellence

Our ISO9001:2015 certified facility implements 100% inspection protocols.

With over 30 utility model patents and 9 years of industry experience, we deliver consistent quality.

Advanced manufacturing equipment ensures stable production and fast delivery.

Frequently Asked Questions

Q: What is the fundamental advantage of an elbow vs. a straight M16 connector?

A: The elbow plan decreases cable push in tight spaces and permits for a lower profile on control boards. It avoids the 'lever effect' that can harm panel-mount sockets.

Q: Can the productr be utilized for information transmission?

A: Completely. Multi-pin arrangements (up to 8 or 12 pins) are as often as possible utilized for RS232, RS485, and low-speed flag information in mechanized systems.

Q: Is the elbow introduction adjustable?

A: Numerous of our high-end models offer 'rotatable' or 'multi-positional' elbow plans. You can bolt the point in particular increases (each 90 or 45 degrees).

Q: How do I select between plastic and metal shells?

A: Select metal shells when you require EMI protecting and tall mechanical affect resistance. Plastic shells offer cost-effectiveness and way better execution in profoundly destructive chemical environments.

Q: What cable distances across are congruous with the M16 gland?

A: Our standard M16 organs suit cable external distances across from 4mm to 8mm. Inside seals compress accurately around the coat to keep up waterproof integrity.

Q: Do you offer customization options?

A: Yes. Full customization is accessible for cable length, gage, coat color, and stick course of action to meet your particular requirements.

Why Choose Cablein Technology?

Proven Track Record: National high-tech enterprise with 9 years of specialized experience.

Global Certifications: CE, TUV, RoHS, ETL, PSE, SAA, REACH, CQC, and ISO9001:2015 compliance.

Fast Delivery: Stable inventory exceeding 10,000 pieces per item, with standard delivery in 7–10 days.

Expert Support: 24-hour technical assistance and end-to-end project consultation.

Custom Solutions: OEM/ODM services with private mold development capabilities.

Our 6,000 ㎡ production facility and team of over 200 professionals ensure you receive reliable connectivity solutions.

We've successfully served customers across more than 100 countries and regions.

Ready to Upgrade Your Connections?

Contact us at nick@cableinco.com to request detailed datasheets, discuss your M16 Elbow Waterproof Connector requirements, or inquire about sample availability. Our engineering team is ready to confirm technical details and recommend the optimal configuration for your application.
