M20 Inline Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for high-current applications.
3. Straight overmolded design provides a robust, strain-relieved cable exit.
4. Commonly used in EV charging cords, large pumps, and main power feeds for machinery.
5. Factory-assembled cable assembly reduces field work and potential leak points.
6. ETL and RoHS certified under ISO9001 quality management systems.
7. Proven durability for long-term industrial use.
8. Custom services include cable length, wire gauge, overmold color, and connector configuration.
M20 Inline Waterproof Connector – Robust Industrial Cable Solution
When your equipment demands uninterrupted power in harsh conditions, Cablein's M20 Inline Waterproof Connector delivers enterprise-grade reliability. Built from PA66 nylon with gold-plated brass pins and silicone elastic fixing gaskets, this factory-assembled arrangement accomplishes IP67 and IP68 waterproof appraisals. Built for high-current applications up to 25A at 500V, it withstands extraordinary temperatures from -40℃ to 150℃ and passes thorough 3KV withstand voltage tests. The straight overmolded plan gives strong strain alleviation over 6-13.5mm cable breadths, whereas keeping up 200MΩ cover resistance. ETL and RoHS certified beneath ISO9001:2015 quality administration, this connector dispenses with field work and spill focuses through exactness manufacturing plant assembly—ensuring your basic frameworks remain connected.
What Makes Our M20 Inline Waterproof Connector Different
The M20 Inline Waterproof Connector stands out through its one-piece overmolded construction. You get a pre-assembled cable with factory-crimped conductors, ready to install immediately.
No extra fixing work required. No chaotic tapes or warm shrink.
Our strung coupling plan conveys remarkable association quality. The anti-vibration washer successfully stands up to serious stuns from overwhelming gear. This things when you're fueling mechanical mechanization lines or open air large-scale lighting systems.
The 20mm metric string breadth makes a airtight seal through inside gaskets and compression nuts. This compact plan dispenses with bulky conventional waterproofing strategies whereas keeping up tool-less installation.
Your group spares time. Your upkeep costs drop significantly.
Technical Excellence for Demanding Applications
You require connectors that perform when conditions get extreme. Our inline connector handles what others can't.
The gold-plated copper amalgam contacts keep up moo contact resistance underneath 5mΩ. This guarantees steady flag transmission indeed after thousands of association cycles. UV-stabilized PA66 lodging avoids yellowing and brittleness beneath coordinate daylight exposure.
High-elasticity silicone O-rings give prevalent compression set resistance compared to standard elastic seals. They keep up fixing keenness through temperature cycling and chemical exposure.

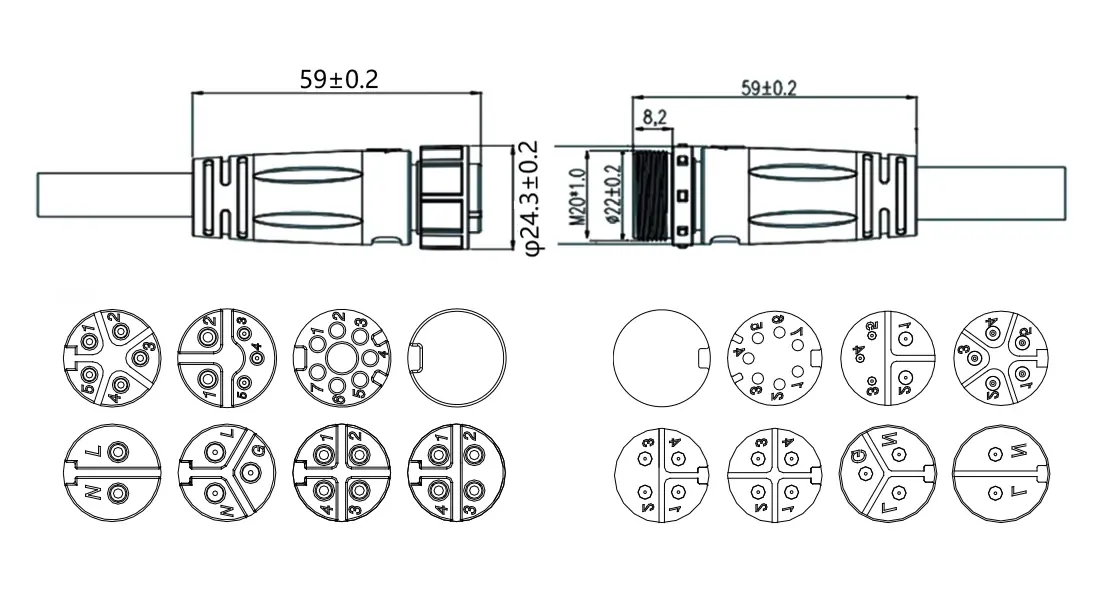

Available setups incorporate 2/3/4/2+2/5/2+3/7 stick courses of action. You can indicate your correct requirements—cable length, wire gage from 0.5mm² to 2.5mm², coat color, and contact types.
The connector bolsters both screw-terminal and solder-type contacts. Screw terminals work impeccably for field repairs and fast get together. Patch sorts offer higher vibration resistance in high-movement environments.
Where Your M20 Connector Works Best
This M20 Inline Waterproof Connector excels across three critical sectors.
Outdoor LED and architectural lighting systems rely on these connectors for high-power floodlights and street lighting. Heavy rain, snow, and constant moisture exposure pose no threat to your installations.
Marine and aquaculture operations benefit from resistance to salt spray and continuous immersion. Submersible pump wiring and offshore sensor networks maintain reliable connections for years.
Industrial automation and renewable energy applications appreciate the modular plug-and-play capability. Solar PV installations and wet-zone robotic assembly lines withstand high-pressure washdowns and chemical cleaning agents.
EV charging stations use these connectors for main power feeds. Large pumps in water treatment facilities depend on them. Mining equipment in dusty, damp conditions stays operational longer.
The connector reduces installation time by 40% compared to traditional field-assembled solutions. You eliminate potential leak points that cause expensive downtime.
Quality You Can Measure
Every M20 Inline Waterproof Connector undergoes multi-tier inspection protocols aligned with international standards.
Our vacuum leak test uses air pressure to detect micro-leaks in seal assemblies. Salt spray aging tests run 48-96 hours following ASTM B117 standards, ensuring corrosion resistance in coastal environments.
Mechanical pull-out force testing verifies that cable glands withstand specified tensile forces without compromising seals. Dielectric withstanding voltage tests check for insulation breakdown at 2000V AC.
Thermal shock testing cycles connectors between extreme temperatures. This confirms that housings and gaskets don't crack or deform during temperature swings.
The result? Products that meet CE, TUV, and RoHS certifications consistently.
Our ISO9001:2015 certified facility maintains stable inventory of over 10,000 pieces per item. You get standard delivery within 7-10 days. Custom orders ship according to flexible schedules that match your project timeline.
Frequently Asked Questions
Q: What wire gage works with this connector?
A: Most M20 models oblige cable breadths from 5mm to 12mm, supporting wire gages between 0.5mm² and 2.5mm² (14-20 AWG). Custom details accessible upon request.
Q: Can I utilize this connector underground?
A: Yes, with an IP68 rating. We suggest extra gum preparing or defensive conduit for coordinate burial applications to stand up to soil sharpness and weight over time.
Q: Which contact sort ought to I choose—screw-terminal or solder?
A: Screw terminals exceed expectations for field repairs and speedy gathering. Patch sorts give higher vibration resistance in portable gear and high-movement mechanical applications.
Q: How does UV resistance influence lifespan?
A: UV-stabilized PA66 avoids lodging from getting to be fragile or discolored beneath coordinate daylight. This expands benefit life past 10 a long time in open air installations.
Q: Is the connector reusable?
A: Yes, you can withdraw and reassemble the mechanical seal different times. Review O-rings for wear or flotsam and jetsam amid each support cycle to keep up seal integrity.
Q: What makes the overmolded plan better?
A: Plant overmolding makes a single bound together component. This dispenses with get together blunders, diminishes labor costs, and gives steady waterproofing that field-assembled arrangements can't match.
Get Your Custom Solution Today
Ready to solve your connectivity challenges? Contact us at nick@cableinco.com to request technical specifications, discuss your specific requirements, or M20 Inline Waterproof Connector samples for testing in your application environment.
