M20 Right Angle Waterproof Cable Connector
2. Available in IP67 and IP68 waterproof ratings.
3. 90-degree right-angle design allows easy routing in tight spaces or along equipment side panels.
4. Cable and connector are factory overmolded into one piece, ready for use out of the box without field wiring.
5. CE and TUV certified, compliant with RoHS environmental standards.
6. Operating temperature range from -40℃ to 105℃ for various industrial environments.
7. Technical consultation and quick sampling services are available.
8. Custom options include pin count, cable length, and exit orientation.

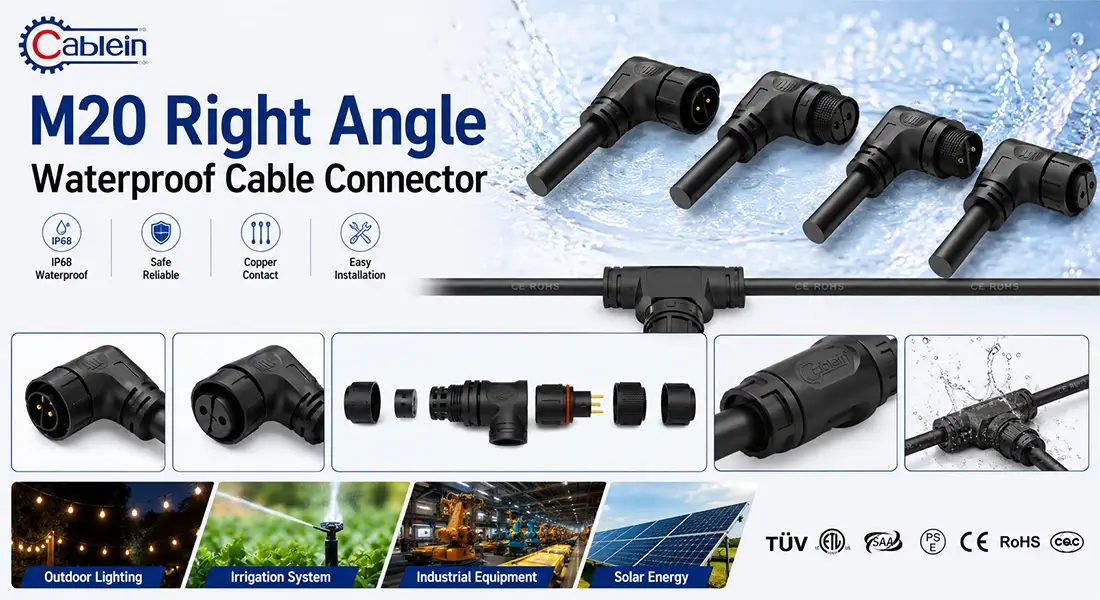

M20 Right Angle Waterproof Cable Connector – Industrial-Grade Solution for Space-Critical Installations
When your equipment demands compact cable routing without compromising waterproof integrity, the M20 Right Angle Waterproof Cable Connector from Cablein Technology delivers exactly that. Our factory-assembled connector highlights an IP67 waterproof rating, works dependably from -40℃ to 105℃, and bolsters up to 25A current capacity over 2 to 7-pin setups. The 90-degree right-angle plan decreases installation footprint by over 60% compared to straight connectors, whereas the expanded M20 strung locking instrument guarantees secure engagement indeed beneath cable pressure. Gold-plated copper amalgam contacts ensure moo contact resistance, and CE/TUV certifications affirm compliance with universal security standards.
What Makes Our M20 Right Angle Waterproof Cable Connector Different?
You're working with limited space. Equipment panels are crowded. Cable bends put stress on your connections.
Our M20 Right Angle Waterproof Cable Connector solves these real-world challenges.
The 90-degree elbow configuration redirects your cable path parallel to mounting surfaces. This eliminates sharp bends that cause conductor fatigue. You get smooth routing along equipment side panels, inside narrow enclosures, and through tight junction boxes.
Pre-Molded and Ready to Use
Each connector arrives with cable and housing overmolded into one integrated unit. No field wiring required. No assembly errors possible.
You simply route the cable, thread the M20 lock ring, and secure the connection. Installation time drops by 70% compared to field-terminated alternatives.
Built for Harsh Environments
PA66 nylon housing resists UV radiation, oils, and temperature extremes. Silicone sealing rings maintain IP67 protection even after hundreds of mating cycles.
Whether you're installing outdoor LED fixtures in desert heat or servo motors in coastal humidity, these connectors maintain stable performance.
Technical Specifications That Matter to Your Application

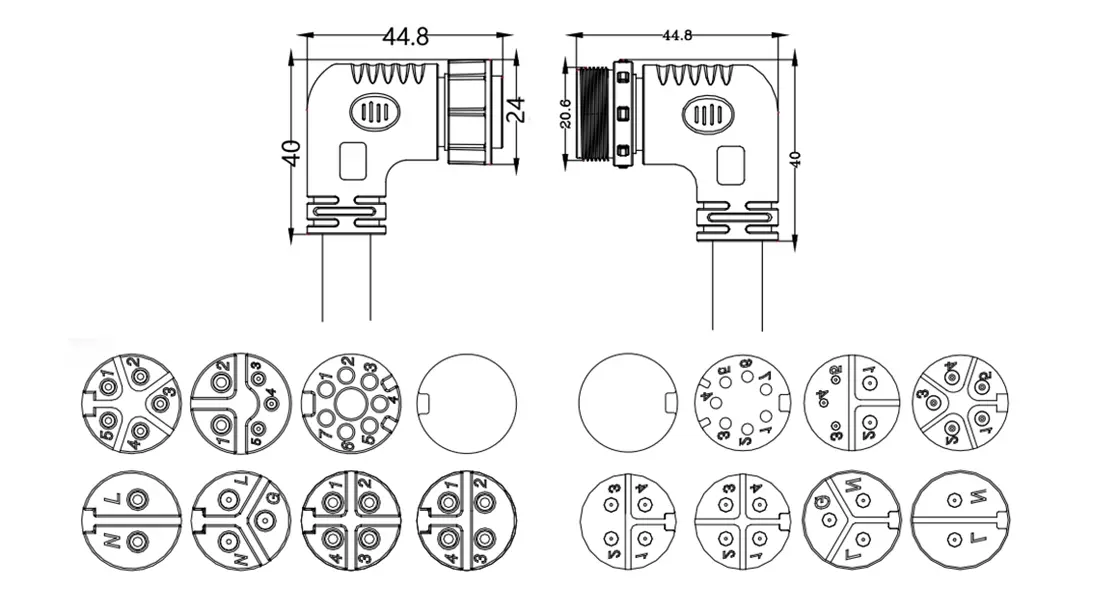

Standard Orientation Options:
- Pin configurations: 2/3/4/2+2/5/2+3/7 contacts
- Rated voltage: 500V DC/AC
- Current capacity: 25A (power pins) / 8A (signal pins)
- Insulation resistance: 200MΩ minimum
- Cable diameter range: 6–13.5mm
Reverse Orientation Options:
- Pin configurations: 2/3/4/2+2 contacts
- Same electrical ratings as standard orientation
- Ideal for applications requiring opposite cable exit direction
Both versions handle cable diameters from 6mm to 13.5mm without additional strain relief components.
Where You'll Use M20 Right Angle Waterproof Cable Connectors
Outdoor LED Lighting Systems
Ground lights and wall washers need low-profile connections. Our right-angle design keeps cables flush against mounting surfaces. The IP67 rating prevents water ingress during heavy rain or ground irrigation.
Industrial Automation Equipment
Servo motors, sensors, and actuators often mount in tight machine corners. The 90-degree cable exit clears moving parts and structural frames. Extended threaded sections withstand vibration and cable pull forces in high-cycle applications.
Renewable Energy Installations
Solar inverters and battery enclosures benefit from space-saving cable entry. The connector's wide temperature range handles both cold winter nights and direct summer sun exposure.
Stage and Event Equipment
Portable power distribution boxes require frequent connect-disconnect cycles. Our gold-plated contacts maintain low resistance through thousands of mating operations.
Key Advantages for Your Projects
Factory Pre-Bent Power Cables
Large-gauge conductors come with bend radius pre-formed during overmolding. You avoid field bending that damages wire insulation.
Extended Locking Threads
Longer engagement length means the connection stays secure even when heavy cables hang vertically.
Hybrid Power + Signal Options
Need both 25A power and low-voltage control in one connector? We offer mixed-pin configurations in the same right-angle housing.
Chemical and UV Resistance
Housing material maintains structural integrity when exposed to cleaning solvents, saltwater spray, and continuous UV radiation.
Frequently Asked Questions
Q: What cable distance across works with M20 right-angle connectors?
A: Our standard models acknowledge cables from 6mm to 13.5mm external distance across. Custom cable sizes accessible for OEM projects.
Q: Can I utilize these in saltwater environments?
A: Yes. Nickel-plated brass adaptations with silicone seals pass 96-hour salt shower testing per ASTM B117 standards.
Q: Does the 90-degree twist influence electrical performance?
A: No. The connector keeps up legitimate conductor dispersing and separator all through the twist sweep. Flag keenness remains intact.
Q: Are these connectors reusable?
A: Completely. The strung locking plan permits different connect-disconnect cycles. Fair guarantee fixing rings stay undamaged.
Q: What's the contrast between IP67 and IP68 versions?
A: IP67 models handle brief water submersion (1 meter for 30 minutes). IP68 forms withstand persistent submerged establishment at profundities up to 3 meters.
Q: How do you guarantee quality for basic applications?
A: Each bunch experiences four key tests: IP waterproof confirmation through submersion testing, ductile quality approval per EN 62444, salt shower erosion resistance checks, and dielectric withstand voltage testing to affirm separator integrity.
Q: Can you customize stick check or cable length?
A: Yes. Our designing group underpins custom setups counting particular stick courses of action, cable lengths from 0.5m to 50m, and custom-made exit orientations.
Why Choose Cablein Technology
Since 2017, we've specialized in waterproof network for requesting situations. Our 6,000 ㎡ office in Shenzhen produces over 10,000 connectors per SKU monthly.
We hold CE, TUV, RoHS, and ISO9001:2015 certifications. More than 30 utility licenses secure our quick-connect and overmolding innovations.
Standard conveyance takes 7–10 days. Custom ventures dispatch inside arranged timelines. We accomplice with UPS, DHL, and FedEx for dependable worldwide logistics.
Ready to Solve Your Space-Critical Connection Challenges?
Contact our engineering team at nick@cableinco.com to discuss your specific application requirements, request technical drawings, or M20 Right Angle Waterproof Cable Connector samples for testing.
