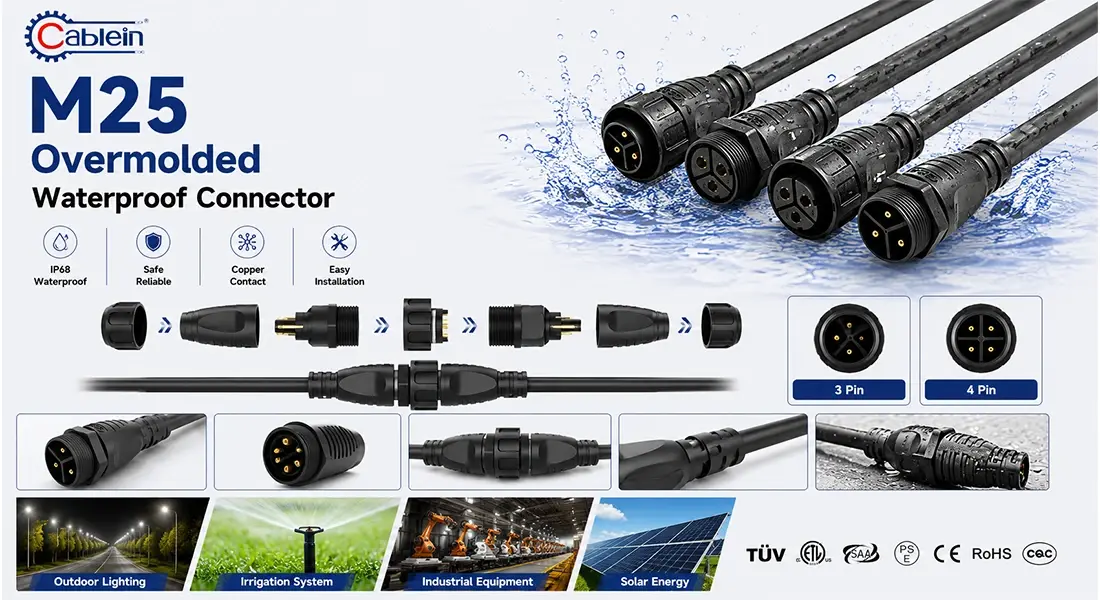

M25 Overmolded Waterproof Connector
2. Offers IP67 and IP68 waterproof ratings for large-scale outdoor installations.
3. Overmolded construction integrates cable and connector into a single rugged unit.
4. Suited for large industrial motors, renewable energy arrays, and outdoor control cabinets.
5. Factory-assembled design eliminates field errors and speeds up equipment deployment.
6. ETL and CE certified under ISO9001 and RoHS compliant manufacturing.
7. Rated for -40℃ to 150℃ for extreme climate applications.
8. Complete custom solutions – cable length, pin count, jacket material, and branding available.
M25 Overmolded Waterproof Connector – Enterprise-Grade Industrial Connection Solution
When your installation demands fail-safe power delivery in the harshest conditions, the M25 Overmolded Waterproof Connector from Cablein Technology delivers. Built with heavy-duty PA66 nylon lodging, gold-plated strong brass contacts, and exactness silicone O-rings, this connector accomplishes IP67/IP68 security for nonstop open air utilize. Factory-assembled overmolding wires cable and lodging into one rough unit—rated for -40℃ to 150℃, 32A current, and 500V operation. With 2 to 5 configurable pins, ETL/CE certification, and ISO9001:2015 fabricating, you get a plug-and-play arrangement that kills field mistakes and quickens arrangement over renewable vitality, mechanical computerization, and keen city lighting projects.
What Makes the M25 Overmolded Waterproof Connector Different?
The M25 Overmolded Waterproof Connector uses a 25mm metric thread coupling paired with injection-molded cable integration. This isn't just another field-assembly plug.
Overmolding implies zero powerless focuses. The handle typifies conductors, strain help, and seal in a single thermoplastic shell. You dodge the classic disappointment modes: dampness wicking through cable coats, contact development beneath vibration, and string erosion in salt spray.
Your engineers will appreciate the built-in strain alleviation. Overwhelming multi-conductor cables no longer pull on patch joints or crease terminals. The overmolded move conveys mechanical stack over the whole assembly.
Why does this matter? In open air Driven clusters, sun based inverters, and mechanical wash-down zones, connectors confront warm stun, UV assault, and chemical presentation every day. Conventional congregations release, spill, and erode. Overmolded plans remain sealed—even beneath ceaseless submersion or IP69K high-pressure jets.
Where You'll Use This Connector
Smart City and Architectural Lighting
High-power LED streetlights and facade wash systems cycle from freezing nights to scorching afternoons. The connector's -40℃ to 150℃ range handles extreme swings without brittle cracking or softening.
Industrial Automation and Food Processing
On conveyor lines and filling machines, daily caustic wash-downs demand IP68 or IP69K ratings. The M25 Overmolded Waterproof Connector survives repeated chemical contact and high-pressure spray without seal degradation.
Renewable Energy Systems
Solar PV combiner boxes and wind turbine pitch motors operate in salt-laden coastal air. Corrosion-resistant stainless steel hardware and UV-stable nylon prevent rust and material breakdown over 20+ year service lives.
Underwater Robotics and Marine Equipment
Submersible pumps, ROV tethers, and dock lighting require guaranteed waterproofing. Factory-tested sealing processes ensure long-term immersion reliability—no field guesswork.

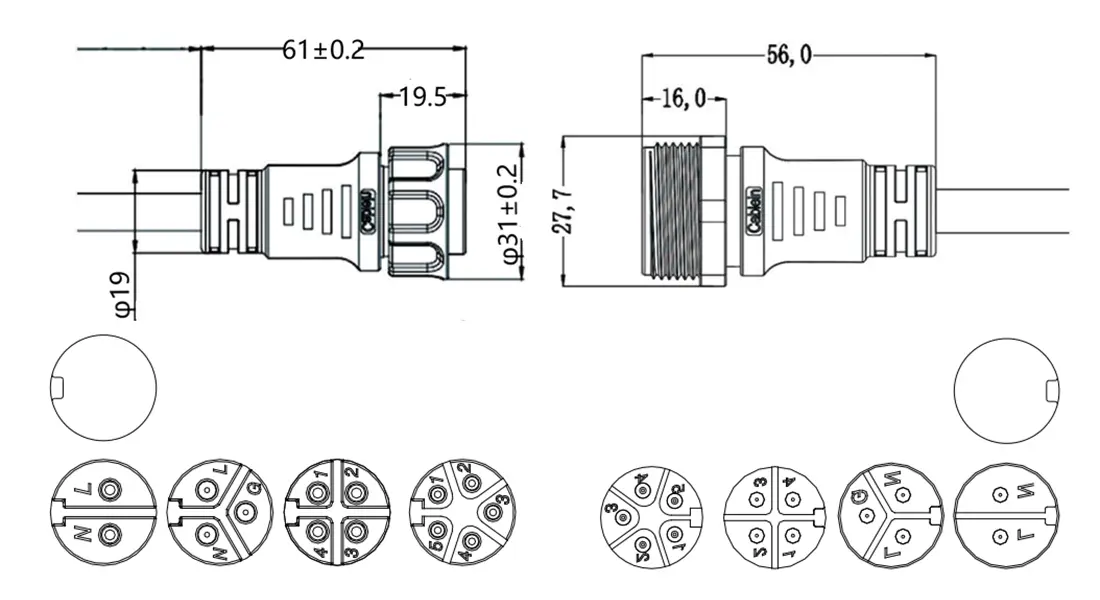

Technical Specifications That Matter
| Parameter | Value |
|---|---|
| Contacts | 2/3/4/5 pins (customizable) |
| Rated Voltage | 500V DC/AC |
| Rated Current | 20A / 32A |
| Withstand Voltage | 2KV / 3KV |
| Insulation Resistance | ≥500MΩ |
| Ingress Protection | IP67 certified |
| Operating Temperature | -40℃ to +150℃ |
| Cable Diameter Range | 7–15mm overmolded |
| Housing Material | PA66 nylon (UV-resistant) |
| Contact Material | Gold-plated solid brass |
| Seal Material | Silicone O-ring |
Why these numbers matter: 500MΩ insulation prevents leakage current in high-voltage arrays. Gold plating keeps contact resistance below 10mΩ over 1,000+ mating cycles. The 7–15mm cable range accommodates everything from 16AWG signal wire to 12AWG power feeds.
Key Advantages You Can't Ignore
1. Factory-Assembled, Zero Field Errors
Pre-terminated and tested before shipping. Your installation crew plugs in and powers up—no crimping tools, no assembly mistakes.
2. Heavy-Duty Cable Strain Relief
Overmolded housing absorbs cable weight and flexing. Internal conductors stay secure even when cables sag or swing in the wind.
3. True Submersion Protection
Precision injection molding eliminates micro-gaps. Pass 1-meter / 30-minute submersion tests and continuous outdoor exposure without leakage.
4. High-Power Standard Interface
The M25 format is a recognized industrial standard. Interchangeable with existing equipment—no proprietary lock-in.
5. Corrosion-Proof Hardware
Stainless steel coupling nuts resist salt spray per ASTM B117. Nylon housing withstands industrial solvents, diesel fuel, and cleaning agents.
6. Flexible Pin Configurations
Mix power and signal contacts in one connector. Customize 2+PE, 3+PE, or hybrid layouts for your BOM—no need to run separate cables.
Why Cablein's Manufacturing Matters
ISO9001:2015 quality management governs every production step. Each connector undergoes:
- Vacuum leak testing to confirm seal integrity
- Insulation resistance checks at 500VDC
- Salt spray testing for 48–96 hours
- Mating cycle tests to 500+ insertions
- Pull-force verification for strain relief strength
We keep up 10,000+ pcs per SKU in stock. Standard lead times run 7–10 days. Custom cable lengths, wire gages (12AWG to 16AWG), coat colors, and branding are accessible with adaptable MOQs.
Our 6,000㎡ office in Shenzhen's Longgang locale houses 200+ prepared laborers and 30+ utility demonstrate licenses. That's 9 a long time of connector building centered on one thing: solid control conveyance in incomprehensible conditions.
Frequently Asked Questions
Q: Why select overmolding over field-wireable M25 connectors?
A: Overmolding dispenses with get together blunders and gives a factory-tested, IP68-sealed unit distant more solid beneath mechanical stress.
Q: What is the greatest cable distance across supported?
A: Depending on the shape plan, we regularly suit external distances across from 7mm to 15mm to keep up a culminate seal.
Q: Can the M25 connector be utilized in saltwater environments?
A: Yes, given the overmolding is PUR or TPU and the coupling nut is stainless steel to anticipate galvanic corrosion.
Q: How does the M25 handle high-vibration applications?
A: The overmolded move acts as a vibration dampener, whereas the strung coupling highlights a locking component to avoid self-loosening.
Q: Is it conceivable to customize the cable length and wire gauge?
A: Completely. As a factory-produced thing, we customize wire cross-sections (12AWG to 16AWG) and lengths custom-made to your project's requirements.
Ready to Secure Your Next Installation?
Request samples to validate fit and performance in your environment—confirm pin layouts, cable types, and branding options with our engineering team. For assistance with custom configurations or project-specific questions, reach out to nick@cableinco.com and let's discuss your M25 Overmolded Waterproof Connector requirements.
