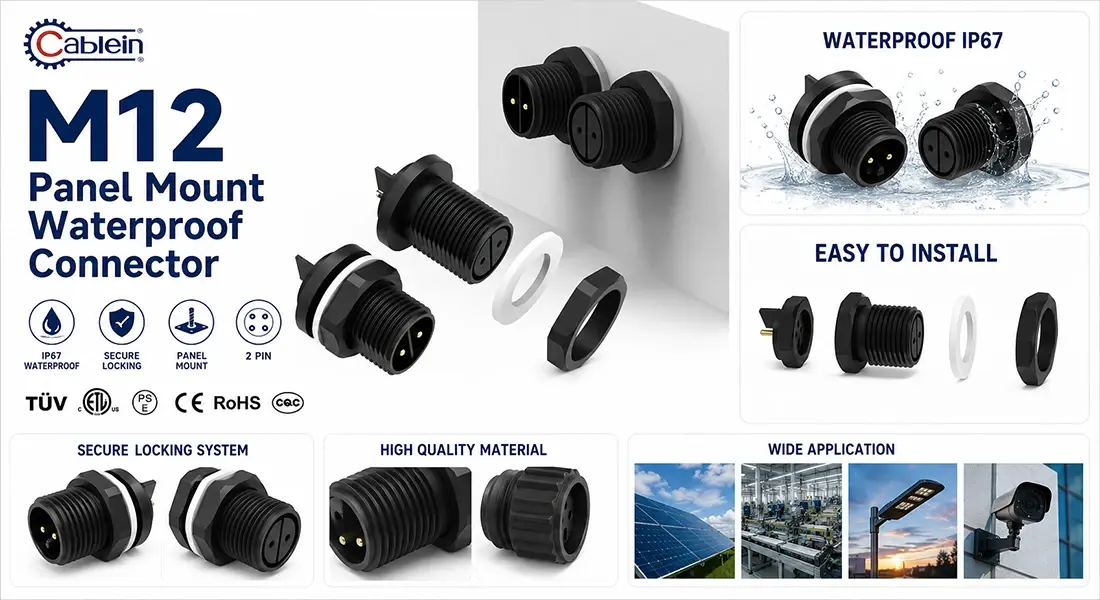

M12 Panel Mount Waterproof Connector
2. Offers IP67 and IP68 waterproof sealing at the panel cutout.
3. Threaded rear entry accepts field wiring with solder or PCB pin options.
4. Perfect for equipment enclosures, junction boxes, and control panels.
5. Standardized panel cutout simplifies enclosure design and reduces machining costs.
6. ETL and RoHS certified, manufactured under ISO9001 quality management.
7. Rated for operation from -40℃ to 150℃ for versatile deployment.
8. Customizable pin length, rear seal material, and internal wiring configuration.
M12 Panel Mount Waterproof Connector – Reliable Industrial Interconnection Solution
When your equipment faces harsh environments, you need a connection you can trust. The M12 Panel Mount Waterproof Connector from Cablein Innovation delivers enterprise-grade sealing performance with IP67 and IP68 ratings, ensuring complete protection in damp, dusty, and demanding conditions. Built with PA66 nylon lodging, gold-plated brass pins, and exactness silicone gaskets, these connectors work dependably from -40℃ to 150℃. Advertising 2 to 8-pin setups with evaluated streams up to 10A and voltages to 100V, they're ETL and RoHS certified beneath ISO9001 quality management. Your hardware merits steady, corrosion-resistant network that won't let you down.
What Is an M12 Panel Mount Waterproof Connector?
An M12 Panel Mount Waterproof Connector is a metric-sized circular interconnect standardized under IEC 61076-2-101. It's specifically designed for mounting onto equipment bulkheads or chassis walls.
This connector creates a sealed interface between your internal electronics and external cabling. It solves critical challenges you face daily:
- Preventing water and tidy entrance in washdown areas
- Maintaining flag keenness beneath steady vibration
- Enabling field-replaceable measured associations without compromising walled in area sealing
The strung locking instrument and coordinates O-ring gaskets provide IP67, IP68, or IP69K assurance. You get secure board pass-through that moves inner PCB signals to strong outside ports.
Key Technical Properties and Parameters
Understanding the specifications helps you select the right connector for your application.
Physical Construction
Your product features:
- Housing Material: Nickel-plated brass or SUS316L stainless steel for corrosive environments
- Contact Pins: Gold-plated copper alloy with contact resistance ≤5mΩ
- Coding Options: A, B, D, X, K, L, S, and T-coded versions prevent mismating across signal, data, and power applications
Electrical Specifications
Panel Male Connector (Front/Rear Mount):
- Pins available: 2/3/4/2+3/6/8
- Rated voltage: 100V / 80V / 60V
- Rated current: 10A / 10A+3A / 3A
- Withstand voltage: 3KV / 1KV
- Insulation resistance: 200MΩ
Panel Female Connector (Front/Rear Mount):
- Same pin configurations and ratings as male version
- Operating temperature: -40℃ to 150℃
- Ingress protection: IP67 rated
Performance Advantages
You'll benefit from:
- EMI/RFI shielding for signal protection
- Wide temperature range for extreme environments
- Insulation resistance exceeding 100MΩ
- Hundreds of mating cycles for long service life
- Full compliance with RoHS, REACH, and UL standards
Why Choose Cablein's M12 Panel Mount Solution?
Superior Design Features
- Integrated Board Gasket: The rear-mount plan makes a total fixed pass-through on your hardware enclosures
- Secure Obsession: Strung body with locknut suits boards of shifting thickness
- Flexible End: Patch container and PCB stick choices rearrange inside wiring integration
- Standardized Set pattern: M12 measuring decreases your walled in area machining complexity and tooling costs
- Corrosion Resistance: Gold-plated contacts withstand high-humidity mechanical environments
- Certified Quality: CE and RoHS certified, fabricated beneath ISO9001 systems
Customization Options
We understand every project has unique requirements. You can customize:
- Pin length for specific enclosure depths
- Rear seal materials (NBR standard, FKM for chemical resistance)
- Internal wiring configurations
- Contact arrangements for specialized applications
Real-World Applications Across Industries
The versatility of the M12 Panel Mount Waterproof Connector makes it essential across demanding sectors.
Industrial Automation
In nourishment and refreshment preparing, these connectors serve as essential interfacing for PLC cabinets and sensor boxes. They withstand day by day 80°C high-pressure steam cleaning with IP69K evaluations, guaranteeing your generation lines remain operational.
Transportation and Rail
Exterior-mounted CCTV and telematics units on rolling stock depend on these connectors. They give vibration-proof information transmission in spite of steady mechanical stun and overwhelming rain introduction, keeping your security frameworks connected.
Renewable Energy
Solar inverter lodgings and wind turbine pitch control frameworks depend on panel-mount connectors. They keep up vacuum-tight seals against salt-mist and UV corruption in seaward or forsake situations, guaranteeing 24/7 uptime for basic control monitoring.
Additional Sectors
You'll find our connectors in:
- LED lighting control panels
- Security surveillance equipment housings
- Medical device enclosures
- Energy storage system interfaces
- Underwater robotics chassis
Quality Control You Can Rely On
We don't just manufacture connectors—we validate every aspect of performance.
Rigorous Testing Protocol
- Air Leakage Test: 0.1 bar pressure verification of O-ring seal integrity
- Salt Spray Testing: 48 to 96-hour NSS tests evaluate metal shell corrosion resistance
- Electrical Safety: Continuity and dielectric withstanding voltage tests up to 2500V
- IPX8/IPX9K Verification: Immersion and jet testing confirm waterproof ratings under specified depths and pressures
- Torque Testing: Panel nut and locking threads withstand installation forces without deformation
Every product undergoes 100% inspection before shipping. You receive connectors that meet the highest reliability standards.
Installation Guidance

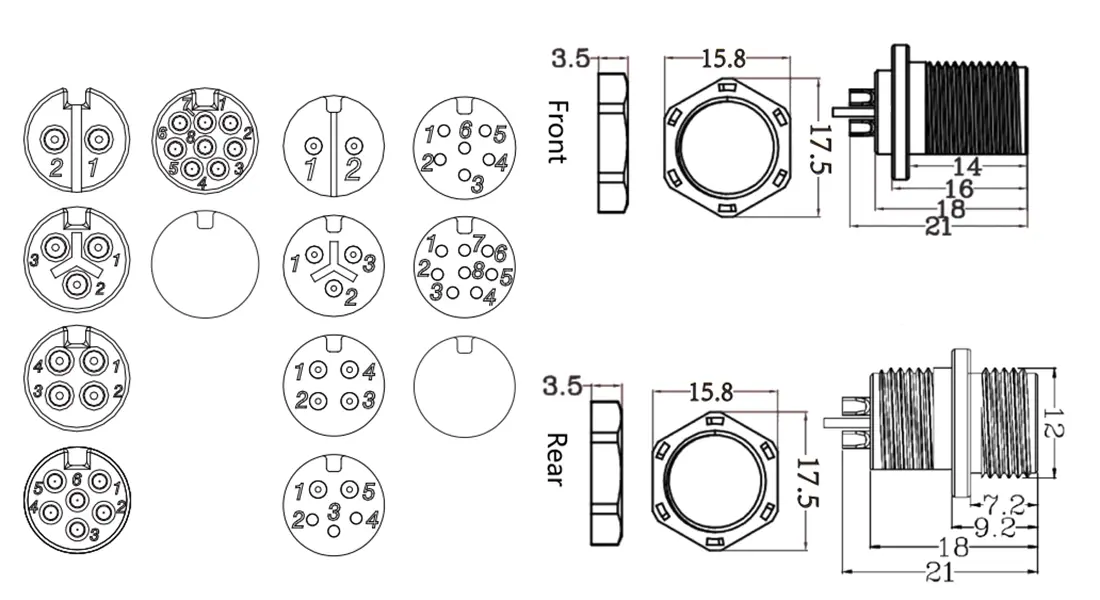

Front Mount vs. Rear Mount
Q: What's the difference between front and rear mount versions?
A: Front mount connectors insert from outside your panel and secure from inside—ideal for pre-wired internal assemblies. Rear mount versions insert from inside with the locking nut visible on the exterior, often preferred for cleaner aesthetics or specific space constraints.
Proper Coding Selection
Q: Can I use an A-coded connector for Ethernet?
A: While possible for low-speed 10Mbps, it's not recommended. D-coded (4-pin) is standard for 100Mbps Industrial Ethernet, and X-coded (8-pin) is required for 10Gbps high-speed data applications.
Grounding Best Practices
Q: How do I ensure shielding is properly grounded?
A: Use a shielded version where the metal shell or dedicated grounding tag makes direct contact with your metal panel. For plastic enclosures, solder a shielded wire to the connector's grounding pin.
Material Selection
Q: What O-ring material works best for chemical resistance?
A: While NBR is our standard, we recommend FKM (Viton) for products exposed to oils, acids, or high temperatures.
Power Applications
Q: How many pins are available for power-intensive uses?
A: For high-power applications, K-coded (4+PE) or L-coded (4+FE) configurations support up to 16A per pin and 630V, giving you robust power delivery capability.
Frequently Asked Questions
Q: What testing guarantees long-term reliability?
A: We conduct comprehensive testing counting warm cycling, vibration resistance, contact resistance estimation, and quickened maturing tests. Each group gets certification documentation you can utilize for traceability.
Q: Can I get specialized drawings some time recently ordering?
A: Completely. Our designing group gives nitty gritty CAD drawings, board set pattern details, and PCB impression records to streamline your plan process.
Q: What's your commonplace lead time for custom configurations?
A: Standard things transport inside 7-10 days from our stock of 10,000+ pieces per thing. Custom setups regularly require 2-3 weeks depending on complexity.
Q: Do you bolster small-batch generation for prototypes?
A: Yes. We get it venture advancement needs and oblige model amounts whereas keeping up our quality standards.
Why Cablein Technology?
With 9 years of specialized experience since 2017, we've earned trust from customers across 100+ countries.
Our Strengths
- Advanced Fabricating: 6,000㎡ office with exactness hardware and 200+ talented professionals
- Innovation Administration: Over 30 utility demonstrate licenses in waterproof association technology
- Quality Affirmation: ISO9001:2015 certified with comprehensive testing protocols
- Global Coordinations: Organizations with UPS, DHL, FedEx for proficient around the world delivery
- Technical Mastery: 24-hour bolster for venture help and customization consultation
Certifications That Matter
Our items carry numerous universal certifications: CE, RoHS, ETL, PSE, SAA, TUV, REACH, CQC. You get universally compliant arrangements supported by archived testing.
Ready to Strengthen Your Connections?
Whether you're designing new equipment or upgrading existing systems, the right panel-mount connector makes all the difference. Contact our team at nick@cableinco.com to discuss technical specifications, request samples, or confirm custom configuration details for your specific M12 Panel Mount Waterproof Connector requirements.
