M12 Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for on-site wiring flexibility.
3. Threaded coupling design provides secure, vibration-resistant connections.
4. Widely used in sensors, actuators, and industrial control systems.
5. Screw termination design allows quick assembly without special tools.
6. CE and TUV certified under ISO9001 and RoHS compliance.
7. Tested for 500+ mating cycles to ensure long-term reliability.
8. We offer custom pin configurations and cable assembly services for your specific needs.

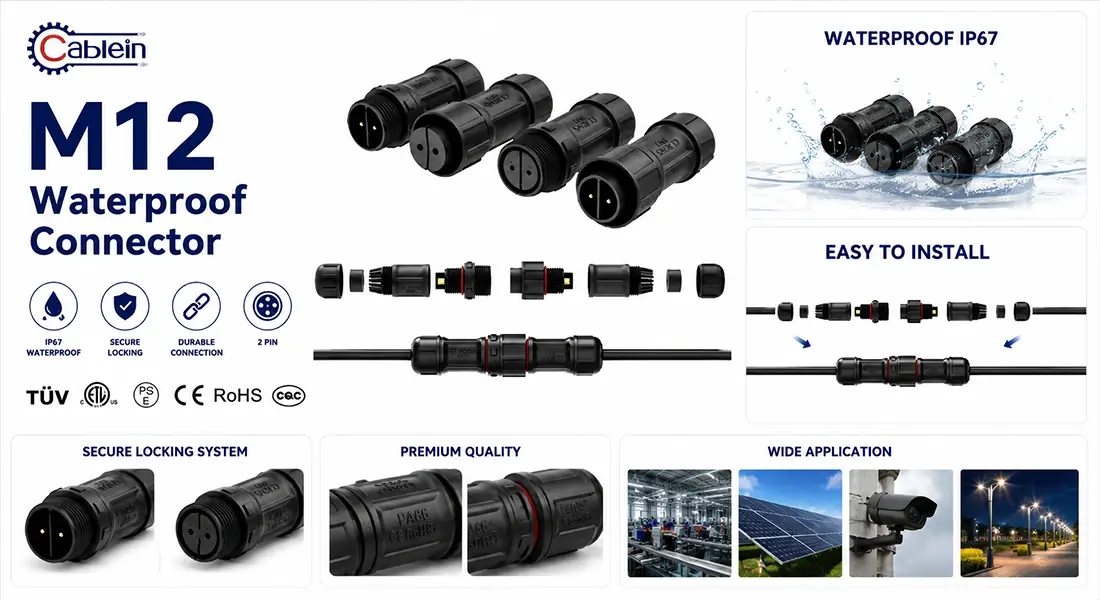

M12 Waterproof Connector – Field-Assembled Industrial Connectivity Solution
When your sensors and actuators demand reliable connections in harsh environments, Cablein's M12 Waterproof Connector delivers enterprise-grade performance you can trust. Our field-assembled design features a robust PA66 nylon body, gold-plated brass contacts, and precision silicone seals, achieving IP67 and IP68 waterproof ratings. Tested for over 500 mating cycles, this connector operates reliably from -40℃ to 150℃ with insulation resistance up to 200MΩ and withstand voltage of 3KV. Supporting 2 to 8 pins with rated currents up to 10A, our threaded coupling system provides secure, vibration-resistant connections. CE and TUV certified under ISO9001 and RoHS compliance, this solution gives you on-site wiring flexibility without special tools.
Why Choose Field-Assembled M12 Connectors?
Field assembly changes how you approach installation.
You eliminate costly pre-made cable runs that never quite fit.
Your technicians can terminate cables on-site, adapting to actual measured distances. This flexibility reduces waste and speeds up commissioning. The screw termination design accepts various wire gauges, so you're not locked into specific cable types.
Threaded coupling with anti-vibration washers keeps connections secure even when machinery runs continuously. The gold-plated contacts resist corrosion and maintain stable signal transmission across hundreds of connection cycles.
Standard M12 thread patterns ensure compatibility with your existing automation equipment. You won't need adapters or custom solutions—just reliable interconnection that works the first time.

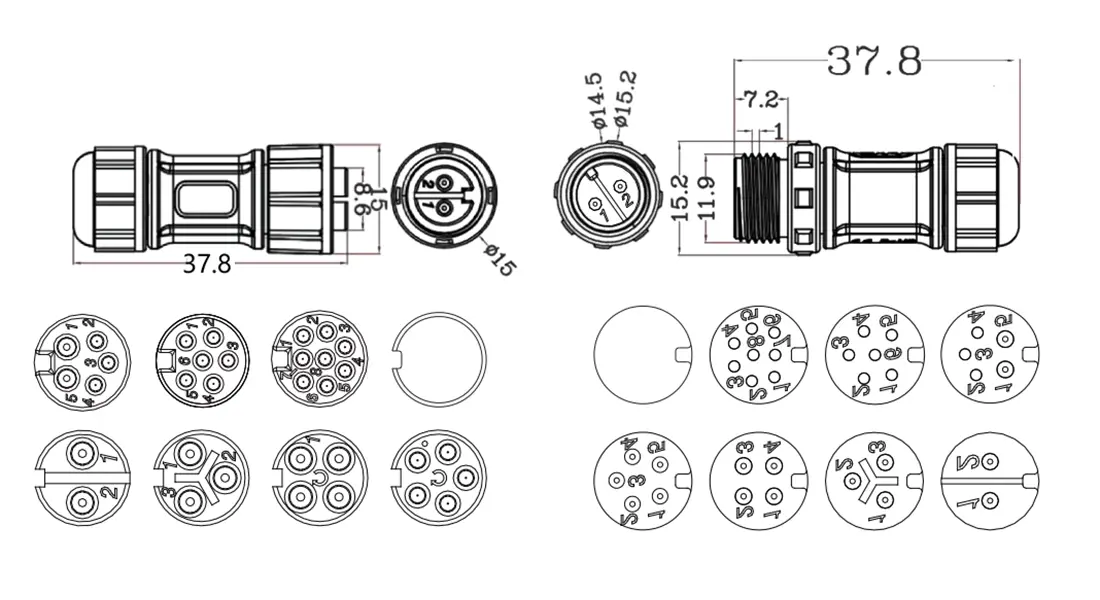

Technical Specifications at a Glance
Standard Orientation Options:
- Pin configurations: 2/3/4/5/2+3/6/8 contacts
- Voltage ratings: 60V to 100V depending on pin count
- Current capacity: 3A to 10A (hybrid options available)
- Cable diameter range: 3.5-8mm
Reverse Orientation Options:
- Pin configurations: 2/3/4/5/8 contacts
- Same voltage and current ratings
- Identical environmental protection
Both orientations share critical performance metrics:
- IP67 ingress protection as standard
- Insulation resistance: 200MΩ minimum
- Dielectric strength: 1KV to 3KV
- Temperature range: -40℃ to 150℃
The UL94-V0 rated housing resists flames and maintains structural integrity in demanding conditions.
Where M12 Waterproof Connector Excel
Industrial Control Systems
Connect PLCs, I/O modules, and distributed control systems where vibration and moisture threaten conventional connectors. The threaded coupling maintains signal integrity even on production lines with constant movement.
Sensor Networks
Proximity sensors, photoelectric sensors, and pressure transducers all benefit from the stable electrical performance. Gold-plated contacts ensure low contact resistance across the operating temperature range.
Actuator Applications
Whether you're controlling pneumatic valves, motor starters, or solenoids, the M12 Waterproof Connector handle the electrical demands while sealing out contaminants.
Food Processing Equipment
While our standard IP67 rating serves most industrial needs, the sealed design prevents moisture ingress during routine cleaning operations.
Transportation Systems
Rail, marine, and automotive applications demand connectors that resist constant vibration. Our anti-vibration washer design maintains secure mechanical and electrical connection.
Installation Advantages You'll Appreciate
No special tools required for termination.
Your maintenance team can carry basic screwdrivers and create custom cable lengths as needed. This dramatically reduces spare parts inventory—you stock connector sets and bulk cable instead of dozens of pre-made assemblies.
The silicone seals compress evenly when you tighten the coupling nut. You achieve reliable waterproofing without torque wrenches or complex procedures.
Color-coded wire insertion points guide correct polarity. Even temporary workers can make reliable connections following simple instructions.
Frequently Asked Questions
Q1: Can I achieve IP68 rating with field assembly?
A: Yes, when properly installed following torque specifications and using the correct cable outer diameter. The silicone seal compresses to create a watertight barrier. However, for submersion applications, we recommend having your first few assemblies tested to verify technique.
Q2: How do I select the right pin count?
A: Match the pin count to your device requirements. Standard sensors typically use 3 or 4 pins (power, ground, signal). Hybrid configurations like 2+3 serve devices needing separate power and signal circuits. We provide technical consultation to help specify the optimal configuration.
Q3: Are these connectors compatible with other manufacturers' M12 systems?
A: Yes, the M12 standard ensures mechanical compatibility. However, always verify coding type (A, B, D, etc.) and pin-out arrangements match between mating connectors to ensure electrical compatibility.
Q4: What cable types work with this connector?
A: The 3.5-8mm cable diameter range accommodates most industrial cables including PUR, PVC, and TPU jacketed types. The screw terminals accept 24AWG to 18AWG conductors comfortably.
Q5: How do I maintain reliable connections over time?
A: Inspect seals annually in harsh environments. The gold-plated contacts resist corrosion, but the threaded coupling should be retightened if equipment experiences unusual vibration. Keep mating threads clean and apply a thin film of silicone grease to enhance seal life.
Q6: Can you customize pin configurations for proprietary systems?
A: Absolutely. Cablein offers custom pin configurations and cable assembly services. Our engineering team can develop solutions matching your exact specifications, including non-standard coding and special contact plating.
The Cablein Manufacturing Difference
Since 2017, we've operated from our 6,000㎡ facility in Shenzhen's high-tech manufacturing district.
Over 200 skilled employees ensure every connector meets our quality standards. We maintain inventory levels exceeding 10,000 pieces per item, enabling standard delivery within 7-10 days.
Our 30+ utility model patents reflect continuous innovation in waterproof connector technology. We've specialized in quick-connect, solder-free, and high-power waterproof solutions that solve real installation challenges.
Quality control follows ISO9001:2015 standards with 100% inspection for waterproof performance, durability, and electrical reliability. This isn't just about passing tests—it's about connectors that perform year after year in your applications.
Global logistics partnerships with UPS, DHL, FedEx, and specialized freight forwarders mean we deliver efficiently whether you need 100 pieces or 10,000.
Get Started with Your M12 Solution
Ready to simplify your sensor wiring? Need samples to evaluate in your specific M12 Waterproof Connector application? Want to confirm technical compatibility before ordering?
Contact us at nick@cableinco.com for technical specifications, samples, and customization consultation.
