M16 Waterproof Connector
2. Provides IP67 and IP68 waterproof protection for medium-power field wiring.
3. Threaded housing ensures reliable locking under vibration and mechanical stress.
4. Suitable for industrial power supplies, outdoor lighting, and renewable energy systems.
5. Tool-free screw termination allows quick and secure wire connection.
6. TUV and CE certified under ISO9001 and RoHS compliance.
7. Designed for long-lasting durability in continuous use applications.
8. Custom pin configurations and pre-wired options available for your application.

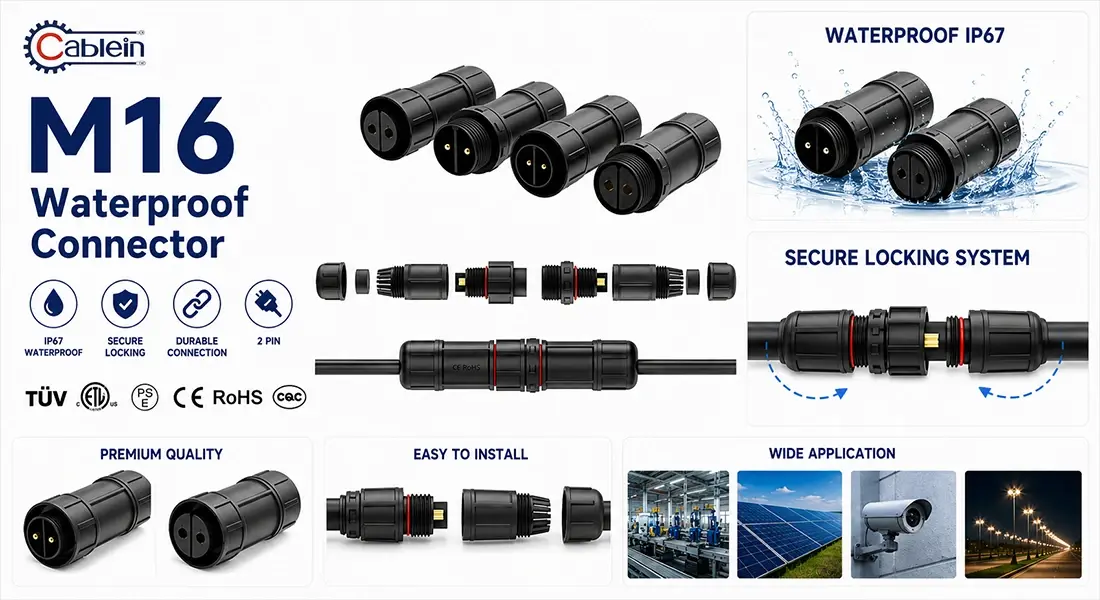

M16 Waterproof Connector – Reliable Industrial Connectivity for Harsh Environments
When your application demands secure power and signal transmission in challenging conditions, the M16 Waterproof Connector from Cablein Technology delivers unmatched reliability. Our field-installable connectors highlight PA66 nylon lodging with gold-plated brass contacts, giving IP67 and IP68 waterproof security. With appraised voltages up to 500V, streams coming to 15A, and back for up to 24 contacts in a compact 16mm housing, these connectors meet the thorough requests of mechanical mechanization, open air lighting, and renewable vitality frameworks. Working dependably from -40℃ to 150℃ and supported by TUV, CE, RoHS, and ISO9001:2015 certifications, our M16 arrangements guarantee your establishments perform immaculately in damp, dusty, and vibration-prone environments.
What Makes Our M16 Waterproof Connector Stand Out?
You require network arrangements that won't fall flat when conditions get extreme. That's precisely what our connectors deliver.
Advanced Fixing Technology
Our strung locking instrument with coordinates fixing rings accomplishes IP68-rated security indeed after field installation. Your gear remains ensured against water entrance, clean defilement, and natural exposure.
Flexible Arrangement Options

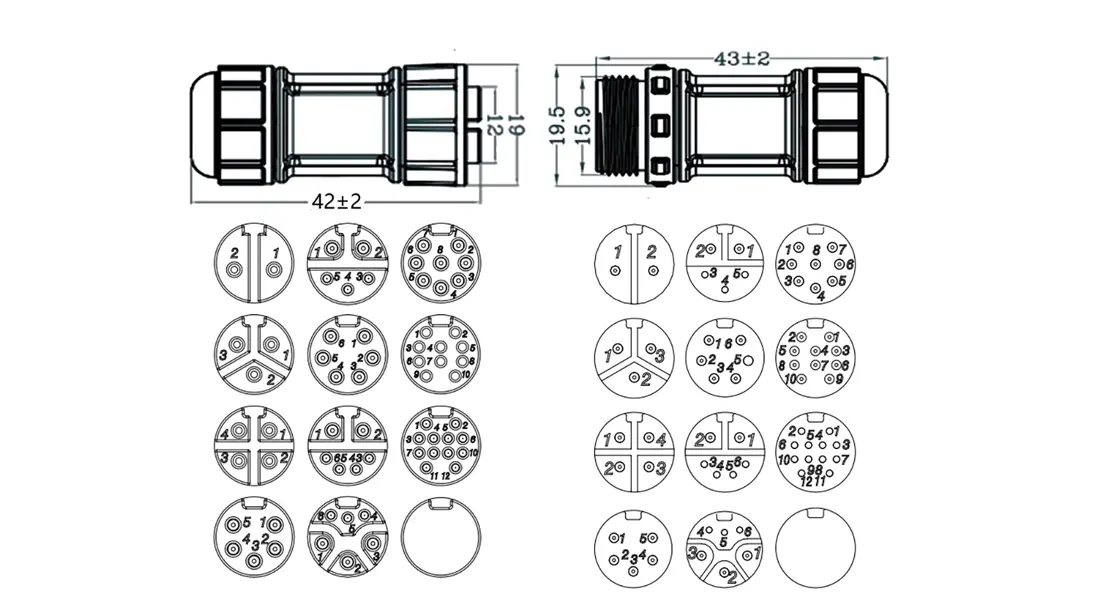

Choose from standard introductions with 2 to 12 pins, or switch introductions custom fitted to your particular application. Custom stick setups and pre-wired cable congregations are accessible to coordinate your correct requirements.
Tool-Free Installation
The screw-type terminal plan lets your professionals total wire associations rapidly without fastening hardware. This implies quicker establishments, decreased labor costs, and less demanding upkeep in the field.
Industrial-Grade Durability
Reinforced PA66 lodging withstands chemical presentation and mechanical affect. The connector keeps up steady execution beneath persistent vibration, making it perfect for manufacturing plant floors and portable equipment.
Wide Working Range
From -40℃ ice conditions to 150℃ high-temperature situations, these connectors keep up electrical keenness. You can send them unquestionably in both indoor offices and uncovered open air installations.
Technical Specifications That Matter
Understanding the specifications helps you make the right choice for your application:
Electrical Performance
- Rated Voltage: 500V / 100V / 60V depending on configuration
- Rated Current: Up to 15A for power contacts, 3A-8A for signal pins
- Withstand Voltage: 3KV / 1KV
- Insulation Resistance: 200MΩ minimum
- Contact Resistance: <5mΩ with gold-plated contacts
Mechanical Properties
- Cable Diameter Range: 5-9.5mm
- Locking Thread: M16 metric standard
- Insertion/Withdrawal Cycles: >500 operations
- Housing Material: Flame-retardant PA66 (UL94-V0)
Environmental Protection
- IP Rating: IP67 standard, IP68 when properly installed
- Operating Temperature: -40℃ to 150℃
- Storage Temperature: -50℃ to 180℃
- UV and Chemical Resistant
Where You Can Use M16 Waterproof Solutions
These connectors solve real connectivity challenges across multiple industries:
LED and Architectural Lighting
Whether you're powering stadium floodlights or urban landscape installations, our M16 Waterproof Connector handles both power delivery and DMX control signals. The waterproof seal protects against seasonal weather changes and ensures your lighting systems operate reliably year-round.
Industrial Automation Systems
Factory environments expose connectors to coolant sprays, oil mist, and constant vibration. Your sensors and actuators need connections that maintain signal integrity throughout 24/7 production cycles. These connectors deliver exactly that.
Renewable Energy Applications
Solar panels, wind turbines, and energy storage systems operate in exposed locations. Our connectors provide the moisture resistance and temperature stability your installations require for long-term outdoor performance.
Agricultural and Horticultural Equipment
From greenhouse environmental controls to automated irrigation systems, these connectors withstand high humidity and occasional water exposure while maintaining reliable power and control signal transmission.
Marine and Underwater Robotics
Salt-mist corrosion challenges standard connectors in coastal and maritime applications. The IP68 protection level ensures your instrumentation stays operational even in harsh marine environments.
Why Choose Cablein Technology?
Since 2017, we've specialized in conveying solid waterproof network arrangements from our 6,000㎡ fabricating office in Shenzhen. Here's what sets us apart:
Proven Fabricating Excellence
Our ISO9001:2015 certified generation forms guarantee reliable quality. Each connector experiences 100% waterproof execution testing some time recently shipment. With over 30 utility show licenses, we bring persistent development to your network challenges.
Ready When You Require Them
We keep up steady stock surpassing 10,000 pieces per thing. Standard items dispatch inside 7-10 days. This implies you maintain a strategic distance from generation delays and keep up your extend schedules.
Custom Arrangements Available
Your application might require particular stick setups, cable lengths, or interesting lodging materials. Our designing group underpins OEM/ODM customization and private shape advancement to coordinate your correct requirements.
Global Quality Standards
Our connectors comply with CE, RoHS, TUV, ETL, and other universal certifications. You can indicate our items with certainty, knowing they meet the administrative prerequisites of markets worldwide.
Frequently Asked Questions
Q: What's the contrast between IP67 and IP68 appraisals for these connectors?
A: IP67 gives assurance against brief submersion up to 1 meter for 30 minutes. IP68 offers security amid nonstop drenching at profundities you indicate amid establishment. Both evaluations secure totally against clean entrance. Select IP67 for open air establishments with incidental water presentation, and IP68 for applications where the connector might be submerged.
Q: Can I introduce these connectors without uncommon tools?
A: Yes, the screw-type terminal plan permits field establishment utilizing as it were a standard screwdriver. You do not require patching gear or specialized pleating instruments. This streamlines both starting establishment and future maintenance.
Q: How do I select the right stick configuration?
A: Consider your voltage, current, and flag prerequisites. Lower stick checks (2-4 pins) work well for basic control associations. Higher setups (8-12 pins) suit applications requiring partitioned control and control signals. Contact our specialized group to talk about your particular requirements.
Q: Are these connectors consistent with standard M16 board cutouts?
A: Yes, they take after standard M16 metric threading determinations. This guarantees compatibility with existing panel-mount establishments and industry-standard mating interfaces.
Q: What cable sorts work with these connectors?
A: They oblige cable breadths from 5mm to 9.5mm. Utilize cables evaluated for your working temperature run. For open air applications, select UV-resistant cable coats. Our group can suggest congruous cable details for your environment.
Q: Can these handle high-vibration environments?
A: Completely. The strung locking component gives secure mechanical association that stands up to releasing beneath nonstop vibration. This makes them appropriate for versatile hardware, manufacturing plant robotization, and transportation applications.
Q: Do you offer pre-wired cable assemblies?
A: Yes, we can supply custom cable congregations with connectors introduced and tried. This spares you establishment time and guarantees legitimate gathering. Indicate your required cable length, conductor gage, and stick configuration.
Q: What's the normal life expectancy of these connectors?
A: With appropriate establishment and inside evaluated determinations, anticipate benefit life surpassing 500 mating cycles. Natural variables like UV introduction and chemical contact may influence life span. Customary assessment of fixing rings makes a difference keep up waterproof performance.
Get Your M16 Waterproof Connectivity Solution Today
Ready to specify reliable connectors for your M16 Waterproof Connector? Contact nick@cableinco.com to request technical specifications, discuss custom configurations, or obtain samples.
