M20 Circular Connector
2. Available in IP67 and IP68 waterproof ratings for high-current field wiring.
3. Threaded coupling provides secure, anti-vibration connections for heavy cables.
4. Commonly used in EV chargers, large pumps, and main power entry for machinery.
5. Screw termination chambers accept larger gauges without special tools.
6. ETL and TUV certified under ISO9001 and RoHS compliance.
7. Rated for -40℃ to 150℃ for extreme temperature applications.
8. We provide custom pin configurations and complete cable assembly services.
M20 Circular Connector – Industrial Waterproof Connection Solution
Cablein Technology's M20 Circular Connector delivers enterprise-grade performance for high-current field wiring in extreme environments. Including a field-assembled plan with PA66 nylon lodging, gold-plated brass contacts, and silicone seals, this connector accomplishes IP67/IP68 waterproof evaluations and handles up to 25A current. Its strung coupling guarantees secure, anti-vibration associations over a wide working temperature extend of -40℃ to 150℃. With ETL and TUV certifications beneath ISO9001 and RoHS compliance, you get solid network for EV chargers, mechanical pumps, and apparatus control passage. Amplified string length suits board dividers from 6-13.5mm, whereas screw end chambers acknowledge large-gauge wires without specialized tools.
What Makes the M20 Circular Connector Essential for Your Application?
The M20 Circular Connector uses a metric 20mm thread locking mechanism. This design provides robust electrical transmission where standard connectors fail.
Your gear faces dampness, tidy, and steady vibration. These circular connectors illuminate those challenges head-on.
The strung coupling makes mechanical steadiness. You won't encounter flag misfortune amid high-vibration operations.

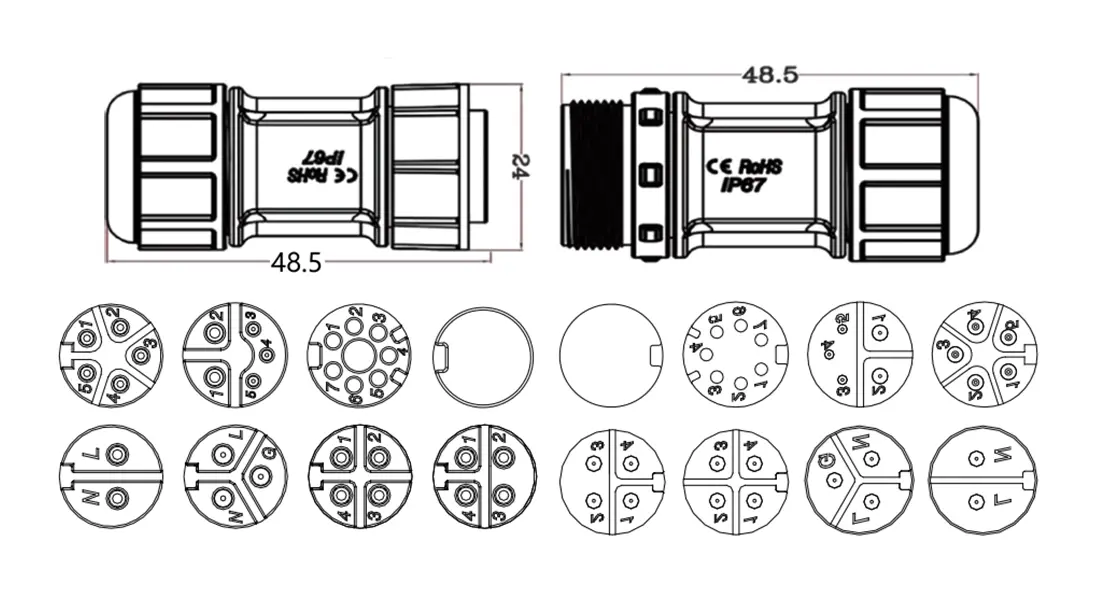

Multiple stick configurations—from 2-pin to 7-pin arrangements—let you customize control and flag integration in one compact housing.
Gold-plated brass contacts keep up moo contact resistance underneath 5mΩ. This guarantees steady current stream indeed after thousands of mating cycles.
Technical Specifications That Power Critical Operations
Standard Orientation Models
- Pin Options: 2, 3, 4, 2+2, 5, 2+3, 7 contacts
- Voltage Rating: 500V DC/AC (300V on hybrid models)
- Current Capacity: 25A (25A+8A for hybrid / 20A on 7-pin)
- Withstand Voltage: 3KV / 2KV
- Insulation Resistance: 200MΩ minimum
- Cable Diameter Range: 6-13.5mm
Reverse Orientation Models
- Pin Options: 2, 3, 4, 2+2 contacts
- Voltage Rating: 500V DC/AC
- Current Capacity: 25A / 25A+8A
- Withstand Voltage: 3KV
- Insulation Resistance: 200MΩ minimum
- Cable Diameter Range: 6-13.5mm
Both configurations maintain IP67 protection and operate reliably from -40℃ to 150℃.
Where the M20 Circular Connector Excels
Industrial Automation & Machinery
Your production lines demand uninterrupted power. The threaded locking nut prevents accidental disconnection during equipment movement or vibration.
Main power entry points benefit from screw termination that accommodates heavy-gauge wire. You eliminate external junction boxes and reduce installation time.
Outdoor LED & Landscape Lighting
Weather doesn't stop. Neither should your lighting systems.
IP68-rated seals protect against temporary submersion. UV-stabilized PA66 housing resists degradation from constant sun exposure.
You can deploy these connectors in urban landscapes, stadium lighting, and agricultural applications with confidence.
Renewable Energy Systems
Solar PV monitoring stations and EV charging infrastructure require connections that survive temperature extremes and moisture.
The wide temperature range supports both refrigerated environments and high-heat installations. Heavy rain and humidity won't compromise electrical integrity.
Marine & Underwater Equipment
Salt spray and submersion challenge every component. Gold-plated contacts resist corrosion. Silicone seals maintain waterproof performance over extended deployments.
Key Advantages That Protect Your Investment
Extended Thread Length: Secure engagement through thick panel walls or enclosure materials gives you installation flexibility.
High-Current Design: Handle main power feeds up to 25A without overheating or voltage drop issues.
Field-Serviceable Termination: Screw chambers accept large-gauge wires. No crimping tools required. You can assemble or repair connections on-site.
Certified Compliance: CE, TUV, ETL, RoHS, and ISO9001:2015 certifications ensure global market acceptance and safety standards.
Temperature Resilience: From freezer applications at -40℃ to high-heat environments at 150℃, performance remains stable.
Custom Configuration Support: Our engineering team provides OEM/ODM services for specialized pin arrangements and cable assemblies.
Frequently Asked Questions
Q: What's the contrast between plastic and metal shell options?
A: Plastic PA66 shells offer prevalent erosion resistance and fetched productivity for damp open air situations. Metal shells give improved EMI/RFI protecting and mechanical affect assurance for electrically boisterous production line settings.
Q: Can I run both control and information through one connector?
A: Yes. Half breed arrangements like 2+2 and 2+3 permit you to coordinated control leads and flag wires in a single item lodging, sparing board space.
Q: Which wire gage ought to I use?
A: Most setups back 14 AWG to 24 AWG, depending on stick check and current necessities. For 25A applications, we prescribe 14 AWG or heavier.
Q: Are these connectors field-serviceable?
A: Completely. Screw end chambers empower field get together and upkeep without specialized pleating hardware. You can supplant or repair associations quickly.
Q: How do I guarantee compatibility with existing systems?
A: The M20 assignment alludes to the 20mm string distance across. Confirm inside embed keying and stick setup to coordinate your existing hardware. Our specialized group can help with compatibility verification.
Q: What security rating do I require for open air use?
A: IP67 ensures against tidy and brief water submersion. IP68 offers higher security for drawn out submersion. Select based on your particular natural exposure.
Quality Assurance You Can Trust
Every connector undergoes rigorous testing:
- Ingress Protection Testing: Validates IP67/IP68 sealing under water pressure
- Salt Spray Testing: 48-96 hour exposure confirms corrosion resistance
- Mechanical Life Testing: 1,000+ mating cycles verify durability
- Pull-Force Validation: Ensures cable retention strength under strain
- Dielectric Withstanding Voltage: Detects potential insulation breakdown
Our ISO9001:2015 quality administration framework guarantees 100% review for waterproof execution, electrical unwavering quality, and mechanical integrity.
With over 10,000 pieces of steady stock per thing, we convey standard orders inside 7-10 days. Worldwide coordinations associations with UPS, DHL, and FedEx guarantee your connectors arrive on schedule.
Get Started with Reliable Connections Today
Ready to solve your connectivity challenges? Contact us at nick@cableinco.com to request technical specifications, discuss custom configurations, or arrange sample evaluation for your M20 Circular Connector application.
