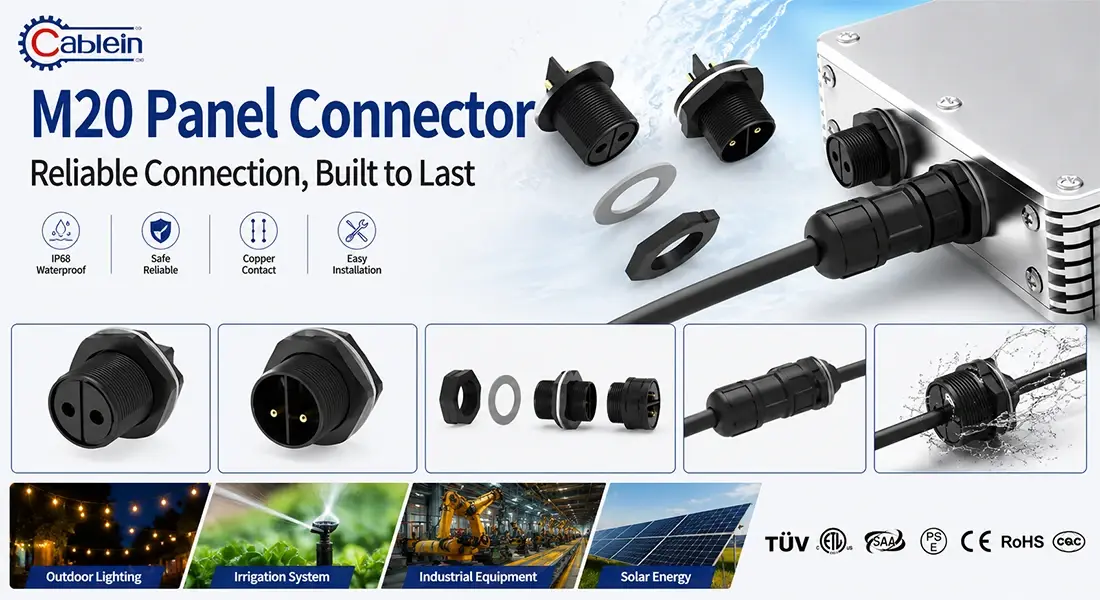

M20 Panel Connector
2. Provides IP67 and IP68 waterproof protection at the panel mounting point.
3. Threaded rear design accepts field wiring with solder or PCB pin terminations.
4. Suited for solar inverters, battery storage cabinets, and industrial controls.
5. Standardized panel cutout simplifies equipment design and reduces lead time.
6. CE and RoHS certified, manufactured under ISO9001 quality management.
7. Engineered for reliable performance in demanding conditions.
8. Custom pin count, mounting nut finish, and pre-attached internal wires available.
M20 Panel Connector: Industrial-Grade Waterproof Solution for Demanding Applications
Cablein Technology's M20 Panel Connector delivers enterprise-level reliability with IP67/IP68 waterproof protection and robust construction. Built from PA66 nylon with gold-plated brass pins, it handles appraised streams up to 25A and voltages coming to 500V DC/AC. With an noteworthy working temperature extend of -40℃ to 150℃ and cover resistance of 200MΩ, this connector withstands 3KV dielectric quality testing. Our standardized M20 strung plan disentangles board integration whereas keeping up industrial-grade fixing execution. Sponsored by CE and RoHS certifications and fabricated beneath ISO9001:2015 benchmarks, you get steady quality from our 6,000㎡ office with stock surpassing 10,000 pieces per configuration.
What Makes Our M20 Panel Connector Different?
When your equipment faces harsh conditions, standard connections simply won't cut it.
Our M20 Panel Connector solves real-world challenges you encounter daily. Whether you're dealing with outdoor moisture, dusty industrial floors, or extreme temperature swings, this connector maintains stable electrical performance.
The front-mount plan highlights a compression gasket that makes waterproof fixing without muddled sealants. You'll appreciate how the strung raise passage acknowledges field wiring with different end options—solder associations, screw terminals, or PCB pins.
Here's what sets it apart:
Your establishment group will wrap up quicker much obliged to the standardized M20 set pattern measure. No mystery, no custom penetrating layouts. Fair direct board arrangement that diminishes your establishment time significantly.
The UL94-V0 flame-retardant lodging includes basic security in high-temperature situations. You're not fair assembly codes—you're surpassing security expectations.
Technical Specifications That Matter
Let's talk about the numbers that impact your application:
Electrical Performance:
- Pin configurations: 2/3/4/2+2/5/2+3/7 contacts
- Rated voltage: 500V and 300V DC/AC options
- Current capacity: 25A standard, 25A+8A hybrid, 20A variants
- Withstand voltage: 3KV and 2KV ratings
- Insulation resistance: 200MΩ minimum
Environmental Protection:
- IP67 ingress protection rating
- Operating range: -40℃ to 150℃
- UV-resistant materials for outdoor longevity
Material Construction:
- Housing: PA66 nylon (UL94-V0 rated)
- Contacts: Gold-plated brass for superior conductivity
- Sealing: Silicone gasket technology
The gold-plated contacts ensure low contact resistance throughout thousands of connection cycles. You won't experience signal degradation or voltage drops over time.
Where You'll Use This Connector
Your applications demand reliability. Here's where our M20 Panel Connector excels:
Solar Energy Systems:
Connect your solar inverters and battery storage cabinets with confidence. The connector handles DC power transmission while protecting against moisture ingress that could compromise your renewable energy investment.
Industrial Control Panels:
Manufacturing environments throw everything at your equipment—dust, oil mist, temperature extremes. This panel-mount solution keeps your control circuits protected while allowing quick disconnection for maintenance.
LED Lighting Infrastructure:
From architectural lighting to stadium installations, you need connections that survive weather exposure. The IP68-rated design ensures your lighting systems stay operational through rain, snow, and humidity.
Energy Storage Equipment:
Battery management systems require secure, high-current connections. Our connector provides the current capacity and environmental protection your energy storage applications demand.
Outdoor Surveillance Systems:
Security cameras and monitoring equipment face constant environmental stress. This connector maintains signal integrity while preventing water ingress at vulnerable panel-mount points.
Agricultural Lighting:
Greenhouse and grow-light installations operate in high-humidity conditions. The silicone sealing gasket creates reliable protection against moisture that could cause system failures.
Customization Options for Your Specific Needs
Every application has unique requirements. That's why we offer customization:
- Custom pin counts beyond standard configurations
- Pre-attached internal wire leads to your specifications
- Mounting nut finishes tailored to your environmental conditions
- Nickel-plated brass housing for enhanced EMI shielding
- Specific cable entry configurations
Our engineering team works directly with you to develop solutions that integrate seamlessly into your equipment design.
Quality Assurance You Can Measure
We do not fair claim quality—we demonstrate it through thorough testing:
Each connector experiences 100% waterproof execution confirmation some time recently shipping. Our ISO9001:2015 quality administration framework guarantees consistency over each generation batch.
Mechanical mating cycle testing approves strength through rehashed associations. You'll get dependable execution through the whole benefit life of your equipment.
Salt shower testing affirms erosion resistance for sea and coastal applications. The nickel-plated and gold-plated wraps up keep up astuteness indeed in forceful environments.
Frequently Asked Questions
Q: What's the standard string detail for this connector?
A: Our items utilize M20 x 1.5 metric threading. This standardized measurement guarantees compatibility with common board set patterns and streamlines your gear plan process.
Q: Can I utilize this connector for both AC and DC applications?
A: Yes, the connector underpins both AC and DC circuits inside the appraised voltage and current determinations. Continuously confirm your particular application against the specialized parameters and consider derating for high-temperature environments.

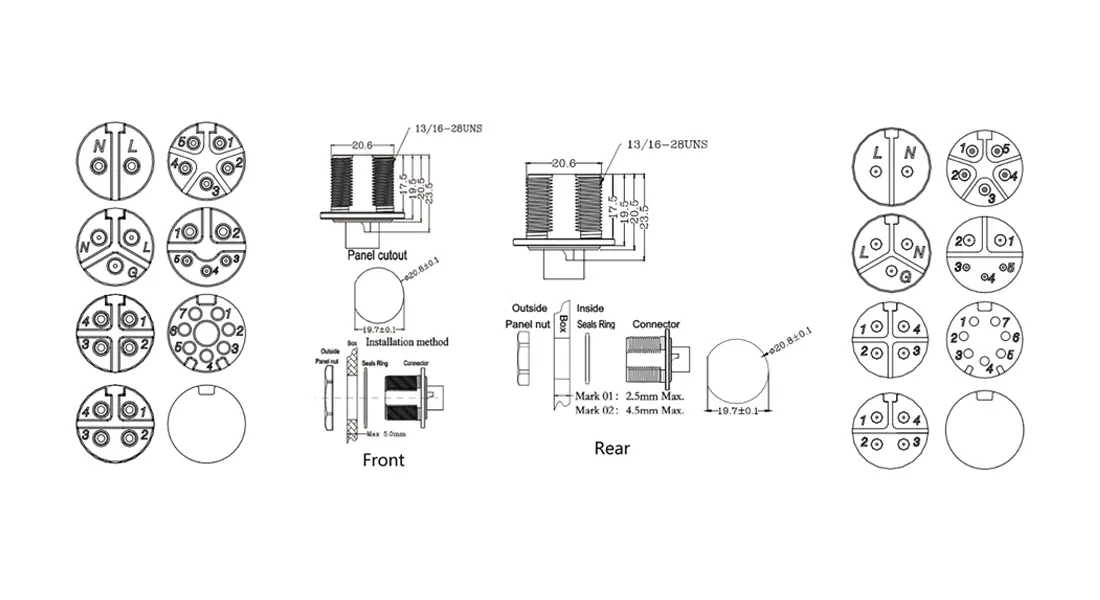

Q: What's the contrast between front-mount and rear-mount installation?
A: Front-mount establishment positions the mounting nut on the insides side of your board, with the connector body obvious remotely. This plan gives prevalent waterproof fixing at the board interface and simpler field installation.
Q: How does the connector keep up execution in high-vibration environments?
A: The strung coupling instrument combined with the compression gasket makes secure mechanical maintenance. The gold-plated contacts keep up steady electrical association indeed beneath ceaseless vibration and mechanical shock.
Q: Are substitution parts accessible if components wear over time?
A: Yes, we keep up steady stock of substitution gaskets, mounting equipment, and contact embeds. Contact our specialized group for particular portion numbers coordinating your configuration.
Q: What certifications do these connectors carry?
A: Our items comply with CE and RoHS guidelines, fabricated beneath ISO9001:2015 quality administration. Particular certifications shift by item series—contact us for point by point compliance documentation.
Q: Can you give connectors with pre-wired cable assemblies?
A: Completely. We specialize in custom cable gathering arrangements with pre-attached wiring to your length and end details. This decreases your establishment time and guarantees quality connections.
Why Choose Cablein Technology?
Founded in 2017 in Shenzhen's high-tech fabricating center, we've built our notoriety on conveying solid waterproof network solutions.
Our 200+ worker group works from a cutting edge 6,000㎡ generation office prepared with progressed fabricating hardware. We keep up stock surpassing 10,000 pieces per thing, guaranteeing you get quick conveyance without compromising quality.
With over 30 utility demonstrate licenses, our R&D group persistently innovates to meet advancing industry necessities. We do not fair fabricate standard products—we build arrangements for your particular challenges.
Our worldwide coordinations associations with UPS, DHL, and FedEx guarantee your orders arrive productively anyplace in the world. Standard conveyance takes fair 7-10 days, with adaptable planning for customized orders.
Ready to Enhance Your Equipment's Reliability?
Whether you're designing new equipment or upgrading existing installations, the right M20 Panel Connector makes all the difference. Let's discuss your specific requirements. Contact our technical team at nick@cableinco.com to request detailed specifications, confirm technical compatibility, or arrange sample evaluation for your application testing.
