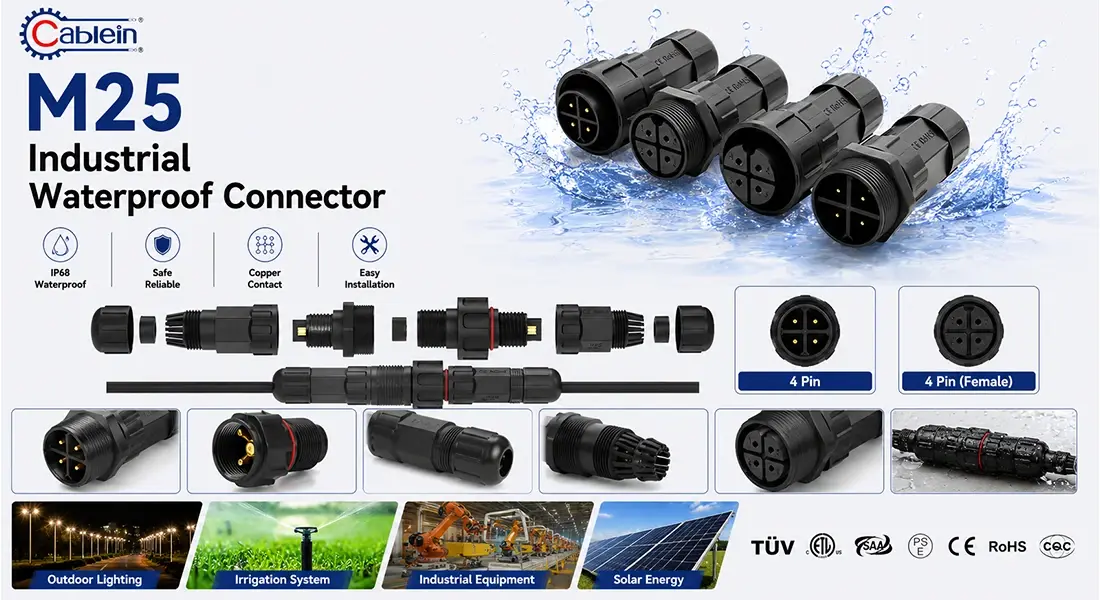

M25 Industrial Waterproof Connector
2. Offers IP67 and IP68 waterproof ratings for large-gauge field wiring.
3. Heavy-duty threaded housing ensures reliable locking for high-vibration environments.
4. Ideal for large industrial motors, HVAC systems, and renewable energy arrays.
5. Tool-free screw termination reduces installation time and complexity.
6. TUV and CE certified under ISO9001 and RoHS compliance.
7. Proven durability for long-term industrial use.
8. Custom pin configurations and pre-assembled cable options available.
M25 Industrial Waterproof Connector – Enterprise-Grade Cable Interconnect Solution
When you're specifying connectivity for mission-critical outdoor or harsh-environment installations, the M25 Industrial Waterproof Connector from Cablein Technology delivers proven reliability. Built with PA66 nylon lodging and gold-plated brass contacts, this field-installable connector accomplishes IP67/IP68 waterproof appraisals whereas dealing with up to 32A at 500V. Its 25mm strung interface obliges cable breadths from 7–15mm, advertising tool-free screw end for fast sending. With 3KV withstand voltage, 500MΩ separator resistance, and an working temperature run of -40℃ to +150℃, you pick up a vigorous interconnect supported by TUV, CE, and ISO9001:2015 certifications—manufactured in Cablein's 6,000 ㎡ office by a group of over 200 professionals.
Why Choose Our M25 Industrial Waterproof Connector?
Heavy-Duty Thread Design for High-Power Applications
The 25mm metric thread provides ample space for thick-gauge cables. This makes the M25 Industrial Waterproof Connector ideal when you need high-current transmission in industrial motors, HVAC systems, or renewable energy arrays. You won't struggle with undersized entry points or compromised seal integrity.
Multi-Pin Flexibility in a Single Housing
Choose from 2/3/4/5-pin configurations to mix power and signal contacts. Whether you're wiring a complex automation cell or a solar inverter junction, you get versatile connectivity without multiplying connector counts. This simplifies your panel layout and reduces total cost of ownership.
Screw-Type Terminals with Integrated Strain Relief
No special crimping tools are required. Simply strip your wire, insert it into the screw terminal, and tighten. The built-in cable gland anchors the cable independently from electrical contacts, preventing pullout forces from stressing solder joints or terminal blocks.
IP68 Protection Even at Larger Cable Diameters
Many connectors lose waterproof integrity when you step up to heavy-duty cable. Our reinforced silicone O-ring seals maintain IP68 submersion resistance across the entire 7–15mm cable range, so you can confidently deploy outdoor lighting, marine instrumentation, or offshore monitoring equipment.
Reinforced Construction for Vibration-Prone Environments
PA66 nylon shell withstands continuous mechanical stress and UV exposure. The threaded locking mechanism resists backing out under high-frequency vibration—critical for factory floor robotics, mobile machinery, and rail transportation applications.
Real-World Applications You Can Count On
Renewable Vitality & Sun based PV Systems
Connect intersection boxes and inverters where long-term UV resistance meets high-current requests. The M25 handles coordinate daylight presentation and temperature swings without splitting or discoloring.
Industrial Mechanization & Robotics
Deploy sensors and actuators on manufacturing plant floors where cutting liquids, greases, and steady multi-axis movement challenge each association. The M25's chemical resistance keeps your uptime high.
Marine and Coastal Infrastructure
Install navigational lighting and seaward observing equip in salt-spray situations. Gold-plated contacts anticipate galvanic erosion, whereas the IP68 seal squares seawater ingress.
LED and Scene Lighting
Power stadium floodlights, urban streetscapes, and rural develop frameworks. The connector's wide temperature resistance (-40℃ to +150℃) guarantees steady operation from ice establishments to forsake climates.
Energy Capacity and EV Charging
Secure high-voltage battery intercontinental and charging station cables. The 3KV withstand voltage and 500MΩ separator resistance provide the electrical security edges your venture demands.

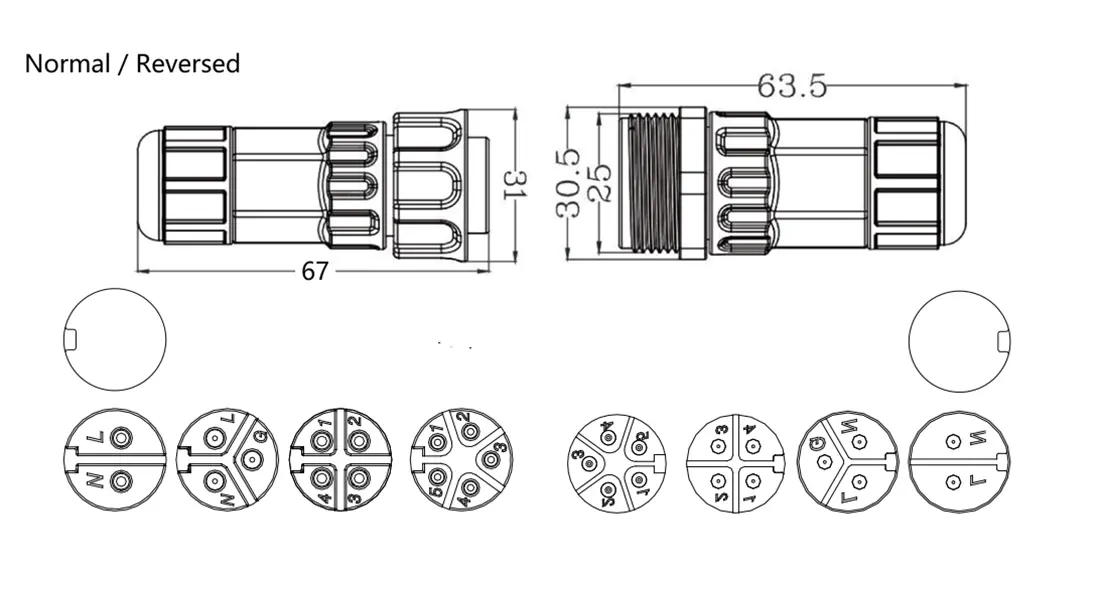

Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Number of Contacts (Pins) | 2 / 3 / 4 / 5 |
| Rated Voltage | 500V DC/AC |
| Rated Current | 32A / 20A |
| Withstand Voltage | 3KV / 2KV |
| Insulation Resistance | 500MΩ |
| Ingress Protection Rating | IP67 / IP68 |
| Operating Temperature | -40℃ to +150℃ |
| Assembly Cable Diameter Range | 7–15mm |
| Housing Material | PA66 Nylon |
| Contact Material | Gold-Plated Brass |
| Seal Material | Silicone O-Ring |
Rigorous Quality Control You Can Trust
Every connector undergoes comprehensive testing aligned with ISO9001:2015 standards:
- IP68 Immersion Tests: 2 meters for 24 hours to verify hermetic sealing
- Salt Spray Testing: ASTM B117 minimum 48–96 hours for corrosion validation
- Mechanical Life Cycles: 500–2,000 mating cycles without physical degradation
- Dielectric Strength: High-voltage spike testing to prevent breakdown
- Thermal Cycling: Performance stability verification from -40°C to +105°C
With over 30 utility model patents and nine years of industry experience, Cablein's R&D team continuously refines quick-connect, solder-free, and high-power waterproof solutions.
Frequently Asked Questions
Q1: What is the fundamental contrast between IP67 and IP68 for a product?
A: IP67 permits transitory inundation (30 minutes at 1 meter), whereas IP68 guarantees nonstop submersion capability at manufacturer-specified depths—typically 2 meters or more for amplified periods.
Q2: Can these connectors be field-assembled?
A: Yes. The screw-terminal plan lets you collect on-site without specialized creasing devices, lessening establishment time and labor costs.
Q3: Are M25 connectors consistent with distinctive cable diameters?
A: Completely. Conversely silicone fixing organs oblige external breadths from 7mm to 15mm, giving you adaptability over wire gauges.
Q4: How does vibration influence the connection?
A: The strung locking nut anticipates backing out in overwhelming apparatus situations. High-quality connectors keep up secure mating indeed beneath consistent multi-axis motion.
Q5: Is the item appropriate for high-temperature washdowns?
A: When appraised at IP69K (counsel your particular show), it withstands high-pressure, high-temperature water planes common in nourishment preparing and pharmaceutical facilities.
Q6: What certifications affirm item reliability?
A: Our connectors carry TUV, CE, RoHS, ETL, and ISO9001:2015 certifications, guaranteeing compliance with universal security and natural standards.
Why Cablein Technology?
Stable Stock & Quick Delivery
We keep up over 10,000 pieces per thing in stock and dispatch standard orders inside 7–10 days. Your extend timelines remain on track.
Custom Designing Support
Need non-standard stick formats or pre-assembled cable alternatives? Our proficient group gives OEM/ODM customization and private shape advancement to coordinate your correct specifications.
Global Coordinations Network
Through associations with UPS, DHL, FedEx, and specialized cargo forwarders, we convey proficient discuss and ocean shipping to over 100 nations and regions.
24-Hour Specialized Assistance
From beginning plan discussion to after-sales investigating, our engineers are prepared to back your extend each step of the way.
Ready to Secure Reliable Connectivity?
Explore our full technical datasheets, request M25 Industrial Waterproof Connector samples, and confirm your pin configuration today. Contact us at nick@cableinco.com for personalized assistance.
