P16 Panel Mount Waterproof Connector
2. Provides IP67 and IP68 waterproof sealing at the panel mounting point.
3. Rear-entry design accepts field wiring with solder cup or PCB pin options.
4. Ideal for medical equipment chassis, test boxes, and portable instrument panels.
5. Standardized panel cutout simplifies enclosure design and assembly.
6. ETL and RoHS certified, manufactured under ISO9001 quality management.
7. Rated for operation from -40℃ to 150℃ for versatile deployment.
8. Custom pin length, rear seal configuration, and internal wire leads available.
P16 Panel Mount Waterproof Connector: Enterprise-Grade Panel Sealing Solution
When you're designing equipment for harsh industrial environments, your panel interface can't be a weak point. The P16 Panel Mount Waterproof Connector from Cablein Innovation conveys enterprise-level unwavering quality with IP67/IP68 waterproof security, multi-pin setups from 2 to 8 contacts, and appraised current capacity up to 15A at 500V. Built with PA66 nylon lodging, gold-plated brass pins, and accuracy silicone gaskets, this 16mm panel-mount arrangement works dependably from -40℃ to 150℃. It's ETL and RoHS certified beneath ISO9001:2015 quality administration, guaranteeing your walled in area pass-through focuses stay fixed indeed beneath ceaseless introduction to dampness, clean, and warm cycling.
What is the P16 Panel Mount Waterproof Connector?
The item is a accuracy circular interconnect particularly outlined for 16mm distance across board set patterns. It bridges flag unwavering quality and natural fixing in one compact package.
This connector understands three basic industry challenges:
First, it kills flag interferences in high-humidity or submerged situations through its specialized airtight O-ring system.
Second, the compact 16mm impression addresses space limitations in advanced miniaturized mechanical controllers.
Third, it gives strong mechanical locking that avoids coincidental detachment caused by high-frequency vibrations in mechanical machinery.
You get a field-wirable rear-entry plan with patch glass or PCB stick choices. This implies speedier get together and less demanding upkeep get to from the board side.

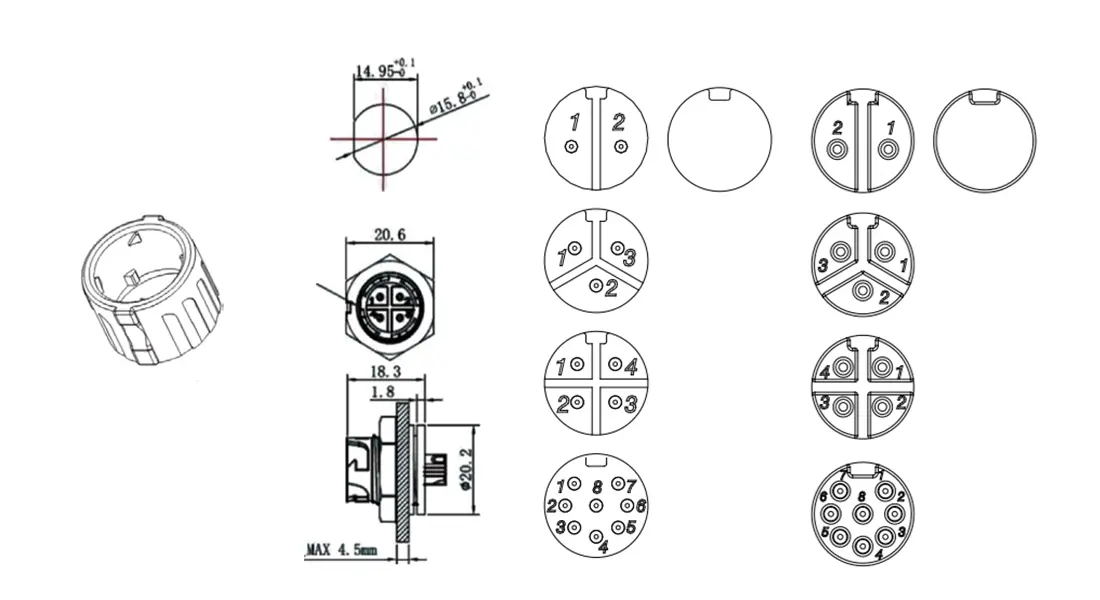

Key Properties and Technical Specifications
Understanding the technical backbone of this connector helps you make informed sourcing decisions.
Physical Construction
- Housing Material: PA66 nylon with UL94-V0 flame retardancy
- Contact Material: Gold-plated brass for maximum conductivity
- Gasket: Silicone seal for consistent compression across temperature ranges
- Body Size: Compact 16mm diameter conserves valuable panel space
Electrical Performance
- Rated Voltage: 500V / 110V DC/AC
- Rated Current: 15A / 5A depending on configuration
- Contact Resistance: <5mΩ for stable power delivery
- Insulation Resistance: 500MΩ minimum
- Dielectric Withstand: 3KV / 1KV
Environmental Ratings
- Ingress Protection: IP67 standard, IP68 available
- Operating Temperature: -40℃ to 150℃
- Mating Cycles: 500+ cycles tested
- UV Resistance: Suitable for outdoor enclosure installations
These parameters ensure your P16 Panel Mount Waterproof Connector maintains performance across demanding industrial applications.
Core Advantages for Your Panel Design
Integrated Panel Sealing
The panel-mount design includes an integrated silicone gasket that creates a sealed pass-through point on your equipment enclosure. No additional sealing steps required.
Secure Panel Fixation
Rear-entry configuration with locknut provides secure mounting to panels of varying thicknesses. You get stable installation even with thermal expansion.
Versatile Termination Options
Solder cup termination allows reliable internal wiring integration without additional connectors. This reduces failure points and assembly time.
Quick Maintenance Access
Self-locking push-pull interface enables quick disconnection from the panel side. Your technicians can access equipment internals without removing the entire assembly.
Space-Efficient Design
The compact body size conserves valuable real estate on crowded control panels and junction boxes.
Outdoor Durability
UV-resistant housing materials withstand long-term sun exposure. Perfect for outdoor enclosures where weathering is a concern.
Real-World Applications
The P16 Panel Mount Waterproof Connector excels in three core industrial scenarios:
Industrial Automation & Sensors
It serves as the primary interface for PLCs and flow sensors on factory floors. You face constant exposure to cutting fluids and wash-down procedures. This connector maintains seal integrity throughout.
Marine and Underwater Electronics
Utilized in sonar systems and deck-mounted navigation equipment where salt-spray resistance prevents galvanic corrosion. It maintains data integrity even under high-pressure water ingress conditions.
Outdoor LED and Infrastructure
Essential for smart city lighting and outdoor digital signage. It withstands continuous UV exposure and seasonal thermal expansion while maintaining watertight seals for power and control lines.
Other common applications include:
- Medical equipment chassis and test boxes
- Portable instrument panels
- Energy storage equipment interfaces
- Security and surveillance system enclosures
- Rail transportation control panels
Quality Control and Testing Standards
When you source panel-mount connectors, quality verification matters. Our testing protocol aligns with international standards.
IPX8 Immersion Testing
Each batch undergoes immersion testing simulating operational depth for 30+ minutes. This verifies seal integrity under continuous water pressure.
Salt Spray Corrosion Resistance
48-72 hour salt spray testing per ASTM B117 confirms long-term corrosion resistance. Critical for marine and coastal installations.
Contact Retention Force Testing
We verify that pins maintain proper retention under pressure. No push-out failures during mating cycles.
Shell Continuity Verification
For shielded variants, shell-to-shell continuity testing guarantees EMI/RFI protection effectiveness.
Leakage Rate Analysis
Air pressure decay methods confirm the integrity of rear-potting and panel-side gaskets before shipment.
Every product undergoes 100% inspection for waterproof performance, durability, and electrical reliability under our ISO9001:2015 quality management system.
Frequently Asked Questions
Q: What board thickness can this connector accommodate?
A: The standard locknut plan obliges board thickness from 1.5mm to 5mm. Custom locknut lengths are accessible for thicker enclosures.
Q: Can I get custom stick setups past the standard 2/3/4/8 options?
A: Yes. We bolster OEM/ODM customization for specialized stick courses of action. Our building group can create private shape arrangements for your particular requirements.
Q: How do I guarantee appropriate fixing amid installation?
A: Guarantee the board set pattern is 16mm breadth with smooth edges. Fix the locknut to the indicated torque whereas compressing the silicone gasket equally around the circumference.
Q: What end strategy is suggested for high-vibration environments?
A: Patch glass end gives predominant mechanical solidness compared to screw terminals in high-vibration applications. Consider strain help on the cable side.
Q: Is this connector consistent with computerized gathering processes?
A: Yes. The standardized board set pattern and rear-entry plan disentangle robotized establishment. We can give custom stick lengths for PCB integration in mechanized generation lines.
Why Choose Cablein Technology
Since 2017, we've specialized in mechanical waterproof connectors from our 6,000㎡ office in Shenzhen. Our group of over 200 experts guarantees steady quality and quick worldwide delivery.
We hold over 30 utility demonstrate licenses and give full CE, RoHS, ETL, PSE, TUV, and ISO9001:2015 compliance. Our steady stock surpasses 10,000 pieces per thing with standard conveyance in 7-10 days.
You get 24-hour specialized back and end-to-end extend help. We accomplice with UPS, DHL, and FedEx for effective around the world shipping.
Get Started with Your P16 Solution
Contact us at nick@cableinco.com to discuss your P16 Panel Mount Waterproof Connector requirements, request technical specifications, or arrange sample evaluation. Let's build reliable connections together.
