P16 Push Pull Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for tool-free field wiring.
3. Self locking mechanism provides audible click feedback for secure mating.
4. Widely used in portable medical devices, test instruments, and battery chargers.
5. Screw termination design allows quick assembly without crimping tools.
6. CE and TUV certified under ISO9001 and RoHS compliance.
7. Tested for 500+ mating cycles to ensure long-term reliability.
8. Custom pin configurations, cable lengths, and pre-wired assemblies available.
P16 Push Pull Waterproof Connector – Reliable Industrial Connectivity Solution
When your project demands secure connections in challenging environments, the P16 Push Pull Waterproof Connector delivers unmatched performance. Built by Cablein Innovation with IP67/IP68 security evaluations, this field-assembled connector highlights a PA66 nylon body, gold-plated brass contacts, and silicone seals. You'll appreciate its tool-free establishment and self-locking component that gives capable of being heard tap criticism. Tried for 500+ mating cycles and certified beneath CE, TUV, and RoHS guidelines, it works dependably from -40℃ to 150℃. With appraised streams of 5A to 15A and cover resistance of 500MΩ, this connector guarantees steady execution over versatile restorative gadgets, test rebellious, and battery chargers.
What Is a P16 Push Pull Waterproof Connector?
The P16 Push Pull Waterproof Connector is a high-precision circular interconnect solution featuring a specialized self-latching mechanism designed for rapid engagement and disengagement.
Unlike conventional strung connectors that require turn and apparatuses, this imaginative plan permits you to essentially thrust to bolt and drag to open. This usefulness essentially decreases establishment time and anticipates human mistake amid field assembly.
The connector tackles basic torment focuses you may confront day by day. It avoids coincidental detachment in high-vibration situations. It fits impeccably into space-constrained electronic boards. And it gives dependable airtight fixing where dampness assurance is non-negotiable.
You'll discover the daze mating capability especially profitable. It permits association indeed when perceivability is constrained, decreasing support downtime in mechanical or restorative settings where each miniature counts.
Key Technical Properties and Specifications
Your applications demand connectors that withstand extreme conditions, and this product delivers exceptional technical performance.
Physical Construction:

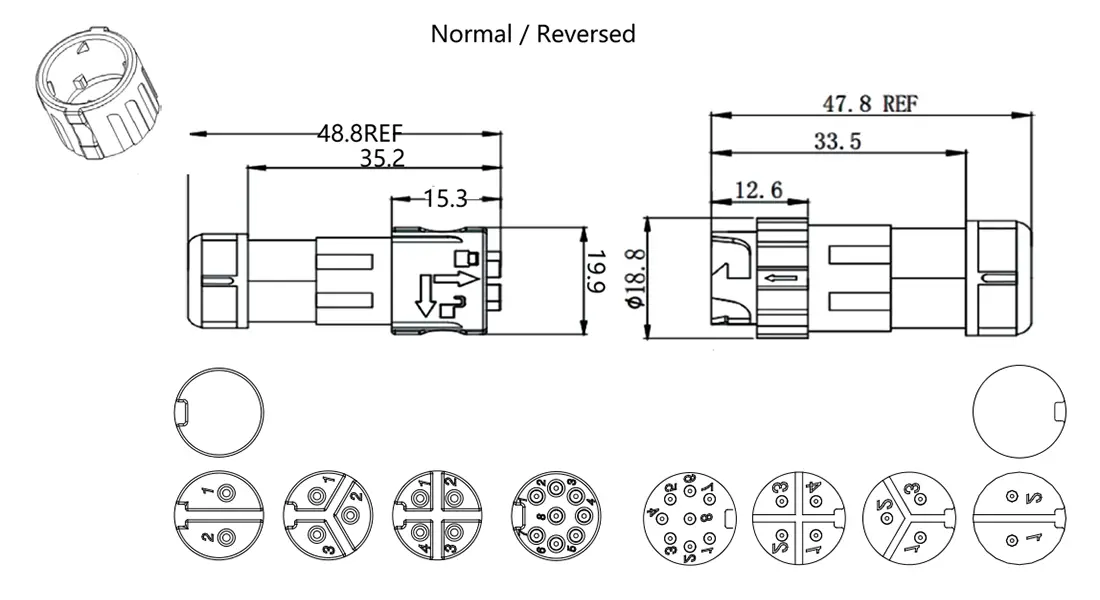

- Shell diameter: 16mm circular design
- Body material: PA66 nylon housing with chrome-plated brass or stainless steel shell options
- Contact system: Gold-plated copper alloy contacts
- Insulators: High-grade PPS or PEEK materials
Electrical Performance:
- Rated voltage: 500V / 110V DC/AC
- Rated current: 15A / 5A depending on configuration
- Contact resistance: <5mΩ for optimal signal integrity
- Withstand voltage: 3KV / 1KV
- Insulation resistance: 500MΩ minimum
Environmental Protection:
- Waterproof rating: IP67/IP68 certified
- Temperature range: -40℃ to 150℃ operational tolerance
- Mechanical life: Exceeds 5,000 mating cycles
- Salt spray test: 96-hour corrosion resistance compliant
Advanced Features:
- 360-degree EMC/EMI shielding for signal protection
- Screw termination accepts 5-10mm cable diameter range
- Available pin configurations: 2/3/4/8 contacts
- Dielectric withstanding voltage ensures long-term reliability
These specifications make the connector ideal for both indoor industrial applications and outdoor deployment where environmental stressors are constant.
Primary Application Sectors
Medical Electronics:
You can integrate this connector into diagnostic equipment and patient monitors where fluid ingress protection is mandatory. The design supports sterilization compatibility, including autoclaving procedures required in clinical environments. Many hospitals rely on this technology for life-critical monitoring systems.
Industrial Automation and Sensors:
Your outdoor sensor networks and robotic arms require connections that withstand constant movement, moisture, and dust. The P16 Push Pull Waterproof Connector maintains signal integrity even during continuous operation in manufacturing facilities, agricultural automation, and security surveillance systems.
Test and Measurement:
High-end laboratory instruments and field survey tools demand reliable performance in unpredictable weather conditions. This connector ensures precise data transmission despite environmental stressors, making it perfect for battery chargers, portable test equipment, and renewable energy monitoring systems.
Additional Industries:
- LED lighting systems and urban landscape installations
- Solar energy and EV charging infrastructure
- Energy storage equipment connections
- Underwater robotics applications
- Rail transportation signaling systems
Quality Control and Testing Standards
At Cablein Technology, we implement comprehensive quality assurance protocols to guarantee every connector meets international standards.
Inspection Procedures:
- Air Leakage/Hermeticity Testing: We utilize helium mass spectrometry to verify IP68 seal integrity, ensuring no moisture penetrates the connection.
- Insulation Resistance Test: Values exceed 1000MΩ at 500V DC according to IEC 60512-2 standards, confirming electrical isolation.
- Contact Retention Force: We test the mechanical strength of pins within the insulator to prevent accidental contact displacement.
- Vibration and Shock Testing: Simulated field conditions verify that the push-pull latching mechanism remains secure under extreme mechanical stress.
- Solderability and Thermal Cycle Testing: Long-term operational temperature shifts are simulated to guarantee structural and electrical integrity.
Every unit undergoes 100% inspection before shipment. Our ISO9001:2015 certified facility maintains strict documentation of all testing results, providing you with traceable quality assurance.
Why Choose Cablein's P16 Connector?
One-Handed Operation:
The push-pull self-locking component empowers speedy mating and unmating with clear capable of being heard tap criticism. You'll know instantly when the association is secure, disposing of mystery amid installation.
Superior Natural Protection:
IP67 and IP68 evaluated seals secure your associations from tidy entrance and brief submersion. Whether you're working outside in rain or in dusty mechanical settings, this connector keeps up performance.
Tool-Free Installation:
The screw end plan acknowledges different wire gages, advertising adaptable on-site wiring without specialized creasing instruments. This highlight diminishes your establishment costs and preparing requirements.
Proven Reliability:
Gold-plated contacts provide steady electrical execution over rehashed association cycles. You won't involvement flag debasement indeed after thousands of mating operations.
Global Compliance:
Our connectors carry different worldwide certifications counting CE, RoHS, TUV, ETL, PSE, and SAA. You can send them unquestionably over worldwide markets without compliance concerns.
Customization Support:
We offer custom stick arrangements, cable lengths, and pre-wired gatherings custom-made to your particular prerequisites. With over 30 utility demonstrate licenses and 9 a long time of industry encounter, our designing group gives OEM/ODM customization and private form development.
Frequently Asked Questions
Q: What makes the item prevalent to screw-thread connectors?
A: The P16 gives quicker locking, visual and capable of being heard affirmation of mating, and higher thickness by disposing of the space required for a torque. You'll diminish establishment time by up to 70% compared to strung alternatives.
Q: Can this connector be utilized in saltwater environments?
A: Yes, given the shell is treated with high-micron chrome or made of 316L stainless steel to pass the 96-144 hour salt shower test. We offer marine-grade alternatives particularly for coastal and submerged applications.
Q: What is the most extreme current rating?
A: Depending on the stick setup, it can handle between 2A and 20A per contact. Contact our building group to decide the ideal arrangement for your control requirements.
Q: Does the connector bolster information conventions like Ethernet?
A: Yes, specialized embeds are accessible for Cat5e and Cat6 high-speed information transmission whereas keeping up the IP68 rating. This makes it culminate for reconnaissance cameras and mechanical IoT applications.
Q: Is the locking instrument inclined to wear?
A: No, high-precision machining guarantees the locking spring keeps up its pressure for over 5,000 cycles, distant surpassing industry standard prerequisites. You can anticipate a long time of dependable service.
Q: What cable breadth can I utilize with this connector?
A: The get together acknowledges cables extending from 5mm to 10mm in breadth, obliging most standard mechanical and commercial wire types.
Q: How rapidly can you provide standard configurations?
A: We keep up steady stock of more than 10,000 pieces per thing with standard conveyance inside 7-10 days. Custom orders are planned adaptably based on your venture timeline.
Partner With Cablein for Reliable Connectivity
Ready to upgrade your connection solutions? Contact us at nick@cableinco.com to request P16 Push Pull Waterproof Connector samples, download technical specifications, or discuss your project requirements with our engineering team.
