P16 Self Lock Waterproof Connector

P16 Self Lock Waterproof Connector – Industrial Grade Circular Connector Solution

When you need reliable connectivity in challenging environments, the P16 Self Lock Waterproof Connector delivers exceptional performance. Built by Cablein Innovation with a 16mm board set pattern breadth, this connector highlights a self-locking push-pull component that guarantees secure, tool-free mating in seconds. With IP67/IP68 waterproof appraisals and a PA66 nylon body lodging gold-plated brass contacts, it withstands temperatures from -40℃ to 150℃. Evaluated for 500+ mating cycles and supporting up to 15A current at 500V, this item tackles basic torment focuses like dampness entrance, vibration-induced disengagement, and field establishment complexity. Whether you're conveying restorative gadgets, open air lighting systems, or mechanical computerization hardware, this connector gives the toughness and unwavering quality your applications demand.

What Makes the P16 Self Lock Waterproof Connector Stand Out?

The P16 arrangement addresses real-world challenges you confront every day. Inadvertent disengagements? The coordinates self-locking component gives material input when completely locked in. Stressed approximately water harm? The silicone fixing ring makes a obstruction that meets IP68 benchmarks for persistent inundation protection.

Your establishment groups will appreciate the one-handed operation. No apparatuses required. No field wiring required with our overmolded cable congregations. Fair adjust, thrust, and listen the press. That's it.

The development talks to life span. High-strength PA66 designing plastic stands up to chemicals, UV radiation, and mechanical affect. Gold-plated contacts keep up moo resistance underneath 5mΩ indeed after hundreds of associations. This isn't a connector that falls flat when you require it most.

Technical Specifications That Matter to Your Projects

Understanding the numbers helps you make informed decisions:

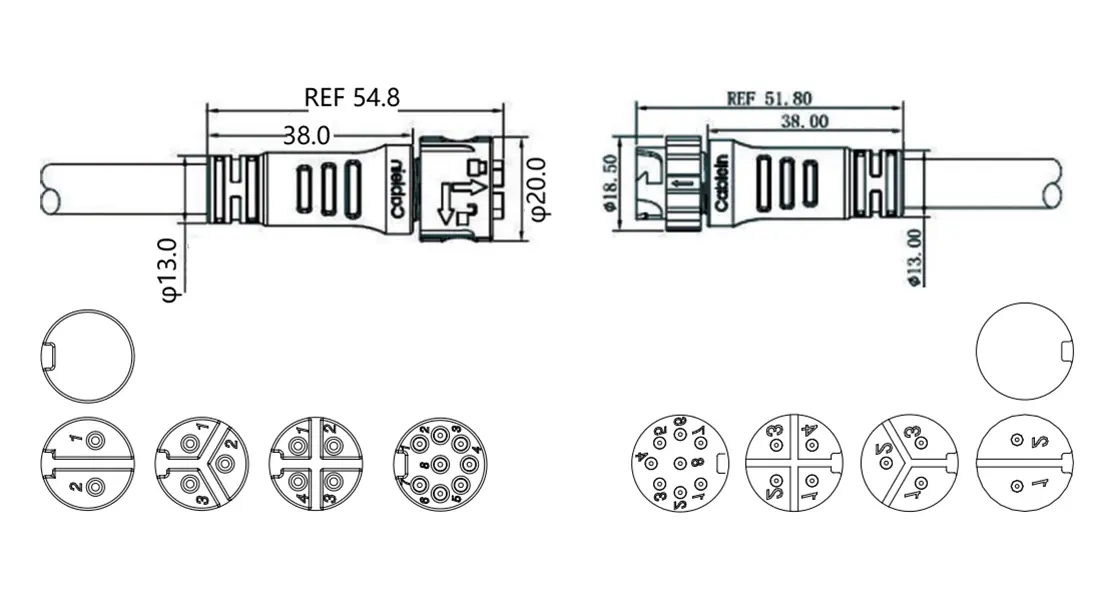

• Pin configurations: Choose from 2, 3, 4, or 8 contacts based on your signal and power requirements
• Voltage ratings: 500V or 110V DC/AC options suit different application voltages
• Current capacity: 15A or 5A ratings depending on pin count and configuration
• Withstand voltage: Tested at 3KV or 1KV for electrical safety compliance
• Insulation resistance: Exceeds 500MΩ to prevent leakage current
• Temperature range: Operates reliably from -40℃ to 150℃
• Cable diameter compatibility: 5-10mm range accommodates standard industrial cables

These specifications aren't arbitrary numbers. They represent tested performance that protects your equipment and ensures system uptime.

Where You'll Use This Connector

Medical Equipment: Portable diagnostic devices and battery chargers benefit from the quick-disconnect feature. The IP67 rating protects against cleaning solution splashes.

Industrial Automation: Sensor connections on production lines stay secure despite constant vibration. The self-locking mechanism prevents costly downtime from loose connections.

Outdoor Lighting: LED systems for stadiums, landscapes, and agricultural applications withstand rain, dust, and temperature extremes. The waterproof seal keeps moisture out season after season.

Renewable Energy: Solar panel junction boxes and battery storage systems rely on the connector's high current capacity and environmental resistance.

Test Equipment: Field technicians appreciate the rapid connection and disconnection during equipment setup and troubleshooting.

Quality You Can Verify

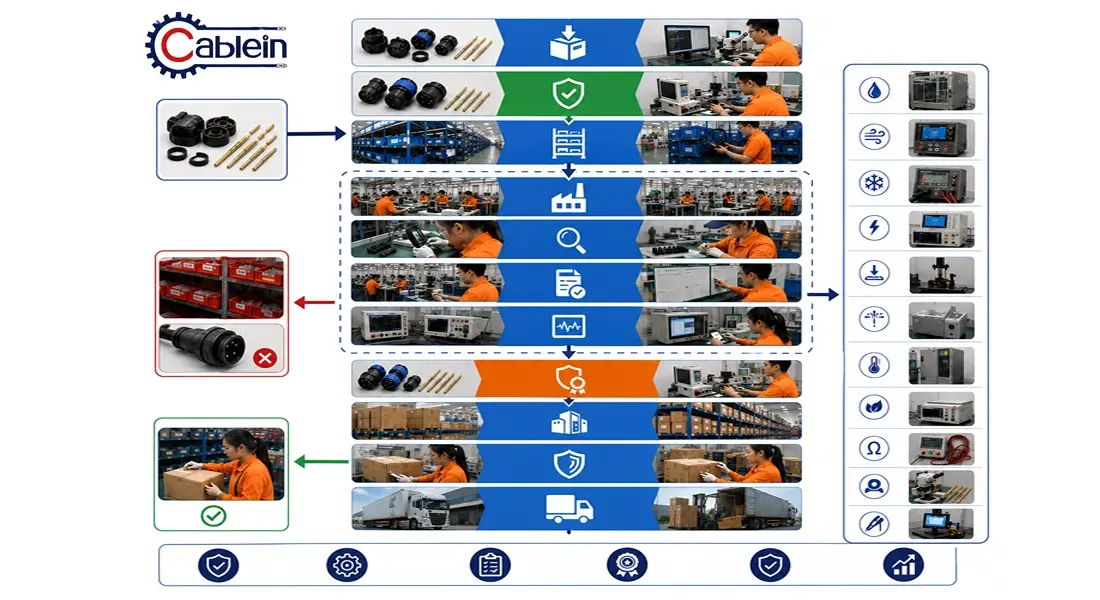

Every P16 Self Lock Waterproof Connector leaving our 6,000 ㎡ facility undergoes comprehensive testing. We don't just claim quality—we verify it through:

• Salt spray corrosion testing for 48-96 hours to ensure finish durability
• Mechanical cycling tests simulating 500+ connection cycles
• High-voltage insulation testing to prevent electrical failure
• Thermal shock testing from -40℃ to +105℃
• Water immersion testing to verify IP67/IP68 compliance

Our ISO9001:2015 certified quality management system ensures consistency. TUV and CE certifications validate our compliance with international standards. You receive documentation with every order.

Customization for Your Specific Needs

Standard products work for many applications, but your project might need something more. We offer:

• Custom cable lengths from 0.3m to 10m or longer
• Wire gauge selection based on current requirements
• Connector exit angles (straight, 90-degree, or custom orientations)
• Color-coded housings for easy field identification
• Mixed contact configurations combining power and signal pins
• Private mold development for unique mechanical requirements

Our engineering team has over 30 utility model patents. We understand the technical challenges you face and can develop solutions that integrate seamlessly into your systems.

Factory-Ready Cable Assemblies

The overmolded construction eliminates field termination headaches. You receive a complete cable assembly with the connector permanently bonded to the cable. No stripping wires. No crimping contacts. No potential for installation errors.

This approach delivers several advantages:

• Consistent quality controlled in our manufacturing environment
• Reduced installation time and labor costs
• Enhanced strain relief at the cable entry point
• Improved waterproof integrity compared to field-assembled alternatives
• Ready for immediate deployment

Why Partner With Cablein Technology?

Founded in 2017 in Shenzhen's high-tech manufacturing hub, we've built our reputation on reliability. Our 200+ person team combines engineering expertise with manufacturing precision.

Inventory availability: We maintain stock of 10,000+ pieces per item for rapid fulfillment. Standard orders ship within 7-10 days.

Global reach: Through partnerships with UPS, DHL, FedEx, and freight forwarders, we deliver efficiently to over 100 countries.

Technical support: Our team provides 24-hour assistance for connector selection, custom design, and troubleshooting.

Innovation commitment: Continuous R&D keeps our products at the forefront of waterproof interconnection technology.

Frequently Asked Questions

Q: What is the most extreme water profundity this connector can handle?

A: Standard IP68 adaptations are evaluated for 1.5 to 3 meters for 2 hours. We can test and certify custom setups for more profound applications if your venture requires it.

Q: Can the P16 bolster high-speed information transmission?

A: Yes, particular multi-pin setups keep up flag keenness for RS232, RS485, and low-speed Ethernet conventions. Contact us to examine your information rate requirements.

Q: Will the self-locking component work when wearing gloves?

A: Completely. The ergonomic finished shell gives material input and simple operation indeed with mechanical gloves in cold climate conditions.

Q: How does gold plating thickness influence connector lifespan?

A: We offer 3μ" to 50μ" gold plating alternatives. Thicker plating suits high-frequency mating or low-voltage signals where oxidation anticipation is critical.

Q: Are these connectors RoHS and REACH compliant?

A: Yes, all our P16 connectors utilize lead-free, non-toxic materials assembly worldwide natural compliance benchmarks. Documentation is accessible upon request.

Q: Can I get tests some time recently setting a expansive order?

A: We give tests for testing and approval. Contact us to talk about your specialized prerequisites and test needs.

Q: What's the guarantee period?

A: Standard guarantee covers fabricating abandons. Expanded back is accessible for custom applications requiring long-term extend commitment.

Start Your Project Today

Ready to specify the right connector for your application? Our team is standing by to help you navigate technical requirements, review drawings, and confirm specifications. Contact us at nick@cableinco.com to request technical documentation, discuss customization options, or P16 Self Lock Waterproof Connector sample evaluation.
