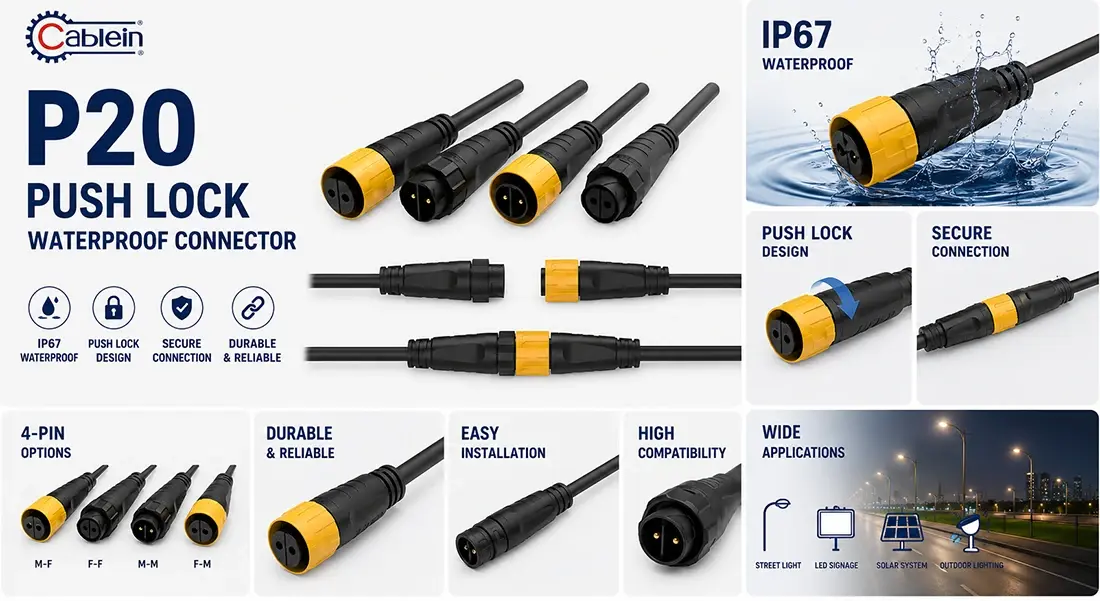

P20 Push Lock Waterproof Connector
2. Delivers IP67 or IP68 waterproof protection for higher power applications.
3. Self locking design provides audible click feedback for secure mating.
4. Ideal for industrial battery packs, marine equipment, and agricultural machinery.
5. Pre-molded cable construction reduces installation time and potential failure points.
6. ETL and RoHS certified under ISO9001 certified production processes.
7. Engineered for reliable performance in harsh operating conditions.
8. Full customization – choose cable length, wire gauge, jacket color, and pin arrangement.
P20 Push Lock Waterproof Connector – Enterprise-Grade Quick Connection Solution
Cablein Technology's P20 Push Lock Waterproof Connector delivers enterprise-level reliability with a self-locking push-pull design that installs in seconds. Built from PA66 nylon lodging with gold-plated brass contacts and silicone seals, it accomplishes IP67/IP68 assurance appraised for -40℃ to 150℃. Supporting 2 to 9 pins, it handles up to 25A current and 380V voltage with 3KV withstand capacity and 500MΩ separator resistance. Our pre-molded cable development dispenses with field wiring mistakes, whereas ETL and RoHS certifications beneath ISO9001:2015 forms guarantee reliable quality from our 6,000㎡ facility.
What Is a P20 Push Lock Waterproof Connector?

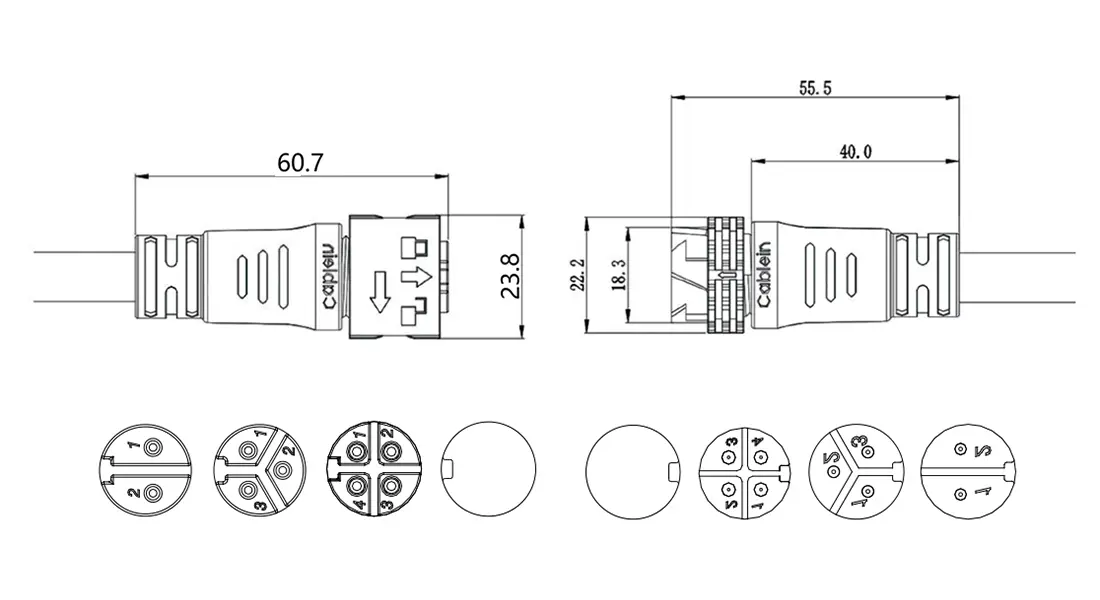

A P20 Push Lock Waterproof Connector is a 20mm industrial circular connector featuring rapid push-pull locking.
You get an capable of being heard tap when mated. This affirms a secure association each time.
Unlike strung connectors, it spares establishment time. Your group can total field setups faster.
The locking component stands up to vibration. This anticipates inadvertent disengagement in transport vehicles and overwhelming machinery.
It solves three critical challenges:
- Reduces labor costs during mass installations
- Eliminates ingress failures in outdoor conditions
- Maintains reliability where traditional seals degrade
You can trust it in harsh environments where failure is not an option.
Technical Properties You Can Rely On
Robust Material Construction
Our connector uses high-strength materials designed for durability.
The housing comes in rugged PA66 nylon with UL94-V0 fire rating. Gold-plated copper alloy contacts deliver stable conductivity with contact resistance below 5mΩ.
This combination ensures long-term performance in demanding applications.
Superior Electrical Performance
You get impressive specifications:
- Rated Current: Up to 25A per contact
- Voltage Capacity: 380V AC/DC
- Dielectric Strength: 3KV withstanding voltage
- Insulation Resistance: 500MΩ minimum
The P20 Push Lock Waterproof Connector handles both power and signal transmission efficiently.
Environmental Protection
IP67 and IP68 ratings protect against water and dust ingress.
Operating temperature spans -40℃ to 150℃. This wide range covers extreme cold and heat.
UV resistance prevents degradation under constant sun exposure. Salt spray resistance protects marine applications.
When you specify a metallic housing, you gain EMI/RFI shielding for sensitive signals.
Key Advantages That Set Us Apart
Plug-and-Play Simplicity
Our one-piece overmolded design arrives ready to use.
Factory-integrated termination means no wiring tools required. You simply push until you hear the click.
This reduces installation errors and speeds up project timelines.
Vibration-Resistant Security
The self-locking mechanism automatically engages upon insertion.
It holds firm in high-vibration environments. Equipment on moving vehicles or industrial machinery stays connected.
You avoid costly downtime from loose connections.
Flexible Customization
We support custom configurations to match your exact needs:
- Pin counts from 2 to 9 positions
- Cable gauges tailored to current requirements
- Jacket colors for easy identification
- Custom cable lengths
Our R&D team holds over 30 utility model patents. We can develop private molds for specialized applications.
Proven Quality Standards
Every Connector undergoes 100% inspection.
We test for:
- Salt spray resistance (48-96 hours per ASTM B117)
- Mechanical life (minimum 500-1000 mating cycles)
- IP68 immersion (1.5m depth for 24 hours)
- Insulation resistance (>500MΩ at 500V DC)
- Vibration and shock per IEC 60068
Our ISO9001:2015 certified processes ensure consistent quality.
Where You Can Use This Connector
Industrial Automation & Robotics
Perfect for CNC machinery and articulated robotic arms.
The vibration-resistant lock maintains signal integrity during high-motion operations. Your production lines run without interruption.
Outdoor LED & Lighting Systems
Ideal for architectural lighting and stadium installations.
Rapid daisy-chaining speeds up setup. The connector withstands high-pressure water jets during maintenance.
Marine & Underwater Equipment
Salt-spray resistant construction protects shipborne sensors.
Hermetically sealed design prevents corrosion in harsh marine environments. Your equipment stays operational longer.
Agricultural Machinery
Agricultural lighting and equipment face dust, moisture, and temperature extremes.
Our connector delivers reliable performance through all conditions.
EV Charging & Energy Storage
Battery pack connections require high current capacity and safety.
Gold-plated contacts ensure stable power delivery. IP68 protection guards against weather exposure.
Frequently Asked Questions
Q: How does the P20 Thrust Bolt compare to bayonet-style connectors?
A: The push-lock introduces speedier with steady weight. You maintain a strategic distance from over-tightening or under-tightening issues common with strung types.
Q: Can it handle both control and flag transmission?
A: Yes. Multi-pin setups from 2 to 9 pins permit cross breed control and information in one interface. You streamline your wiring architecture.
Q: Is field gathering possible?
A: Most P20 connectors back patch and screw end. You can utilize factory-molded cables or perform on-site repairs as needed.
Q: What advantage do gold-plated contacts provide?
A: Gold plating anticipates oxidation and keeps up moo contact resistance. This is basic for flag judgment in sensor applications.
Q: Does it offer EMI shielding?
A: When indicated with a metallic lodging, you get 360-degree protecting. This secures delicate signals from electromagnetic interference.
Q: What cable distance across run does it accommodate?
A: Our infusion molding prepare handles cables from 6mm to 13mm distance across. This covers most standard mechanical cable sizes.
Q: How numerous mating cycles can I expect?
A: Mechanical life testing approves 500 to 1000 cycles least. Genuine execution frequently surpasses this in ordinary use.
Why Choose Cablein Technology
Manufacturing Excellence
Our 6,000㎡ facility in Shenzhen houses advanced production equipment.
A professional team of over 200 employees ensures efficient manufacturing. We maintain stable inventory exceeding 10,000 pieces per item.
Standard delivery takes just 7-10 days. You get your connectors when you need them.
Global Compliance
Products carry CE, RoHS, ETL, PSE, SAA, TUV, and REACH certifications.
We meet international safety standards. You can specify our Connector with confidence for global projects.
Technical Support
Our engineering team provides 24-hour technical assistance.
We offer end-to-end project support from initial design through installation. You're never alone when challenges arise.
Proven Track Record
Founded in 2017, we've built partnerships across more than 100 countries.
Nine years of industry experience inform our product development. We understand your connectivity challenges because we've solved them before.
Get Your Custom P20 Solution Today
Ready to improve your installation efficiency and connection reliability? Contact us at nick@cableinco.com to discuss your P20 Push Lock Waterproof Connector requirements, request technical specifications, or arrange product samples.
