P25 Locking Cable Connector
2. Offers IP67 and IP68 waterproof ratings for demanding heavy-duty applications.
3. Push-pull self locking mechanism allows quick mating in hard-to-reach locations.
4. Suited for large medical systems, renewable energy storage, and industrial power distribution.
5. Overmolded cable assembly ensures consistent IP protection and strain relief.
6. TUV and CE certified, compliant with RoHS and ISO9001 standards.
7. Rated for operation from -40℃ to 150℃ for extreme environments.
8. We provide custom cable harnesses with your specification of length, gauge, and connector options.
P25 Locking Cable Connector – Industrial-Grade Waterproof Power Solution
Cablein Technology's P25 Locking Cable Connector delivers enterprise-level performance for applications demanding secure, high-current connectivity in extreme conditions. Designed with high-strength PA66 nylon lodging, gold-plated brass contacts, and silicone O-rings, this connector accomplishes IP67/IP68 waterproof assurance. It handles 25A nonstop current at 300V DC/AC, works dependably from -40℃ to 150℃, and highlights a push-pull self-locking component for fast mating. With 3KV withstand voltage, 100MΩ cover resistance, and TUV/CE/RoHS certification, the item guarantees fail-safe electrical progression in requesting mechanical, restorative, and renewable vitality establishments where vibration and natural stretch challenge standard connectors.
What Makes the P25 Locking Cable Connector Different?
You need a connection that won't fail when conditions get tough. That's where this connector stands out.
Unlike friction-fit alternatives, the P25 Locking Cable Connector integrates a mechanical locking system that prevents accidental decoupling. Your equipment stays connected even under constant vibration or mechanical stress.
The precision-molded lodging and factory-integrated overmolded cable gathering arrive prepared to utilize. No field get together implies less establishment mistakes and reliable IP assurance over each unit.
Three-pin and half breed 3+9 setups deliver you adaptability. Whether you're directing control alone or combining flag and control lines, this connector adjusts to your specification.

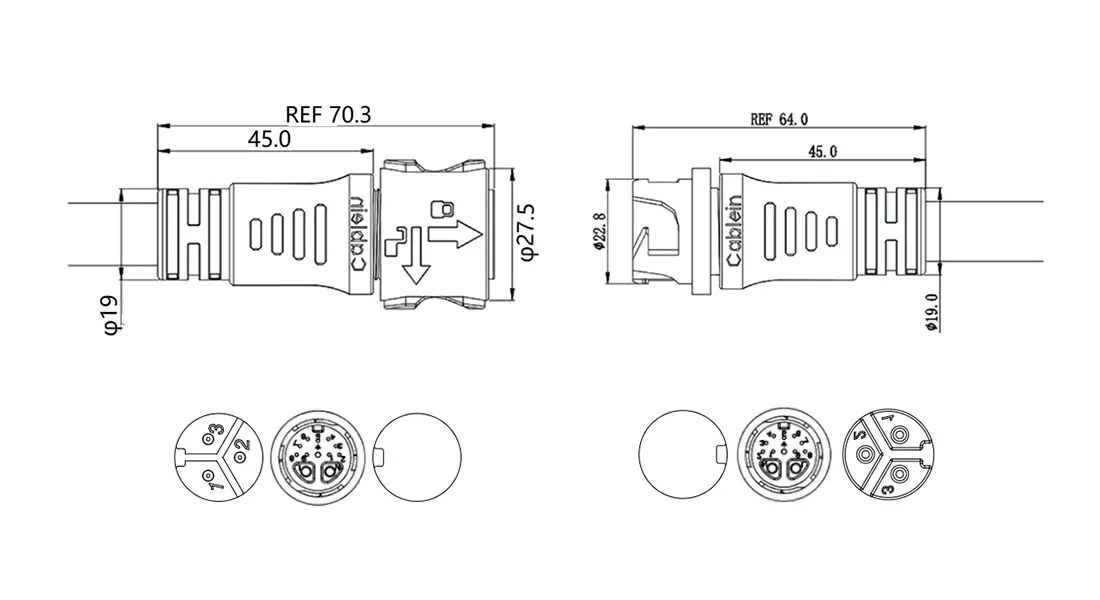

Technical Specifications at a Glance
Here's what you can count on:
- Rated Current: 25A main / 25A+5A hybrid
- Rated Voltage: 300V DC/AC
- Withstand Voltage: 3KV / 2KV
- Insulation Resistance: 100MΩ minimum
- IP Rating: IP67/IP68 waterproof protection
- Temperature Range: -40℃ to +150℃
- Cable Diameter: 7–15mm overmolded range
- Contact Plating: Gold-plated brass for low resistance
- Housing Material: PA66 nylon with UV resistance
These numbers translate to real-world reliability. Your connections stay dry, corrosion-free, and electrically stable for years.
Where You'll Use It
Renewable Vitality Systems
Solar inverters and vitality capacity banks request connectors that handle tall current and climate presentation. This locking cable connector secures DC control joins between boards, batteries, and charge controllers without benefit interruptions.
Large Restorative Equipment
Portable demonstrative units and understanding checking frameworks can't bear flag misfortune amid transport. The positive-lock component keeps basic information streaming indeed when gadgets are moved or adjusted.
Industrial Automation
PLC modules, automated arms, and engine drives work in situations filled with tidy, dampness, and vibration. The IP68 seal and fortified lodging secure inner contacts whereas the self-locking include anticipates free associations on dynamic generation lines.
LED and Scene Lighting
Outdoor establishments confront rain, temperature swings, and UV introduction. The wide working extend and corrosion-resistant materials guarantee your lighting systems remain lit season after season.
Why Choose Cablein's P25 Solution?
Factory-Integrated Assembly
You get a one-piece overmolded cable with connector pre-attached. No pleating, no patching, no botches. Fair plug and operate.
Push-Pull Self-Locking Mechanism
Insert the connector until you listen the press. It's bolted. Drag the lodging sleeve to discharge. Quick, instinctive, and secure.
Certified Quality

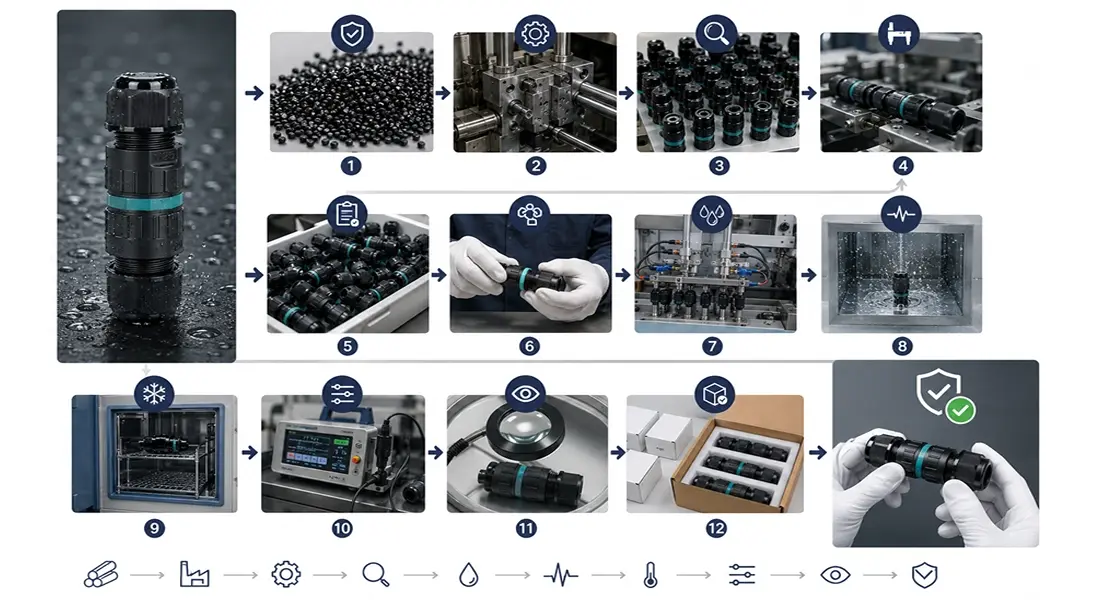

Every unit is tried to TUV, CE, and ISO9001:2015 benchmarks. RoHS and REACH compliance implies you meet worldwide natural controls without additional paperwork.
Custom Cable Harnesses
Need a particular length, gage, or stick setup? Our building group will plan a saddle custom fitted to your venture, total with half breed signal-power courses of action if required.
Proven Durability
Salt shower testing, vibration testing per MIL-STD-202, and dielectric withstanding voltage checks affirm this connector survives the harshest conditions.
Frequently Asked Questions
Q: Can I utilize this connector outside year-round?
A: Yes. The IP68 rating and -40℃ to +150℃ extend handle rain, snow, warm, and UV presentation without execution loss.
Q: What wire gages are compatible?
A: The overmolded gathering suits 7–15mm cable distances across. For custom saddles, we regularly work with 22 AWG to 12 AWG depending on current requirements.
Q: How numerous mating cycles can I expect?
A: The push-pull locking instrument is appraised for 50+ mating cycles with negligible maintenance drive degradation.
Q: Is the locking component congruous with standard connectors?
A: The locking geometry requires a coordinating repository. Standard non-locking headers will not lock in the bolt sleeve.
Q: Do you offer tests for testing?
A: Yes. Contact us to talk about test accessibility, specialized determinations, and your venture requirements.
Q: What certifications come with the product?
A: TUV, CE, RoHS, REACH, and ISO9001:2015. Extra certifications are accessible depending on your locale and application.
Get Your Custom Solution Today
Ready to eliminate connection failures in your P25 Locking Cable Connector? Contact Cablein at nick@cableinco.com to request technical datasheets, discuss custom cable assemblies, or arrange samples for your testing protocol.
